Here you will find all available parts and drawings of the 'Milwaukee 4000509095 (M18FAP180-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

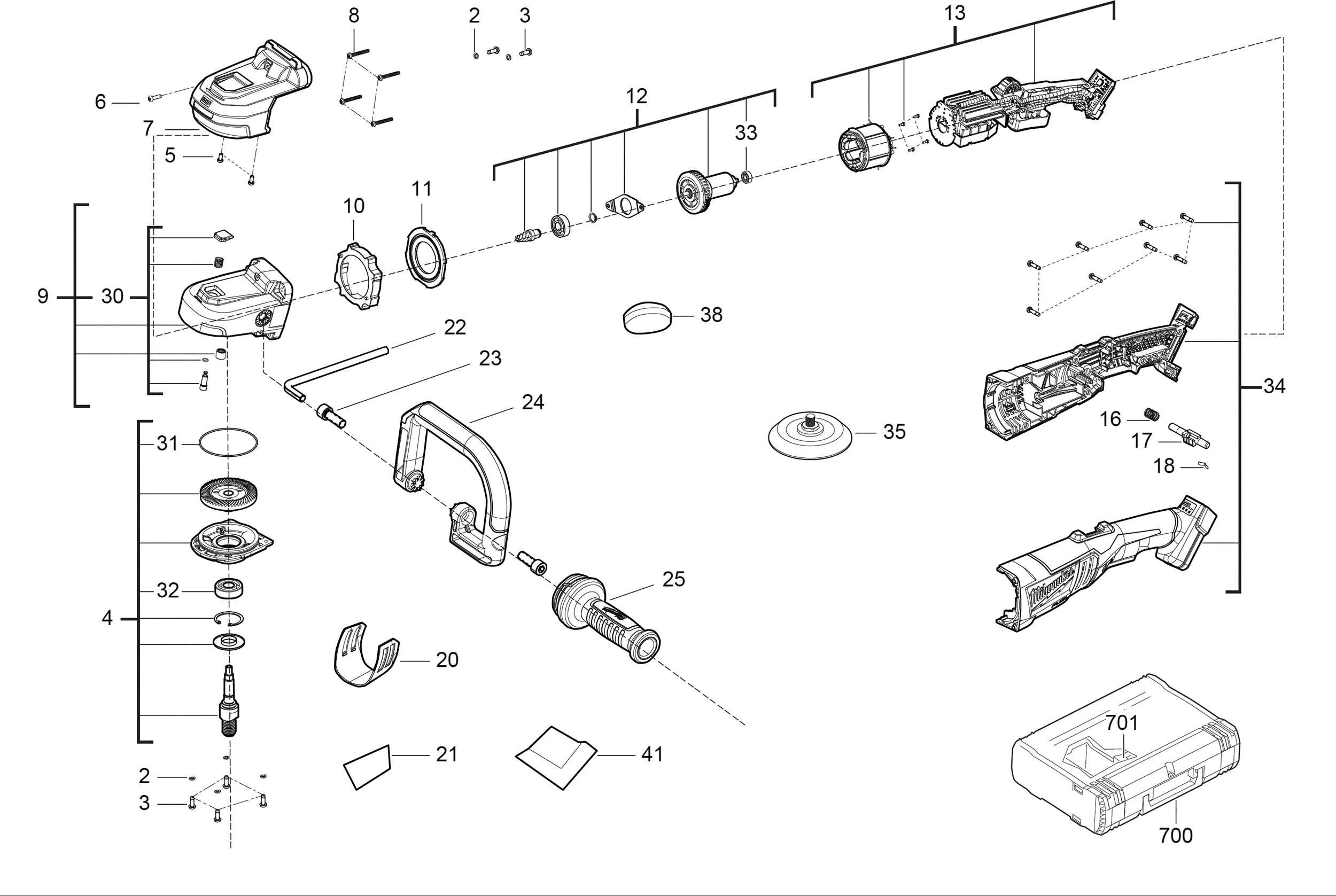

Technical drawing of model Milwaukee 4000509095 (M18FAP180-0)
Spare parts list of model Milwaukee 4000509095 (M18FAP180-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 0002 | 661113007 | |||
| PROTECTION WASHER (4 needed) | ||||
| 0003 | 680866003 | 3.60 | 4.36 | |
| GEARWHEEL SET | ||||
| 0004 | 4931454026 | 90.29 | 109.25 | |
| SCREW | ||||
| 0005 | 4931454390 | 3.00 | 3.63 | |
| SCREW (16 needed) | ||||
| 0006 | 660414013 | 3.00 | 3.63 | |
| GEAR BOX COVER | ||||
| 0007 | 4931454028 | 14.40 | 17.42 | |
| SCREW (20 needed) | ||||
| 0008 | 4931435023 | 3.00 | 3.63 | |
| GEAR BOX ASSY | ||||
| 0009 | 4931454029 | 77.62 | 93.92 | |
| No longer available, no replacement | ||||
| 0010 | 4931454030 | |||
| SPACER | ||||
| 0011 | 4931454031 | 3.00 | 3.63 | |
| ARMATURE | ||||
| 0012 | 4931454032 | 91.87 | 111.16 | |
| ELECTRIC COMPLETE | ||||
| 0013 | 4931454033 | 215.99 | 261.35 | |
| SPRING | ||||
| 0016 | 4931454034 | 3.00 | 3.63 | |
| LOCK RELEASE KIT | ||||
| 0017 | 4931454035 | 5.40 | 6.53 | |
| SPRING PLATE (2 needed) | ||||
| 0018 | 4931452341 | 3.60 | 4.36 | |
| FILTER | ||||
| 0020 | 4931454036 | 4.49 | 5.43 | |
| RATING PLATE | ||||
| 0021 | 4931507926 | 1.20 | 1.45 | |
| HEXAGON SOCKET | ||||
| 0022 | 4931454038 | 4.54 | 5.49 | |
| SCREW (4 needed) | ||||
| 0023 | 4931454039 | 3.00 | 3.63 | |
| SPEED HANDLE | ||||
| 0024 | 4931454040 | 14.40 | 17.42 | |
| AUXILIARY HANDLE | ||||
| 0025 | 4931435002 | 17.42 | 21.08 | |
| SPINDLE LOCK | ||||
| 0030 | 4931454041 | 8.09 | 9.79 | |
| O-RING | ||||
| 0031 | 4931454042 | 1.90 | 2.30 | |
| BALL BEARING | ||||
| 0032 | 4931446467 | 5.30 | 6.41 | |
| BALL BEARING | ||||
| 0033 | 4931436014 | 5.30 | 6.41 | |
| HOUSING | ||||
| 0034 | 4931454043 | 57.02 | 68.99 | |
| Polish Back Pad M14 HL 125mm-1pc | ||||
| 0035 | 4932430394 | 37.75 | 45.68 | |
| Polish Disc Lambw HL 135mm-1pc | ||||
| 0038 | 4932430395 | 30.71 | 37.16 | |
| Polish Cloth Microfibre-1pc | ||||
| 0041 | 4932430398 | 18.22 | 22.05 | |
| HD Box 3 - 1pc | ||||
| 0700 | 4932453386 | 66.79 | 80.82 | |
| No longer available, no replacement | ||||
| 0701 | 4931454044 | |||
