Here you will find all available parts and drawings of the 'Milwaukee 4000456845 ( M18FAP180-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

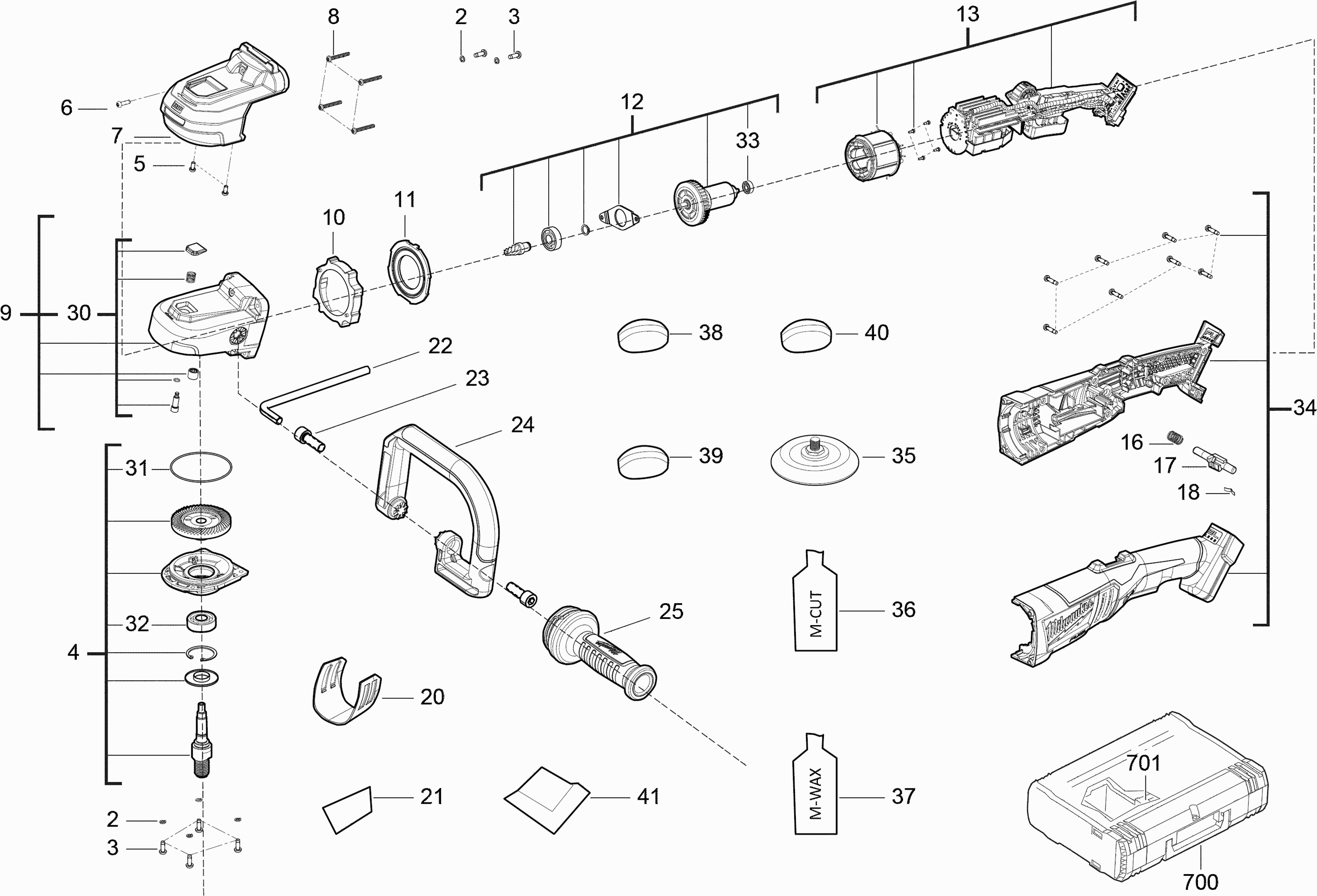

Technical drawing of model Milwaukee 4000456845 ( M18FAP180-0 )
Spare parts list of model Milwaukee 4000456845 ( M18FAP180-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 0002 | 661113007 | |||
| PROTECTION WASHER (4 needed) | ||||
| 0003 | 680866003 | 1.90 | 2.30 | |
| GEARWHEEL SET | ||||
| 0004 | 4931454026 | 90.29 | 109.25 | |
| SCREW (2 needed) | ||||
| 0005 | 4931454390 | 1.80 | 2.18 | |
| SCREW (6 needed) | ||||
| 0006 | 660414013 | 1.90 | 2.30 | |
| GEAR BOX COVER | ||||
| 0007 | 4931454028 | 14.40 | 17.42 | |
| SCREW | ||||
| 0008 | 4931435023 | 1.90 | 2.30 | |
| GEAR BOX ASSY | ||||
| 0009 | 4931454029 | 77.62 | 93.92 | |
| AIR DEFLECTOR RING | ||||
| 0010 | 4931454030 | 1.90 | 2.30 | |
| SPACER | ||||
| 0011 | 4931454031 | 1.80 | 2.18 | |
| ARMATURE | ||||
| 0012 | 4931454032 | 91.87 | 111.16 | |
| ELECTRIC COMPLETE | ||||
| 0013 | 4931454033 | 196.35 | 237.58 | |
| SPRING | ||||
| 0016 | 4931454034 | 1.80 | 2.18 | |
| LOCK RELEASE KIT | ||||
| 0017 | 4931454035 | 5.40 | 6.53 | |
| SPRING PLATE | ||||
| 0018 | 4931452341 | 1.90 | 2.30 | |
| FILTER | ||||
| 0020 | 4931454036 | 4.49 | 5.43 | |
| RATING PLATE | ||||
| 0021 | 4931454037 | 1.90 | 2.30 | |
| HEXAGON SOCKET | ||||
| 0022 | 4931454038 | 4.49 | 5.43 | |
| SCREW (2 needed) | ||||
| 0023 | 4931454039 | 1.80 | 2.18 | |
| SPEED HANDLE | ||||
| 0024 | 4931454040 | 14.40 | 17.42 | |
| AUXILIARY HANDLE | ||||
| 0025 | 4931435002 | 17.42 | 21.08 | |
| SPINDLE LOCK | ||||
| 0030 | 4931454041 | 8.09 | 9.79 | |
| O-RING | ||||
| 0031 | 4931454042 | 1.80 | 2.18 | |
| BALL BEARING | ||||
| 0032 | 4931446467 | 4.42 | 5.35 | |
| BALL BEARING | ||||
| 0033 | 4931436014 | 4.49 | 5.43 | |
| HOUSING | ||||
| 0034 | 4931454043 | 57.02 | 68.99 | |
| Polijststeunschijf 125 mm | ||||
| 0035 | 4932430394 | 31.93 | 38.64 | |
| Polijstpasta M-Cut 250 ml | ||||
| 0036 | 4932430475 | 39.05 | 47.25 | |
| Polijstpasta M-Wax 250 ml | ||||
| 0037 | 4932430476 | 32.89 | 39.80 | |
| Lamswollen polijststeunschijf 135 mm | ||||
| 0038 | 4932430395 | 27.92 | 33.78 | |
| No longer available, no replacement | ||||
| 0039 | 4932430396 | |||
| No longer available, no replacement | ||||
| 0040 | 4932430397 | |||
| Microfiber weefsel | ||||
| 0041 | 4932430398 | 16.56 | 20.04 | |
| NO DESCRIPTION | ||||
| 0700 | 4932453386 | 60.72 | 73.47 | |
| INSERT | ||||
| 0701 | 4931454044 | 31.68 | 38.33 | |
