Here you will find all available parts and drawings of the 'Festool 487288 ( AXT50LA )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

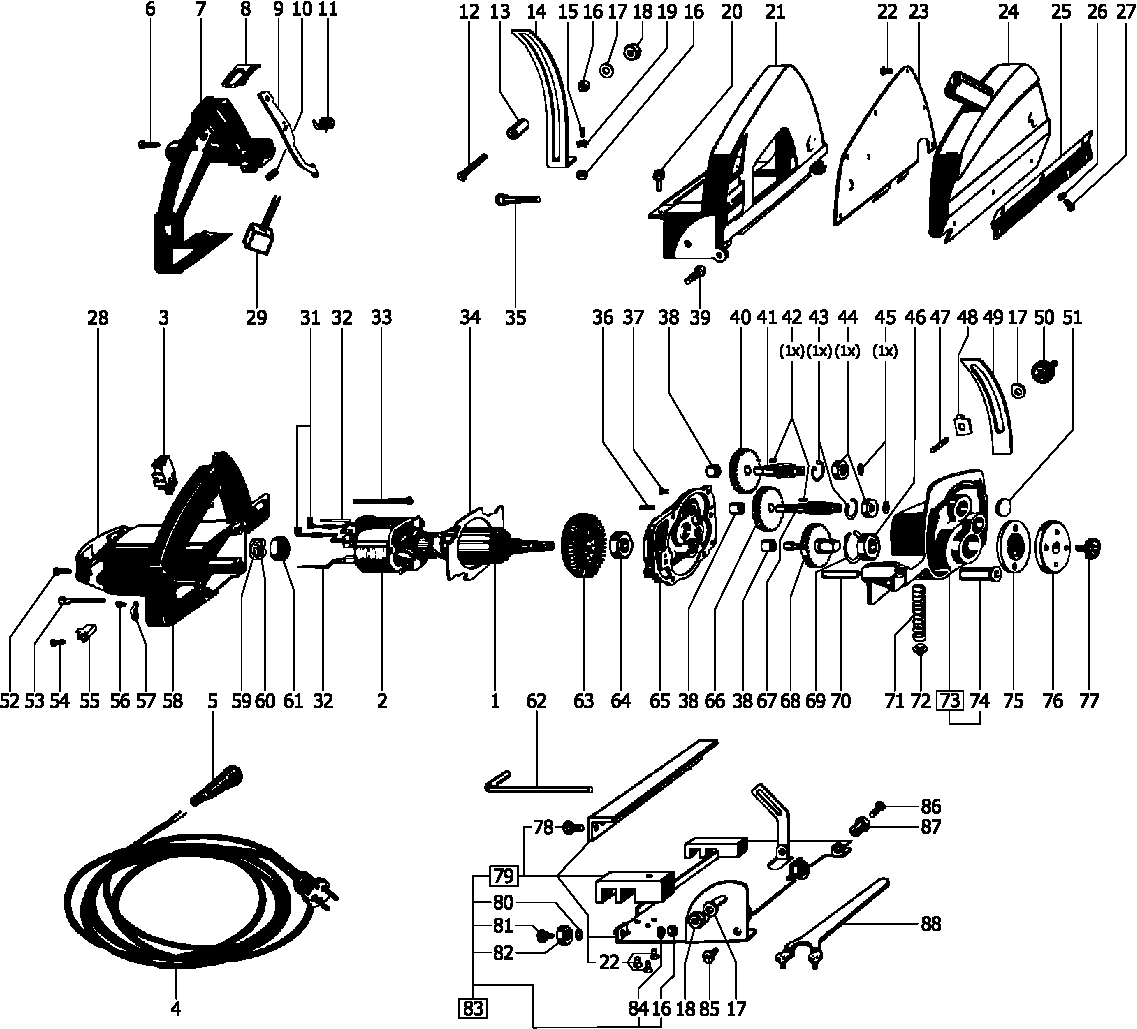

Technical drawing of model Festool 487288 ( AXT50LA )

Spare parts list of model Festool 487288 ( AXT50LA )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
ARMATURE AXT 50 VOLLST. ET-BG
1 494709 173.64 210.10
No information available, not orderable
2 xxx
No information available, not orderable
3 411603
CABLE WITH PLUG ZKS-22 DIN-H07RN-F
4 457603 24.80 30.01
Cable conduit RTR 1409
5 432436 1.39 1.68
Oval head screw PT-4,0x25-KT15
6 228580 1.39 1.68
No information available, not orderable
7 438595
TRIGGER AXT 55
8 434341 2.77 3.35
No information available, not orderable
9 434340
PIN 5 M6x22 DIN 6325 ST
10 402612 1.39 1.68
No information available, not orderable
11 434352
No information available, not orderable
12 219062
No information available, not orderable
13 435511
WEDGE AXT 55
14 434324 20.09 24.31
Countersink DIN 963-M6x10-4.8
15 207887 1.39 1.68
Hexagon nut DIN 439-M6
16 200601 1.39 1.68
Disc DIN 9021-6,4-100 HV
17 228546 1.39 1.68
Hexagon nut DIN 934-M6-10
18 228689 1.39 1.68
Serrated washer DIN 6797-V-6,4
19 203819 1.39 1.68
SCREW M5x16 POWERLOK
20 228617 1.39 1.68
Protective cove AXT 50 LA VOLLST.
21 484295 160.57 194.29
Countersink M4x10-TAPTITE-T15
22 228581 1.39 1.68
No information available, not orderable
23 435379
Dust-extraction AXT 50 LA
24 435402 143.87 174.08
BRUSH AXT 50LA
25 435512 24.08 29.14
Disc DIN 125-A-4,3-140 HV
26 200576 1.39 1.68
Oval head screw M4x8-TAPTITE-T15
27 228570 1.39 1.68
No information available, not orderable
28 500932
CAPACITOR AXT 50 LA ET
29 492778 18.15 21.96
No information available, not orderable
31 458518
WIRE AXT 55 VOLLST.
32 434951 3.50 4.24
Oval head screw PT-4,0x50-KT15
33 228707 1.39 1.68
Air guide washe AXT 50LA
34 435368 5.94 7.19
Ch. head screw DIN 912-M8x40-10.9
35 204485 1.39 1.68
No information available, not orderable
36 200755
Countersink M5x12-TAPTITE-T15
37 219056 1.39 1.68
SLEEVE BK 0912
38 411612 8.84 10.70
Hex head cap sc DIN 933-M6x18-8.8
39 402234 1.39 1.68
No information available, not orderable
40 435164
No information available, not orderable
41 436197
No information available, not orderable
42 402829
Circlip DIN 472-22x1
43 204471 1.39 1.68
Ball bearing 608 2Z LHT42
44 401523 4.62 5.59
Circlip DIN 471-8x0,8
45 200617 1.39 1.68
Ball bearing 6002 2Z DIN 625
46 401583 12.10 14.64
No information available, not orderable
47 219117
No information available, not orderable
48 435474
No information available, not orderable
49 435473
Rotary knob KF 4 E D 23 M6 / 8T
50 440712 2.51 3.04
No information available, not orderable
51 435369
Oval head screw PT-4.0x20-KT15
52 228567 1.39 1.68
Ch. head screw M5x50-TAPTITE
53 219057 1.39 1.68
Oval head screw PT-3,5x8-T15
54 219047 1.39 1.68
BRUSH HOLDER AP 65 E
55 488915 17.54 21.22
Oval head screw PT-3,5x16-KT15
56 228663 1.39 1.68
No information available, not orderable
57 447222
MOTOR HOUSING AXT 50 LA VOLLST.
58 485127 81.68 98.83
Shim ring DIN 988-19x26x0,5
59 434608 1.39 1.68
WASHER TN 232012
60 411613 1.39 1.68
BALL BEARING 6000 2Z C3 DIN 625
61 789573 7.85 9.50
Pin key AT 55 E SW 6
62 439274 3.77 4.56
FAN AxF 45
63 434765 36.90 44.65
BALL BEARING 6200 Z/RS DIN 625
64 219061 26.74 32.36
No information available, not orderable
65 435163
No information available, not orderable
66 435367
No information available, not orderable
67 435167
No information available, not orderable
68 435165
Circlip DIN 472-32x1,2
69 401246 1.39 1.68
No information available, not orderable
70 443877
No information available, not orderable
71 xxx
No information available, not orderable
72 438295
No information available, not orderable
73 482335
No information available, not orderable
74 435500
FLANGE AXT 50LA
75 435176 31.46 38.07
Counter flange AXT 50LA VOLLST.
76 482480 59.05 71.45
NUT AXT 55
77 434067 12.10 14.64
Oval head screw M4x10-TAPTITE-T15
78 228582 1.39 1.68
Plate AXT50LA F RUNG VOLLST.
79 483086 217.68 263.39
Spring washer DIN 137-A-6
80 200588 1.39 1.68
Flat head screw DIN 923-M6x6-4.8
81 203763 2.64 3.19
BALL BEARING 608 2Z C3 DIN 625
82 228559 4.30 5.20
Guide plate AXT 50LA F RUNG kompl.
83 483154 253.62 306.88
Disc DIN 125-B-6,4-140 HV
84 200578 1.39 1.68
Flat head screw DIN 923-M5x4-4.8
85 203783 1.98 2.40
Ch. head screw DIN 912-M5x16-10.9
86 200671 1.39 1.68
Eccentric bolt AXT 50
87 436516 21.30 25.77
CIRCULAR SAW AXT 55
88 437315 20.93 25.33
