Here you will find all available parts and drawings of the 'Fein 78231400177 ( MSHYO840-1 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

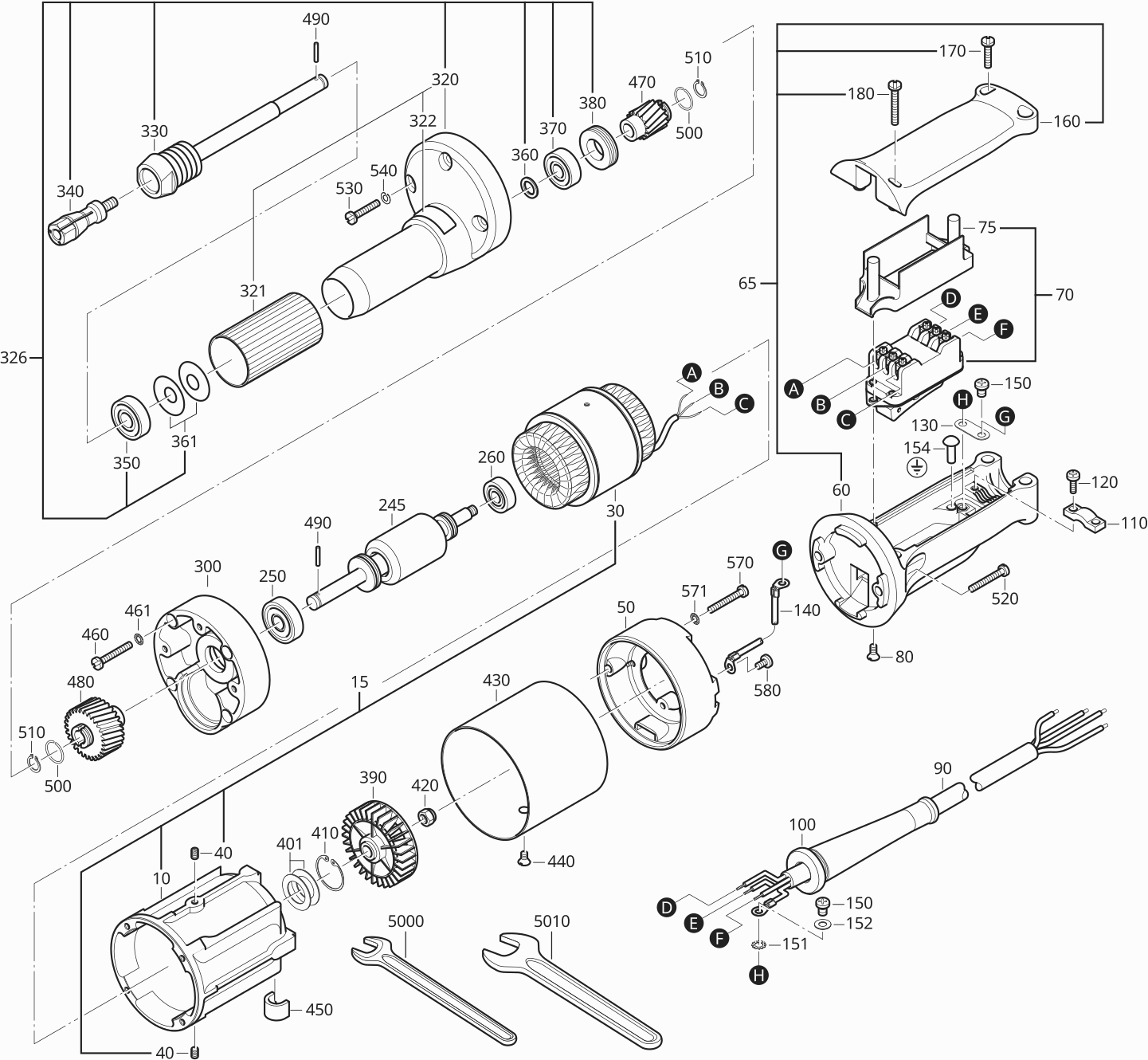

Technical drawing of model Fein 78231400177 ( MSHYO840-1 )
Spare parts list of model Fein 78231400177 ( MSHYO840-1 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31903073007 | 140.36 | 169.84 | |
| Motor housing with stat | ||||
| 15 | 52803003164 | 440.22 | 532.67 | |
| Stator | ||||
| 30 | 51803002164 | 366.21 | 443.11 | |
| Set screw M4X8 | ||||
| 40 | 43011002049 | 1.04 | 1.26 | |
| Housing | ||||
| 50 | 31207032008 | 84.22 | 101.91 | |
| Handle half shell | ||||
| 60 | 31204054001 | 37.00 | 44.77 | |
| Handle | ||||
| 65 | 31204054010 | 49.76 | 60.21 | |
| Switch 3Pole Including Dust Cap | ||||
| 70 | 30701043017 | 44.66 | 54.04 | |
| Cap | ||||
| 75 | 31428066001 | 9.05 | 10.95 | |
| Countersunk screw | ||||
| 80 | 43060003046 | 1.04 | 1.26 | |
| Cable | ||||
| 90 | 30706227011 | 62.52 | 75.65 | |
| Cable grommet | ||||
| 100 | 31413090003 | 3.48 | 4.21 | |
| Cable clamping piece | ||||
| 110 | 32431021007 | 1.04 | 1.26 | |
| Fillister head screw M3,5X10 | ||||
| 120 | 43041001994 | 1.04 | 1.26 | |
| Lug | ||||
| 130 | 32802042002 | 1.67 | 2.02 | |
| Connecting cable | ||||
| 140 | 30719023015 | 6.41 | 7.76 | |
| Fillister head screw | ||||
| 150 | 43041016042 | 1.04 | 1.26 | |
| Toothed washer | ||||
| 151 | 42439013046 | 1.04 | 1.26 | |
| Disc | ||||
| 152 | 42404005048 | 1.04 | 1.26 | |
| Rivet | ||||
| 154 | 32215029003 | 1.67 | 2.02 | |
| Handle half shell | ||||
| 160 | 31204053003 | 11.56 | 13.99 | |
| Flat headed screw | ||||
| 170 | 43003040049 | 1.04 | 1.26 | |
| Flat headed screw | ||||
| 180 | 43003042041 | 1.04 | 1.26 | |
| Rotor | ||||
| 245 | 33508027017 | 334.31 | 404.52 | |
| Grooved ball bearing | ||||
| 250 | 41701004246 | 6.61 | 8.00 | |
| Grooved ball bearing | ||||
| 260 | 41701001260 | 5.77 | 6.98 | |
| Intermediate gear box | ||||
| 300 | 31506338006 | 139.08 | 168.29 | |
| Fore piece | ||||
| 320 | 31510091016 | 371.32 | 449.30 | |
| Protective hose | ||||
| 321 | 31413086005 | 3.48 | 4.21 | |
| No information available, not orderable | ||||
| 322 | 32215026007 | |||
| Collar bearing | ||||
| 326 | 31510091022 | 875.34 | 1059.16 | |
| Shaft | ||||
| 330 | 33406204007 | 232.23 | 281.00 | |
| COLLETT 6MM | ||||
| 340 | 63207059006 | 27.36 | 33.11 | |
| Grooved ball bearing | ||||
| 350 | 41701006097 | 16.27 | 19.69 | |
| Disc | ||||
| 360 | 32408232004 | 2.93 | 3.55 | |
| Cup spring | ||||
| 361 | 30905034008 | 1.04 | 1.26 | |
| Grooved ball bearing | ||||
| 370 | 41701004090 | 15.31 | 18.53 | |
| Nut | ||||
| 380 | 42011023008 | 26.48 | 32.04 | |
| Fan wheel | ||||
| 390 | 31004032003 | 13.72 | 16.60 | |
| Disc | ||||
| 401 | 32624034038 | 1.88 | 2.27 | |
| Disc | ||||
| 401 | 32624034022 | 1.67 | 2.02 | |
| Circlip | ||||
| 410 | 42616033009 | 1.04 | 1.26 | |
| Nut | ||||
| 420 | 42019008060 | 1.04 | 1.26 | |
| Sleeve | ||||
| 430 | 30502053003 | 75.28 | 91.09 | |
| Countersunk screw | ||||
| 440 | 43060002042 | 1.04 | 1.26 | |
| Seal | ||||
| 450 | 30605023004 | 3.34 | 4.04 | |
| Cylinder head screw | ||||
| 460 | 43002041047 | 1.04 | 1.26 | |
| Circlip M4 | ||||
| 461 | 42443003043 | 1.04 | 1.26 | |
| Gear-wheel | ||||
| 470 | 33663007009 | 167.16 | 202.26 | |
| Gear-wheel | ||||
| 480 | 33663008007 | 119.94 | 145.13 | |
| Pin | ||||
| 490 | 40253005009 | 1.04 | 1.26 | |
| Spring ring | ||||
| 500 | 42615075002 | 1.25 | 1.51 | |
| Circlip | ||||
| 510 | 42616037008 | 1.04 | 1.26 | |
| Flat headed screw | ||||
| 520 | 43003042041 | 1.04 | 1.26 | |
| Flat headed screw | ||||
| 530 | 43003040049 | 1.04 | 1.26 | |
| Spring washer | ||||
| 540 | 42445001044 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 570 | 43002041047 | 1.04 | 1.26 | |
| Circlip M4 | ||||
| 571 | 42443003043 | 1.04 | 1.26 | |
| Flat headed screw | ||||
| 580 | 43003029048 | 1.04 | 1.26 | |
| RFID CHIP | ||||
| 2500 | 32217517000 | 1.25 | 1.51 | |
| SLEUTEL ENKEL | ||||
| 5000 | 62901007007 | 6.64 | 8.03 | |
| No information available, not orderable | ||||
| 5010 | 62901009009 | |||
| No information available, not orderable | ||||
| 9020 | 34130054061 | |||
