Here you will find all available parts and drawings of the 'Milwaukee 4000385820 ( WCE300M )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

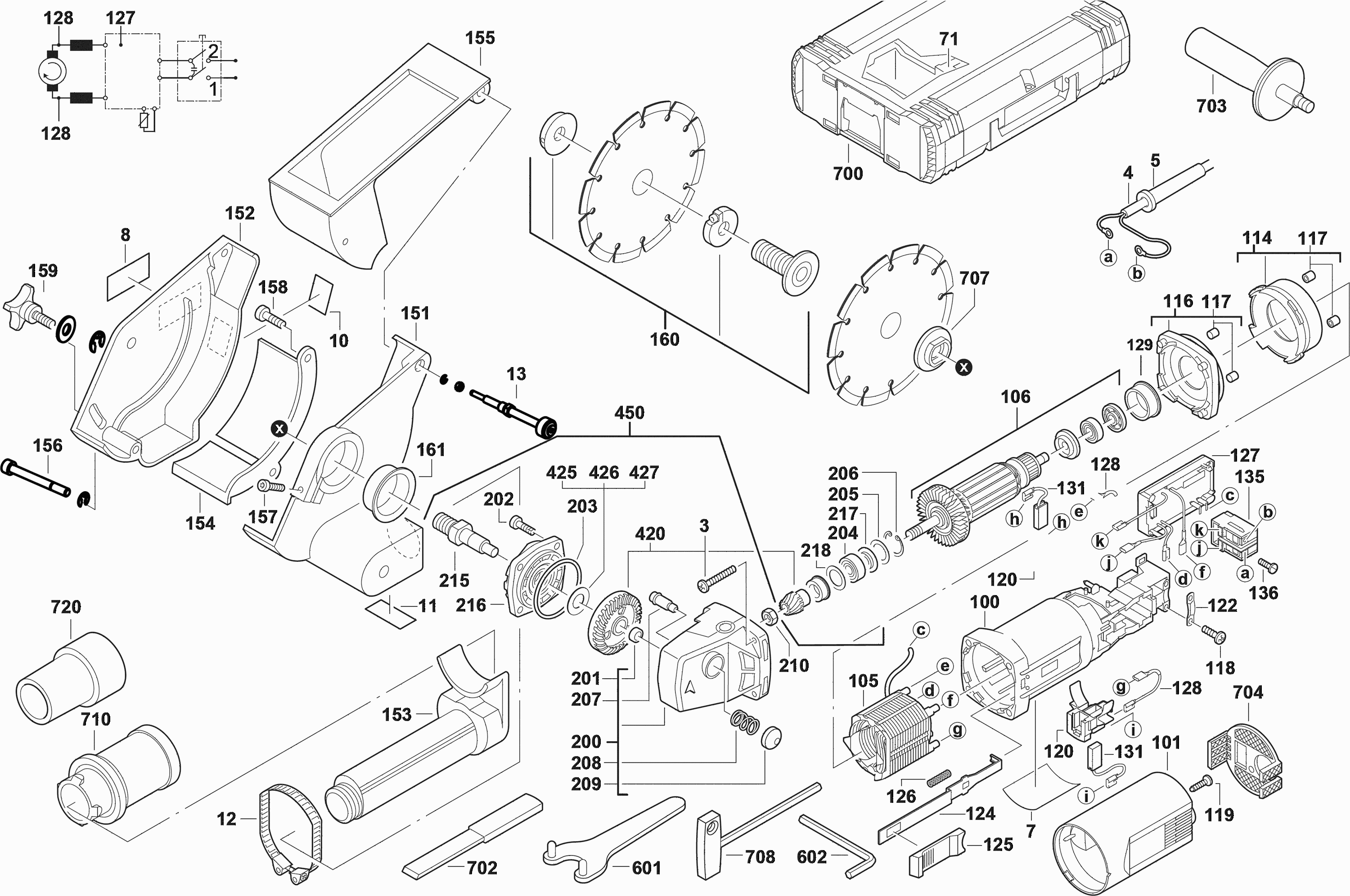

Technical drawing of model Milwaukee 4000385820 ( WCE300M )
Spare parts list of model Milwaukee 4000385820 ( WCE300M )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW D 7981 3,9X32 (4 needed) | ||||
| 0003 | 4931621515 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0004 | 4931624334 | 28.60 | 34.61 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931218785 | 5.40 | 6.53 | |
| RATING PLATE | ||||
| 0007 | 4931455684 | 1.80 | 2.18 | |
| RATING PLATE | ||||
| 0007 | 4931476738 | 1.26 | 1.52 | |
| NAME PLATE | ||||
| 0008 | 4931383017 | 1.80 | 2.18 | |
| DATA PLATE | ||||
| 0010 | 4931334659 | 4.49 | 5.43 | |
| DATA PLATE | ||||
| 0011 | 4931334660 | 4.49 | 5.43 | |
| LATCH PLATE | ||||
| 0012 | 4931334664 | 19.01 | 23.00 | |
| SUPPORT ROLL | ||||
| 0013 | 4931449440 | 52.27 | 63.25 | |
| THREADED PIN | ||||
| 0013 | 4931463109 | 52.27 | 63.25 | |
| INSERT | ||||
| 0071 | 4931378697 | 28.51 | 34.50 | |
| HOUSING SET ASSY | ||||
| 0100 | 4931449153 | 26.40 | 31.94 | |
| HOUSING CAP | ||||
| 0101 | 4931407395 | 6.31 | 7.64 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426582 | 59.70 | 72.24 | |
| ARMATURE | ||||
| 0106 | 4931442662 | 79.20 | 95.83 | |
| FAN | ||||
| 0107 | 4931341088 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0108 | 4931624662 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931271823 | 5.40 | 6.53 | |
| MAGNETIC DISC | ||||
| 0113 | 4931426570 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 0114 | 1000000003 | |||
| INTERMEDIATE FLANGE | ||||
| 0116 | 4931369787 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0117 | 4931409768 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 0118 | 4931624538 | 1.80 | 2.18 | |
| SCREW D 7985 M 4X16 | ||||
| 0119 | 4931619914 | 1.80 | 2.18 | |
| BRUSH HOLDER (2 needed) | ||||
| 0120 | 4931326923 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0122 | 4931256500 | 5.40 | 6.53 | |
| GUIDE PIECE | ||||
| 0124 | 4931326959 | 5.40 | 6.53 | |
| SLIDER | ||||
| 0125 | 4931455746 | 3.60 | 4.36 | |
| PRESSURE SPRING | ||||
| 0126 | 4931326981 | 5.40 | 6.53 | |
| ELECTRONIC ELEMENT | ||||
| 0127 | 4931362699 | 47.52 | 57.50 | |
| WIRE (2 needed) | ||||
| 0128 | 4931623738 | 4.49 | 5.43 | |
| BEARING SLEEVE | ||||
| 0129 | 4931326953 | 5.40 | 6.53 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931369477 | 14.40 | 17.42 | |
| SWITCH | ||||
| 0135 | 4931326976 | 14.40 | 17.42 | |
| SCREW D 85 AM 3,5X5 (2 needed) | ||||
| 0136 | 4931617313 | 1.80 | 2.18 | |
| SUCTION CAP | ||||
| 0151 | 4931413634 | 95.04 | 115.00 | |
| SUCTION CAP | ||||
| 0151 | 4931476185 | 64.90 | 78.53 | |
| GUARD CAP | ||||
| 0152 | 4931413635 | 60.19 | 72.83 | |
| CONNECTION | ||||
| 0153 | 4931476111 | 56.65 | 68.55 | |
| AIR DEFLECTOR RING | ||||
| 0154 | 4931334711 | 34.85 | 42.17 | |
| No longer available, no replacement | ||||
| 0155 | 4931334712 | |||
| SCREW | ||||
| 0156 | 4931449441 | 12.60 | 15.25 | |
| SCREW | ||||
| 0157 | 4931622928 | 1.80 | 2.18 | |
| SCREW D 912 M 4X8 GAL (2 needed) | ||||
| 0158 | 4931617290 | 1.80 | 2.18 | |
| GRIP | ||||
| 0159 | 4931449442 | 22.18 | 26.84 | |
| TENSIONING DEVICE | ||||
| 0160 | 4931449155 | 136.22 | 164.83 | |
| ISOLATION SLAFE | ||||
| 0161 | 4931362742 | 10.80 | 13.07 | |
| GEAR BOX | ||||
| 0200 | 4931412193 | 49.10 | 59.41 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0201 | 4931912093 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0202 | 4931317532 | 1.80 | 2.18 | |
| COMPENSATING WASHER | ||||
| 0203 | 4931254894 | 1.80 | 2.18 | |
| GROOVED BALL BEAR. | ||||
| 0204 | 4931368037 | 5.40 | 6.53 | |
| DISC | ||||
| 0205 | 4931622761 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0206 | 4931616614 | 5.40 | 6.53 | |
| LOCKING BOLT | ||||
| 0207 | 4931326929 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0208 | 4931326942 | 5.40 | 6.53 | |
| PUSH-BUTTON | ||||
| 0209 | 4931326930 | 5.40 | 6.53 | |
| NUT | ||||
| 0210 | 4931326952 | 5.40 | 6.53 | |
| SPINDLE | ||||
| 0215 | 4931409809 | 10.80 | 13.07 | |
| BEARING END PLATE | ||||
| 0216 | 4931385801 | 25.34 | 30.66 | |
| WASHER | ||||
| 0217 | 4931624287 | 1.80 | 2.18 | |
| WASHER | ||||
| 0218 | 4931362085 | 1.80 | 2.18 | |
| BEVEL GEAR PAIR | ||||
| 0420 | 4931369887 | 42.77 | 51.75 | |
| No information available, not orderable | ||||
| 0421 | 4931369773 | |||
| SEAL RING | ||||
| 0422 | 4931369774 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,1 | ||||
| 0425 | 4931808473 | 5.40 | 6.53 | |
| DISC N874237 12,2X22X0,2 | ||||
| 0426 | 4931925940 | 5.40 | 6.53 | |
| DISC | ||||
| 0427 | 4931624256 | 5.40 | 6.53 | |
| DRIVE GEAR | ||||
| 0450 | 4931391477 | 76.03 | 92.00 | |
| Opspansleutel, recht | ||||
| 0601 | 4932367712 | 8.16 | 9.87 | |
| SCREW DRIVER | ||||
| 0602 | 4931606753 | 1.80 | 2.18 | |
| CARRYING CASE SIZE2 MET | ||||
| 0700 | 4932383162 | 67.96 | 82.23 | |
| HANDLE | ||||
| 0703 | 4932409546 | 12.10 | 14.64 | |
| Stofbeschermrooster | ||||
| 0704 | 4932329397 | 17.60 | 21.30 | |
| CLAMPING FLANGE | ||||
| 0707 | 4931348960 | 5.40 | 6.53 | |
| T-sleutel | ||||
| 0708 | 4931362928 | 5.00 | 6.05 | |
| Afzuigslangadapter | ||||
| 0710 | 4932362778 | 30.14 | 36.47 | |
| No information available, not orderable | ||||
| 0720 | 1000000003 | |||
