Here you will find all available parts and drawings of the 'Milwaukee 4000401771 (V28JSB)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

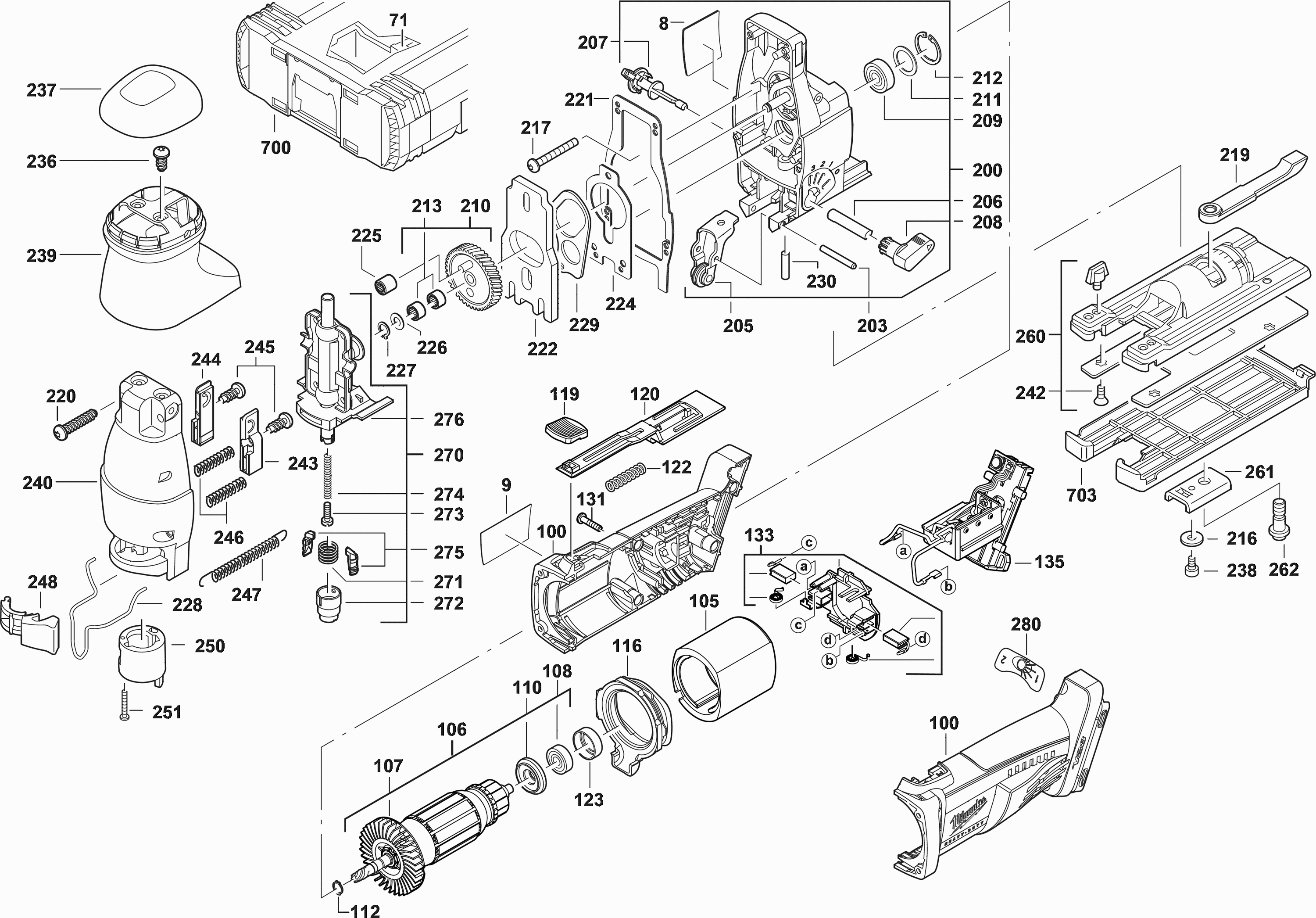

Technical drawing of model Milwaukee 4000401771 (V28JSB)
Spare parts list of model Milwaukee 4000401771 (V28JSB)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SAW TABLE | ||||
| 0008 | 4931401781 | 4.49 | 5.43 | |
| No information available, not orderable | ||||
| 0009 | 4931401780 | |||
| No information available, not orderable | ||||
| 0071 | 4931401774 | |||
| HOUSING | ||||
| 0100 | 4931407225 | 15.29 | 18.50 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931392390 | 59.95 | 72.54 | |
| ARMATURE | ||||
| 0106 | 4931442701 | 66.53 | 80.50 | |
| FAN | ||||
| 0107 | 4931342793 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0108 | 681383001 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931392383 | 3.00 | 3.63 | |
| RING D471 8X0,8 | ||||
| 0112 | 4931605103 | 2.16 | 2.61 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931401754 | 4.49 | 5.43 | |
| SLIDER | ||||
| 0119 | 4931401676 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0120 | 4931401755 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0122 | 4931327696 | 5.40 | 6.53 | |
| RUBBER SLEEVE | ||||
| 0123 | 4931351729 | 3.00 | 3.63 | |
| SCREW N874101-1 SHR H-K4X18 T15 (14 needed) | ||||
| 0131 | 4931624515 | 3.00 | 3.63 | |
| CARBON BRUSH SET | ||||
| 0133 | 4931511241 | 13.20 | 15.97 | |
| No longer available, no replacement | ||||
| 0135 | 4931417961 | |||
| GEAR BOX | ||||
| 0200 | 4931401779 | 74.45 | 90.08 | |
| PIN D 6325 4 M6X32 | ||||
| 0203 | 4931621942 | 6.48 | 7.84 | |
| HOLDER | ||||
| 0205 | 4931468106 | 10.20 | 12.34 | |
| INDEXING BOLT | ||||
| 0206 | 4931381103 | 6.48 | 7.84 | |
| SWITCH | ||||
| 0207 | 4931381156 | 5.40 | 6.53 | |
| SWITCH HANDLE | ||||
| 0208 | 4931378812 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0209 | 4931621829 | 9.00 | 10.89 | |
| GEAR | ||||
| 0210 | 4931401766 | 26.93 | 32.59 | |
| SEALING WASHER 21,8X15,8X0,2 | ||||
| 0211 | 4931803914 | 3.00 | 3.63 | |
| LOCKING RING D 472 22X1 | ||||
| 0212 | 4931613683 | 5.40 | 6.53 | |
| NEEDLE BEARING (2 needed) | ||||
| 0213 | 4931219422 | 3.00 | 3.63 | |
| DISC | ||||
| 0216 | 4931622131 | 5.40 | 6.53 | |
| SCREW D 7981 3,9X32 (4 needed) | ||||
| 0217 | 4931621515 | 2.16 | 2.61 | |
| TENSION LEVER | ||||
| 0219 | 4931381610 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0220 | 4931623020 | 3.00 | 3.63 | |
| SEAL | ||||
| 0221 | 4931381656 | 5.40 | 6.53 | |
| BALANCE WEIGHT | ||||
| 0222 | 4931381109 | 9.00 | 10.89 | |
| SHIM | ||||
| 0224 | 4931357577 | 5.40 | 6.53 | |
| NEEDLE BUSH | ||||
| 0225 | 4931361376 | 5.40 | 6.53 | |
| DISC N874237 6,1X12X0,5 | ||||
| 0226 | 4931621830 | 5.40 | 6.53 | |
| RING D471 6X0,7 | ||||
| 0227 | 4931605092 | 5.40 | 6.53 | |
| WIRE STRAP | ||||
| 0228 | 4931357982 | 6.48 | 7.84 | |
| ROCKER BAR | ||||
| 0229 | 4931357522 | 5.40 | 6.53 | |
| CYLINDER PIN | ||||
| 0230 | 4931381112 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 0236 | 4931623048 | 3.00 | 3.63 | |
| BALL LID | ||||
| 0237 | 4931330272 | 5.40 | 6.53 | |
| SCREW | ||||
| 0238 | 4931300699 | 3.00 | 3.63 | |
| KNOB HANDLE | ||||
| 0239 | 4931330271 | 5.40 | 6.53 | |
| GEAR BOX COVER | ||||
| 0240 | 4931426460 | 39.60 | 47.92 | |
| SCREW (4 needed) | ||||
| 0242 | 4931310396 | 3.00 | 3.63 | |
| BEARING CAGE | ||||
| 0243 | 4931357986 | 5.40 | 6.53 | |
| BEARING CAGE | ||||
| 0244 | 4931357985 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0245 | 4931317532 | 3.00 | 3.63 | |
| PRESSURE SPRING (2 needed) | ||||
| 0246 | 4931341759 | 5.40 | 6.53 | |
| TENSION SPRING | ||||
| 0247 | 4931330453 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0248 | 4931381159 | 5.40 | 6.53 | |
| INDEXING SLEEVE | ||||
| 0250 | 4931381158 | 6.48 | 7.84 | |
| SCREW | ||||
| 0251 | 4931624172 | 3.00 | 3.63 | |
| GROUND PLATE | ||||
| 0260 | 4931412827 | 20.59 | 24.91 | |
| PRESSURE ELEMENT | ||||
| 0261 | 4931357588 | 5.40 | 6.53 | |
| SCREW | ||||
| 0262 | 4931381124 | 3.00 | 3.63 | |
| RAM | ||||
| 0270 | 4931357693 | 39.60 | 47.92 | |
| TORSION SPRING | ||||
| 0271 | 4931330424 | 5.40 | 6.53 | |
| COLLET | ||||
| 0272 | 4931330494 | 10.80 | 13.07 | |
| SCREW | ||||
| 0273 | 4931623102 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0274 | 4931357686 | |||
| CENTERING JAW (2 needed) | ||||
| 0275 | 4931330303 | 5.04 | 6.10 | |
| SEAL RING | ||||
| 0276 | 4931623091 | 5.40 | 6.53 | |
| ADHESIVE LABEL | ||||
| 0280 | 4931401761 | 5.40 | 6.53 | |
| CARRYING CASE WITH FOAM INSERT MET | ||||
| 0700 | 4932378986 | 52.64 | 63.69 | |
| JSPE90X GUIDE SHOE JS SHOE - 1PC | ||||
| 0703 | 4932430356 | 15.00 | 18.15 | |
