Here you will find all available parts and drawings of the 'Milwaukee 4000401401 ( V18IW )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

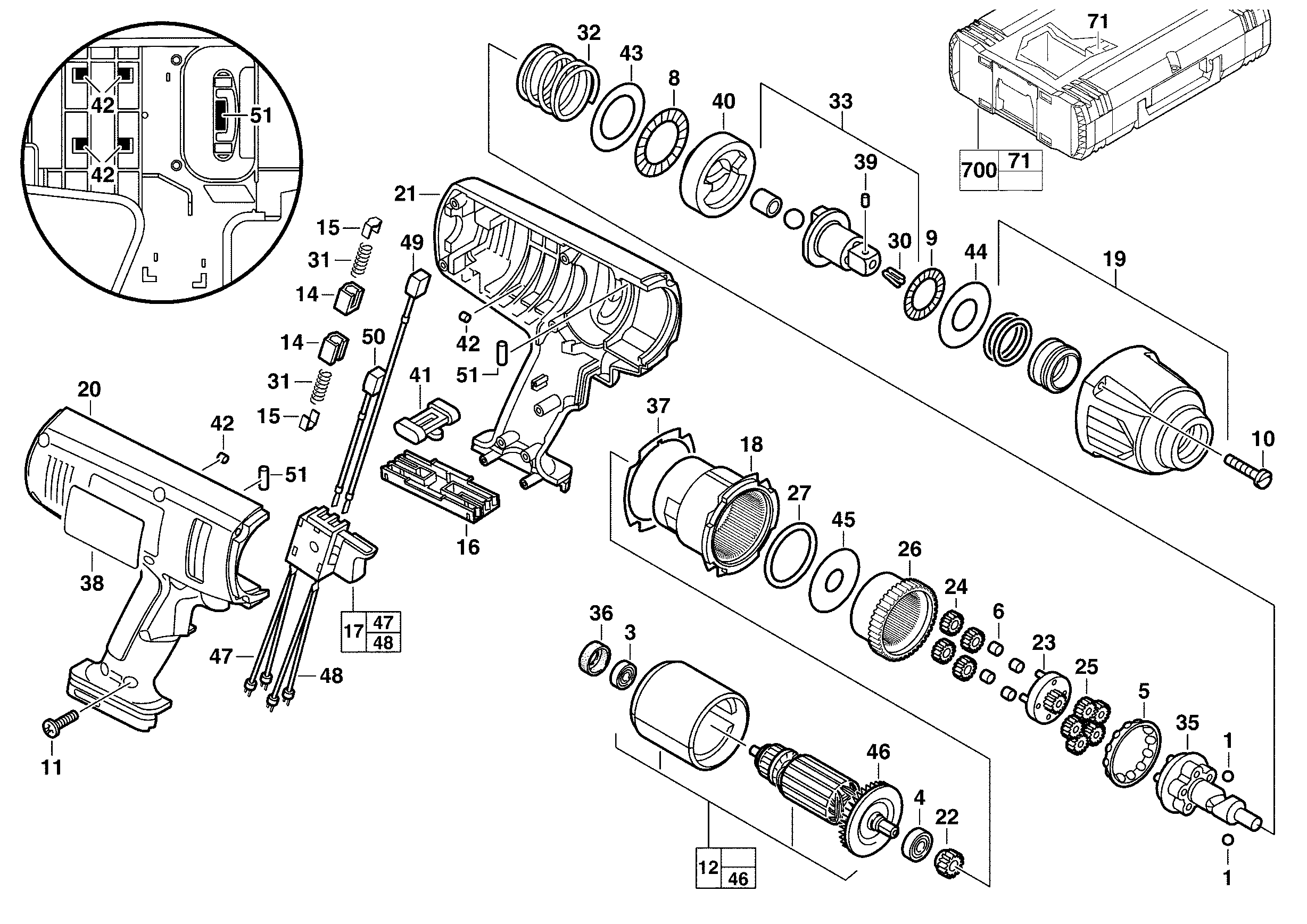

Technical drawing of model Milwaukee 4000401401 ( V18IW )
Spare parts list of model Milwaukee 4000401401 ( V18IW )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| MOTOR ASSEMBLY | ||||
| 0012 | 290780002 | 77.62 | 93.92 | |
| BRUSH HOLDER | ||||
| 0014 | 22200425 | 1.90 | 2.30 | |
| BRUSH SPRING | ||||
| 0015 | 22320420 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 0017 | 23660106 | |||
| No longer available, no replacement | ||||
| 0018 | 28140175 | |||
| HOUSING | ||||
| 0019 | 14380100 | 50.69 | 61.33 | |
| HANDLE RIGHT | ||||
| 0020 | 31442186 | 17.42 | 21.08 | |
| HANDLE LEFT | ||||
| 0021 | 31442191 | 17.42 | 21.08 | |
| No longer available, no replacement | ||||
| 0022 | 32600170 | |||
| GEAR | ||||
| 0023 | 32600185 | 8.09 | 9.79 | |
| PLANET GEAR (4 needed) | ||||
| 0024 | 32620210 | 5.40 | 6.53 | |
| PLANET GEAR (5 needed) | ||||
| 0025 | 32620215 | 1.90 | 2.30 | |
| GEAR | ||||
| 0026 | 32650005 | 12.60 | 15.25 | |
| No longer available, no replacement | ||||
| 0027 | 34400070 | |||
| SPRING ELEMENT | ||||
| 0030 | 691326001 | 4.49 | 5.43 | |
| SPRING | ||||
| 0031 | 40509079 | 1.90 | 2.30 | |
| SPRING | ||||
| 0032 | 40500241 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0033 | 14730165 | |||
| SHAFT | ||||
| 0035 | 14730300 | 30.10 | 36.42 | |
| RUBBER SLEEVE | ||||
| 0036 | 42960015 | 1.90 | 2.30 | |
| GASKET | ||||
| 0037 | 43440991 | 5.40 | 6.53 | |
| LOCKING PIN | ||||
| 0039 | 672448001 | 4.49 | 5.43 | |
| RAM | ||||
| 0040 | 44820205 | 39.60 | 47.92 | |
| SLIDE | ||||
| 0041 | 45240510 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0042 | 45300021 | |||
| WASHER (3 needed) | ||||
| 0043 | 45880535 | 1.90 | 2.30 | |
| WASHER | ||||
| 0044 | 45881575 | 1.80 | 2.18 | |
| WASHER | ||||
| 0045 | 45883250 | 1.80 | 2.18 | |
| FAN | ||||
| 0046 | 22840375 | 4.49 | 5.43 | |
| WIRE | ||||
| 0047 | 23943020 | 4.32 | 5.23 | |
| WIRE | ||||
| 0048 | 23943010 | 4.32 | 5.23 | |
| CARBON BRUSH | ||||
| 0049 | 22182080 | 5.40 | 6.53 | |
| CARBON BRUSH | ||||
| 0050 | 22181980 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0051 | 45300025 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0071 | 4931401407 | |||
| HD Box Transportkoffer Milwaukee (maat 1) | ||||
| 0700 | 4932378986 | 47.85 | 57.90 | |
