Here you will find all available parts and drawings of the 'Milwaukee 4000384516 (TKSE2500Q)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

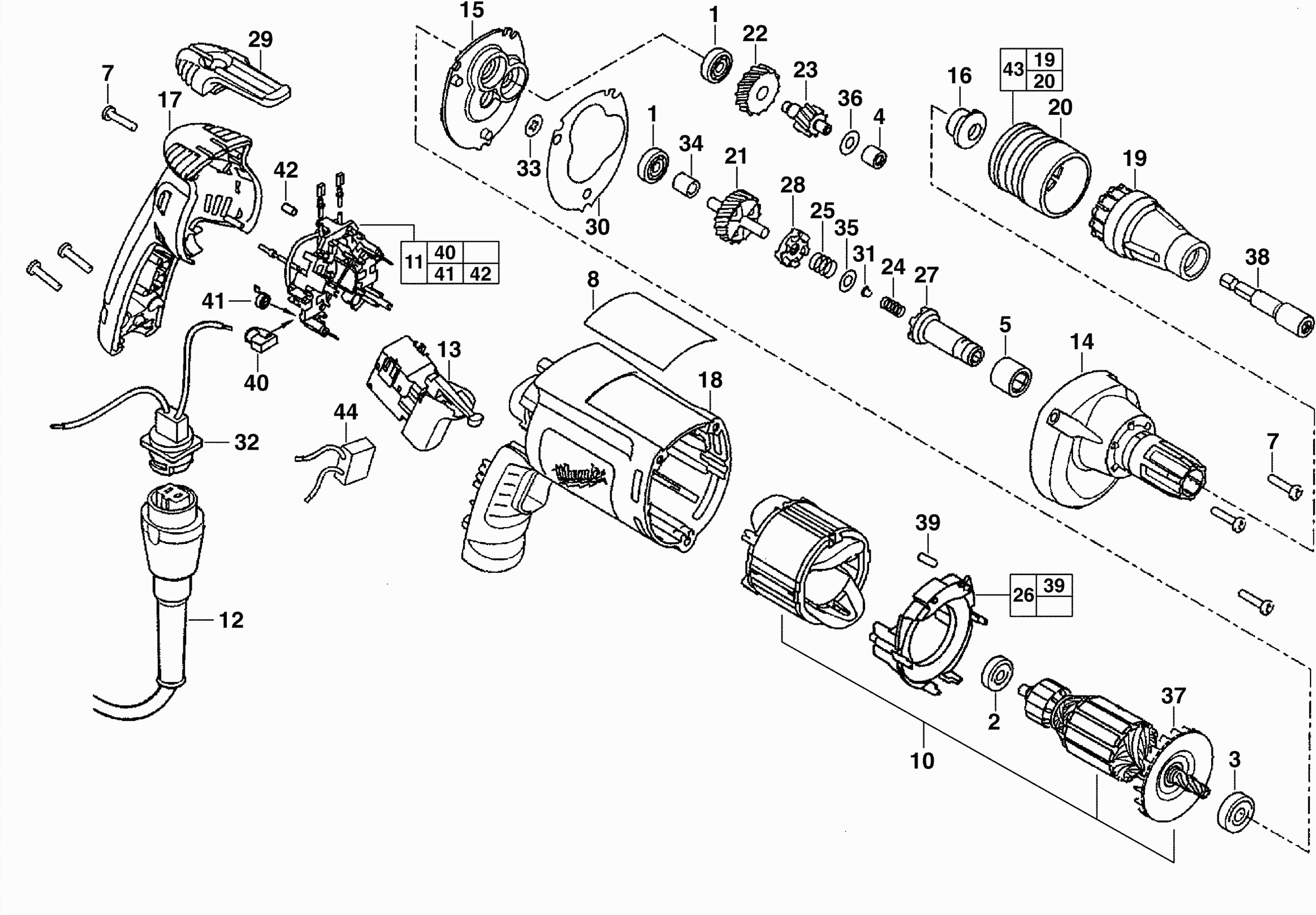

Technical drawing of model Milwaukee 4000384516 (TKSE2500Q)
Spare parts list of model Milwaukee 4000384516 (TKSE2500Q)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BALL BEARING | ||||
| 0001 | 02040640 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0001 | 2040640 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0002 | 02040645 | 12.44 | 15.05 | |
| BALL BEARING | ||||
| 0002 | 2040645 | 5.00 | 6.05 | |
| Ball bearing | ||||
| 0003 | 02040852 | 10.37 | 12.55 | |
| BALL BEARING | ||||
| 0003 | 2040852 | 5.00 | 6.05 | |
| NEEDLE BEARING | ||||
| 0004 | 02502400 | 4.54 | 5.49 | |
| NEEDLE BEARING | ||||
| 0004 | 2502400 | 1.00 | 1.21 | |
| NEEDLE BEARING | ||||
| 0005 | 02503245 | 49.09 | 59.40 | |
| NEEDLE BEARING | ||||
| 0005 | 2503245 | 26.00 | 31.46 | |
| SCREW | ||||
| 0007 | 6827275 | 1.00 | 1.21 | |
| MOTOR ASSEMBLY | ||||
| 0010 | 4931441574 | 83.95 | 101.58 | |
| BRUSH HOLDER COMPL. | ||||
| 0011 | 22181220 | 47.52 | 57.50 | |
| CONNECTION CABLE IN2 | ||||
| 0012 | 4931624171 | 36.30 | 43.92 | |
| No longer available, no replacement | ||||
| 0013 | 23662135 | |||
| GEAR CASE | ||||
| 0014 | 28142380 | 17.42 | 21.08 | |
| No longer available, no replacement | ||||
| 0015 | 28282315 | |||
| RECEPTION PIECE | ||||
| 0016 | 30370055 | 1.90 | 2.30 | |
| CASING | ||||
| 0017 | 4931441584 | 31.68 | 38.33 | |
| CASING | ||||
| 0018 | 4931441584 | 31.68 | 38.33 | |
| LEVER | ||||
| 0019 | 31510104 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0020 | 31580515 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0021 | 32100525 | |||
| GEAR | ||||
| 0022 | 32400100 | 12.60 | 15.25 | |
| No longer available, no replacement | ||||
| 0023 | 36660120 | |||
| PRESSURE SPRING | ||||
| 0024 | 40500095 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0025 | 40508515 | 4.49 | 5.43 | |
| GROUND PLATE | ||||
| 0026 | 42140460 | 4.49 | 5.43 | |
| COUPLING | ||||
| 0027 | 42660715 | 31.68 | 38.33 | |
| COUPLING | ||||
| 0028 | 42700310 | 10.80 | 13.07 | |
| CLIP | ||||
| 0029 | 42705280 | 5.40 | 6.53 | |
| GASKET | ||||
| 0030 | 43440985 | 3.00 | 3.63 | |
| CLAMP PIN | ||||
| 0031 | 4931359930 | 4.49 | 5.43 | |
| CONNECTOR | ||||
| 0032 | 22561015 | 9.60 | 11.62 | |
| No longer available, no replacement | ||||
| 0034 | 45361280 | |||
| WASHER | ||||
| 0035 | 45880555 | 1.80 | 2.18 | |
| WASHER | ||||
| 0036 | 45887990 | 3.00 | 3.63 | |
| FAN | ||||
| 0037 | 22840845 | 14.40 | 17.42 | |
| MARKER (2 needed) | ||||
| 0039 | 45300030 | 3.60 | 4.36 | |
| CARBON BRUSH (2 needed) | ||||
| 0040 | 22181320 | 7.20 | 8.71 | |
| SPRING (2 needed) | ||||
| 0041 | 23521610 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0042 | 45300035 | |||
| LEVER | ||||
| 0043 | 49261082 | 4.90 | 5.93 | |
| CAPACITOR | ||||
| 0044 | 22330550 | 7.20 | 8.71 | |
