Here you will find all available parts and drawings of the 'Milwaukee 4000415270 (T-TEC201)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

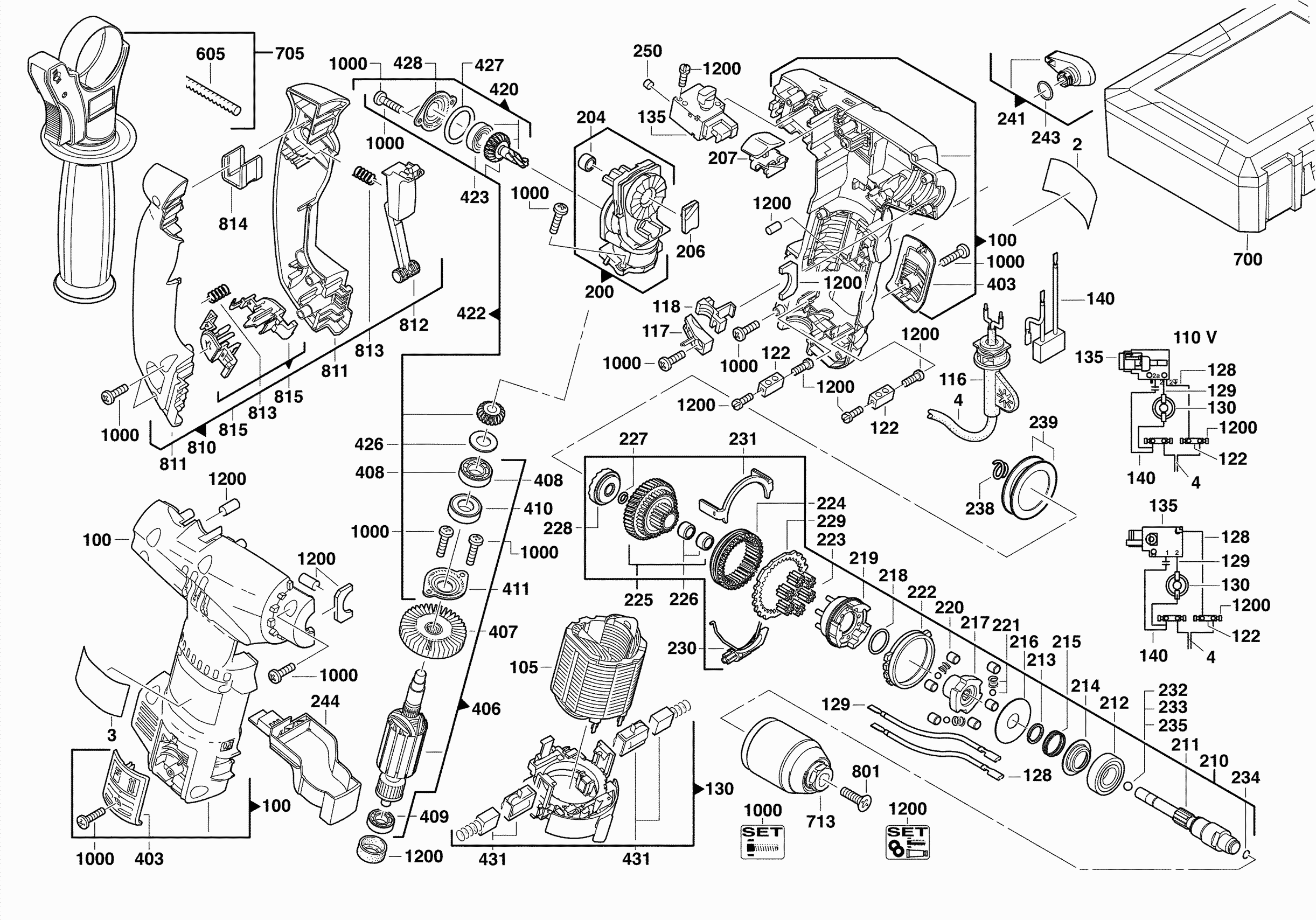

Technical drawing of model Milwaukee 4000415270 (T-TEC201)
Spare parts list of model Milwaukee 4000415270 (T-TEC201)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 0002 | 4931415271 | |||
| TYPE PLATE | ||||
| 0003 | 4931378806 | 6.48 | 7.84 | |
| No longer available, no replacement | ||||
| 0004 | 4931624251 | |||
| BODY | ||||
| 0100 | 4931380401 | 28.51 | 34.50 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426188 | 23.76 | 28.75 | |
| PROTECTING COVER | ||||
| 0116 | 4931393422 | 5.40 | 6.53 | |
| CABLE CLAMP | ||||
| 0117 | 4931372009 | 4.49 | 5.43 | |
| CABLE CLAMP | ||||
| 0118 | 4931372010 | 4.49 | 5.43 | |
| CLAMP (2 needed) | ||||
| 0122 | 4931372011 | 4.49 | 5.43 | |
| WIRE | ||||
| 0128 | 4931624054 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0129 | 4931623002 | |||
| No longer available, no replacement | ||||
| 0130 | 4931380705 | |||
| No longer available, no replacement | ||||
| 0135 | 4931380707 | |||
| No longer available, no replacement | ||||
| 0140 | 4931623884 | |||
| ENDPLATE | ||||
| 0200 | 4931372565 | 50.69 | 61.33 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0204 | 4931912093 | 5.40 | 6.53 | |
| ADJUSTING PLATE | ||||
| 0206 | 4931364552 | 5.40 | 6.53 | |
| SLIDING SWITCH | ||||
| 0207 | 4931380407 | 5.40 | 6.53 | |
| DRILL SPINDLE | ||||
| 0210 | 4931372496 | 93.46 | 113.09 | |
| DRILL SPINDLE | ||||
| 0211 | 4931409810 | 14.40 | 17.42 | |
| BALL BEARING | ||||
| 0212 | 4931891058 | 9.00 | 10.89 | |
| SPRING RING | ||||
| 0213 | 4931622085 | 4.49 | 5.43 | |
| SPACER | ||||
| 0214 | 4931380124 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0215 | 4931380123 | 4.49 | 5.43 | |
| DISC N874237 A6,8X19X1,5 | ||||
| 0216 | 4931624104 | 4.49 | 5.43 | |
| FASTINING DEVICE | ||||
| 0217 | 4931372497 | 9.00 | 10.89 | |
| SEAL RING | ||||
| 0218 | 4931623912 | 4.49 | 5.43 | |
| PINION CAGE | ||||
| 0219 | 4931372498 | 9.36 | 11.33 | |
| CYLINDER PULLEY (6 needed) | ||||
| 0220 | 4931364583 | 4.49 | 5.43 | |
| SPRING (3 needed) | ||||
| 0221 | 4931372975 | 6.31 | 7.64 | |
| SLEEVE | ||||
| 0222 | 4931364990 | 3.60 | 4.36 | |
| PLANET WHEEL (3 needed) | ||||
| 0223 | 4931357172 | 3.00 | 3.63 | |
| INTERN.GEARED WHEEL | ||||
| 0224 | 4931364533 | 7.92 | 9.58 | |
| GEAR | ||||
| 0225 | 4931372491 | 31.68 | 38.33 | |
| NEEDLE BEARING | ||||
| 0226 | 4931219424 | 4.32 | 5.23 | |
| SPRING RING | ||||
| 0227 | 4931372560 | 4.49 | 5.43 | |
| PERCUSSION SLEEVE | ||||
| 0228 | 4931380224 | 4.32 | 5.23 | |
| LOOKED WASHER | ||||
| 0229 | 4931364550 | 3.00 | 3.63 | |
| RACKING LEVER | ||||
| 0230 | 4931364538 | 5.40 | 6.53 | |
| SLIDING SWITCH | ||||
| 0231 | 4931364565 | 5.40 | 6.53 | |
| BALL | ||||
| 0232 | 4931805437 | 3.00 | 3.63 | |
| BALL | ||||
| 0233 | 4931624139 | 3.00 | 3.63 | |
| RING SPRING | ||||
| 0234 | 4931302074 | 4.49 | 5.43 | |
| BALL | ||||
| 0235 | 4931624246 | 3.00 | 3.63 | |
| PRESSURE SPRING | ||||
| 0238 | 4931276905 | 5.04 | 6.10 | |
| WASHER (2 needed) | ||||
| 0239 | 4931624206 | 3.00 | 3.63 | |
| SWITCH HANDLE | ||||
| 0241 | 4931380408 | 5.40 | 6.53 | |
| O-RING N874701 11X1 B | ||||
| 0243 | 4931622402 | 3.00 | 3.63 | |
| SWITCH BUTTON | ||||
| 0244 | 4931380411 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0250 | 4931387168 | |||
| HOUSING COVER | ||||
| 0403 | 4931380404 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0406 | 4931372901 | |||
| FAN | ||||
| 0407 | 4931372024 | 4.49 | 5.43 | |
| GROOVED BALL BEAR. | ||||
| 0408 | 4931368037 | 6.48 | 7.84 | |
| BALL BEARING | ||||
| 0409 | 4931901253 | 9.36 | 11.33 | |
| No longer available, no replacement | ||||
| 0410 | 4931364525 | |||
| BEARING COVER | ||||
| 0411 | 4931364527 | 4.49 | 5.43 | |
| CONNECTING SHAFT | ||||
| 0420 | 4931364593 | 39.60 | 47.92 | |
| BEVEL GEAR | ||||
| 0422 | 4931372207 | 30.10 | 36.42 | |
| GROOVED BALL BEAR. | ||||
| 0423 | 4931368037 | 6.48 | 7.84 | |
| No longer available, no replacement | ||||
| 0426 | 4931623871 | |||
| SEAL RING | ||||
| 0427 | 4931623961 | 5.40 | 6.53 | |
| BEARING COVER | ||||
| 0428 | 4931372561 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0431 | 4931392564 | |||
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| CARRYING CASE | ||||
| 0700 | 4931415345 | 38.50 | 46.58 | |
| HANDLE PHE P1 A/M | ||||
| 0705 | 4932373725 | 19.36 | 23.43 | |
| Keyless Chuck Fixtec 1.5-13 1/2x20-1pc | ||||
| 0713 | 4932371913 | 66.51 | 80.48 | |
| LOCKING SCREW | ||||
| 0801 | 4931400028 | 3.00 | 3.63 | |
| HANDLE | ||||
| 0810 | 4931380412 | 19.01 | 23.00 | |
| HANDLE | ||||
| 0811 | 4931380413 | 9.00 | 10.89 | |
| SWITCH BUTTON | ||||
| 0812 | 4931380416 | 4.49 | 5.43 | |
| ENGAGE DEVISE | ||||
| 0813 | 4931364541 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0814 | 4931364513 | |||
| ENGAGE DEVISE | ||||
| 0815 | 4931364541 | 4.49 | 5.43 | |
| BOLT SET | ||||
| 1000 | 4931364591 | 12.60 | 15.25 | |
| No longer available, no replacement | ||||
| 1200 | 4931372899 | |||
