Here you will find all available parts and drawings of the 'Milwaukee 4000393515 ( SSPE1300SQ )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

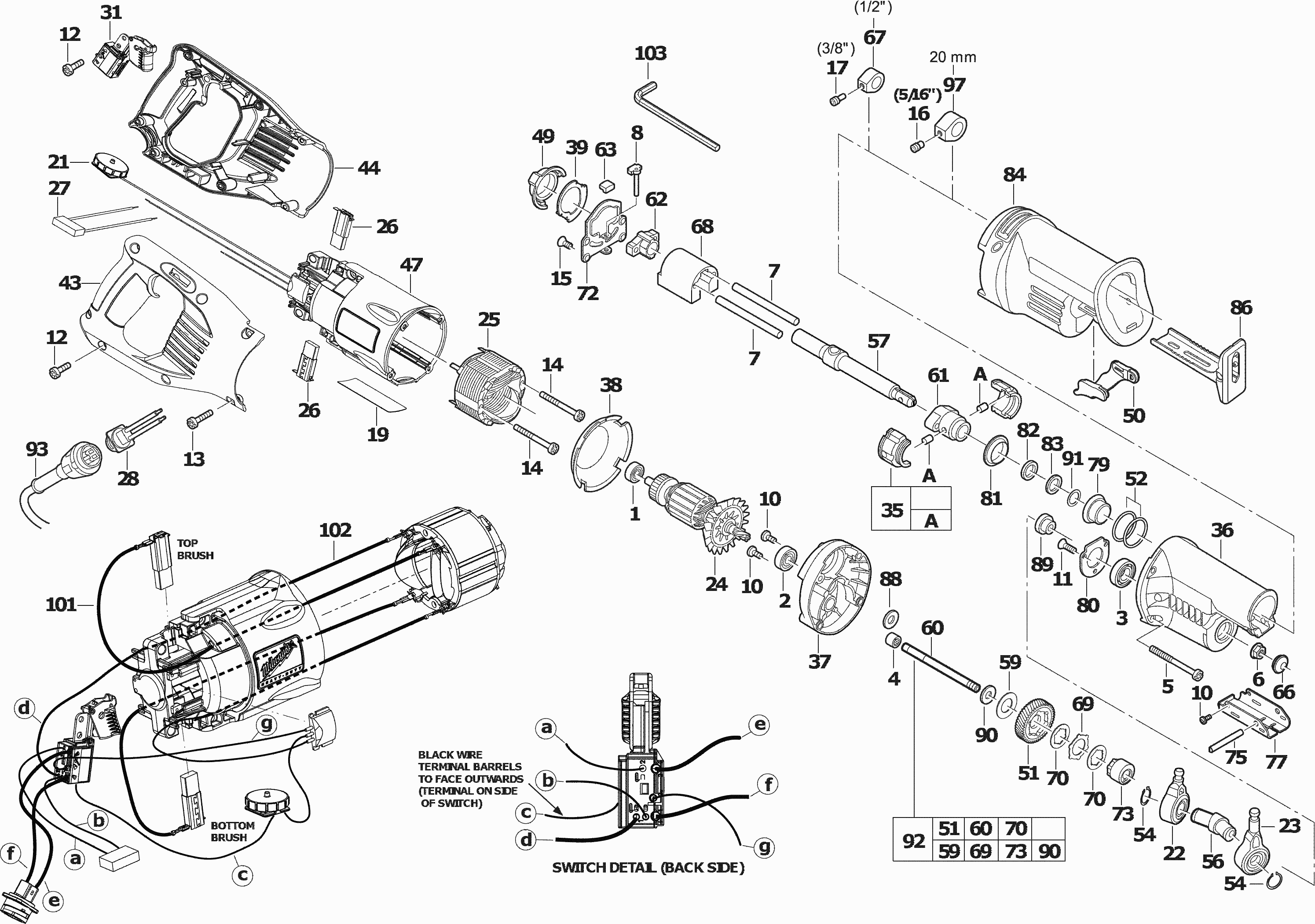

Technical drawing of model Milwaukee 4000393515 ( SSPE1300SQ )
Spare parts list of model Milwaukee 4000393515 ( SSPE1300SQ )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BALL BEARING | ||||
| 0001 | 02040845 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0001 | 2040845 | 5.00 | 6.05 | |
| Ball bearing | ||||
| 0002 | 02040915 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0002 | 2040915 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0003 | 02041511 | 12.10 | 14.64 | |
| BALL BEARING | ||||
| 0003 | 2041511 | 7.00 | 8.47 | |
| NEEDLE BEARING | ||||
| 0004 | 02502150 | 10.37 | 12.55 | |
| NEEDLE BEARING | ||||
| 0004 | 2502150 | 5.00 | 6.05 | |
| No longer available, no replacement | ||||
| 0005 | 5880302 | |||
| NUT | ||||
| 0006 | 6553790 | 1.00 | 1.21 | |
| DOWEL PIN (2 needed) | ||||
| 0007 | 06650045 | 4.32 | 5.23 | |
| Dowel Pin (2 required) | ||||
| 0007 | 6650045 | 2.50 | 3.02 | |
| BOLT | ||||
| 0008 | 43360125 | 6.31 | 7.64 | |
| SCREW (3 needed) | ||||
| 0010 | 6827253 | 1.00 | 1.21 | |
| SCREW (3 needed) | ||||
| 0011 | 6827255 | 1.00 | 1.21 | |
| SCREW (6 needed) | ||||
| 0012 | 6827270 | 1.00 | 1.21 | |
| SCREW (2 needed) | ||||
| 0013 | 6827326 | 1.00 | 1.21 | |
| SCREW 8-16X2-1/4 PAN PLAS (2 needed) | ||||
| 0014 | 06827453 | 1.90 | 2.30 | |
| SCREW 8-16X2-1/4 PAN PLAS (2 required) | ||||
| 0014 | 6827453 | 1.00 | 1.21 | |
| SCREW (4 needed) | ||||
| 0015 | 6828870 | 1.00 | 1.21 | |
| SCREW SCREW-BLADE CLAMP | ||||
| 0016 | 06832976 | 3.78 | 4.57 | |
| SCREW SCREW-BLADE CLAMP | ||||
| 0016 | 6832976 | 1.20 | 1.45 | |
| SCREW | ||||
| 0017 | 6830115 | 2.00 | 2.42 | |
| ECCENTRIC DISC | ||||
| 0022 | 14670126 | 50.25 | 60.80 | |
| ECCENTRIC DISC | ||||
| 0023 | 14670136 | 47.94 | 58.01 | |
| ARMATURE | ||||
| 0024 | 16340510 | 85.54 | 103.50 | |
| ELECTRIC FIELD | ||||
| 0025 | 18341510 | 47.52 | 57.50 | |
| CARBON BRUSH SET (2 needed) | ||||
| 0026 | 22200520 | 9.46 | 11.45 | |
| CAPACITOR | ||||
| 0027 | 22330035 | 9.91 | 11.99 | |
| CONNECTION SLEEVE | ||||
| 0028 | 22560120 | 25.34 | 30.66 | |
| SWITCH | ||||
| 0031 | 23660208 | 36.43 | 44.08 | |
| BEARING BUSH HALF (2 needed) | ||||
| 0035 | 14300080 | 6.94 | 8.40 | |
| GEAR BOX HOUSING | ||||
| 0036 | 28142600 | 23.76 | 28.75 | |
| PLATE | ||||
| 0037 | 28282600 | 15.29 | 18.50 | |
| STOP DISC | ||||
| 0038 | 31050155 | 4.49 | 5.43 | |
| PLATE | ||||
| 0039 | 31110130 | 5.40 | 6.53 | |
| MOTOR HOUSING | ||||
| 0047 | 4931454359 | 38.02 | 46.00 | |
| LEVER | ||||
| 0049 | 31520045 | 5.40 | 6.53 | |
| SHOE REL.LEVER KIT | ||||
| 0050 | 31520090 | 5.40 | 6.53 | |
| GEAR | ||||
| 0051 | 32402050 | 13.51 | 16.35 | |
| O-RING (2 needed) | ||||
| 0052 | 34400040 | 1.90 | 2.30 | |
| RING (2 needed) | ||||
| 0054 | 34601315 | 1.80 | 2.18 | |
| SHAFT | ||||
| 0056 | 36920701 | 19.01 | 23.00 | |
| SPINDLE | ||||
| 0057 | 38506400 | 45.94 | 55.59 | |
| DISC SPRING | ||||
| 0059 | 40508850 | 4.49 | 5.43 | |
| REDUCT. GEAR SHAFT | ||||
| 0060 | 42120190 | 7.20 | 8.71 | |
| ADAPTER SLEEVE | ||||
| 0061 | 42240066 | 12.60 | 15.25 | |
| BEARING BUSH | ||||
| 0062 | 42240525 | 9.00 | 10.89 | |
| RUBBER BUFFER | ||||
| 0063 | 42380055 | 5.40 | 6.53 | |
| BEARING COVER | ||||
| 0066 | 42520380 | 1.90 | 2.30 | |
| Reciprozaag ombouwset FIXTEC naar 20 mm (1/2?) | ||||
| 0067 | 49225016 | 31.79 | 38.47 | |
| BALANCE WEIGHT | ||||
| 0068 | 42870180 | 16.20 | 19.60 | |
| PLATE | ||||
| 0069 | 43060676 | 1.80 | 2.18 | |
| DISC PLATE (2 needed) | ||||
| 0070 | 43060685 | 5.40 | 6.53 | |
| ECCENTRIC DISC | ||||
| 0072 | 43560620 | 5.40 | 6.53 | |
| BUSH | ||||
| 0073 | 43780577 | 9.00 | 10.89 | |
| PIN | ||||
| 0075 | 44601635 | 5.40 | 6.53 | |
| HOLDER | ||||
| 0077 | 44660880 | 4.49 | 5.43 | |
| PROTECTIVE CAP | ||||
| 0079 | 44860035 | 5.68 | 6.87 | |
| BEARING CAGE | ||||
| 0080 | 44860655 | 5.40 | 6.53 | |
| SEAL | ||||
| 0081 | 45060110 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0082 | 45060475 | 4.49 | 5.43 | |
| FELT PACKING | ||||
| 0083 | 45060501 | 1.90 | 2.30 | |
| INSULATOR | ||||
| 0084 | 45120700 | 12.60 | 15.25 | |
| DISTANCE HOLDER | ||||
| 0086 | 45160645 | 9.00 | 10.89 | |
| SEAL RING | ||||
| 0088 | 45280555 | 5.40 | 6.53 | |
| SPACER | ||||
| 0089 | 45361445 | 1.80 | 2.18 | |
| WASHER | ||||
| 0090 | 45881555 | 1.80 | 2.18 | |
| WASHER | ||||
| 0091 | 45888577 | 1.90 | 2.30 | |
| COUPLING | ||||
| 0092 | 14080075 | 36.43 | 44.08 | |
| CONNECTION CABLE IN2 | ||||
| 0093 | 4931624171 | 33.00 | 39.93 | |
| Reciprozaag ombouwset FIXTEC naar 20 mm | ||||
| 0097 | 42680685 | 21.90 | 26.50 | |
| CABLE SET (2 needed) | ||||
| 0101 | 23940305 | 5.40 | 6.53 | |
| CABLE SET | ||||
| 0102 | 23940310 | 4.49 | 5.43 | |
| Inbussleutel zeskant | ||||
| 0103 | 49960080 | 4.20 | 5.08 | |
