Here you will find all available parts and drawings of the 'Milwaukee 4000385838 ( SSE1000SQ )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

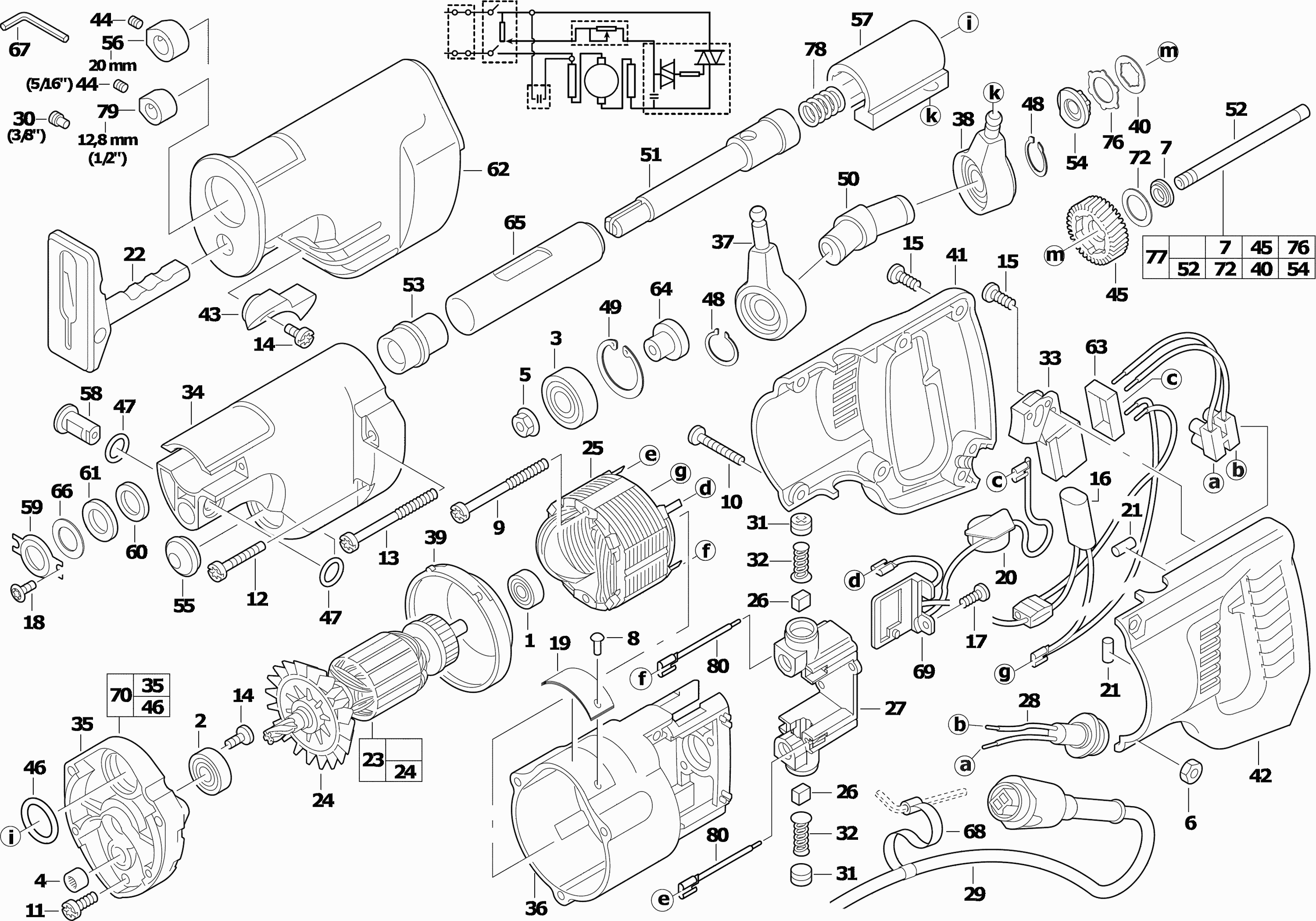

Technical drawing of model Milwaukee 4000385838 ( SSE1000SQ )
Spare parts list of model Milwaukee 4000385838 ( SSE1000SQ )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| WASHER | ||||
| 0007 | 45881555 | 1.80 | 2.18 | |
| SCREW | ||||
| 0014 | 06827252 | 1.73 | 2.09 | |
| SCREW (3 needed) | ||||
| 0014 | 6827252 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 0016 | 14200580 | |||
| REMOTE TSC CONTROL | ||||
| 0020 | 14203031 | 45.94 | 55.59 | |
| No longer available, no replacement | ||||
| 0021 | 14461001 | |||
| HOLDER | ||||
| 0022 | 14740270 | 41.18 | 49.83 | |
| ARMATURE ASSEMBLY | ||||
| 0023 | 16341451 | 95.04 | 115.00 | |
| FAN | ||||
| 0024 | 22840531 | 5.40 | 6.53 | |
| ELECTRIC FIELD | ||||
| 0025 | 18320240 | 49.10 | 59.41 | |
| CARBON BRUSH (2 needed) | ||||
| 0026 | 22160375 | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 0027 | 4931354969 | |||
| CONNECTION SLEEVE | ||||
| 0028 | 22560120 | 25.34 | 30.66 | |
| CONNECTION CABLE AUS NZ | ||||
| 0029 | 4931624342 | 43.45 | 52.57 | |
| CONNECTION CABLE GB2 | ||||
| 0029 | 4931624184 | 39.60 | 47.92 | |
| CONNECTION CABLE IN2 | ||||
| 0029 | 4931624171 | 33.00 | 39.93 | |
| CONNECTION CABLE Swiss | ||||
| 0029 | 4931624181 | 25.34 | 30.66 | |
| SCREW | ||||
| 0030 | 6830115 | 2.00 | 2.42 | |
| No longer available, no replacement | ||||
| 0031 | 23440190 | |||
| No longer available, no replacement | ||||
| 0032 | 23520160 | |||
| SWITCH | ||||
| 0033 | 23660208 | 36.43 | 44.08 | |
| BODY | ||||
| 0034 | 28142176 | 28.51 | 34.50 | |
| DIAPHRAGM | ||||
| 0035 | 28281876 | 23.76 | 28.75 | |
| HOUSING MOTOR SIDE | ||||
| 0036 | 31500020 | 10.80 | 13.07 | |
| WOBBLE DRIVE | ||||
| 0037 | 4931440445 | 35.80 | 43.32 | |
| No longer available, no replacement | ||||
| 0038 | 14670125 | |||
| AIR DEFLECTOR RING | ||||
| 0039 | 31050055 | 5.68 | 6.87 | |
| DISC PLATE (2 needed) | ||||
| 0040 | 43060685 | 5.40 | 6.53 | |
| RIGHT HANDLE HALF | ||||
| 0041 | 31441661 | 16.20 | 19.60 | |
| HANDLE LEFT | ||||
| 0042 | 31441666 | 17.11 | 20.70 | |
| RELEASE LEVER | ||||
| 0043 | 31520010 | 4.49 | 5.43 | |
| SCREW SCREW-BLADE CLAMP | ||||
| 0044 | 06832976 | 3.78 | 4.57 | |
| SCREW SCREW-BLADE CLAMP | ||||
| 0044 | 6832976 | 1.20 | 1.45 | |
| GEAR | ||||
| 0045 | 32402095 | 30.10 | 36.42 | |
| O-RING | ||||
| 0046 | 34401280 | 1.80 | 2.18 | |
| O-RING (2 needed) | ||||
| 0047 | 34404200 | 3.78 | 4.57 | |
| RING (2 needed) | ||||
| 0048 | 34601315 | 1.80 | 2.18 | |
| RING | ||||
| 0049 | 34802600 | 4.49 | 5.43 | |
| SHAFT | ||||
| 0050 | 36920701 | 19.01 | 23.00 | |
| SPINDLE SPINDLE | ||||
| 0051 | 38505835 | 38.02 | 46.00 | |
| SHAFT | ||||
| 0052 | 42120150 | 6.05 | 7.32 | |
| BEARING | ||||
| 0053 | 42240430 | 9.00 | 10.89 | |
| HUB | ||||
| 0054 | 43780525 | 1.80 | 2.18 | |
| BEARING COVER | ||||
| 0055 | 42520380 | 1.90 | 2.30 | |
| Reciprozaag ombouwset FIXTEC naar 20 mm | ||||
| 0056 | 42680685 | 21.90 | 26.50 | |
| No information available, not orderable | ||||
| 0057 | 42870090 | |||
| No longer available, no replacement | ||||
| 0058 | 44601200 | |||
| RETAINER | ||||
| 0059 | 44860375 | 3.60 | 4.36 | |
| SEAL RING | ||||
| 0060 | 45060475 | 4.49 | 5.43 | |
| FELT PACKING | ||||
| 0061 | 45060501 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 0062 | 45120462 | |||
| No information available, not orderable | ||||
| 0063 | 45120470 | |||
| No information available, not orderable | ||||
| 0064 | 45361450 | |||
| TUBE | ||||
| 0065 | 45760320 | 22.18 | 26.84 | |
| WASHER | ||||
| 0066 | 45888577 | 1.90 | 2.30 | |
| Inbussleutel 5/32 | ||||
| 0067 | 49960070 | 2.64 | 3.19 | |
| No longer available, no replacement | ||||
| 0068 | 48664080 | |||
| HOLDING DEVICE HEAT SINK HOLDER | ||||
| 0069 | 43720176 | 5.40 | 6.53 | |
| DISC SPRING | ||||
| 0072 | 40508850 | 4.49 | 5.43 | |
| PLATE | ||||
| 0076 | 43060676 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0077 | 32402101 | |||
| PRESSURE SPRING | ||||
| 0078 | 40500165 | 5.40 | 6.53 | |
| Reciprozaag ombouwset FIXTEC naar 20 mm (1/2?) | ||||
| 0079 | 49225016 | 31.79 | 38.47 | |
| WIRE LEAD WIRE ASSEMBLY | ||||
| 0080 | 23946370 | 4.32 | 5.23 | |
