Here you will find all available parts and drawings of the 'Milwaukee 4000458755 (SSD1100X)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

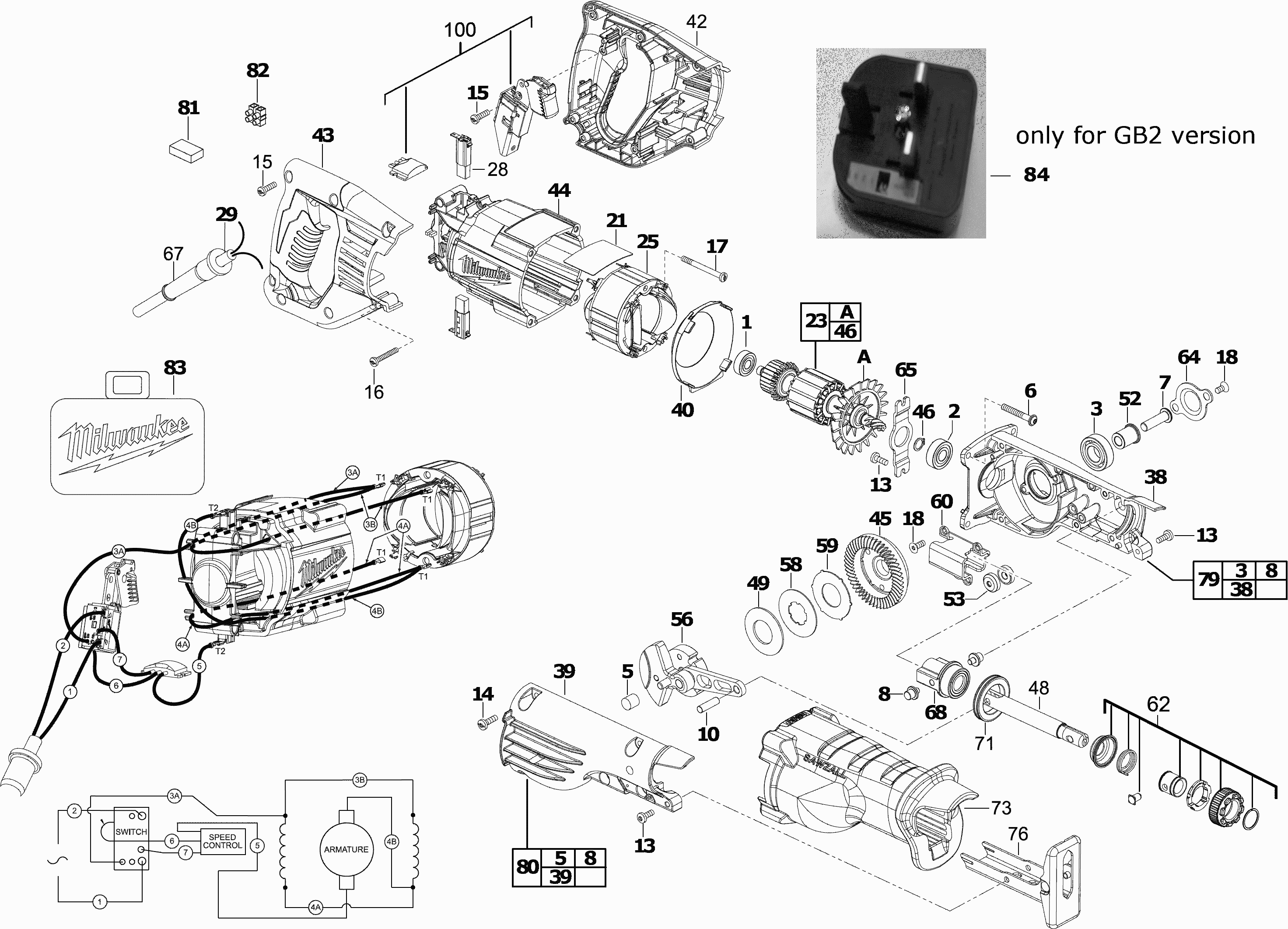

Technical drawing of model Milwaukee 4000458755 (SSD1100X)
Spare parts list of model Milwaukee 4000458755 (SSD1100X)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BALL BEARING | ||||
| 0001 | 02040845 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0001 | 2040845 | 5.00 | 6.05 | |
| Ball Bearing | ||||
| 0002 | 02041020 | 10.37 | 12.55 | |
| BALL BEARING | ||||
| 0002 | 2041020 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0003 | 02041516 | 9.84 | 11.91 | |
| BALL BEARING | ||||
| 0003 | 2041516 | 5.00 | 6.05 | |
| NEEDLE BEARING | ||||
| 0005 | 02501640 | 16.43 | 19.88 | |
| NEEDLE BEARING | ||||
| 0005 | 2501640 | 5.00 | 6.05 | |
| SCREW | ||||
| 0006 | 05888309 | 3.00 | 3.63 | |
| SCREW | ||||
| 0006 | 5888309 | 1.00 | 1.21 | |
| Eccentric Shaft | ||||
| 0007 | 06080017 | 3.60 | 4.36 | |
| ECCENTRIC SHAFT | ||||
| 0007 | 6080017 | 1.00 | 1.21 | |
| PIN (2 needed) | ||||
| 0008 | 4931473774 | 3.00 | 3.63 | |
| BOLT (2 needed) | ||||
| 0008 | 6650135 | 1.00 | 1.21 | |
| BALANCE WEIGHT | ||||
| 0010 | 4931436025 | 3.00 | 3.63 | |
| AXLE | ||||
| 0010 | 6650145 | 2.50 | 3.02 | |
| SCREW TORX SCREW (8 needed) | ||||
| 0013 | 06825314 | 3.60 | 4.36 | |
| SCREW TORX SCREW (4 needed) | ||||
| 0013 | 6825314 | 1.00 | 1.21 | |
| SCREW (4 needed) | ||||
| 0014 | 4931435228 | 3.00 | 3.63 | |
| SCREW TORX SCREW (5 needed) | ||||
| 0014 | 06825411 | 1.90 | 2.30 | |
| SCREW TORX SCREW (5 needed) | ||||
| 0014 | 6825411 | 1.00 | 1.21 | |
| SCREW (12 needed) | ||||
| 0015 | 06827270 | 3.00 | 3.63 | |
| SCREW (6 needed) | ||||
| 0015 | 6827270 | 1.00 | 1.21 | |
| SCREW | ||||
| 0016 | 06827326 | 3.60 | 4.36 | |
| SCREW (2 needed) | ||||
| 0016 | 6827326 | 1.00 | 1.21 | |
| SCREW (2 needed) | ||||
| 0017 | 6827410 | 1.00 | 1.21 | |
| SCREW (4 needed) | ||||
| 0018 | 6828870 | 1.00 | 1.21 | |
| RATING PLATE | ||||
| 0021 | 4931416716 | 3.00 | 3.63 | |
| ARMATURE | ||||
| 0023 | 16340305 | 89.10 | 107.81 | |
| ELECTRIC FIELD | ||||
| 0025 | 18320300 | 51.70 | 62.56 | |
| CARBON HOLDER (2 needed) | ||||
| 0028 | 22200055 | 10.80 | 13.07 | |
| CONNECTION CABLE | ||||
| 0029 | 22644523 | 36.43 | 44.08 | |
| GEAR BOX HOUSING | ||||
| 0038 | 28140045 | 22.18 | 26.84 | |
| GEAR BOX HOUSING | ||||
| 0039 | 28140046 | 19.01 | 23.00 | |
| AIR FLOW PLATE | ||||
| 0040 | 31050195 | 4.54 | 5.49 | |
| LEFT HANDLE HALF | ||||
| 0042 | 31440810 | 9.91 | 11.99 | |
| RIGHT HANDLE HALF | ||||
| 0043 | 31440815 | 9.00 | 10.89 | |
| MOTOR HOUSING | ||||
| 0044 | 31500290 | 17.42 | 21.08 | |
| BEVEL GEAR PAIR | ||||
| 0045 | 32050022 | 33.00 | 39.93 | |
| LOCKING RING | ||||
| 0046 | 34600810 | 5.40 | 6.53 | |
| SPINDLE KIT | ||||
| 0048 | 38500076 | 17.11 | 20.70 | |
| CUP SPRING | ||||
| 0049 | 40500596 | 5.68 | 6.87 | |
| SPRING | ||||
| 0049 | 4931436031 | 2.40 | 2.90 | |
| SPACER | ||||
| 0052 | 42400076 | 5.40 | 6.53 | |
| DISTANCE HOLDER | ||||
| 0052 | 4931436034 | 3.00 | 3.63 | |
| ROLL (2 needed) | ||||
| 0053 | 42402052 | 5.40 | 6.53 | |
| ECCENTRIC WHEEL | ||||
| 0056 | 14090190 | 47.65 | 57.66 | |
| PLATE | ||||
| 0058 | 43060025 | 3.60 | 4.36 | |
| PLATE | ||||
| 0059 | 43060030 | 6.00 | 7.26 | |
| ECCENTRIC SHEAVE | ||||
| 0060 | 43560045 | 5.68 | 6.87 | |
| STAMP | ||||
| 0060 | 4931436028 | 5.40 | 6.53 | |
| INTERLOCK ELEMENT | ||||
| 0062 | 4931461444 | 26.93 | 32.59 | |
| RESTRICTOR | ||||
| 0064 | 44660280 | 2.28 | 2.76 | |
| BEARING END PLATE | ||||
| 0065 | 44661070 | 5.40 | 6.53 | |
| CABLE ENTRY SLEEVE | ||||
| 0067 | 44760210 | 3.00 | 3.63 | |
| SLIDE BEARING | ||||
| 0068 | 14860105 | 31.77 | 38.44 | |
| SEAL | ||||
| 0071 | 45060230 | 5.40 | 6.53 | |
| INSULATOR | ||||
| 0073 | 45122056 | 15.95 | 19.30 | |
| STOP | ||||
| 0076 | 45160030 | 11.00 | 13.31 | |
| GEAR BOX HOUSING | ||||
| 0079 | 14300145 | 48.92 | 59.19 | |
| GEAR BOX HOUSING | ||||
| 0080 | 14300146 | 40.66 | 49.20 | |
| CAPACITOR | ||||
| 0081 | 22330035 | 9.91 | 11.99 | |
| TERMINAL | ||||
| 0082 | 22560451 | 3.60 | 4.36 | |
| CARRYING CASE | ||||
| 0083 | 42552055 | 49.10 | 59.41 | |
| ADAPTER GB 240V (for EU round) | ||||
| 0084 | 4931392301 | 11.35 | 13.73 | |
| SWITCH ASSEMBLY | ||||
| 0100 | 4931447859 | 42.77 | 51.75 | |
| No information available, not orderable | ||||
| 0110 | 4931511231 | |||
