Here you will find all available parts and drawings of the 'Milwaukee 4000393719 ( SCS65Q )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

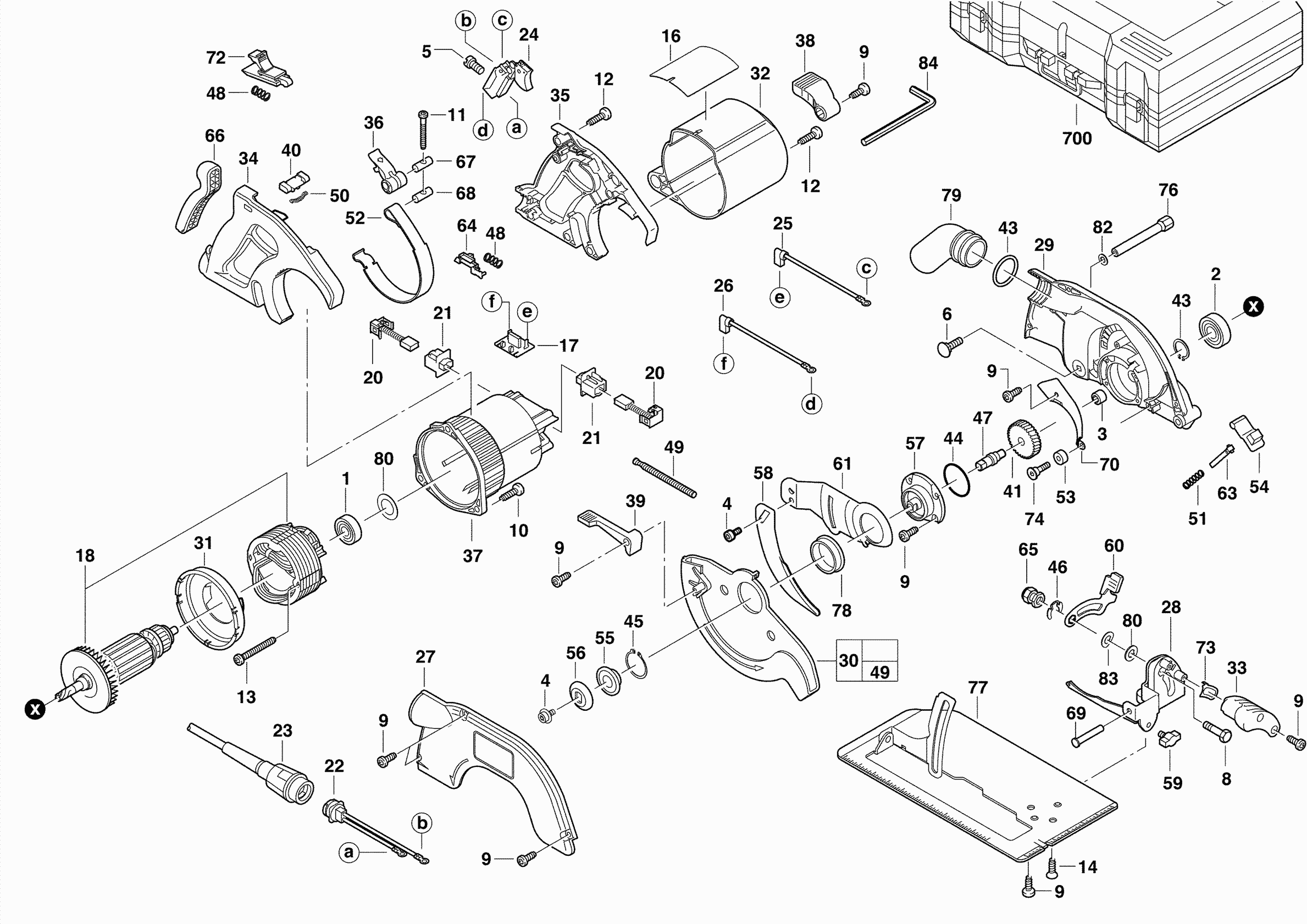

Technical drawing of model Milwaukee 4000393719 ( SCS65Q )
Spare parts list of model Milwaukee 4000393719 ( SCS65Q )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ball bearing for power tools | ||||
| 0001 | 02040847 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0001 | 2040847 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0002 | 4931435723 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0002 | 02041850 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0002 | 2041850 | 5.00 | 6.05 | |
| BALL BEARING | ||||
| 0003 | 02502423 | 8.64 | 10.45 | |
| BALL BEARING | ||||
| 0003 | 2502423 | 5.00 | 6.05 | |
| SCREW | ||||
| 0004 | 05890055 | 1.73 | 2.09 | |
| SCREW | ||||
| 0004 | 5890055 | 1.00 | 1.21 | |
| CAPACITOR | ||||
| 0017 | 14201325 | 15.29 | 18.50 | |
| MOTOR ASSEMBLY | ||||
| 0018 | 4931441958 | 142.56 | 172.50 | |
| CARBON BRUSH | ||||
| 0020 | 22180085 | 7.20 | 8.71 | |
| BRUSH HOLDER (2 needed) | ||||
| 0021 | 22220030 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 0022 | 22560857 | |||
| CONNECTION CABLE AUS NZ | ||||
| 0023 | 4931624342 | 43.45 | 52.57 | |
| CONNECTION CABLE GB2 | ||||
| 0023 | 4931624184 | 39.60 | 47.92 | |
| CONNECTION CABLE IN2 | ||||
| 0023 | 4931624171 | 33.00 | 39.93 | |
| CONNECTION CABLE Swiss | ||||
| 0023 | 4931624181 | 25.34 | 30.66 | |
| SWITCH | ||||
| 0024 | 23662117 | 14.40 | 17.42 | |
| No longer available, no replacement | ||||
| 0025 | 23941180 | |||
| No longer available, no replacement | ||||
| 0027 | 25200135 | |||
| BRACKET | ||||
| 0028 | 14670260 | 38.02 | 46.00 | |
| No longer available, no replacement | ||||
| 0029 | 28140110 | |||
| GUARD CAP | ||||
| 0030 | 14320135 | 52.27 | 63.25 | |
| AIR DEFLECTOR RING | ||||
| 0031 | 31050045 | 5.68 | 6.87 | |
| No longer available, no replacement | ||||
| 0032 | 31150461 | |||
| No longer available, no replacement | ||||
| 0033 | 31440060 | |||
| No longer available, no replacement | ||||
| 0034 | 31440083 | |||
| No longer available, no replacement | ||||
| 0035 | 31440093 | |||
| HANDLE | ||||
| 0036 | 31442157 | 1.80 | 2.18 | |
| HOUSING | ||||
| 0037 | 31500050 | 34.85 | 42.17 | |
| No longer available, no replacement | ||||
| 0038 | 31520015 | |||
| STOP | ||||
| 0039 | 31520025 | 1.80 | 2.18 | |
| DRIVER | ||||
| 0040 | 31760016 | 1.80 | 2.18 | |
| GEAR | ||||
| 0041 | 32753205 | 26.93 | 32.59 | |
| O-RING | ||||
| 0043 | 34401375 | 1.90 | 2.30 | |
| O-RING | ||||
| 0044 | 34401380 | 1.80 | 2.18 | |
| THRUST COLLAR | ||||
| 0045 | 34600320 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0046 | 34602330 | |||
| SPINDLE | ||||
| 0047 | 38500065 | 12.60 | 15.25 | |
| No longer available, no replacement | ||||
| 0048 | 40500055 | |||
| GUARD CAP | ||||
| 0049 | 14320135 | 52.27 | 63.25 | |
| SPRING | ||||
| 0050 | 40500270 | 1.80 | 2.18 | |
| PRESSURE SPRING | ||||
| 0051 | 40508040 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0052 | 42160160 | |||
| GUARD | ||||
| 0053 | 42380222 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 0054 | 42420275 | |||
| FLANGE | ||||
| 0055 | 43340480 | 5.40 | 6.53 | |
| FLANGE | ||||
| 0056 | 43340485 | 1.80 | 2.18 | |
| BEARING HOUSING | ||||
| 0057 | 43780155 | 13.51 | 16.35 | |
| KNIFE | ||||
| 0058 | 43970075 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0059 | 43980615 | |||
| No longer available, no replacement | ||||
| 0060 | 44100130 | |||
| PLATE | ||||
| 0061 | 44140225 | 5.40 | 6.53 | |
| SPINDLE | ||||
| 0063 | 44200510 | 4.49 | 5.43 | |
| SLIDE | ||||
| 0064 | 44200640 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0065 | 44400780 | |||
| No longer available, no replacement | ||||
| 0066 | 44520682 | |||
| No longer available, no replacement | ||||
| 0067 | 44600075 | |||
| No longer available, no replacement | ||||
| 0068 | 44600085 | |||
| PIN | ||||
| 0069 | 44601180 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0070 | 44660075 | |||
| PLATE | ||||
| 0072 | 44660201 | 4.49 | 5.43 | |
| SCREW | ||||
| 0074 | 45040485 | 1.80 | 2.18 | |
| SHAFT | ||||
| 0076 | 45080416 | 5.40 | 6.53 | |
| STOP | ||||
| 0077 | 45160165 | 60.19 | 72.83 | |
| SLEEVE | ||||
| 0078 | 45220605 | 1.80 | 2.18 | |
| TUBE | ||||
| 0079 | 45760331 | 8.09 | 9.79 | |
| WASHER (2 needed) | ||||
| 0080 | 45880577 | 1.90 | 2.30 | |
| WASHER | ||||
| 0082 | 45888461 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 0700 | 201672001 | |||
