Here you will find all available parts and drawings of the 'Milwaukee 4000393538 (SCS65Q)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

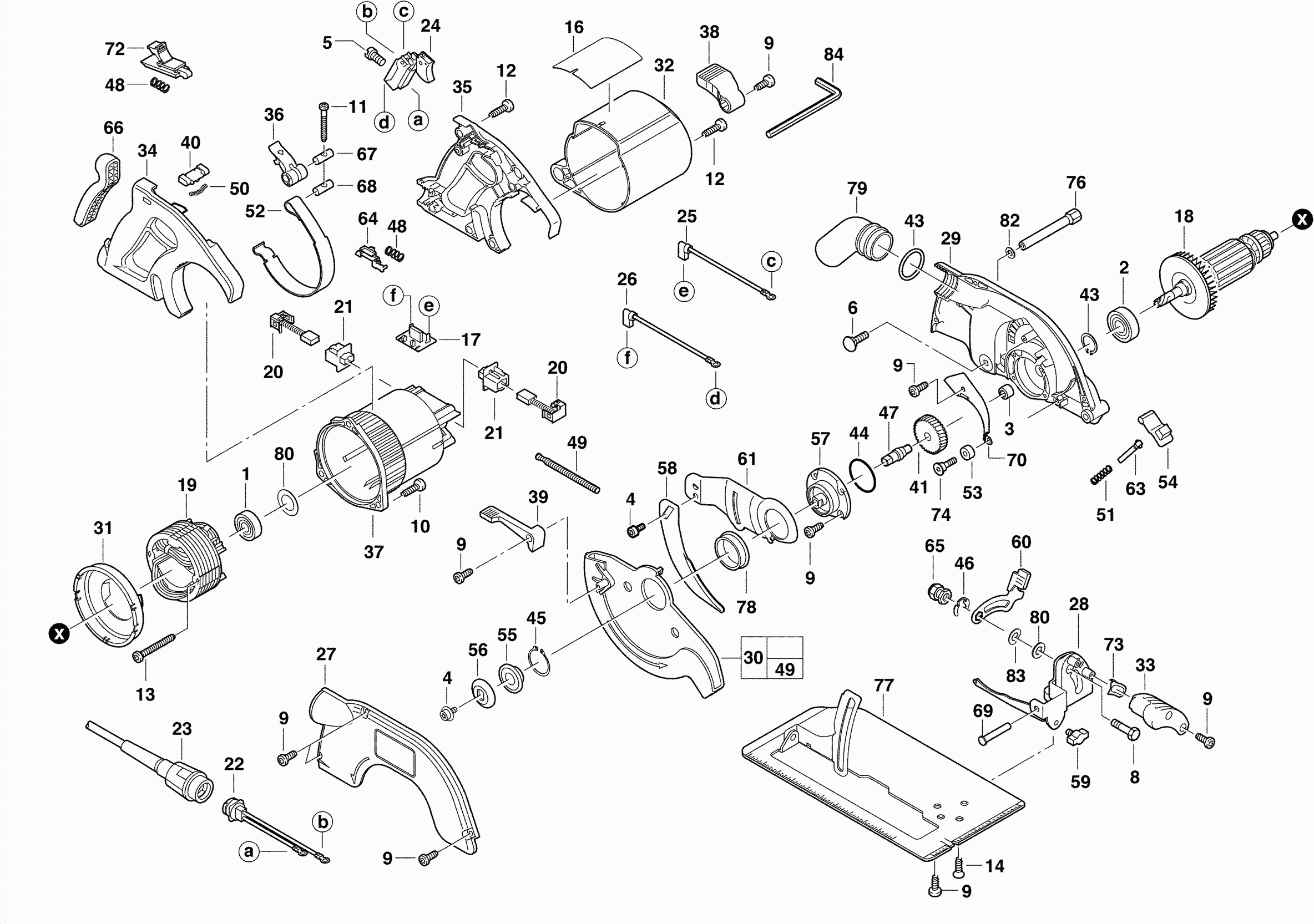

Technical drawing of model Milwaukee 4000393538 (SCS65Q)
Spare parts list of model Milwaukee 4000393538 (SCS65Q)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CAPACITOR | ||||
| 0017 | 14201325 | 15.29 | 18.50 | |
| ELECTRIC FIELD | ||||
| 0018 | 290302001 | 96.57 | 116.85 | |
| ELECTRIC FIELD | ||||
| 0019 | 290302001 | 96.57 | 116.85 | |
| BRUSH HOLDER | ||||
| 0021 | 22220030 | 5.40 | 6.53 | |
| SWITCH | ||||
| 0024 | 23662117 | 17.60 | 21.30 | |
| No longer available, no replacement | ||||
| 0025 | 23941180 | |||
| GUARD CAP | ||||
| 0027 | 14320135 | 52.27 | 63.25 | |
| BRACKET | ||||
| 0028 | 14670260 | 38.02 | 46.00 | |
| No longer available, no replacement | ||||
| 0029 | 28140110 | |||
| GUARD CAP | ||||
| 0030 | 14320135 | 52.27 | 63.25 | |
| AIR DEFLECTOR RING | ||||
| 0031 | 31050045 | 6.82 | 8.25 | |
| No longer available, no replacement | ||||
| 0032 | 31150461 | |||
| No longer available, no replacement | ||||
| 0033 | 31440060 | |||
| No longer available, no replacement | ||||
| 0034 | 31440083 | |||
| No longer available, no replacement | ||||
| 0035 | 31440093 | |||
| HANDLE | ||||
| 0036 | 31442157 | 1.80 | 2.18 | |
| HOUSING | ||||
| 0037 | 31500050 | 50.60 | 61.23 | |
| No longer available, no replacement | ||||
| 0038 | 31520015 | |||
| STOP | ||||
| 0039 | 31520025 | 1.80 | 2.18 | |
| DRIVER | ||||
| 0040 | 31760016 | 1.80 | 2.18 | |
| GEAR | ||||
| 0041 | 32753205 | 26.93 | 32.59 | |
| O-RING | ||||
| 0043 | 34401375 | 3.00 | 3.63 | |
| O-RING | ||||
| 0044 | 34401380 | 3.60 | 4.36 | |
| THRUST COLLAR | ||||
| 0045 | 34600320 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0046 | 34602330 | |||
| No longer available, no replacement | ||||
| 0047 | 38500065 | |||
| No longer available, no replacement | ||||
| 0048 | 40500055 | |||
| GUARD CAP | ||||
| 0049 | 14320135 | 52.27 | 63.25 | |
| No longer available, no replacement | ||||
| 0050 | 40500270 | |||
| PRESSURE SPRING | ||||
| 0051 | 40508040 | 4.54 | 5.49 | |
| No longer available, no replacement | ||||
| 0052 | 42160160 | |||
| GUARD | ||||
| 0053 | 42380222 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0054 | 42420275 | |||
| FLANGE | ||||
| 0055 | 43340480 | 5.40 | 6.53 | |
| FLANGE | ||||
| 0056 | 43340485 | 4.20 | 5.08 | |
| BEARING HOUSING | ||||
| 0057 | 43780155 | 13.51 | 16.35 | |
| KNIFE | ||||
| 0058 | 43970075 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0059 | 43980615 | |||
| No longer available, no replacement | ||||
| 0060 | 44100130 | |||
| PLATE | ||||
| 0061 | 44140225 | 5.40 | 6.53 | |
| SPINDLE | ||||
| 0063 | 44200510 | 4.49 | 5.43 | |
| SLIDE | ||||
| 0064 | 44200640 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0065 | 44400780 | |||
| No longer available, no replacement | ||||
| 0066 | 44520682 | |||
| No longer available, no replacement | ||||
| 0067 | 44600075 | |||
| No longer available, no replacement | ||||
| 0068 | 44600085 | |||
| PIN | ||||
| 0069 | 44601180 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0070 | 44660075 | |||
| PLATE | ||||
| 0072 | 44660201 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0074 | 45040485 | |||
| SHAFT | ||||
| 0076 | 45080416 | 5.40 | 6.53 | |
| STOP | ||||
| 0077 | 45160165 | 60.19 | 72.83 | |
| SLEEVE | ||||
| 0078 | 45220605 | 1.80 | 2.18 | |
| TUBE | ||||
| 0079 | 45760331 | 8.09 | 9.79 | |
| WASHER | ||||
| 0080 | 45880577 | 3.00 | 3.63 | |
| WASHER | ||||
| 0082 | 45888461 | 1.80 | 2.18 | |
