Here you will find all available parts and drawings of the 'Milwaukee 4000384940 ( PPH30X2E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

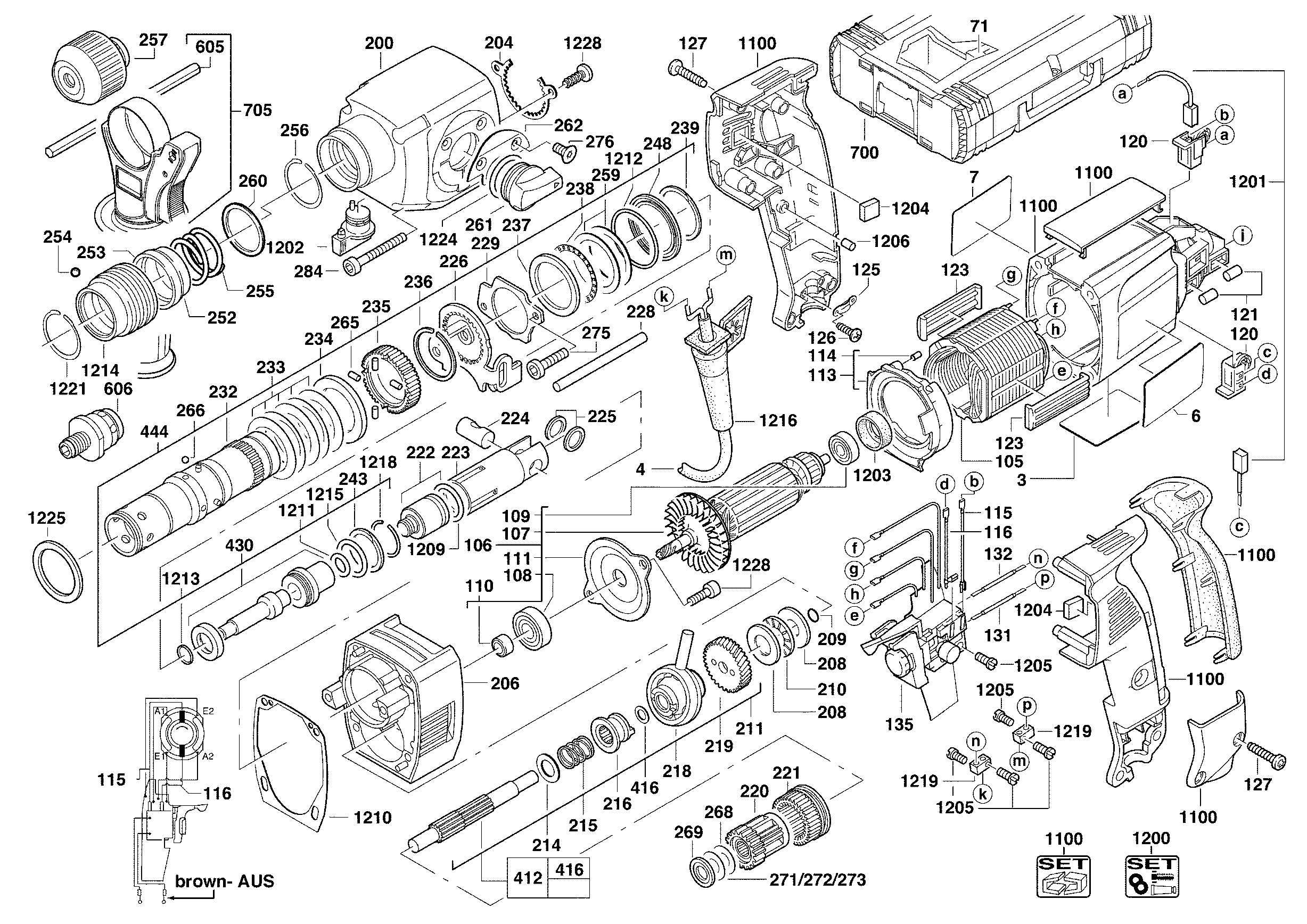

Technical drawing of model Milwaukee 4000384940 ( PPH30X2E )
Spare parts list of model Milwaukee 4000384940 ( PPH30X2E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931623311 | 12.60 | 15.25 | |
| TYPE PLATE | ||||
| 0006 | 4931378806 | 5.40 | 6.53 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931442731 | 31.68 | 38.33 | |
| No information available, not orderable | ||||
| 0106 | 4931379691 | |||
| FAN | ||||
| 0107 | 4931342793 | 5.40 | 6.53 | |
| GROOVED BALL BEAR. | ||||
| 0108 | 4931368037 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0109 | 4931624405 | |||
| SEALING SLEEVE | ||||
| 0110 | 4931382148 | 4.49 | 5.43 | |
| BEARING COVER | ||||
| 0111 | 4931267585 | 4.49 | 5.43 | |
| AIR DEFLECTOR RING | ||||
| 0113 | 4931342794 | 4.49 | 5.43 | |
| HOLDING-DOWN DEVICE (4 needed) | ||||
| 0114 | 4931332524 | 5.40 | 6.53 | |
| WIRE | ||||
| 0115 | 4931623349 | 4.49 | 5.43 | |
| WIRE | ||||
| 0116 | 4931623355 | 4.49 | 5.43 | |
| BRUSH HOLDER (2 needed) | ||||
| 0120 | 4931382268 | 5.40 | 6.53 | |
| ROLL (4 needed) | ||||
| 0121 | 4931623123 | 4.49 | 5.43 | |
| CENTERING LEDGE (2 needed) | ||||
| 0123 | 4931342808 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 0126 | 4931624538 | 1.80 | 2.18 | |
| SCREW (8 needed) | ||||
| 0127 | 4931618253 | 1.80 | 2.18 | |
| WIRE | ||||
| 0131 | 4931622948 | 4.49 | 5.43 | |
| WIRE | ||||
| 0132 | 4931623136 | 4.49 | 5.43 | |
| No information available, not orderable | ||||
| 0200 | 4931382379 | |||
| LOCKING RING | ||||
| 0204 | 4931331685 | 3.60 | 4.36 | |
| AXIAL BEAR.WASHER (2 needed) | ||||
| 0208 | 4931622575 | 1.80 | 2.18 | |
| O-RING N874701 5X1 | ||||
| 0209 | 4931941082 | 1.80 | 2.18 | |
| AXIAL NEEDLE RING | ||||
| 0210 | 4931622567 | 4.49 | 5.43 | |
| No information available, not orderable | ||||
| 0211 | 4931379686 | |||
| DISC | ||||
| 0214 | 4931621983 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0215 | 4931379589 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 0216 | 4931379653 | |||
| No information available, not orderable | ||||
| 0218 | 4931379116 | |||
| REDUCT GEAR WHEEL | ||||
| 0219 | 4931379170 | 12.60 | 15.25 | |
| PLANET GEAR | ||||
| 0220 | 4931384918 | 25.94 | 31.39 | |
| No information available, not orderable | ||||
| 0221 | 4931331684 | |||
| PERCUSSION BODY | ||||
| 0222 | 4931455430 | 25.34 | 30.66 | |
| CYLINDER | ||||
| 0223 | 4931379587 | 15.84 | 19.17 | |
| CYLINDRICAL BOLT | ||||
| 0224 | 4931331623 | 5.40 | 6.53 | |
| WASHER (2 needed) | ||||
| 0225 | 4931400589 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 0226 | 4931331724 | |||
| PIN | ||||
| 0228 | 4931623081 | 5.40 | 6.53 | |
| LATCH PLATE | ||||
| 0229 | 4931331787 | 5.40 | 6.53 | |
| SPINDLE SLEEVE | ||||
| 0232 | 4931417464 | 66.53 | 80.50 | |
| CUP SPRING (5 needed) | ||||
| 0233 | 4931379071 | 5.40 | 6.53 | |
| CLUTCH DISC | ||||
| 0234 | 4931379110 | 5.40 | 6.53 | |
| SPINDLE GEAR | ||||
| 0235 | 4931392752 | 5.40 | 6.53 | |
| SPRING RING | ||||
| 0236 | 4931384919 | 5.40 | 6.53 | |
| WASHER | ||||
| 0237 | 4931623199 | 1.80 | 2.18 | |
| THRUST BEARING | ||||
| 0238 | 4931331713 | 9.00 | 10.89 | |
| LOCKING WASHER | ||||
| 0239 | 4931343187 | 1.80 | 2.18 | |
| THRUST COLLAR | ||||
| 0243 | 4931387328 | 9.00 | 10.89 | |
| WASHER | ||||
| 0248 | 4931343049 | 1.80 | 2.18 | |
| SLEEVE | ||||
| 0252 | 4931382921 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0253 | 4931409774 | 5.40 | 6.53 | |
| BALL | ||||
| 0254 | 4931805437 | 1.80 | 2.18 | |
| SPRING | ||||
| 0255 | 692737001 | 4.49 | 5.43 | |
| SPRING RING | ||||
| 0256 | 4931945764 | 5.40 | 6.53 | |
| ADAPTER | ||||
| 0257 | 4931379739 | 55.44 | 67.08 | |
| WASHER (2 needed) | ||||
| 0259 | 4931623200 | 1.80 | 2.18 | |
| WASHER | ||||
| 0260 | 4931623234 | 1.80 | 2.18 | |
| SWITCH HANDLE | ||||
| 0261 | 4931392507 | 4.49 | 5.43 | |
| LATCH PLATE | ||||
| 0262 | 4931379108 | 5.40 | 6.53 | |
| CYLINDER PULLEY (4 needed) | ||||
| 0265 | 4931624045 | 5.40 | 6.53 | |
| BALL (4 needed) | ||||
| 0266 | 4931805390 | 1.80 | 2.18 | |
| DISC N874237 (2 needed) | ||||
| 0268 | 4931624096 | 5.40 | 6.53 | |
| SPACER | ||||
| 0269 | 4931379420 | 5.40 | 6.53 | |
| DISC N874237 | ||||
| 0271 | 4931624098 | 5.40 | 6.53 | |
| DISC N874237 | ||||
| 0272 | 4931624097 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0275 | 4931623260 | |||
| SCREW (2 needed) | ||||
| 0276 | 4931379109 | 1.80 | 2.18 | |
| SCREW (4 needed) | ||||
| 0284 | 4931331734 | 1.80 | 2.18 | |
| REDUCT. GEAR SHAFT | ||||
| 0412 | 4931384864 | 17.42 | 21.08 | |
| DISC N874237 A 10,1X18X1 | ||||
| 0416 | 4931624264 | 5.40 | 6.53 | |
| REPAIR KIT | ||||
| 0430 | 4931379881 | 63.36 | 76.67 | |
| SPINDLE SLEEVE | ||||
| 0444 | 4931407945 | 144.14 | 174.41 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| Transportkoffer Milwaukee (maat 1) | ||||
| 0700 | 4932378986 | 47.85 | 57.90 | |
| HANDLE | ||||
| 0705 | 4931412160 | 14.40 | 17.42 | |
| BODY | ||||
| 1100 | 4931380477 | 20.59 | 24.91 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931369477 | 14.40 | 17.42 | |
| RUBBER SLEEVE | ||||
| 1203 | 4931301483 | 1.80 | 2.18 | |
| DAMPING ELEMENT (2 needed) | ||||
| 1204 | 4931342803 | 4.49 | 5.43 | |
| SCREW (2 needed) | ||||
| 1205 | 4931621772 | 1.80 | 2.18 | |
| HOLDING-DOWN DEVICE | ||||
| 1206 | 4931409768 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1209 | 4931379705 | 5.40 | 6.53 | |
| GASKET | ||||
| 1210 | 4931331735 | 5.40 | 6.53 | |
| O-RING | ||||
| 1211 | 562597001 | 3.60 | 4.36 | |
| O-RING | ||||
| 1212 | 4931623135 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1213 | 4931623232 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 1214 | 4931379022 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1215 | 4931624492 | 5.40 | 6.53 | |
| CABLE ENTRY SLEEVE | ||||
| 1216 | 4931332161 | 4.49 | 5.43 | |
| RING | ||||
| 1218 | 4931623636 | 5.40 | 6.53 | |
| CONNECTOR | ||||
| 1219 | 4931307924 | 4.49 | 5.43 | |
| O-RING | ||||
| 1224 | 4931623293 | 1.80 | 2.18 | |
| FELT WASHER | ||||
| 1225 | 4931379585 | 1.80 | 2.18 | |
| SCREW (2 needed) | ||||
| 1228 | 4931379708 | 1.80 | 2.18 | |
