Here you will find all available parts and drawings of the 'Milwaukee 4000384027 ( PLH32XE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

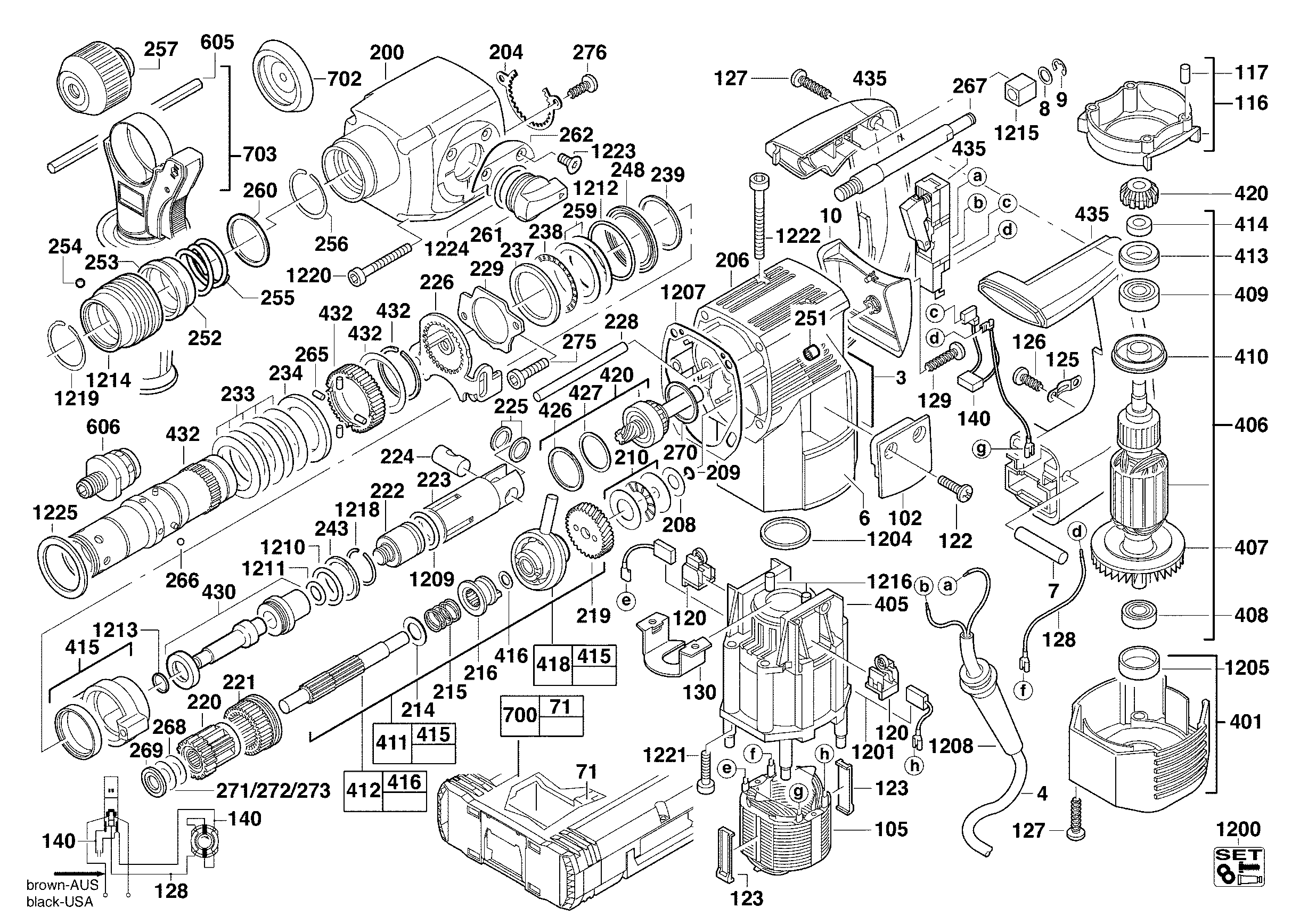

Technical drawing of model Milwaukee 4000384027 ( PLH32XE )
Spare parts list of model Milwaukee 4000384027 ( PLH32XE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931250832 | 14.40 | 17.42 | |
| GROOVED DOWEL PIN | ||||
| 0007 | 4931623456 | 5.40 | 6.53 | |
| WASHER (2 needed) | ||||
| 0008 | 4931623094 | 1.80 | 2.18 | |
| WASHER | ||||
| 0009 | 4931621834 | 1.80 | 2.18 | |
| GEAR BOX COVER | ||||
| 0010 | 4931360377 | 5.40 | 6.53 | |
| CARRYING CASE | ||||
| 0071 | 4931415335 | 47.52 | 57.50 | |
| COVER (2 needed) | ||||
| 0102 | 4931379134 | 4.49 | 5.43 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931442731 | 31.68 | 38.33 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931353230 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE (4 needed) | ||||
| 0117 | 4931332524 | 5.40 | 6.53 | |
| BRUSH HOLDER (2 needed) | ||||
| 0120 | 4931382268 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0122 | 4931624518 | 1.80 | 2.18 | |
| CENTERING LEDGE (2 needed) | ||||
| 0123 | 4931342808 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 0126 | 4931624516 | 1.80 | 2.18 | |
| SCREW N874101-1 SHR H-K4X18 T15 (7 needed) | ||||
| 0127 | 4931624515 | 1.80 | 2.18 | |
| WIRE | ||||
| 0128 | 4931623541 | 5.40 | 6.53 | |
| SCREW | ||||
| 0129 | 4931622153 | 1.80 | 2.18 | |
| BEARING COVER | ||||
| 0130 | 4931356869 | 5.40 | 6.53 | |
| CAPACITOR | ||||
| 0140 | 4931624270 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0200 | 4931384040 | 69.70 | 84.34 | |
| LOCKING RING | ||||
| 0204 | 4931331685 | 3.60 | 4.36 | |
| GEAR BOX | ||||
| 0206 | 4931382948 | 118.80 | 143.75 | |
| WASHER | ||||
| 0208 | 4931623637 | 1.80 | 2.18 | |
| O-RING N874701 5X1 | ||||
| 0209 | 4931941082 | 1.80 | 2.18 | |
| THRUST BEARING | ||||
| 0210 | 4931360041 | 9.00 | 10.89 | |
| DISC | ||||
| 0214 | 4931621983 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0215 | 4931379589 | 5.40 | 6.53 | |
| COUPLING SLEEVE | ||||
| 0216 | 4931379649 | 9.00 | 10.89 | |
| REDUCTION GEAR | ||||
| 0219 | 4931426234 | 10.80 | 13.07 | |
| PLANET GEAR | ||||
| 0220 | 4931384917 | 50.69 | 61.33 | |
| INTERN.GEARED WHEEL | ||||
| 0221 | 4931331769 | 9.00 | 10.89 | |
| PERCUSSION BODY | ||||
| 0222 | 4931455430 | 25.34 | 30.66 | |
| CYLINDER | ||||
| 0223 | 4931379587 | 15.84 | 19.17 | |
| CYLINDRICAL BOLT | ||||
| 0224 | 4931331623 | 5.40 | 6.53 | |
| WASHER (2 needed) | ||||
| 0225 | 4931400589 | 1.80 | 2.18 | |
| SLIDER | ||||
| 0226 | 4931331752 | 5.40 | 6.53 | |
| PIN | ||||
| 0228 | 4931623081 | 5.40 | 6.53 | |
| LATCH PLATE | ||||
| 0229 | 4931331787 | 5.40 | 6.53 | |
| CUP SPRING (5 needed) | ||||
| 0233 | 4931379071 | 5.40 | 6.53 | |
| CLUTCH DISC | ||||
| 0234 | 4931379110 | 5.40 | 6.53 | |
| WASHER | ||||
| 0237 | 4931623199 | 1.80 | 2.18 | |
| THRUST BEARING | ||||
| 0238 | 4931331713 | 9.00 | 10.89 | |
| LOCKING WASHER | ||||
| 0239 | 4931343187 | 1.80 | 2.18 | |
| THRUST COLLAR | ||||
| 0243 | 4931387328 | 9.00 | 10.89 | |
| WASHER | ||||
| 0248 | 4931343049 | 1.80 | 2.18 | |
| NEEDLE BEARING | ||||
| 0251 | 4931219424 | 3.60 | 4.36 | |
| SLEEVE | ||||
| 0252 | 4931382921 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0253 | 4931409774 | 5.40 | 6.53 | |
| BALL | ||||
| 0254 | 4931805437 | 1.80 | 2.18 | |
| SPRING | ||||
| 0255 | 692737001 | 4.49 | 5.43 | |
| SPRING RING | ||||
| 0256 | 4931945764 | 5.40 | 6.53 | |
| ADAPTER | ||||
| 0257 | 4931379739 | 55.44 | 67.08 | |
| WASHER (2 needed) | ||||
| 0259 | 4931623200 | 1.80 | 2.18 | |
| WASHER | ||||
| 0260 | 4931623234 | 1.80 | 2.18 | |
| SWITCH HANDLE | ||||
| 0261 | 4931392506 | 5.40 | 6.53 | |
| LATCH PLATE | ||||
| 0262 | 4931379108 | 5.40 | 6.53 | |
| CYLINDER PULLEY (4 needed) | ||||
| 0265 | 4931624045 | 5.40 | 6.53 | |
| BALL (4 needed) | ||||
| 0266 | 4931805390 | 1.80 | 2.18 | |
| REPAIR KIT | ||||
| 0267 | 4931400216 | 31.68 | 38.33 | |
| DISC N874237 (2 needed) | ||||
| 0268 | 4931624096 | 5.40 | 6.53 | |
| SPACER | ||||
| 0269 | 4931379420 | 5.40 | 6.53 | |
| SUPPORTING PLATE | ||||
| 0270 | 4931409756 | 5.40 | 6.53 | |
| DISC N874237 | ||||
| 0271 | 4931624098 | 5.40 | 6.53 | |
| DISC N874237 | ||||
| 0272 | 4931624097 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 0275 | 4931623602 | 1.80 | 2.18 | |
| SCREW (2 needed) | ||||
| 0276 | 4931379708 | 1.80 | 2.18 | |
| MOTOR COVER | ||||
| 0401 | 4931360732 | 10.80 | 13.07 | |
| MOTOR HOUSING | ||||
| 0405 | 4931384337 | 17.42 | 21.08 | |
| No information available, not orderable | ||||
| 0406 | 4931426517 | |||
| FAN | ||||
| 0407 | 4931342793 | 5.40 | 6.53 | |
| GROOVED BALL BEAR. | ||||
| 0408 | 4931341740 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0409 | 4931624101 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0410 | 4931353260 | 5.40 | 6.53 | |
| REPAIR KIT | ||||
| 0411 | 4931384561 | 93.46 | 113.09 | |
| REDUCT. GEAR SHAFT | ||||
| 0412 | 4931384864 | 17.42 | 21.08 | |
| SEAL RING | ||||
| 0413 | 4931442301 | 16.20 | 19.60 | |
| SPACER | ||||
| 0414 | 4931353238 | 4.49 | 5.43 | |
| BUSHING | ||||
| 0415 | 4931384557 | 17.42 | 21.08 | |
| DISC N874237 A 10,1X18X1 | ||||
| 0416 | 4931624264 | 5.40 | 6.53 | |
| REPAIR KIT | ||||
| 0418 | 4931384560 | 63.36 | 76.67 | |
| PINION SHAFT | ||||
| 0420 | 4931432300 | 63.36 | 76.67 | |
| LOCKING RING | ||||
| 0426 | 4931616614 | 5.40 | 6.53 | |
| DISC N874237 A16,1X26X1 | ||||
| 0427 | 4931622564 | 5.40 | 6.53 | |
| REPAIR KIT | ||||
| 0430 | 4931379881 | 63.36 | 76.67 | |
| SWITCH BOARD | ||||
| 0435 | 4931384895 | 47.52 | 57.50 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| Transportkoffer Milwaukee (maat 1) | ||||
| 0700 | 4932378986 | 47.85 | 57.90 | |
| boorstof opvangring | ||||
| 0702 | 4932430912 | 9.54 | 11.54 | |
| SIDE HANDLE | ||||
| 0703 | 4932373725 | 17.60 | 21.30 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931369477 | 14.40 | 17.42 | |
| O-RING | ||||
| 1204 | 4931623124 | 1.80 | 2.18 | |
| RUBBER SLEEVE | ||||
| 1205 | 4931360781 | 5.40 | 6.53 | |
| GASKET | ||||
| 1207 | 4931331735 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1209 | 4931379705 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1210 | 4931624492 | 5.40 | 6.53 | |
| O-RING | ||||
| 1211 | 562597001 | 3.60 | 4.36 | |
| O-RING | ||||
| 1212 | 4931623135 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1213 | 4931623232 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 1214 | 4931379022 | 5.40 | 6.53 | |
| DAMPING ELEMENT | ||||
| 1215 | 4931392502 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE (2 needed) | ||||
| 1216 | 4931331549 | 5.40 | 6.53 | |
| RING | ||||
| 1218 | 4931623636 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 1220 | 4931623521 | 1.80 | 2.18 | |
| SCREW (4 needed) | ||||
| 1221 | 4931623520 | 1.80 | 2.18 | |
| SCREW (2 needed) | ||||
| 1222 | 4931623519 | 1.80 | 2.18 | |
| SCREW (2 needed) | ||||
| 1223 | 4931379109 | 1.80 | 2.18 | |
| O-RING | ||||
| 1224 | 4931623293 | 1.80 | 2.18 | |
| FELT WASHER | ||||
| 1225 | 4931379585 | 1.80 | 2.18 | |
