Here you will find all available parts and drawings of the 'Milwaukee 4000452099 (PLH28XE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

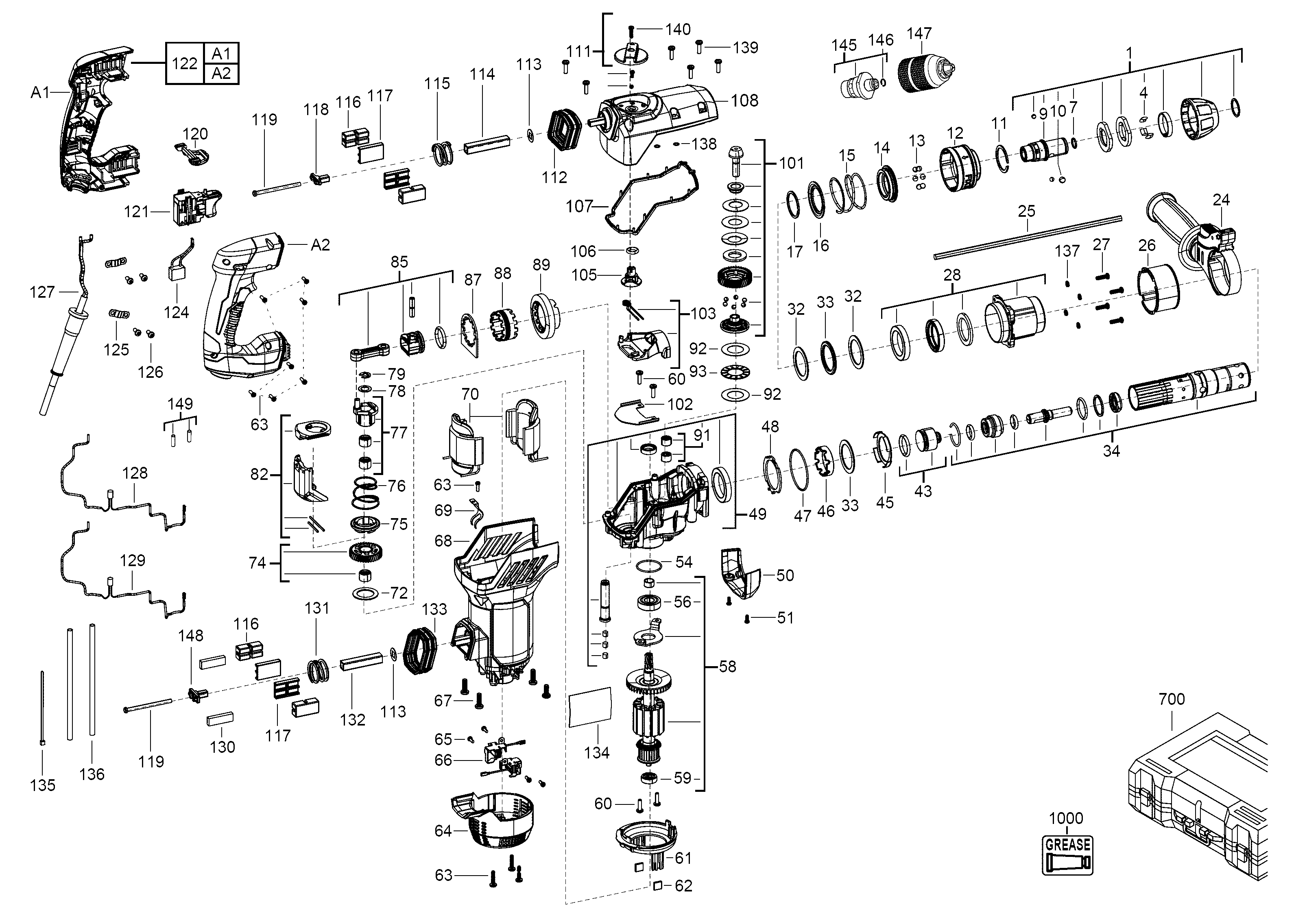

Technical drawing of model Milwaukee 4000452099 (PLH28XE)
Spare parts list of model Milwaukee 4000452099 (PLH28XE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| FIXTEC ADAPTER | ||||
| 0001 | 4931436361 | 38.02 | 46.00 | |
| No longer available, no replacement | ||||
| 0004 | 562578001 | |||
| O-RING | ||||
| 0007 | 4931454454 | 3.00 | 3.63 | |
| ADAPTER | ||||
| 0009 | 4931409763 | 12.60 | 15.25 | |
| BALL | ||||
| 0010 | 681154001 | 3.00 | 3.63 | |
| SPRING RING | ||||
| 0011 | 4931436362 | 3.60 | 4.36 | |
| COLLAR | ||||
| 0012 | 4931436363 | 4.49 | 5.43 | |
| BALL (6 needed) | ||||
| 0013 | 681486001 | 3.00 | 3.63 | |
| RING | ||||
| 0014 | 4931436364 | 15.29 | 18.50 | |
| SPRING WASHER | ||||
| 0015 | 4931436365 | 3.00 | 3.63 | |
| SPRING | ||||
| 0016 | 4931436366 | 3.00 | 3.63 | |
| SPRING RING | ||||
| 0017 | 4931436367 | 3.00 | 3.63 | |
| AUXILIARY HANDLE | ||||
| 0024 | 4931436368 | 28.51 | 34.50 | |
| DEPTH GAUGE | ||||
| 0025 | 4931384434 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0026 | 4931436369 | 3.00 | 3.63 | |
| SCREW (27 needed) | ||||
| 0027 | 4931435150 | 3.60 | 4.36 | |
| SLEEVE | ||||
| 0028 | 4931436370 | 33.26 | 40.24 | |
| WASHER (3 needed) | ||||
| 0032 | 4931436371 | 3.00 | 3.63 | |
| RUBBER DISC (2 needed) | ||||
| 0033 | 4931436372 | 5.40 | 6.53 | |
| SPINDLE KIT | ||||
| 0034 | 4931448975 | 229.68 | 277.91 | |
| PERCUSSION BODY | ||||
| 0043 | 4931436374 | 33.26 | 40.24 | |
| BUFFER | ||||
| 0045 | 4931436375 | 3.00 | 3.63 | |
| SPINDLE SLEEVE | ||||
| 0046 | 4931436376 | 3.79 | 4.59 | |
| O-RING | ||||
| 0047 | 4931436377 | 3.00 | 3.63 | |
| PLATE | ||||
| 0048 | 4931436378 | 3.00 | 3.63 | |
| GEAR BOX | ||||
| 0049 | 4931436379 | 72.86 | 88.16 | |
| HOUSING | ||||
| 0050 | 4931436380 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0051 | 4931435313 | |||
| O-RING | ||||
| 0054 | 4931436381 | 3.00 | 3.63 | |
| BALL BEARING | ||||
| 0056 | 4931452227 | 5.40 | 6.53 | |
| ARMATURE | ||||
| 0058 | 4931436384 | 79.20 | 95.83 | |
| BALL BEARING | ||||
| 0059 | 4931436119 | 9.84 | 11.91 | |
| SCREW (2 needed) | ||||
| 0060 | 660165015 | 3.00 | 3.63 | |
| AIR DEFLECTOR RING | ||||
| 0061 | 4931436385 | 3.00 | 3.63 | |
| BLOCK (2 needed) | ||||
| 0062 | 4931435034 | 5.40 | 6.53 | |
| SCREW M3,5 Torx 10 | ||||
| 0063 | 660031023 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0064 | 4931436386 | |||
| No longer available, no replacement | ||||
| 0065 | 4931436387 | |||
| BRUSH HOLDER | ||||
| 0066 | 4931436389 | 16.20 | 19.60 | |
| SCREW (6 needed) | ||||
| 0067 | 4931436390 | 1.80 | 2.18 | |
| MOTOR HOUSING | ||||
| 0068 | 4931436391 | 34.85 | 42.17 | |
| STAMP | ||||
| 0069 | 4931436392 | 5.40 | 6.53 | |
| ELECTRIC FIELD | ||||
| 0070 | 4931436394 | 63.36 | 76.67 | |
| WASHER | ||||
| 0072 | 4931436395 | 3.00 | 3.63 | |
| CRANK WHEEL | ||||
| 0074 | 4931436396 | 22.18 | 26.84 | |
| RING | ||||
| 0075 | 4931436397 | 4.20 | 5.08 | |
| SPRING | ||||
| 0076 | 4931436398 | 3.00 | 3.63 | |
| ECCENTRIC STRAP | ||||
| 0077 | 4931436399 | 44.35 | 53.66 | |
| WASHER | ||||
| 0078 | 4931436400 | 3.00 | 3.63 | |
| SLEEVE | ||||
| 0079 | 4931436401 | 3.00 | 3.63 | |
| SWITCH | ||||
| 0082 | 4931436402 | 15.84 | 19.17 | |
| PISTON | ||||
| 0085 | 4931436403 | 31.68 | 38.33 | |
| HOLDING PLATE | ||||
| 0087 | 4931436404 | 5.30 | 6.41 | |
| INDEXING SLEEVE | ||||
| 0088 | 4931436405 | 8.40 | 10.16 | |
| BEVEL GEAR | ||||
| 0089 | 4931436406 | 25.41 | 30.75 | |
| BEARING | ||||
| 0091 | 680727001 | 9.00 | 10.89 | |
| WASHER | ||||
| 0092 | 4931436407 | 3.00 | 3.63 | |
| NEEDLE BEARING | ||||
| 0093 | 4931436408 | 4.54 | 5.49 | |
| COUPLING | ||||
| 0101 | 4931436409 | 69.70 | 84.34 | |
| STAMP | ||||
| 0102 | 4931436410 | 3.00 | 3.63 | |
| FORK | ||||
| 0103 | 4931436411 | 7.20 | 8.71 | |
| JOINT PIECE | ||||
| 0105 | 4931436412 | 3.00 | 3.63 | |
| O-RING | ||||
| 0106 | 4931436413 | 3.00 | 3.63 | |
| COVER | ||||
| 0107 | 4931448574 | 15.84 | 19.17 | |
| No longer available, no replacement | ||||
| 0108 | 4931452225 | |||
| KNOB | ||||
| 0111 | 4931436416 | 8.09 | 9.79 | |
| RUBBER CAP | ||||
| 0112 | 4931436417 | 5.40 | 6.53 | |
| WASHER (2 needed) | ||||
| 0113 | 4931436418 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0114 | 4931436419 | |||
| SPRING | ||||
| 0115 | 4931436420 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0116 | 4931436421 | |||
| No longer available, no replacement | ||||
| 0117 | 4931436422 | |||
| HOUSING | ||||
| 0118 | 4931436423 | 7.20 | 8.71 | |
| SCREW (4 needed) | ||||
| 0119 | 4931436424 | 3.00 | 3.63 | |
| PUSH-BUTTON | ||||
| 0120 | 4931436425 | 3.00 | 3.63 | |
| PRINT.CURIUT SWITCH | ||||
| 0121 | 4931448377 | 49.10 | 59.41 | |
| HANDLE COMPL. | ||||
| 0122 | 4931436427 | 16.20 | 19.60 | |
| CAPACITOR | ||||
| 0124 | 4931436428 | 14.40 | 17.42 | |
| PUNCH GUIDE (2 needed) | ||||
| 0125 | 632823001 | 4.54 | 5.49 | |
| SCREW (2 needed) | ||||
| 0126 | 661189001 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0127 | 4931436430 | |||
| WIRE | ||||
| 0128 | 4931448378 | 6.00 | 7.26 | |
| WIRE | ||||
| 0129 | 4931448379 | 6.00 | 7.26 | |
| FOAM RUBBER (2 needed) | ||||
| 0130 | 4931436434 | 4.54 | 5.49 | |
| SPRING | ||||
| 0131 | 4931436435 | 3.00 | 3.63 | |
| TUBE | ||||
| 0132 | 4931436436 | 4.80 | 5.81 | |
| RUBBER BUFFER | ||||
| 0133 | 4931436437 | 6.82 | 8.25 | |
| RATING PLATE | ||||
| 0134 | 4931452102 | 3.60 | 4.36 | |
| CABLE | ||||
| 0135 | 4931436441 | 4.49 | 5.43 | |
| SLEEVE (2 needed) | ||||
| 0136 | 4931436442 | 5.40 | 6.53 | |
| PROTECTION WASHER (4 needed) | ||||
| 0137 | 680866003 | 3.60 | 4.36 | |
| O-RING (2 needed) | ||||
| 0138 | 4931436443 | 3.00 | 3.63 | |
| SCREW (6 needed) | ||||
| 0139 | 4931436444 | 3.00 | 3.63 | |
| SCREW (18 needed) | ||||
| 0140 | 660031017 | 3.60 | 4.36 | |
| CHUCK ADAPTER | ||||
| 0145 | 621194001 | 22.87 | 27.67 | |
| SPRING | ||||
| 0146 | 692738001 | 4.49 | 5.43 | |
| Keyless Chuck 1.5-13 1/2x20-1pc | ||||
| 0147 | 4932376531 | 58.81 | 71.16 | |
| No longer available, no replacement | ||||
| 0148 | 4931447719 | |||
| No longer available, no replacement | ||||
| 0149 | 4931448845 | |||
| CARRYING CASE | ||||
| 0700 | 4931436445 | 50.69 | 61.33 | |
| GEAR GREASE | ||||
| 1000 | 4931443288 | 39.38 | 47.65 | |
