Here you will find all available parts and drawings of the 'Milwaukee 4000452086 ( PLH28E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

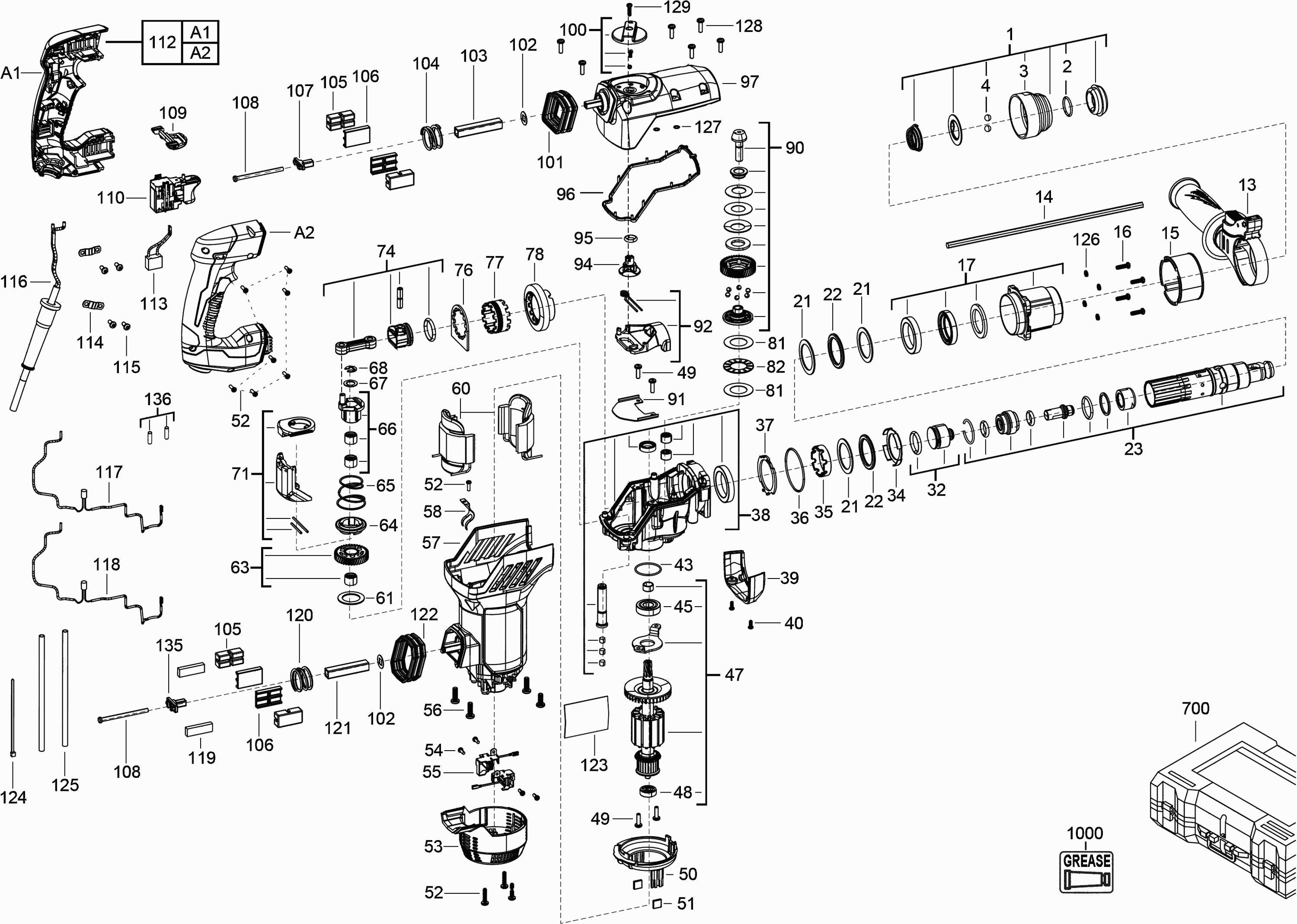

Technical drawing of model Milwaukee 4000452086 ( PLH28E )
Spare parts list of model Milwaukee 4000452086 ( PLH28E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| COVER CAP SET | ||||
| 0001 | 4931436446 | 25.34 | 30.66 | |
| SPRING RING | ||||
| 0002 | 672631001 | 4.49 | 5.43 | |
| COVER CAP | ||||
| 0003 | 4931436447 | 13.51 | 16.35 | |
| BALL | ||||
| 0004 | 681154001 | 1.80 | 2.18 | |
| AUXILIARY HANDLE | ||||
| 0013 | 4931436368 | 28.51 | 34.50 | |
| DEPTH GAUGE | ||||
| 0014 | 4931384434 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0015 | 4931436369 | 1.80 | 2.18 | |
| SCREW (4 needed) | ||||
| 0016 | 4931435150 | 1.90 | 2.30 | |
| SLEEVE | ||||
| 0017 | 4931436370 | 33.26 | 40.24 | |
| WASHER (3 needed) | ||||
| 0021 | 4931436371 | 1.90 | 2.30 | |
| RUBBER DISC (2 needed) | ||||
| 0022 | 4931436372 | 5.40 | 6.53 | |
| SPINDLE KIT | ||||
| 0023 | 4931436448 | 172.66 | 208.92 | |
| PERCUSSION BODY | ||||
| 0032 | 4931436374 | 33.26 | 40.24 | |
| BUFFER | ||||
| 0034 | 4931436375 | 1.80 | 2.18 | |
| SPINDLE SLEEVE | ||||
| 0035 | 4931436376 | 3.60 | 4.36 | |
| O-RING | ||||
| 0036 | 4931436377 | 1.80 | 2.18 | |
| PLATE | ||||
| 0037 | 4931436378 | 1.80 | 2.18 | |
| GEAR BOX | ||||
| 0038 | 4931436379 | 72.86 | 88.16 | |
| HOUSING | ||||
| 0039 | 4931436380 | 5.40 | 6.53 | |
| SCREW | ||||
| 0040 | 4931435313 | 1.80 | 2.18 | |
| O-RING | ||||
| 0043 | 4931436381 | 1.80 | 2.18 | |
| BALL BEARING | ||||
| 0045 | 4931452227 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0047 | 4931436383 | |||
| BALL BEARING | ||||
| 0048 | 4931436119 | 9.00 | 10.89 | |
| SCREW (2 needed) | ||||
| 0049 | 660165015 | 1.80 | 2.18 | |
| AIR DEFLECTOR RING | ||||
| 0050 | 4931436385 | 1.90 | 2.30 | |
| BLOCK | ||||
| 0051 | 4931435034 | 5.40 | 6.53 | |
| SCREW M3.5 Torx 10 | ||||
| 0052 | 660031023 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 0053 | 4931436386 | |||
| No longer available, no replacement | ||||
| 0054 | 4931436387 | |||
| BRUSH HOLDER with brushes | ||||
| 0055 | 4931436388 | 19.01 | 23.00 | |
| SCREW (8 needed) | ||||
| 0056 | 4931436390 | 1.80 | 2.18 | |
| MOTOR HOUSING | ||||
| 0057 | 4931436391 | 34.85 | 42.17 | |
| STAMP | ||||
| 0058 | 4931436392 | 5.40 | 6.53 | |
| ELECTRIC FIELD | ||||
| 0060 | 4931436393 | 63.36 | 76.67 | |
| WASHER | ||||
| 0061 | 4931436395 | 1.80 | 2.18 | |
| CRANK WHEEL | ||||
| 0063 | 4931436450 | 15.84 | 19.17 | |
| RING | ||||
| 0064 | 4931436397 | 3.60 | 4.36 | |
| SPRING | ||||
| 0065 | 4931436398 | 1.80 | 2.18 | |
| CRANK WHEEL | ||||
| 0066 | 4931436451 | 53.86 | 65.17 | |
| WASHER | ||||
| 0067 | 4931436400 | 1.80 | 2.18 | |
| SLEEVE | ||||
| 0068 | 4931436401 | 1.80 | 2.18 | |
| SWITCH | ||||
| 0071 | 4931436402 | 15.84 | 19.17 | |
| PISTON | ||||
| 0074 | 4931436403 | 31.68 | 38.33 | |
| HOLDING PLATE | ||||
| 0076 | 4931436404 | 4.49 | 5.43 | |
| INDEXING SLEEVE | ||||
| 0077 | 4931436405 | 7.20 | 8.71 | |
| BEVEL GEAR | ||||
| 0078 | 4931436406 | 25.34 | 30.66 | |
| WASHER (2 needed) | ||||
| 0081 | 4931436407 | 1.90 | 2.30 | |
| NEEDLE BEARING | ||||
| 0082 | 4931436408 | 3.78 | 4.57 | |
| COUPLING | ||||
| 0090 | 4931436409 | 69.70 | 84.34 | |
| STAMP | ||||
| 0091 | 4931436410 | 1.80 | 2.18 | |
| FORK | ||||
| 0092 | 4931436411 | 7.20 | 8.71 | |
| JOINT PIECE | ||||
| 0094 | 4931436412 | 1.90 | 2.30 | |
| O-RING | ||||
| 0095 | 4931436413 | 1.80 | 2.18 | |
| COVER | ||||
| 0096 | 4931448574 | 15.84 | 19.17 | |
| GEAR BOX COVER | ||||
| 0097 | 4931452225 | 17.91 | 21.67 | |
| KNOB | ||||
| 0100 | 4931436416 | 8.09 | 9.79 | |
| RUBBER CAP | ||||
| 0101 | 4931436417 | 5.40 | 6.53 | |
| WASHER (2 needed) | ||||
| 0102 | 4931436418 | 1.90 | 2.30 | |
| GUIDE SLEEVE | ||||
| 0103 | 4931436419 | 5.40 | 6.53 | |
| SPRING | ||||
| 0104 | 4931436420 | 5.40 | 6.53 | |
| SHOCK ABSORBER (4 needed) | ||||
| 0105 | 4931436421 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0106 | 4931436422 | |||
| HOUSING | ||||
| 0107 | 4931436423 | 7.20 | 8.71 | |
| SCREW (2 needed) | ||||
| 0108 | 4931436424 | 1.80 | 2.18 | |
| PUSH-BUTTON | ||||
| 0109 | 4931436425 | 1.90 | 2.30 | |
| SWITCH | ||||
| 0110 | 4931452226 | 41.18 | 49.83 | |
| HANDLE COMPL. | ||||
| 0112 | 4931436427 | 16.20 | 19.60 | |
| CAPACITOR | ||||
| 0113 | 4931436428 | 14.40 | 17.42 | |
| PUNCH GUIDE (2 needed) | ||||
| 0114 | 632823001 | 4.49 | 5.43 | |
| SCREW (2 needed) | ||||
| 0115 | 661189001 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0116 | 4931436429 | 22.18 | 26.84 | |
| CHOKING COIL | ||||
| 0117 | 4931436432 | 7.20 | 8.71 | |
| CHOKING COIL | ||||
| 0118 | 4931436433 | 7.20 | 8.71 | |
| FOAM RUBBER (2 needed) | ||||
| 0119 | 4931436434 | 4.49 | 5.43 | |
| SPRING | ||||
| 0120 | 4931436435 | 1.80 | 2.18 | |
| TUBE | ||||
| 0121 | 4931436436 | 4.49 | 5.43 | |
| RUBBER BUFFER | ||||
| 0122 | 4931436437 | 5.68 | 6.87 | |
| RATING PLATE | ||||
| 0123 | 4931452089 | 1.90 | 2.30 | |
| CABLE | ||||
| 0124 | 4931436441 | 4.49 | 5.43 | |
| SLEEVE (2 needed) | ||||
| 0125 | 4931436442 | 5.40 | 6.53 | |
| PROTECTION WASHER (4 needed) | ||||
| 0126 | 680866003 | 1.90 | 2.30 | |
| O-RING (2 needed) | ||||
| 0127 | 4931436443 | 1.90 | 2.30 | |
| SCREW (6 needed) | ||||
| 0128 | 4931436444 | 1.80 | 2.18 | |
| SCREW (23 needed) | ||||
| 0129 | 660031017 | 1.90 | 2.30 | |
| RETAINING PLATE | ||||
| 0135 | 4931447719 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0136 | 4931448845 | |||
| CARRYING CASE | ||||
| 0700 | 4931436445 | 50.69 | 61.33 | |
| GEAR GREASE | ||||
| 1000 | 4931443288 | 35.80 | 43.32 | |
