Here you will find all available parts and drawings of the 'Milwaukee 4000392627 ( PLH26E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

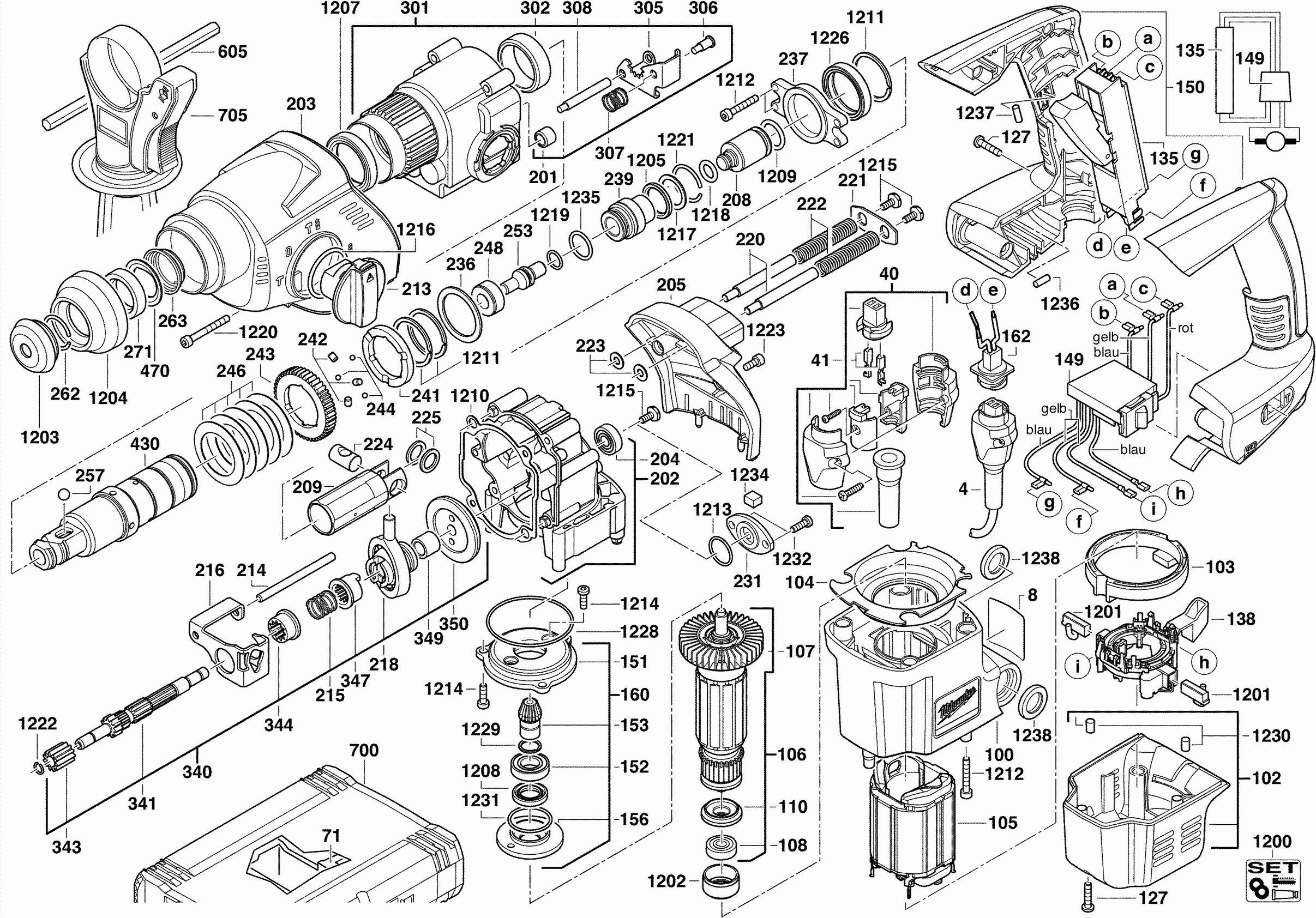

Technical drawing of model Milwaukee 4000392627 ( PLH26E )
Spare parts list of model Milwaukee 4000392627 ( PLH26E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CONNECTION CABLE IN2 | ||||
| 0004 | 4931624171 | 33.00 | 39.93 | |
| Reparatieset QUIK-LOK snoeren | ||||
| 0040 | 4931380758 | 40.26 | 48.71 | |
| Cable socket p./10 | ||||
| 0041 | 4931380763 | 25.34 | 30.66 | |
| No information available, not orderable | ||||
| 0071 | 4931392099 | |||
| MOTOR HOUSING | ||||
| 0100 | 4931392634 | 12.60 | 15.25 | |
| MOTOR CAP | ||||
| 0102 | 4931392446 | 8.09 | 9.79 | |
| HOLDING-DOWN DEVICE | ||||
| 0103 | 4931384662 | 4.49 | 5.43 | |
| AIR DEFLECTOR RING | ||||
| 0104 | 4931392636 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0105 | 4931426477 | |||
| ARMATURE | ||||
| 0106 | 4931426365 | 52.27 | 63.25 | |
| FAN | ||||
| 0107 | 4931408165 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0108 | 4931902888 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931385658 | 5.40 | 6.53 | |
| SCREW N874101-1 SHR H-K4X18 T15 (7 needed) | ||||
| 0127 | 4931624515 | 1.80 | 2.18 | |
| SWITCH | ||||
| 0135 | 4931384668 | 31.68 | 38.33 | |
| SET COLLAR | ||||
| 0138 | 4931392637 | 15.84 | 19.17 | |
| ELECTRIC ELEMENT | ||||
| 0149 | 4931384663 | 52.27 | 63.25 | |
| HANDLE COMPL. | ||||
| 0150 | 4931392639 | 17.11 | 20.70 | |
| BEARING END PLATE | ||||
| 0151 | 4931426436 | 17.11 | 20.70 | |
| BALL BEARING D 625 609 ZZ C3LDS | ||||
| 0152 | 4931624278 | 9.00 | 10.89 | |
| PINION | ||||
| 0153 | 4931442408 | 33.26 | 40.24 | |
| BEARING COVER | ||||
| 0156 | 4931409755 | 12.60 | 15.25 | |
| No longer available, no replacement | ||||
| 0160 | 4931442407 | |||
| INSERT | ||||
| 0162 | 4931364437 | 9.00 | 10.89 | |
| NEEDLE BEARING N874989 HK 0709 | ||||
| 0201 | 4931933756 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 0202 | 4931384633 | |||
| GEAR BOX INSULATION | ||||
| 0203 | 4931392716 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0204 | 681383001 | 9.00 | 10.89 | |
| GEAR COVER | ||||
| 0205 | 4931392717 | 5.40 | 6.53 | |
| PERCUSSION BODY | ||||
| 0208 | 4931392376 | 12.60 | 15.25 | |
| CYLINDER | ||||
| 0209 | 4931409751 | 16.20 | 19.60 | |
| SWITCH HANDLE | ||||
| 0213 | 4931384621 | 9.00 | 10.89 | |
| CYLINDER PIN | ||||
| 0214 | 4931624279 | 4.49 | 5.43 | |
| SPRING | ||||
| 0215 | 4931365058 | 1.80 | 2.18 | |
| SLIDING SWITCH | ||||
| 0216 | 4931384617 | 5.40 | 6.53 | |
| WOBBLE DRIVE | ||||
| 0218 | 4931387623 | 14.40 | 17.42 | |
| GUIDE BOLT (2 needed) | ||||
| 0220 | 4931384667 | 4.49 | 5.43 | |
| LATCH PLATE | ||||
| 0221 | 4931384669 | 4.49 | 5.43 | |
| PRESSURE SPRING (2 needed) | ||||
| 0222 | 4931384670 | 4.49 | 5.43 | |
| DISC N874237 5,1X11X0,8 (2 needed) | ||||
| 0223 | 4931909973 | 4.49 | 5.43 | |
| CYLINDRICAL BOLT | ||||
| 0224 | 4931387381 | 5.40 | 6.53 | |
| WASHER (2 needed) | ||||
| 0225 | 4931365112 | 1.80 | 2.18 | |
| BEARING COVER | ||||
| 0231 | 4931392461 | 4.49 | 5.43 | |
| WASHER | ||||
| 0236 | 4931624257 | 1.80 | 2.18 | |
| ENDPLATE | ||||
| 0237 | 4931392455 | 6.31 | 7.64 | |
| SLEEVE | ||||
| 0239 | 4931409757 | 14.40 | 17.42 | |
| CLUTCH DISC | ||||
| 0241 | 4931392751 | 5.40 | 6.53 | |
| CYLINDRICAL BOLT (3 needed) | ||||
| 0242 | 4931365057 | 5.40 | 6.53 | |
| SPINDLE GEAR | ||||
| 0243 | 4931407761 | 5.40 | 6.53 | |
| BALL (3 needed) | ||||
| 0244 | 4931944281 | 1.80 | 2.18 | |
| CUP SPRING (5 needed) | ||||
| 0246 | 4931365066 | 5.40 | 6.53 | |
| STOP WASHER | ||||
| 0248 | 4931392465 | 8.09 | 9.79 | |
| ANVIL | ||||
| 0253 | 692590001 | 10.81 | 13.08 | |
| BALL | ||||
| 0257 | 4931911572 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 0262 | 4931623220 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0263 | 4931343128 | 5.40 | 6.53 | |
| HOLDING RING | ||||
| 0271 | 4931384635 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0301 | 4931384632 | 57.02 | 68.99 | |
| NEEDLE BEARING N874989 HK 3012 F | ||||
| 0302 | 4931621944 | 9.00 | 10.89 | |
| LOCKING PLATE | ||||
| 0305 | 4931384618 | 4.49 | 5.43 | |
| GUIDE BOLT | ||||
| 0306 | 4931384619 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0307 | 4931384631 | 4.49 | 5.43 | |
| GUIDE BOLT | ||||
| 0308 | 4931384690 | 4.49 | 5.43 | |
| REDUCT. GEAR SHAFT | ||||
| 0340 | 4931442409 | 69.30 | 83.85 | |
| REDUCT. GEAR SHAFT | ||||
| 0341 | 4931417717 | 17.42 | 21.08 | |
| SPROCKET | ||||
| 0343 | 4931375873 | 5.40 | 6.53 | |
| INTERN.GEARED WHEEL | ||||
| 0344 | 4931375874 | 4.49 | 5.43 | |
| COUPLING SLEEVE | ||||
| 0347 | 4931384691 | 9.00 | 10.89 | |
| DISTANCE SLEEVE | ||||
| 0349 | 4931384613 | 4.49 | 5.43 | |
| No information available, not orderable | ||||
| 0350 | 4931384614 | |||
| REPAIR KIT Spindle Sleeve | ||||
| 0430 | 4931394117 | 96.62 | 116.91 | |
| REPAIR KIT | ||||
| 0470 | 4931394116 | 12.60 | 15.25 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| Transportkoffer Milwaukee (maat 1) | ||||
| 0700 | 4932378986 | 47.85 | 57.90 | |
| HANDLE | ||||
| 0705 | 4931392747 | 26.93 | 32.59 | |
| MAINTENANCE SET | ||||
| 1200 | 4931392096 | 88.70 | 107.33 | |
| No longer available, no replacement | ||||
| 1201 | 4931392459 | |||
| RUBBER SLEEVE | ||||
| 1202 | 4931351729 | 1.80 | 2.18 | |
| RUBBER CAP | ||||
| 1203 | 4931384687 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 1204 | 4931384634 | 5.40 | 6.53 | |
| SEAL RING N874701 25X2 | ||||
| 1205 | 4931624391 | 5.40 | 6.53 | |
| SEAL RING D 3760 AS 22X35X7 | ||||
| 1207 | 4931624259 | 5.40 | 6.53 | |
| SEAL RING N874724 30X37X4 | ||||
| 1208 | 4931624429 | 5.40 | 6.53 | |
| O-RING | ||||
| 1209 | 561994001 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1209 | 4931624533 | 1.73 | 2.09 | |
| No longer available, no replacement | ||||
| 1210 | 4931375894 | |||
| SPRING RING | ||||
| 1211 | 4931945764 | 5.40 | 6.53 | |
| SCREW D912 M4X25 (4 needed) | ||||
| 1212 | 4931623886 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1213 | 4931623912 | 4.49 | 5.43 | |
| SCREW (2 needed) | ||||
| 1214 | 4931267225 | 1.80 | 2.18 | |
| SCREW | ||||
| 1215 | 4931375897 | 1.80 | 2.18 | |
| SEAL RING N874701 25X2 | ||||
| 1216 | 4931624353 | 5.40 | 6.53 | |
| THRUST COLLAR | ||||
| 1217 | 4931387479 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 1218 | 4931387380 | |||
| SEAL RING | ||||
| 1219 | 4931624493 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 1220 | 4931623521 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 1221 | 4931623860 | 4.49 | 5.43 | |
| SPRING RING | ||||
| 1222 | 4931624260 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 1223 | 4931621741 | |||
| DAMPING RING | ||||
| 1226 | 4931365188 | 4.49 | 5.43 | |
| O-RING N874701 52X1,5 | ||||
| 1228 | 4931623198 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 1229 | 4931622084 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 1230 | 4931409768 | 5.40 | 6.53 | |
| SEAL RING N874701 25X2 | ||||
| 1231 | 4931624351 | 4.49 | 5.43 | |
| SCREW D 912 M 5X12 SSI (2 needed) | ||||
| 1232 | 4931621743 | 1.80 | 2.18 | |
| FELT | ||||
| 1234 | 4931375508 | 4.49 | 5.43 | |
| O-RING N874701 25X2 | ||||
| 1235 | 4931624381 | 1.80 | 2.18 | |
| HOLDING-DOWN DEVICE | ||||
| 1236 | 4931307423 | 5.40 | 6.53 | |
| SEAL RING (2 needed) | ||||
| 1238 | 4931624170 | 5.40 | 6.53 | |
