Here you will find all available parts and drawings of the 'Milwaukee 4000381242 (PJX14.4PP)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

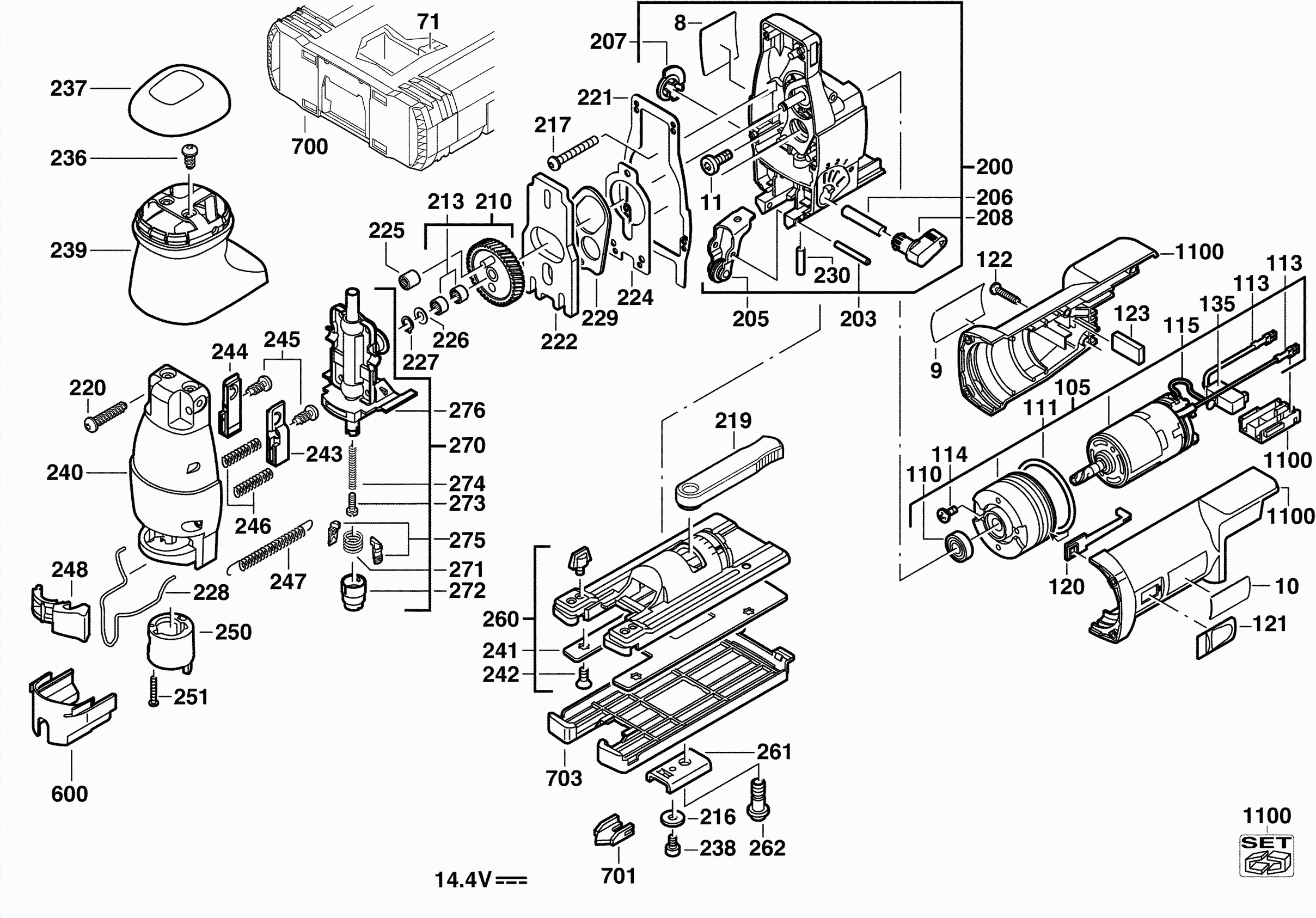

Technical drawing of model Milwaukee 4000381242 (PJX14.4PP)
Spare parts list of model Milwaukee 4000381242 (PJX14.4PP)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| NAME PLATE | ||||
| 0010 | 4931382710 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0011 | 4931317532 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0105 | 4931381234 | |||
| BALL BEARING | ||||
| 0110 | 4931621829 | 9.00 | 10.89 | |
| O-RING | ||||
| 0111 | 4931623562 | 3.00 | 3.63 | |
| WIRE (2 needed) | ||||
| 0113 | 4931623536 | 4.80 | 5.81 | |
| SCREW D 7985 M 4X8 (2 needed) | ||||
| 0114 | 4931621528 | 3.00 | 3.63 | |
| SLIDE | ||||
| 0120 | 4931349559 | 5.40 | 6.53 | |
| SWITCH COVER | ||||
| 0121 | 4931358872 | 5.40 | 6.53 | |
| SCREW N874101 C-K3X16 (9 needed) | ||||
| 0122 | 4931622708 | 3.00 | 3.63 | |
| SUPPORT | ||||
| 0123 | 4931368224 | 4.49 | 5.43 | |
| SWITCH | ||||
| 0135 | 4931349564 | 10.80 | 13.07 | |
| PIN D 6325 4 M6X32 | ||||
| 0203 | 4931621942 | 6.48 | 7.84 | |
| HOLDER | ||||
| 0205 | 4931468106 | 10.20 | 12.34 | |
| INDEXING BOLT | ||||
| 0206 | 4931381103 | 6.48 | 7.84 | |
| SWITCH HANDLE | ||||
| 0208 | 4931378812 | 5.40 | 6.53 | |
| GEAR | ||||
| 0210 | 4931357515 | 19.01 | 23.00 | |
| NEEDLE BEARING (2 needed) | ||||
| 0213 | 4931219422 | 3.00 | 3.63 | |
| DISC | ||||
| 0216 | 4931622131 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0217 | 4931623019 | |||
| TENSION LEVER | ||||
| 0219 | 4931381610 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0220 | 4931623020 | 3.00 | 3.63 | |
| SEAL | ||||
| 0221 | 4931381656 | 5.40 | 6.53 | |
| BALANCE WEIGHT | ||||
| 0222 | 4931381109 | 9.00 | 10.89 | |
| SHIM | ||||
| 0224 | 4931357577 | 5.40 | 6.53 | |
| NEEDLE BUSH | ||||
| 0225 | 4931361376 | 5.40 | 6.53 | |
| DISC N874237 6,1X12X0,5 | ||||
| 0226 | 4931621830 | 5.40 | 6.53 | |
| RING D471 6X0,7 | ||||
| 0227 | 4931605092 | 5.40 | 6.53 | |
| WIRE STRAP | ||||
| 0228 | 4931357982 | 6.48 | 7.84 | |
| ROCKER BAR | ||||
| 0229 | 4931357522 | 5.40 | 6.53 | |
| CYLINDER PIN | ||||
| 0230 | 4931381112 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 0236 | 4931623048 | 3.00 | 3.63 | |
| BALL LID | ||||
| 0237 | 4931330272 | 5.40 | 6.53 | |
| SCREW | ||||
| 0238 | 4931300699 | 3.00 | 3.63 | |
| KNOB HANDLE | ||||
| 0239 | 4931330271 | 5.40 | 6.53 | |
| GEAR BOX COVER | ||||
| 0240 | 4931426460 | 39.60 | 47.92 | |
| GROUND PLATE | ||||
| 0241 | 4931412827 | 20.59 | 24.91 | |
| SCREW (4 needed) | ||||
| 0242 | 4931310396 | 3.00 | 3.63 | |
| BEARING CAGE | ||||
| 0243 | 4931357986 | 5.40 | 6.53 | |
| BEARING CAGE | ||||
| 0244 | 4931357985 | 5.40 | 6.53 | |
| PRESSURE SPRING (2 needed) | ||||
| 0246 | 4931341759 | 5.40 | 6.53 | |
| TENSION SPRING | ||||
| 0247 | 4931330453 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0248 | 4931381159 | 5.40 | 6.53 | |
| INDEXING SLEEVE | ||||
| 0250 | 4931381158 | 6.48 | 7.84 | |
| SCREW | ||||
| 0251 | 4931624172 | 3.00 | 3.63 | |
| GROUND PLATE | ||||
| 0260 | 4931412827 | 20.59 | 24.91 | |
| PRESSURE ELEMENT | ||||
| 0261 | 4931357588 | 5.40 | 6.53 | |
| SCREW | ||||
| 0262 | 4931381124 | 3.00 | 3.63 | |
| RAM | ||||
| 0270 | 4931357693 | 39.60 | 47.92 | |
| TORSION SPRING | ||||
| 0271 | 4931330424 | 5.40 | 6.53 | |
| COLLET | ||||
| 0272 | 4931330494 | 10.80 | 13.07 | |
| SCREW | ||||
| 0273 | 4931623102 | 3.00 | 3.63 | |
| CENTERING JAW (2 needed) | ||||
| 0275 | 4931330303 | 5.04 | 6.10 | |
| SEAL RING | ||||
| 0276 | 4931623091 | 5.40 | 6.53 | |
| DUST CAP | ||||
| 0600 | 4931357987 | 5.40 | 6.53 | |
| ANT-CHIPPING DEVICE (3 PCS) P1 A/M | ||||
| 0701 | 4931449321 | 9.50 | 11.50 | |
| JSPE90X GUIDE SHOE JS SHOE - 1PC | ||||
| 0703 | 4932430356 | 15.00 | 18.15 | |
| No longer available, no replacement | ||||
| 1100 | 4931358934 | |||
