Here you will find all available parts and drawings of the 'Milwaukee 4000384590 ( PHE45SQ )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

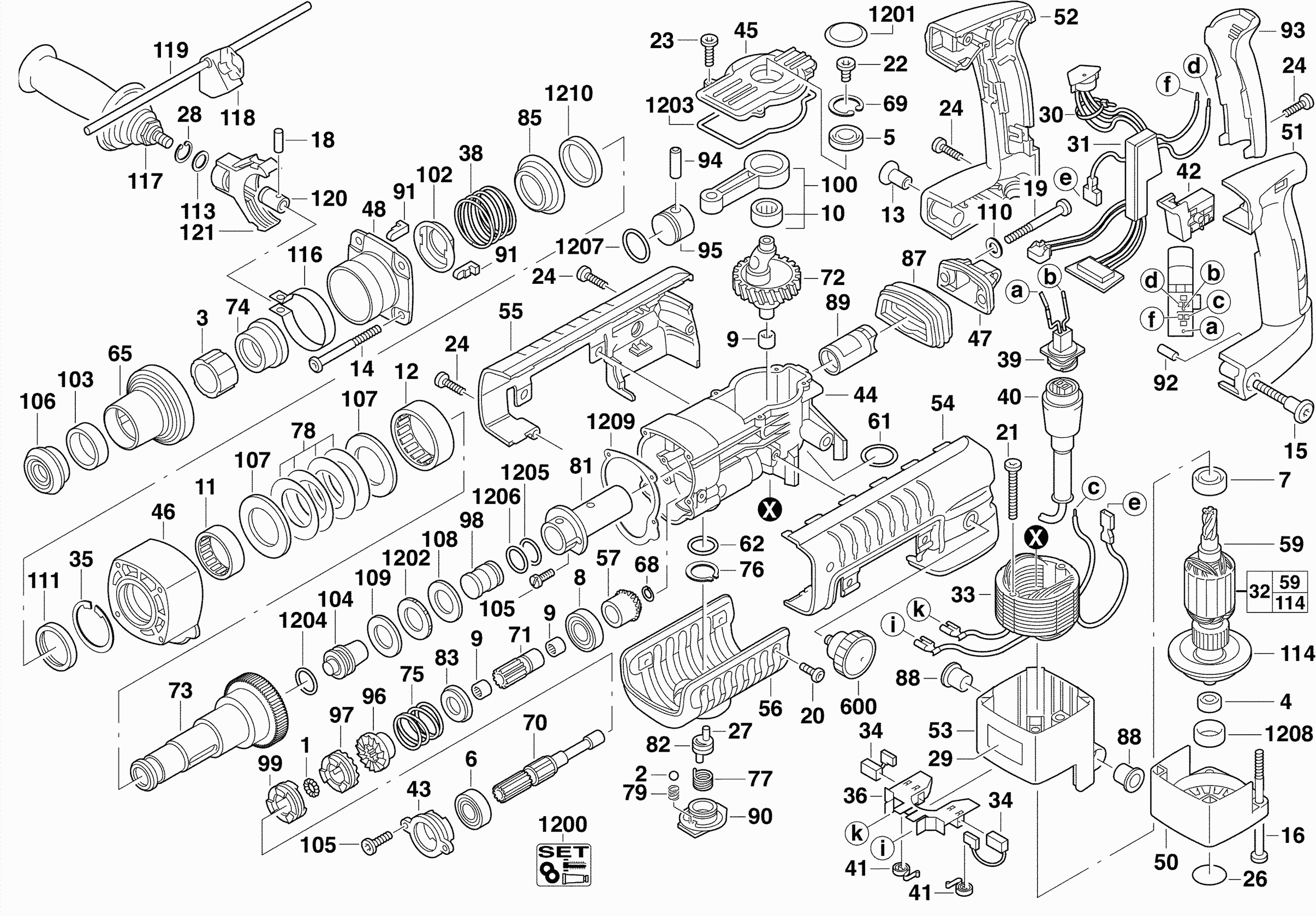

Technical drawing of model Milwaukee 4000384590 ( PHE45SQ )
Spare parts list of model Milwaukee 4000384590 ( PHE45SQ )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BALL | ||||
| 0002 | 4931805413 | 1.80 | 2.18 | |
| SPACER | ||||
| 0003 | 31860100 | 3.46 | 4.19 | |
| PIN | ||||
| 0027 | 06653720 | 4.32 | 5.23 | |
| PIN | ||||
| 0027 | 6653720 | 2.50 | 3.02 | |
| No information available, not orderable | ||||
| 0028 | 34602580 | |||
| No longer available, no replacement | ||||
| 0036 | 22221480 | |||
| PRESSURE SPRING | ||||
| 0038 | 40508870 | 4.32 | 5.23 | |
| No information available, not orderable | ||||
| 0040 | 22640677 | |||
| No longer available, no replacement | ||||
| 0041 | 23521550 | |||
| No longer available, no replacement | ||||
| 0042 | 23662740 | |||
| No longer available, no replacement | ||||
| 0045 | 28201325 | |||
| No longer available, no replacement | ||||
| 0050 | 31150432 | |||
| GEAR BOX | ||||
| 0057 | 32052250 | 33.26 | 40.24 | |
| O-RING | ||||
| 0061 | 34401375 | 1.90 | 2.30 | |
| O-RING | ||||
| 0062 | 34404160 | 1.80 | 2.18 | |
| COVER | ||||
| 0065 | 42760710 | 8.64 | 10.45 | |
| No information available, not orderable | ||||
| 0068 | 34600700 | |||
| No longer available, no replacement | ||||
| 0069 | 34805090 | |||
| No information available, not orderable | ||||
| 0070 | 36140790 | |||
| No information available, not orderable | ||||
| 0071 | 36140770 | |||
| Eccentric Strap | ||||
| 0072 | 14090140 | 217.01 | 262.58 | |
| SPINDLE | ||||
| 0073 | 38506145 | 212.26 | 256.83 | |
| BUSH | ||||
| 0074 | 42760715 | 15.55 | 18.82 | |
| PRESSURE SPRING | ||||
| 0075 | 40508575 | 8.64 | 10.45 | |
| PROTECTION WASHER | ||||
| 0076 | 34603630 | 1.90 | 2.30 | |
| PRESSURE SPRING | ||||
| 0077 | 40508585 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0079 | 40508690 | |||
| BARREL | ||||
| 0081 | 42980300 | 125.14 | 151.42 | |
| JUMPER PIN | ||||
| 0082 | 43060690 | 4.49 | 5.43 | |
| No information available, not orderable | ||||
| 0083 | 43340740 | |||
| INSULATING PART | ||||
| 0087 | 43870030 | 8.64 | 10.45 | |
| No information available, not orderable | ||||
| 0089 | 43870060 | |||
| TRIGGER | ||||
| 0090 | 43980470 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0091 | 43960220 | |||
| No longer available, no replacement | ||||
| 0092 | 14461001 | |||
| No longer available, no replacement | ||||
| 0093 | 44520580 | |||
| PIN | ||||
| 0094 | 44601710 | 8.64 | 10.45 | |
| No longer available, no replacement | ||||
| 0095 | 44620220 | |||
| PLATE | ||||
| 0096 | 44666030 | 50.69 | 61.33 | |
| No information available, not orderable | ||||
| 0097 | 44666045 | |||
| RING | ||||
| 0099 | 44904400 | 66.53 | 80.50 | |
| No longer available, no replacement | ||||
| 0100 | 44940395 | |||
| No longer available, no replacement | ||||
| 0102 | 44860610 | |||
| RING | ||||
| 0103 | 44900005 | 4.32 | 5.23 | |
| SNAP DIE | ||||
| 0104 | 45562620 | 34.85 | 42.17 | |
| No longer available, no replacement | ||||
| 0106 | 45060555 | |||
| WASHER | ||||
| 0108 | 45888530 | 17.42 | 21.08 | |
| No longer available, no replacement | ||||
| 0109 | 45888535 | |||
| WASHER | ||||
| 0110 | 45888555 | 1.73 | 2.09 | |
| No longer available, no replacement | ||||
| 0111 | 45060670 | |||
| No information available, not orderable | ||||
| 0113 | 45888730 | |||
| No information available, not orderable | ||||
| 0114 | 22840875 | |||
| No information available, not orderable | ||||
| 0116 | 42160125 | |||
| No information available, not orderable | ||||
| 0117 | 14340516 | |||
| No information available, not orderable | ||||
| 0119 | 44940165 | |||
| No longer available, no replacement | ||||
| 0120 | 44860620 | |||
| No information available, not orderable | ||||
| 0121 | 31442000 | |||
| No longer available, no replacement | ||||
| 1200 | 14469065 | |||
| No longer available, no replacement | ||||
| 1201 | 31120270 | |||
| No longer available, no replacement | ||||
| 1202 | 34404310 | |||
| COVER | ||||
| 1203 | 34404320 | 9.91 | 11.99 | |
| O-RING (2 needed) | ||||
| 1204 | 34404350 | 1.90 | 2.30 | |
| SEAL | ||||
| 1205 | 34400045 | 17.42 | 21.08 | |
| O-RING | ||||
| 1207 | 34404470 | 12.60 | 15.25 | |
| GASKET | ||||
| 1209 | 43440970 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 1210 | 45060680 | |||
