Here you will find all available parts and drawings of the 'Milwaukee 4000396421 ( PH30POWERX )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

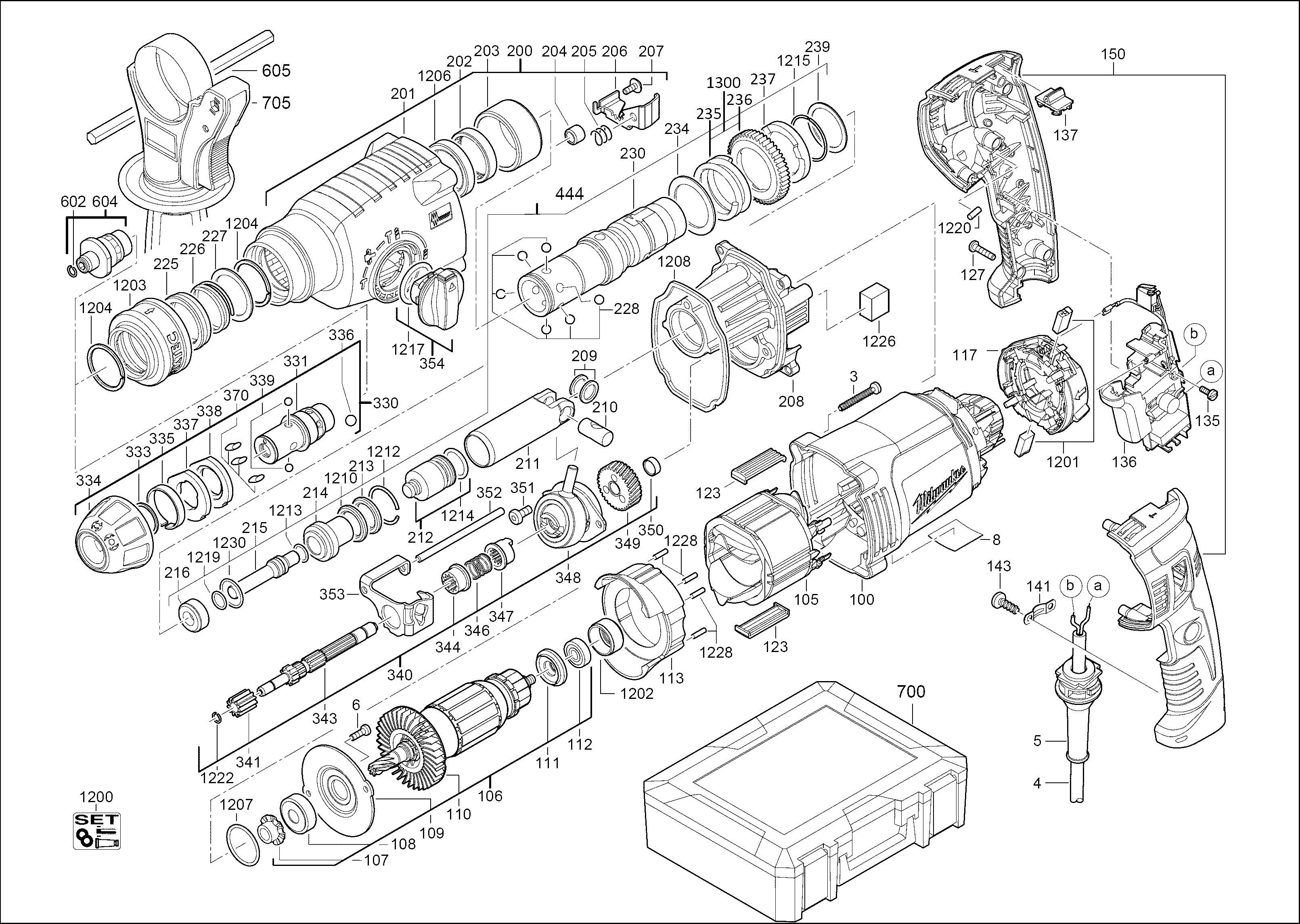

Technical drawing of model Milwaukee 4000396421 ( PH30POWERX )
Spare parts list of model Milwaukee 4000396421 ( PH30POWERX )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (4 needed) | ||||
| 0003 | 4931624616 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0004 | 4931623857 | 12.60 | 15.25 | |
| PROTECTING COVER | ||||
| 0005 | 4931393422 | 5.40 | 6.53 | |
| SCREW (5 needed) | ||||
| 0006 | 4931624581 | 1.80 | 2.18 | |
| RATING PLATE | ||||
| 0008 | 4931455681 | 1.80 | 2.18 | |
| MOTOR HOUSING | ||||
| 0100 | 4931396317 | 19.01 | 23.00 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931442731 | 31.68 | 38.33 | |
| ARMATURE | ||||
| 0106 | 4931442664 | 79.20 | 95.83 | |
| GROOV. BALL BEARING | ||||
| 0108 | 4931396556 | 9.00 | 10.89 | |
| BEARING COVER | ||||
| 0109 | 4931396325 | 4.49 | 5.43 | |
| FAN | ||||
| 0110 | 4931342793 | 5.40 | 6.53 | |
| INSULATING DISC | ||||
| 0111 | 4931396442 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0112 | 4931902888 | 9.00 | 10.89 | |
| AIR DEFLECTOR RING | ||||
| 0113 | 4931396534 | 3.60 | 4.36 | |
| SET COLLAR | ||||
| 0117 | 4931396546 | 22.18 | 26.84 | |
| CENTERING LEDGE (2 needed) | ||||
| 0123 | 4931342808 | 5.40 | 6.53 | |
| SCREW N874101-1 SHR H-K4X18 T15 (7 needed) | ||||
| 0127 | 4931624515 | 1.80 | 2.18 | |
| SCREW (2 needed) | ||||
| 0135 | 4931621772 | 1.80 | 2.18 | |
| SPEED GOVERNOR | ||||
| 0136 | 4931396361 | 64.94 | 78.58 | |
| SLIDER | ||||
| 0137 | 4931396368 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0141 | 4931256500 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 0143 | 4931624538 | 1.80 | 2.18 | |
| HANDLE SET | ||||
| 0150 | 4931396450 | 20.59 | 24.91 | |
| GEAR BOX | ||||
| 0200 | 4931396375 | 41.18 | 49.83 | |
| GEAR BOX | ||||
| 0201 | 4931396305 | 11.69 | 14.14 | |
| NEEDLE BUSH | ||||
| 0202 | 4931331760 | 5.40 | 6.53 | |
| BEARING | ||||
| 0203 | 4931396373 | 9.00 | 10.89 | |
| NEEDLE BEARING N874989 HK 0709 | ||||
| 0204 | 4931933756 | 3.60 | 4.36 | |
| PRESSURE SPRING | ||||
| 0205 | 4931396432 | 5.40 | 6.53 | |
| LOCKING PLATE | ||||
| 0206 | 4931396385 | 5.40 | 6.53 | |
| SCREW | ||||
| 0207 | 4931396462 | 1.80 | 2.18 | |
| BEARING END PLATE | ||||
| 0208 | 4931396314 | 39.60 | 47.92 | |
| WASHER (2 needed) | ||||
| 0209 | 4931365112 | 1.80 | 2.18 | |
| CYLINDRICAL BOLT | ||||
| 0210 | 4931396336 | 5.40 | 6.53 | |
| CYLINDER | ||||
| 0211 | 4931396541 | 16.20 | 19.60 | |
| PERCUSSION BODY | ||||
| 0212 | 4931455431 | 38.02 | 46.00 | |
| THRUST COLLAR | ||||
| 0213 | 4931396548 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0214 | 4931409779 | 14.40 | 17.42 | |
| SNAP DIE | ||||
| 0215 | 4931396428 | 11.69 | 14.14 | |
| No information available, not orderable | ||||
| 0216 | 4931396427 | |||
| RING STOP | ||||
| 0225 | 4931409754 | 5.40 | 6.53 | |
| SPRING | ||||
| 0226 | 692737001 | 4.49 | 5.43 | |
| WASHER | ||||
| 0227 | 4931624257 | 1.80 | 2.18 | |
| BALL | ||||
| 0228 | 4931805437 | 1.80 | 2.18 | |
| SPINDLE SLEEVE | ||||
| 0230 | 4931417458 | 50.69 | 61.33 | |
| WASHER | ||||
| 0234 | 4931624457 | 1.80 | 2.18 | |
| CLUTCH DISC | ||||
| 0237 | 4931396339 | 5.40 | 6.53 | |
| WASHER | ||||
| 0239 | 4931624639 | 1.80 | 2.18 | |
| ADAPTER | ||||
| 0330 | 4931384684 | 45.94 | 55.59 | |
| ADAPTER | ||||
| 0331 | 4931409763 | 12.60 | 15.25 | |
| SPRING RING | ||||
| 0333 | 4931622874 | 5.40 | 6.53 | |
| SET SLEEVE | ||||
| 0334 | 4931384681 | 4.49 | 5.43 | |
| SPRING | ||||
| 0335 | 4931321064 | 5.40 | 6.53 | |
| BALL | ||||
| 0336 | 4931911572 | 1.80 | 2.18 | |
| JUMPER RING | ||||
| 0337 | 4931343034 | 4.49 | 5.43 | |
| SPACER | ||||
| 0338 | 4931343057 | 5.40 | 6.53 | |
| BALL | ||||
| 0339 | 4931805413 | 1.80 | 2.18 | |
| REDUCT. GEAR SHAFT | ||||
| 0340 | 4931396444 | 99.79 | 120.75 | |
| SPROCKET | ||||
| 0341 | 4931375873 | 5.40 | 6.53 | |
| REDUCT. GEAR SHAFT | ||||
| 0343 | 4931417721 | 17.11 | 20.70 | |
| INTERN.GEARED WHEEL | ||||
| 0344 | 4931375874 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0346 | 4931396545 | 1.80 | 2.18 | |
| COUPLING SLEEVE | ||||
| 0347 | 4931396329 | 14.40 | 17.42 | |
| WOBBLE DRIVE | ||||
| 0348 | 4931396522 | 34.85 | 42.17 | |
| No longer available, no replacement | ||||
| 0349 | 4931426238 | |||
| DISTANCE SLEEVE | ||||
| 0350 | 4931396369 | 3.60 | 4.36 | |
| SCREW (2 needed) | ||||
| 0351 | 4931624678 | 1.80 | 2.18 | |
| CYLINDER PIN | ||||
| 0352 | 4931624471 | 5.40 | 6.53 | |
| SLIDING SWITCH | ||||
| 0353 | 4931396384 | 6.31 | 7.64 | |
| SWITCH HANDLE | ||||
| 0354 | 4931396347 | 16.20 | 19.60 | |
| HOLDING-DOWN DEVICE (3 needed) | ||||
| 0370 | 4931396400 | 5.40 | 6.53 | |
| SPINDLE SLEEVE | ||||
| 0444 | 4931407935 | 104.54 | 126.49 | |
| RING SPRING | ||||
| 0602 | 4931302074 | 4.49 | 5.43 | |
| CHUCK ADAPTER | ||||
| 0604 | 4931392452 | 15.84 | 19.17 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| INSERT | ||||
| 0700 | 4931415325 | 30.10 | 36.42 | |
| HANDLE | ||||
| 0705 | 4931392747 | 26.93 | 32.59 | |
| MAINTENANCE SET | ||||
| 1200 | 4931396419 | 66.53 | 80.50 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931396547 | 14.40 | 17.42 | |
| RUBBER SLEEVE | ||||
| 1202 | 4931396532 | 1.80 | 2.18 | |
| SLEEVE | ||||
| 1203 | 4931396445 | 5.40 | 6.53 | |
| SPRING RING | ||||
| 1204 | 4931945764 | 5.40 | 6.53 | |
| SEAL RING D 3760 AS 22X35X7 | ||||
| 1206 | 4931624259 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1207 | 4931623961 | 5.40 | 6.53 | |
| SEAL | ||||
| 1208 | 4931396374 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1210 | 4931396461 | 5.40 | 6.53 | |
| RING | ||||
| 1212 | 4931623636 | 5.40 | 6.53 | |
| O-RING | ||||
| 1213 | 562597001 | 3.60 | 4.36 | |
| SEAL RING | ||||
| 1214 | 4931396459 | 5.40 | 6.53 | |
| SPRING RING | ||||
| 1215 | 4931384919 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1217 | 4931624476 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1219 | 4931624493 | 5.40 | 6.53 | |
| RUBBER STOP (3 needed) | ||||
| 1220 | 562578001 | 5.40 | 6.53 | |
| SPRING RING | ||||
| 1222 | 4931624260 | 5.40 | 6.53 | |
| FELT | ||||
| 1226 | 4931387563 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE (4 needed) | ||||
| 1228 | 4931332524 | 5.40 | 6.53 | |
| O-RING N874701 25X2 | ||||
| 1230 | 4931624381 | 1.80 | 2.18 | |
| REPAIR KIT | ||||
| 1300 | 4931432150 | 23.76 | 28.75 | |
