Here you will find all available parts and drawings of the 'Milwaukee 4000428241 ( PH26 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

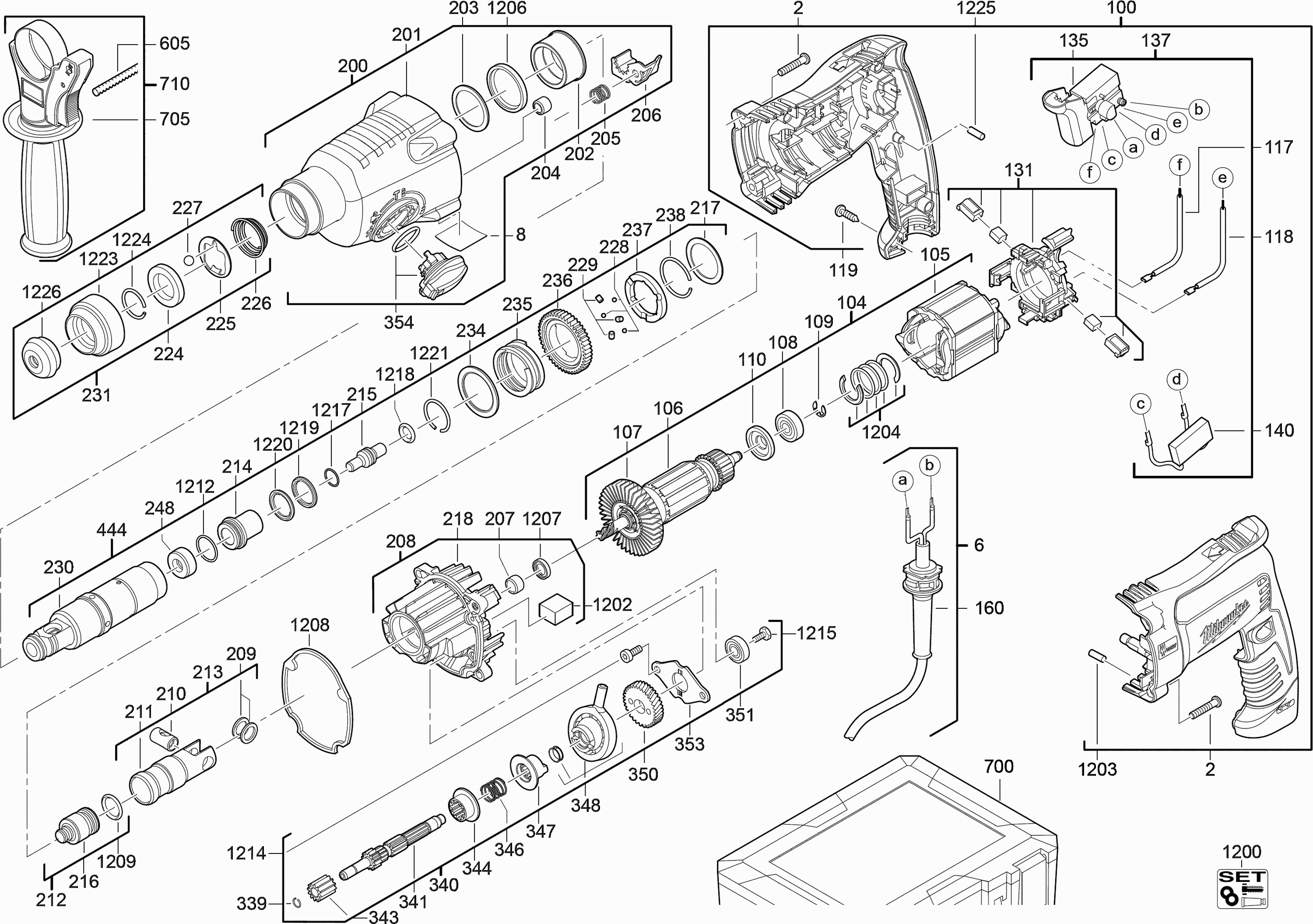

Technical drawing of model Milwaukee 4000428241 ( PH26 )
Spare parts list of model Milwaukee 4000428241 ( PH26 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (4 needed) | ||||
| 0002 | 661288001 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0006 | 201896002 | 19.01 | 23.00 | |
| RATING PLATE | ||||
| 0008 | 940045576 | 1.73 | 2.09 | |
| HANDLE | ||||
| 0100 | 201242003 | 30.10 | 36.42 | |
| MOTOR ASSEMBLY | ||||
| 0104 | 201238002 | 74.45 | 90.08 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931454079 | 52.27 | 63.25 | |
| ARMATURE ASSEMBLY | ||||
| 0106 | 4931454426 | 83.95 | 101.58 | |
| FAN | ||||
| 0107 | 522361001 | 1.80 | 2.18 | |
| BALL BEARING | ||||
| 0108 | 681479001 | 9.00 | 10.89 | |
| RING | ||||
| 0109 | 680260001 | 4.49 | 5.43 | |
| INSULATING DISC | ||||
| 0110 | 522260001 | 1.90 | 2.30 | |
| TERMINAL PLUG | ||||
| 0117 | 290061255 | 1.90 | 2.30 | |
| TERMINAL PLUG | ||||
| 0118 | 290061255 | 1.90 | 2.30 | |
| SCREW | ||||
| 0119 | 661283001 | 1.80 | 2.18 | |
| Set Collar for 240V Hammer Drill | ||||
| 0131 | 302393010 | 15.84 | 19.17 | |
| SWITCH BOARD | ||||
| 0135 | 760251020 | 25.15 | 30.43 | |
| SWITCH | ||||
| 0137 | 201894001 | 30.10 | 36.42 | |
| CAPACITOR | ||||
| 0140 | 290244009 | 14.40 | 17.42 | |
| CABLE ENTRY SLEEVE | ||||
| 0160 | 560103001 | 5.68 | 6.87 | |
| CABLE CLAMP | ||||
| 0160 | 562023001 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0200 | 201220008 | 38.02 | 46.00 | |
| GEAR BOX | ||||
| 0201 | 350143001 | 15.29 | 18.50 | |
| SINTERED BEARING | ||||
| 0202 | 692727001 | 12.60 | 15.25 | |
| COMPENSATING WASHER | ||||
| 0203 | 633514001 | 1.90 | 2.30 | |
| BUSHING | ||||
| 0204 | 4931453736 | 3.78 | 4.57 | |
| SPRING | ||||
| 0205 | 692732001 | 1.80 | 2.18 | |
| PLATE | ||||
| 0206 | 4931448985 | 5.40 | 6.53 | |
| BEARING | ||||
| 0207 | 680727001 | 9.00 | 10.89 | |
| BEARING END PLATE | ||||
| 0208 | 201235004 | 31.68 | 38.33 | |
| WASHER (2 needed) | ||||
| 0209 | 632400001 | 1.90 | 2.30 | |
| CYLINDRICAL BOLT | ||||
| 0210 | 4931436807 | 7.20 | 8.71 | |
| CYLINDER | ||||
| 0211 | 692717001 | 18.80 | 22.75 | |
| PERC. BODY W SEAL | ||||
| 0212 | 201233002 | 20.59 | 24.91 | |
| CYLINDER | ||||
| 0213 | 4931446932 | 31.68 | 38.33 | |
| SLEEVE | ||||
| 0214 | 692722001 | 9.00 | 10.89 | |
| ANVIL | ||||
| 0215 | 692590001 | 10.81 | 13.08 | |
| PERCUSSION BODY | ||||
| 0216 | 692698001 | 18.98 | 22.97 | |
| WASHER | ||||
| 0217 | 633516001 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 0218 | 201910001 | |||
| RETAINING RING | ||||
| 0224 | 633521001 | 4.49 | 5.43 | |
| PLATE | ||||
| 0225 | 632399001 | 9.00 | 10.89 | |
| SPRING | ||||
| 0225 | 672799001 | 4.49 | 5.43 | |
| PLATE | ||||
| 0226 | 632399001 | 9.00 | 10.89 | |
| SPRING | ||||
| 0226 | 672799001 | 4.49 | 5.43 | |
| BALL | ||||
| 0227 | 681154001 | 1.80 | 2.18 | |
| BALL (3 needed) | ||||
| 0228 | 611405001 | 1.80 | 2.18 | |
| PIN (3 needed) | ||||
| 0229 | 681235001 | 4.49 | 5.43 | |
| SPINDLE SLEEVE | ||||
| 0230 | 692721002 | 97.91 | 118.47 | |
| Sleeve/Stainless Steel/Electric Tool | ||||
| 0231 | 201219003 | 17.11 | 20.70 | |
| WASHER | ||||
| 0234 | 633517001 | 1.80 | 2.18 | |
| SPRING | ||||
| 0235 | 692735001 | 1.80 | 2.18 | |
| REDUCTION GEAR | ||||
| 0236 | 611291001 | 9.00 | 10.89 | |
| CLUTCH DISC | ||||
| 0237 | 4931435089 | 5.68 | 6.87 | |
| RETAINING RING (2 needed) | ||||
| 0238 | 672634004 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0248 | 692725001 | |||
| WASHER | ||||
| 0339 | 633525001 | 1.80 | 2.18 | |
| REDUCTION GEAR | ||||
| 0340 | 201240003 | 50.69 | 61.33 | |
| REDUCT. GEAR SHAFT | ||||
| 0341 | 611286001 | 15.84 | 19.17 | |
| GEAR | ||||
| 0343 | 4931453917 | 4.49 | 5.43 | |
| INTERN.GEARED WHEEL | ||||
| 0344 | 611288001 | 4.49 | 5.43 | |
| SPRING | ||||
| 0346 | 692733001 | 4.49 | 5.43 | |
| COUPLING SLEEVE | ||||
| 0347 | 611289001 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0348 | 681236001 | 19.01 | 23.00 | |
| REDUCT GEAR WHEEL | ||||
| 0350 | 4931453861 | 9.91 | 11.99 | |
| BALL BEARING | ||||
| 0351 | 681383001 | 9.00 | 10.89 | |
| BEARING COVER | ||||
| 0353 | 633515001 | 4.49 | 5.43 | |
| SWITCH HANDLE | ||||
| 0354 | 4931453822 | 9.00 | 10.89 | |
| SPINDLE SLEEVE | ||||
| 0444 | 201223003 | 102.96 | 124.58 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0700 | 303408009 | |||
| AUXILIARY HANDLE | ||||
| 0705 | 300188082 | 17.11 | 20.70 | |
| No longer available, no replacement | ||||
| 0710 | 120169003 | |||
| MAINTENANCE SET | ||||
| 1200 | 4931433271 | 63.36 | 76.67 | |
| FELT STRIP | ||||
| 1202 | 902505001 | 1.90 | 2.30 | |
| RUBBER STOP | ||||
| 1203 | 562007001 | 4.49 | 5.43 | |
| WASHER | ||||
| 1204 | 201905001 | 7.20 | 8.71 | |
| SEAL RING | ||||
| 1206 | 902076001 | 9.59 | 11.60 | |
| DATA PLATE | ||||
| 1207 | 902075001 | 10.80 | 13.07 | |
| GASKET | ||||
| 1208 | 562593001 | 1.80 | 2.18 | |
| O-RING | ||||
| 1209 | 561994001 | 1.80 | 2.18 | |
| O-RING | ||||
| 1212 | 562594001 | 1.80 | 2.18 | |
| LOCKING SCREW | ||||
| 1214 | 661286001 | 1.90 | 2.30 | |
| SCREW | ||||
| 1215 | 661504001 | 1.80 | 2.18 | |
| O-RING | ||||
| 1217 | 4931454454 | 1.80 | 2.18 | |
| O-RING | ||||
| 1218 | 562597001 | 3.60 | 4.36 | |
| WASHER | ||||
| 1219 | 633518001 | 1.80 | 2.18 | |
| O-RING | ||||
| 1220 | 562595001 | 1.80 | 2.18 | |
| CIRCLIP | ||||
| 1221 | 672632001 | 4.49 | 5.43 | |
| CLAMPING SLEEVE | ||||
| 1223 | 522172001 | 1.90 | 2.30 | |
| SPRING RING | ||||
| 1224 | 672631001 | 4.49 | 5.43 | |
| RUBBER STOP (3 needed) | ||||
| 1225 | 562578001 | 5.40 | 6.53 | |
| RUBBER CAP | ||||
| 1226 | 561993001 | 1.90 | 2.30 | |
