Here you will find all available parts and drawings of the 'Milwaukee 4000428231 ( PFH26 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

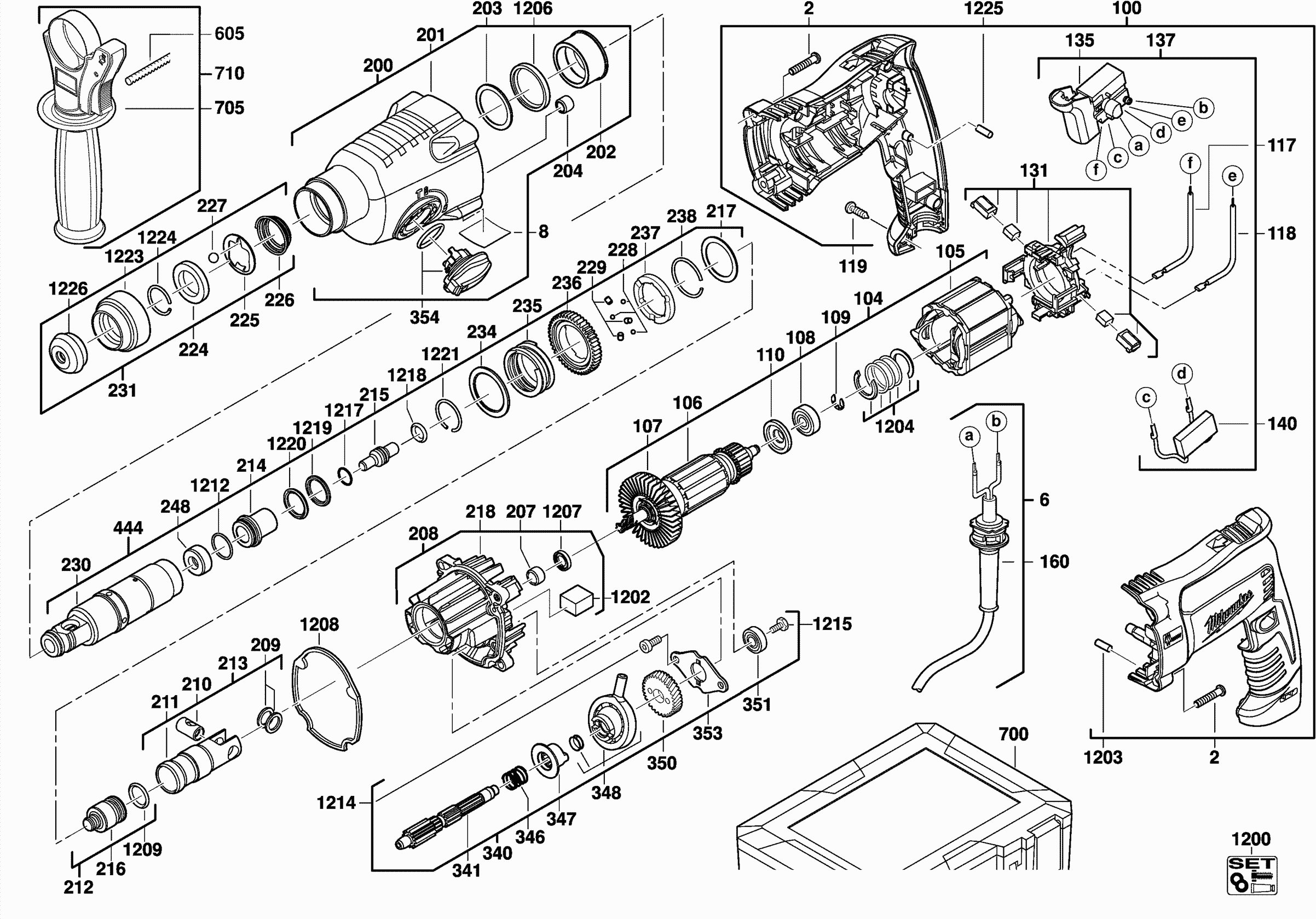

Technical drawing of model Milwaukee 4000428231 ( PFH26 )
Spare parts list of model Milwaukee 4000428231 ( PFH26 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (4 needed) | ||||
| 0002 | 661288001 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0006 | 201896002 | 19.01 | 23.00 | |
| No longer available, no replacement | ||||
| 0008 | 940045575 | |||
| HANDLE | ||||
| 0100 | 201242003 | 30.10 | 36.42 | |
| MOTOR ASSEMBLY | ||||
| 0104 | 201238002 | 74.45 | 90.08 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931454079 | 52.27 | 63.25 | |
| ARMATURE ASSEMBLY | ||||
| 0106 | 4931454426 | 83.95 | 101.58 | |
| BALL BEARING | ||||
| 0108 | 681479001 | 9.00 | 10.89 | |
| RING | ||||
| 0109 | 680260001 | 4.49 | 5.43 | |
| INSULATING DISC | ||||
| 0110 | 522260001 | 1.90 | 2.30 | |
| TERMINAL PLUG | ||||
| 0117 | 290061255 | 1.90 | 2.30 | |
| TERMINAL PLUG | ||||
| 0118 | 290061255 | 1.90 | 2.30 | |
| SCREW | ||||
| 0119 | 661283001 | 1.80 | 2.18 | |
| Set Collar for 240V Hammer Drill | ||||
| 0131 | 302393010 | 15.84 | 19.17 | |
| SWITCH BOARD | ||||
| 0135 | 760251020 | 25.15 | 30.43 | |
| SWITCH | ||||
| 0137 | 201894001 | 30.10 | 36.42 | |
| CAPACITOR | ||||
| 0140 | 290244009 | 14.40 | 17.42 | |
| CABLE ENTRY SLEEVE | ||||
| 0160 | 560103001 | 5.68 | 6.87 | |
| GEAR BOX | ||||
| 0200 | 201220006 | 38.02 | 46.00 | |
| No longer available, no replacement | ||||
| 0201 | 350143002 | |||
| SINTERED BEARING | ||||
| 0202 | 692727001 | 12.60 | 15.25 | |
| COMPENSATING WASHER | ||||
| 0203 | 633514001 | 1.90 | 2.30 | |
| BUSHING | ||||
| 0204 | 4931453736 | 3.78 | 4.57 | |
| BEARING | ||||
| 0207 | 680727001 | 9.00 | 10.89 | |
| WASHER (2 needed) | ||||
| 0209 | 632400001 | 1.90 | 2.30 | |
| CYLINDRICAL BOLT | ||||
| 0210 | 4931436807 | 7.20 | 8.71 | |
| CYLINDER | ||||
| 0211 | 692717001 | 18.80 | 22.75 | |
| PERC. BODY W SEAL | ||||
| 0212 | 201233002 | 20.59 | 24.91 | |
| CYLINDER | ||||
| 0213 | 4931446932 | 31.68 | 38.33 | |
| SLEEVE | ||||
| 0214 | 692722001 | 9.00 | 10.89 | |
| ANVIL | ||||
| 0215 | 692590001 | 10.81 | 13.08 | |
| PERCUSSION BODY | ||||
| 0216 | 692698001 | 18.98 | 22.97 | |
| WASHER | ||||
| 0217 | 633516001 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 0218 | 201910001 | |||
| RETAINING RING | ||||
| 0224 | 633521001 | 4.49 | 5.43 | |
| PLATE | ||||
| 0225 | 632399001 | 9.00 | 10.89 | |
| SPRING | ||||
| 0225 | 672799001 | 4.49 | 5.43 | |
| PLATE | ||||
| 0226 | 632399001 | 9.00 | 10.89 | |
| SPRING | ||||
| 0226 | 672799001 | 4.49 | 5.43 | |
| BALL | ||||
| 0227 | 681154001 | 1.80 | 2.18 | |
| BALL (3 needed) | ||||
| 0228 | 611405001 | 1.80 | 2.18 | |
| PIN (3 needed) | ||||
| 0229 | 681235001 | 4.49 | 5.43 | |
| SPINDLE SLEEVE | ||||
| 0230 | 692721002 | 97.91 | 118.47 | |
| Sleeve/Stainless Steel/Electric Tool | ||||
| 0231 | 201219003 | 17.11 | 20.70 | |
| WASHER | ||||
| 0234 | 633517001 | 1.80 | 2.18 | |
| SPRING | ||||
| 0235 | 692735001 | 1.80 | 2.18 | |
| REDUCTION GEAR | ||||
| 0236 | 611291001 | 9.00 | 10.89 | |
| CLUTCH DISC | ||||
| 0237 | 4931435089 | 5.68 | 6.87 | |
| RETAINING RING (2 needed) | ||||
| 0238 | 672634004 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0248 | 692725001 | |||
| WOBBLE DRIVE | ||||
| 0340 | 201240002 | 47.52 | 57.50 | |
| REDUCT. GEAR SHAFT | ||||
| 0341 | 611284001 | 17.42 | 21.08 | |
| SPRING | ||||
| 0346 | 692733001 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0348 | 681236001 | 19.01 | 23.00 | |
| REDUCT GEAR WHEEL | ||||
| 0350 | 4931453861 | 9.91 | 11.99 | |
| BALL BEARING | ||||
| 0351 | 681383001 | 9.00 | 10.89 | |
| BEARING COVER | ||||
| 0353 | 633515001 | 4.49 | 5.43 | |
| SCHALTER | ||||
| 0354 | 4931448984 | 7.20 | 8.71 | |
| SPINDLE SLEEVE | ||||
| 0444 | 201223003 | 102.96 | 124.58 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0700 | 303408009 | |||
| No longer available, no replacement | ||||
| 0705 | 300188083 | |||
| No longer available, no replacement | ||||
| 0710 | 120169003 | |||
| MAINTENANCE SET | ||||
| 1200 | 4931433271 | 63.36 | 76.67 | |
| FELT STRIP | ||||
| 1202 | 902505001 | 1.90 | 2.30 | |
| RUBBER STOP | ||||
| 1203 | 562007001 | 4.49 | 5.43 | |
| WASHER | ||||
| 1204 | 201905001 | 7.20 | 8.71 | |
| SEAL RING | ||||
| 1206 | 902076001 | 9.59 | 11.60 | |
| DATA PLATE | ||||
| 1207 | 902075001 | 10.80 | 13.07 | |
| GASKET | ||||
| 1208 | 562593001 | 1.80 | 2.18 | |
| O-RING | ||||
| 1209 | 561994001 | 1.80 | 2.18 | |
| O-RING | ||||
| 1212 | 562594001 | 1.80 | 2.18 | |
| LOCKING SCREW | ||||
| 1214 | 661286001 | 1.90 | 2.30 | |
| SCREW | ||||
| 1215 | 661504001 | 1.80 | 2.18 | |
| O-RING | ||||
| 1217 | 4931454454 | 1.80 | 2.18 | |
| O-RING | ||||
| 1218 | 562597001 | 3.60 | 4.36 | |
| WASHER | ||||
| 1219 | 633518001 | 1.80 | 2.18 | |
| O-RING | ||||
| 1220 | 562595001 | 1.80 | 2.18 | |
| CIRCLIP | ||||
| 1221 | 672632001 | 4.49 | 5.43 | |
| CLAMPING SLEEVE | ||||
| 1223 | 522172001 | 1.90 | 2.30 | |
| SPRING RING | ||||
| 1224 | 672631001 | 4.49 | 5.43 | |
| RUBBER STOP (3 needed) | ||||
| 1225 | 562578001 | 5.40 | 6.53 | |
| RUBBER CAP | ||||
| 1226 | 561993001 | 1.90 | 2.30 | |
