Here you will find all available parts and drawings of the 'Milwaukee 4000382986 ( PFH24QE/AZK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

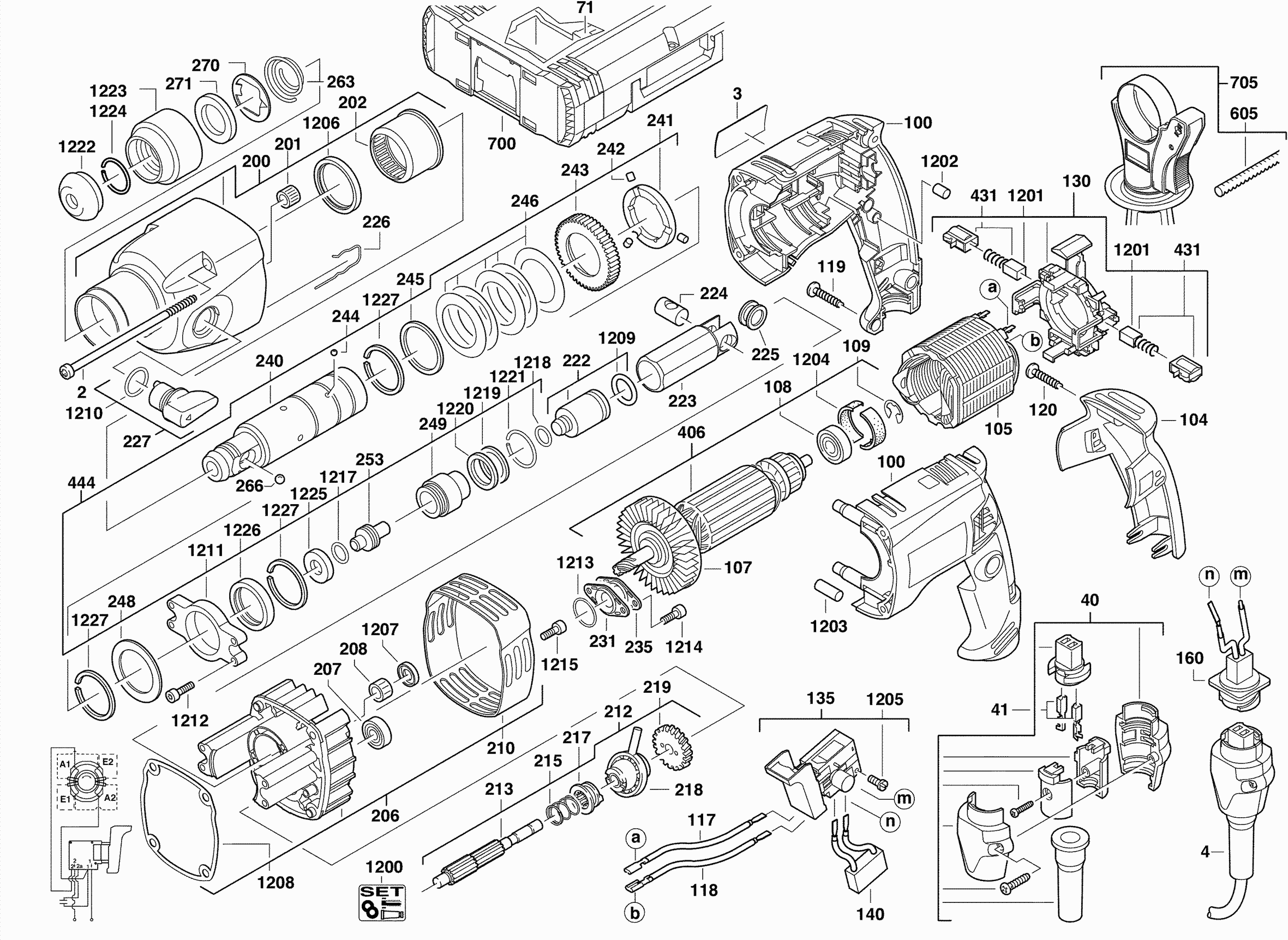

Technical drawing of model Milwaukee 4000382986 ( PFH24QE/AZK )
Spare parts list of model Milwaukee 4000382986 ( PFH24QE/AZK )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (4 needed) | ||||
| 0002 | 4931331734 | 1.80 | 2.18 | |
| CONNECTION CABLE IN2 | ||||
| 0004 | 4931624171 | 33.00 | 39.93 | |
| Reparatieset QUIK-LOK snoeren | ||||
| 0040 | 4931380758 | 40.26 | 48.71 | |
| Cable socket p./10 | ||||
| 0041 | 4931380763 | 25.34 | 30.66 | |
| INSERT | ||||
| 0071 | 4931415325 | 30.10 | 36.42 | |
| No longer available, no replacement | ||||
| 0100 | 4931374910 | |||
| No information available, not orderable | ||||
| 0104 | 4931374488 | |||
| No longer available, no replacement | ||||
| 0105 | 4931426193 | |||
| FAN | ||||
| 0107 | 4931330633 | 4.49 | 5.43 | |
| BALL BEARING | ||||
| 0108 | 4931624169 | 9.00 | 10.89 | |
| WASHER | ||||
| 0109 | 4931621834 | 1.80 | 2.18 | |
| WIRE (2 needed) | ||||
| 0117 | 4931253700 | 5.40 | 6.53 | |
| SCREW (8 needed) | ||||
| 0119 | 4931618253 | 1.80 | 2.18 | |
| SCREW N874101-1 SHR H-K4X22 T15 | ||||
| 0120 | 4931624517 | 1.80 | 2.18 | |
| SET COLLAR | ||||
| 0130 | 4931374498 | 14.40 | 17.42 | |
| SWITCH BOARD | ||||
| 0135 | 4931382238 | 16.20 | 19.60 | |
| CAPACITOR | ||||
| 0140 | 4931311062 | 4.49 | 5.43 | |
| INSERT | ||||
| 0160 | 4931364437 | 9.00 | 10.89 | |
| GEAR BOX COVER | ||||
| 0200 | 200281025 | 42.77 | 51.75 | |
| NEEDLE BEARING N874989 HK 0709 | ||||
| 0201 | 4931933756 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 0202 | 4931365065 | |||
| No information available, not orderable | ||||
| 0206 | 4931382318 | |||
| BALL BEARING | ||||
| 0207 | 681383001 | 9.00 | 10.89 | |
| NEEDLE BEARING | ||||
| 0208 | 4931219424 | 3.60 | 4.36 | |
| REDUCT. GEAR SHAFT | ||||
| 0213 | 4931365010 | 12.60 | 15.25 | |
| SPRING | ||||
| 0215 | 4931365058 | 1.80 | 2.18 | |
| WOBBLE DRIVE | ||||
| 0218 | 4931387623 | 14.40 | 17.42 | |
| No longer available, no replacement | ||||
| 0219 | 4931365014 | |||
| RAM | ||||
| 0222 | 201233001 | 17.11 | 20.70 | |
| No information available, not orderable | ||||
| 0223 | 4931365029 | |||
| CYLINDRICAL BOLT | ||||
| 0224 | 4931387381 | 5.40 | 6.53 | |
| WASHER (2 needed) | ||||
| 0225 | 4931365112 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 0226 | 4931365047 | |||
| SWITCH HANDLE | ||||
| 0227 | 4931374856 | 4.49 | 5.43 | |
| No information available, not orderable | ||||
| 0235 | 4931365135 | |||
| No longer available, no replacement | ||||
| 0240 | 4931374258 | |||
| CLUTCH DISC | ||||
| 0241 | 4931392751 | 5.40 | 6.53 | |
| CYLINDRICAL BOLT (3 needed) | ||||
| 0242 | 4931365057 | 5.40 | 6.53 | |
| SPINDLE GEAR | ||||
| 0243 | 4931407761 | 5.40 | 6.53 | |
| BALL (3 needed) | ||||
| 0244 | 4931944281 | 1.80 | 2.18 | |
| WASHER | ||||
| 0245 | 4931623234 | 1.80 | 2.18 | |
| CUP SPRING (5 needed) | ||||
| 0246 | 4931365066 | 5.40 | 6.53 | |
| WASHER | ||||
| 0248 | 4931623199 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 0253 | 4931365034 | |||
| PRESSURE SPRING | ||||
| 0263 | 4931343128 | 5.40 | 6.53 | |
| BALL | ||||
| 0266 | 4931911572 | 1.80 | 2.18 | |
| SUPPORT PLATE | ||||
| 0270 | 4931343127 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0271 | 4931343126 | |||
| MOTOR | ||||
| 0406 | 200026028 | 83.95 | 101.58 | |
| CARBON BRUSH SET | ||||
| 0431 | 392563 | 13.68 | 16.55 | |
| No information available, not orderable | ||||
| 0444 | 4931407940 | |||
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| Transportkoffer Milwaukee (maat 1) | ||||
| 0700 | 4932378986 | 47.85 | 57.90 | |
| SIDE HANDLE | ||||
| 0705 | 4932373725 | 17.60 | 21.30 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931392604 | 10.80 | 13.07 | |
| HOLDING-DOWN DEVICE | ||||
| 1202 | 4931409768 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 1203 | 4931307423 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 1205 | 4931621772 | 1.80 | 2.18 | |
| SEAL RING N874724 30X37X4 | ||||
| 1206 | 4931623885 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 1207 | 4931623700 | |||
| SEAL | ||||
| 1208 | 4931379289 | 4.49 | 5.43 | |
| O-RING | ||||
| 1209 | 561994001 | 1.80 | 2.18 | |
| O-RING N874701 16X2 | ||||
| 1210 | 4931920948 | 1.80 | 2.18 | |
| SINTERED BEARING | ||||
| 1211 | 4931365032 | 9.00 | 10.89 | |
| SCREW D912 M4X25 (4 needed) | ||||
| 1212 | 4931623886 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1213 | 4931623833 | 4.49 | 5.43 | |
| SCREW (2 needed) | ||||
| 1214 | 4931267225 | 1.80 | 2.18 | |
| SCREW | ||||
| 1215 | 4931375897 | 1.80 | 2.18 | |
| SEAL RING | ||||
| 1217 | 4931623783 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 1218 | 4931387380 | |||
| DISC N874237 A18,1X23,6X1 | ||||
| 1219 | 4931622160 | 4.49 | 5.43 | |
| O-RING | ||||
| 1220 | 4931943504 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 1221 | 4931623860 | 4.49 | 5.43 | |
| CAP | ||||
| 1222 | 4931343123 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 1223 | 4931365054 | |||
| SPRING RING | ||||
| 1224 | 4931623220 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 1225 | 4931374728 | |||
| DAMPING RING | ||||
| 1226 | 4931365188 | 4.49 | 5.43 | |
| SPRING RING | ||||
| 1227 | 4931945764 | 5.40 | 6.53 | |
