Here you will find all available parts and drawings of the 'Milwaukee 4000380785 ( PD2E22RS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

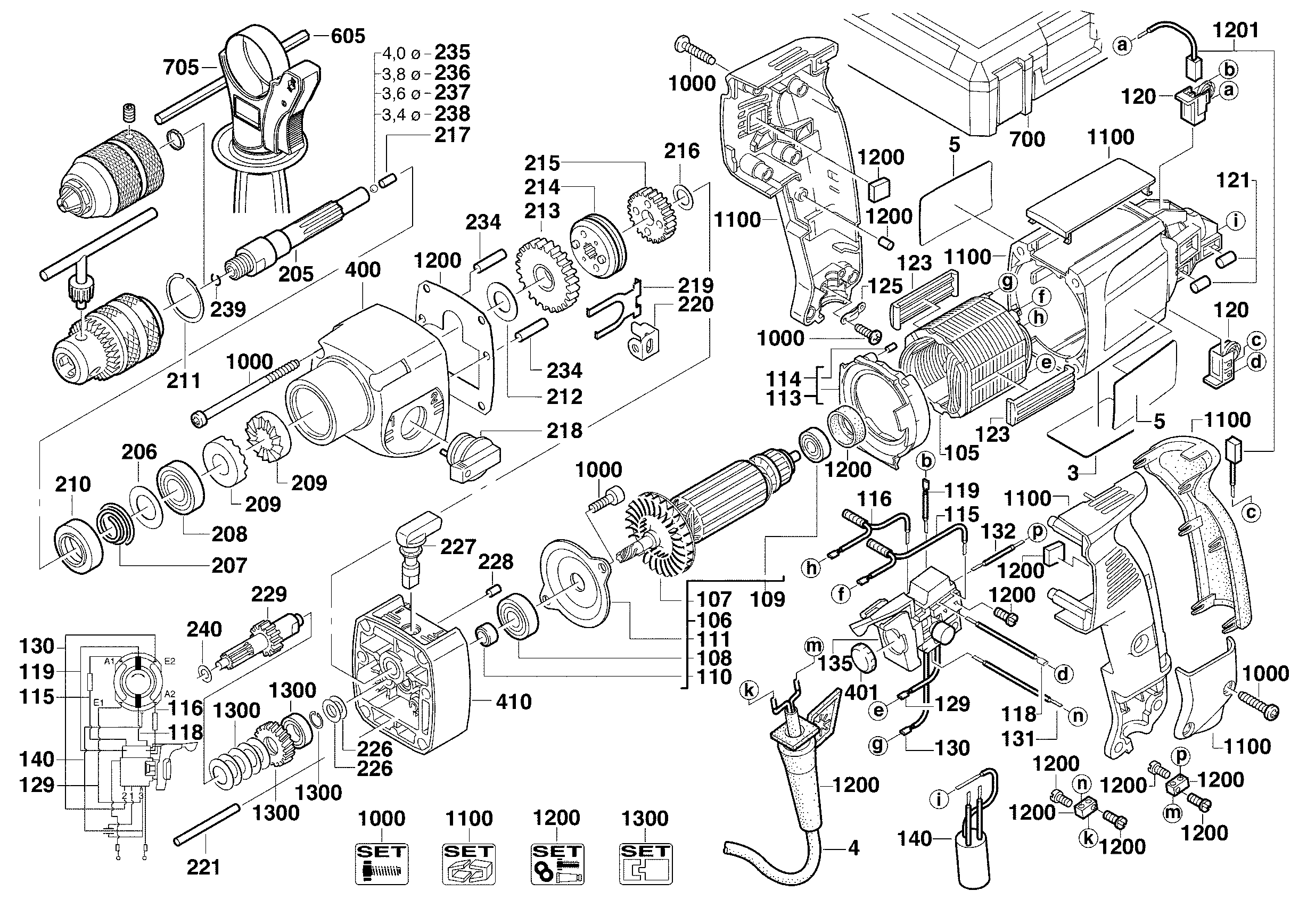

Technical drawing of model Milwaukee 4000380785 ( PD2E22RS )
Spare parts list of model Milwaukee 4000380785 ( PD2E22RS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| RATING PLATE | ||||
| 0003 | 4931380790 | 1.80 | 2.18 | |
| CONNECTION CABLE | ||||
| 0004 | 4931622896 | 12.60 | 15.25 | |
| TYPE PLATE | ||||
| 0005 | 4931378806 | 5.40 | 6.53 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931442733 | 31.68 | 38.33 | |
| ARMATURE | ||||
| 0106 | 4931426516 | 66.53 | 80.50 | |
| FAN | ||||
| 0107 | 4931342793 | 5.40 | 6.53 | |
| GROOVED BALL BEAR. | ||||
| 0108 | 4931368037 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0109 | 4931901253 | 9.00 | 10.89 | |
| SLEEVE | ||||
| 0110 | 4931302748 | 4.49 | 5.43 | |
| BEARING COVER | ||||
| 0111 | 4931267585 | 4.49 | 5.43 | |
| AIR DEFLECTOR RING | ||||
| 0113 | 4931342794 | 4.49 | 5.43 | |
| HOLDING-DOWN DEVICE (4 needed) | ||||
| 0114 | 4931332524 | 5.40 | 6.53 | |
| CHOKING COIL | ||||
| 0115 | 4931623121 | 4.49 | 5.43 | |
| CHOKING COIL | ||||
| 0116 | 4931623122 | 4.49 | 5.43 | |
| WIRE | ||||
| 0118 | 4931623125 | 4.49 | 5.43 | |
| WIRE | ||||
| 0119 | 4931623126 | 4.49 | 5.43 | |
| BRUSH HOLDER (2 needed) | ||||
| 0120 | 4931382268 | 5.40 | 6.53 | |
| ROLL (4 needed) | ||||
| 0121 | 4931623123 | 4.49 | 5.43 | |
| CENTERING LEDGE (2 needed) | ||||
| 0123 | 4931342808 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | 5.40 | 6.53 | |
| WIRE | ||||
| 0129 | 4931623127 | 5.40 | 6.53 | |
| WIRE | ||||
| 0130 | 4931623196 | 5.40 | 6.53 | |
| WIRE | ||||
| 0131 | 4931622948 | 4.49 | 5.43 | |
| WIRE | ||||
| 0132 | 4931623136 | 4.49 | 5.43 | |
| SWITCH BOARD | ||||
| 0135 | 4931417945 | 47.52 | 57.50 | |
| No longer available, no replacement | ||||
| 0140 | 4931276760 | |||
| DRILL SPINDLE | ||||
| 0205 | 4931307039 | 17.42 | 21.08 | |
| DISC | ||||
| 0206 | 4931621809 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0207 | 4931267406 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0208 | 4931891058 | 9.00 | 10.89 | |
| PERCUSSION SLEEVE | ||||
| 0209 | 4931267571 | 3.60 | 4.36 | |
| SEAL RING | ||||
| 0210 | 4931267522 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0211 | 4931890311 | 5.40 | 6.53 | |
| DISC | ||||
| 0212 | 4931621647 | 1.80 | 2.18 | |
| DRILL SPINDLE WHEEL | ||||
| 0213 | 4931426230 | 9.00 | 10.89 | |
| SHIFT RING COMPL. | ||||
| 0214 | 4931307130 | 15.84 | 19.17 | |
| DRILL SPINDLE WHEEL | ||||
| 0215 | 4931426231 | 9.00 | 10.89 | |
| DISC | ||||
| 0216 | 4931621679 | 5.40 | 6.53 | |
| PIN | ||||
| 0217 | 4931805526 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0218 | 4931339525 | 5.40 | 6.53 | |
| RETAINING SPRING | ||||
| 0219 | 4931307118 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0220 | 4931267576 | 5.40 | 6.53 | |
| PIN | ||||
| 0221 | 4931621731 | 5.40 | 6.53 | |
| WASHER | ||||
| 0226 | 4931623164 | 1.80 | 2.18 | |
| SWITCH LEVER | ||||
| 0227 | 4931339526 | 5.40 | 6.53 | |
| PIN | ||||
| 0228 | 4931621770 | 5.40 | 6.53 | |
| REDUCTION GEAR | ||||
| 0229 | 4931342887 | 57.02 | 68.99 | |
| PIN (2 needed) | ||||
| 0234 | 4931621732 | 5.40 | 6.53 | |
| BALL (4 needed) | ||||
| 0235 | 4931805390 | 1.80 | 2.18 | |
| BALL | ||||
| 0236 | 4931621735 | 1.80 | 2.18 | |
| BALL | ||||
| 0237 | 4931621736 | 1.80 | 2.18 | |
| BALL | ||||
| 0238 | 4931621737 | 1.80 | 2.18 | |
| RING SPRING | ||||
| 0239 | 4931302074 | 4.49 | 5.43 | |
| DISC | ||||
| 0240 | 4931621715 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0400 | 4931380476 | 38.02 | 46.00 | |
| SET WHEEL | ||||
| 0401 | 4931356599 | 5.40 | 6.53 | |
| BEARING END PLATE | ||||
| 0410 | 4931380475 | 34.85 | 42.17 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| INSERT | ||||
| 0700 | 4931415325 | 30.10 | 36.42 | |
| SIDE HANDLE | ||||
| 0705 | 4932373725 | 17.60 | 21.30 | |
| BOLT SET | ||||
| 1000 | 4931364668 | 14.40 | 17.42 | |
| BODY | ||||
| 1100 | 4931380477 | 20.59 | 24.91 | |
| MAINTENANCE SET | ||||
| 1200 | 4931347472 | 34.85 | 42.17 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931392596 | 15.29 | 18.50 | |
| COUPLING SET | ||||
| 1300 | 4931347492 | 33.26 | 40.24 | |
