Here you will find all available parts and drawings of the 'Milwaukee 4000396024 (PD2-10)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

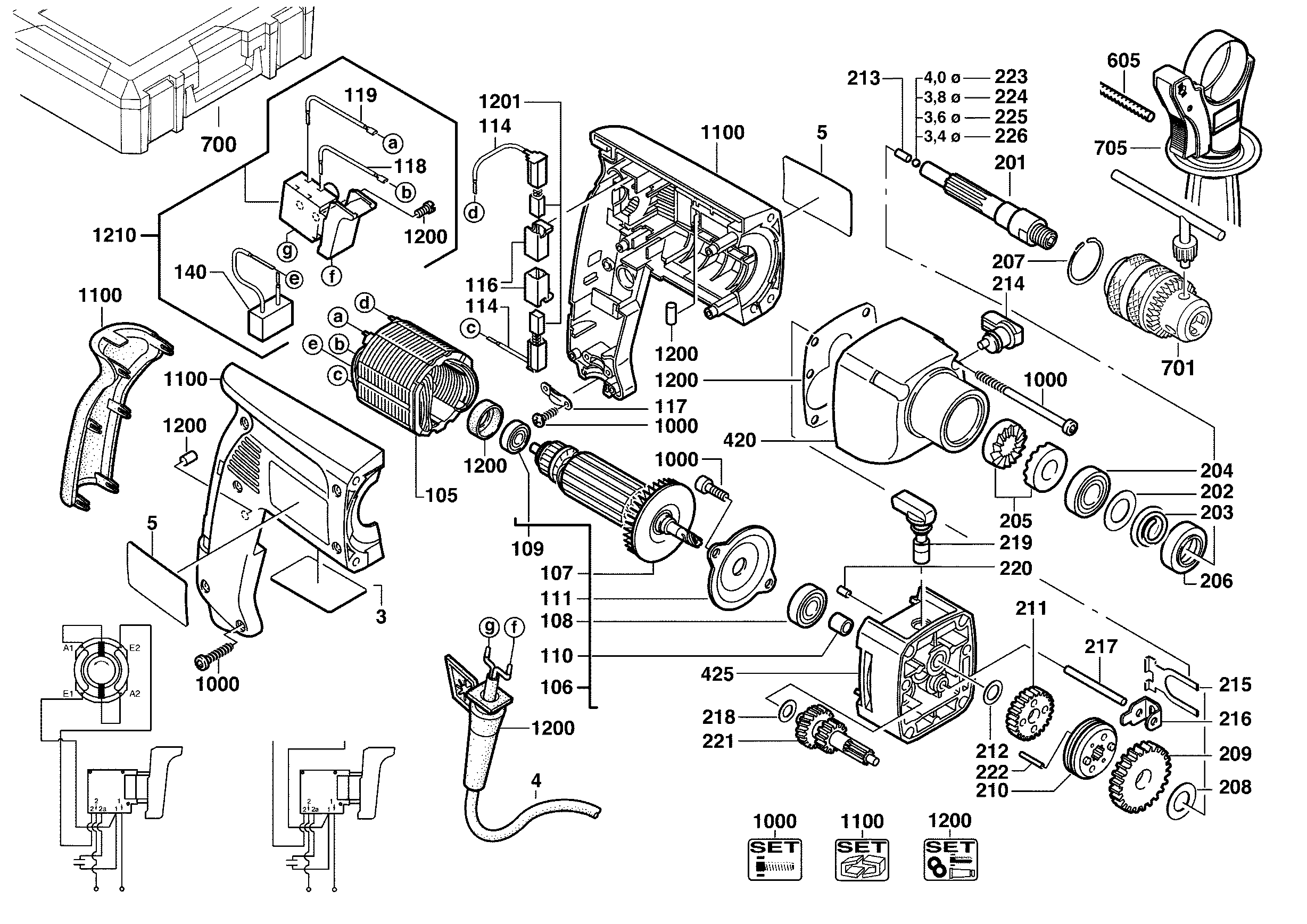

Technical drawing of model Milwaukee 4000396024 (PD2-10)
Spare parts list of model Milwaukee 4000396024 (PD2-10)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 0003 | 4931396028 | |||
| No longer available, no replacement | ||||
| 0004 | 4931623997 | |||
| TYPE PLATE | ||||
| 0005 | 4931378806 | 6.48 | 7.84 | |
| No information available, not orderable | ||||
| 0105 | 4931318451 | |||
| ARMATURE | ||||
| 0106 | 4931426257 | 52.27 | 63.25 | |
| FAN | ||||
| 0107 | 4931302487 | 4.49 | 5.43 | |
| GROOVED BALL BEAR. | ||||
| 0108 | 4931368037 | 6.48 | 7.84 | |
| BALL BEARING | ||||
| 0109 | 4931901253 | 9.36 | 11.33 | |
| BUSHING | ||||
| 0110 | 4931343243 | 4.49 | 5.43 | |
| BEARING COVER | ||||
| 0111 | 4931267585 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0114 | 4931623385 | |||
| BRUSH HOLDER (2 needed) | ||||
| 0116 | 4931315039 | 5.40 | 6.53 | |
| BRUSH HOLDER (2 needed) | ||||
| 0116 | 4931271678 | 3.60 | 4.36 | |
| CABLE COLLAR | ||||
| 0117 | 4931256500 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0118 | 4931623371 | |||
| No longer available, no replacement | ||||
| 0119 | 4931623372 | |||
| DRILL SPINDLE | ||||
| 0201 | 4931409811 | 14.85 | 17.97 | |
| DISC | ||||
| 0202 | 4931621809 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0203 | 4931267406 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0204 | 4931891058 | 9.00 | 10.89 | |
| PERCUSSION SLEEVE (2 needed) | ||||
| 0205 | 4931267571 | 4.32 | 5.23 | |
| SEAL RING | ||||
| 0206 | 4931267522 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0207 | 4931890311 | 5.40 | 6.53 | |
| DISC | ||||
| 0208 | 4931621647 | 3.00 | 3.63 | |
| DRILL SPINDLE WHEEL | ||||
| 0209 | 4931426230 | 9.00 | 10.89 | |
| SHIFT RING COMPL. | ||||
| 0210 | 4931307130 | 15.84 | 19.17 | |
| DRILL SPINDLE WHEEL | ||||
| 0211 | 4931426231 | 9.60 | 11.62 | |
| DISC | ||||
| 0212 | 4931621679 | 5.40 | 6.53 | |
| PIN | ||||
| 0213 | 4931805526 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0214 | 4931339525 | 5.40 | 6.53 | |
| RETAINING SPRING | ||||
| 0215 | 4931307118 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0216 | 4931267576 | 5.40 | 6.53 | |
| PIN | ||||
| 0217 | 4931621731 | 5.40 | 6.53 | |
| DISC | ||||
| 0218 | 4931621715 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0219 | 4931339526 | 12.65 | 15.31 | |
| PIN | ||||
| 0220 | 4931621770 | 5.40 | 6.53 | |
| REDUCTION GEAR | ||||
| 0221 | 4931267582 | 39.60 | 47.92 | |
| PIN (2 needed) | ||||
| 0222 | 4931621732 | 5.40 | 6.53 | |
| BALL (4 needed) | ||||
| 0223 | 4931805390 | 3.00 | 3.63 | |
| BALL | ||||
| 0224 | 4931621735 | 3.00 | 3.63 | |
| BALL | ||||
| 0225 | 4931621736 | 3.00 | 3.63 | |
| BALL | ||||
| 0226 | 4931621737 | 3.00 | 3.63 | |
| GEAR BOX | ||||
| 0420 | 4931380479 | 49.10 | 59.41 | |
| BEARING END PLATE | ||||
| 0425 | 4931380480 | 31.68 | 38.33 | |
| DEPTH GAUGE | ||||
| 0605 | 4931384434 | 5.40 | 6.53 | |
| Keyed Chuck 3Jaw A 1.5-13 1/2x20-1pc | ||||
| 0701 | 4932267980 | 29.13 | 35.25 | |
| HANDLE PHE P1 A/M | ||||
| 0705 | 4932373725 | 19.36 | 23.43 | |
| BOLT SET | ||||
| 1000 | 4931344833 | 14.40 | 17.42 | |
| HOUSING | ||||
| 1100 | 4931359606 | 25.34 | 30.66 | |
| No information available, not orderable | ||||
| 1200 | 4931380959 | |||
| No longer available, no replacement | ||||
| 1201 | 4931392580 | |||
| No longer available, no replacement | ||||
| 1210 | 4931387264 | |||
