Here you will find all available parts and drawings of the 'Milwaukee 4000415237 ( PCE3Q )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

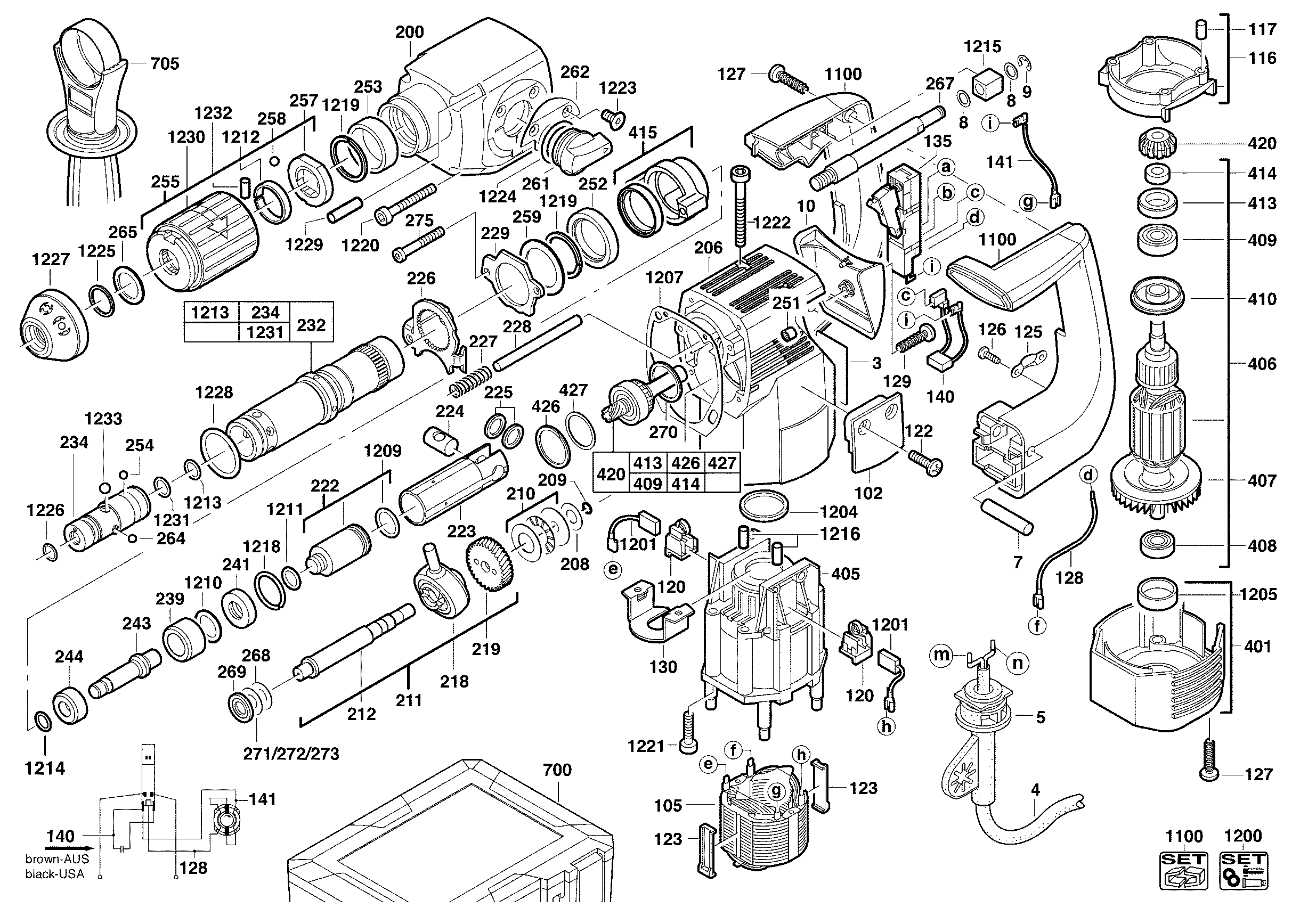

Technical drawing of model Milwaukee 4000415237 ( PCE3Q )
Spare parts list of model Milwaukee 4000415237 ( PCE3Q )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 0003 | 4931415262 | |||
| CONNECTION CABLE | ||||
| 0004 | 4931624009 | 26.93 | 32.59 | |
| PROTECTING COVER | ||||
| 0005 | 4931392174 | 5.40 | 6.53 | |
| GROOVED DOWEL PIN | ||||
| 0007 | 4931623456 | 5.40 | 6.53 | |
| WASHER (2 needed) | ||||
| 0008 | 4931623094 | 1.80 | 2.18 | |
| WASHER | ||||
| 0009 | 4931621834 | 1.80 | 2.18 | |
| GEAR BOX COVER | ||||
| 0010 | 4931360377 | 5.40 | 6.53 | |
| PROTECTIVE CAP (2 needed) | ||||
| 0102 | 4931360518 | 4.49 | 5.43 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931353230 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE (4 needed) | ||||
| 0117 | 4931405705 | 4.49 | 5.43 | |
| BRUSH HOLDER (2 needed) | ||||
| 0120 | 4931382268 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0122 | 4931624518 | 1.80 | 2.18 | |
| CENTERING LEDGE (2 needed) | ||||
| 0123 | 4931342808 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 0126 | 4931624516 | 1.80 | 2.18 | |
| SCREW N874101-1 SHR H-K4X18 T15 (7 needed) | ||||
| 0127 | 4931624515 | 1.80 | 2.18 | |
| WIRE | ||||
| 0128 | 4931623541 | 5.40 | 6.53 | |
| SCREW | ||||
| 0129 | 4931622153 | 1.80 | 2.18 | |
| BEARING COVER | ||||
| 0130 | 4931356869 | 5.40 | 6.53 | |
| SWITCH BOARD | ||||
| 0135 | 4931384292 | 41.18 | 49.83 | |
| CAPACITOR | ||||
| 0140 | 4931624270 | 5.40 | 6.53 | |
| WIRE | ||||
| 0141 | 4931624269 | 5.40 | 6.53 | |
| GEAR BOX | ||||
| 0200 | 4931384312 | 63.36 | 76.67 | |
| GEAR BOX | ||||
| 0206 | 4931382948 | 118.80 | 143.75 | |
| WASHER | ||||
| 0208 | 4931623637 | 1.80 | 2.18 | |
| O-RING N874701 5X1 | ||||
| 0209 | 4931941082 | 1.80 | 2.18 | |
| THRUST BEARING | ||||
| 0210 | 4931360041 | 9.00 | 10.89 | |
| REDUCT. GEAR SHAFT | ||||
| 0211 | 4931384313 | 58.61 | 70.92 | |
| REDUCT. GEAR SHAFT | ||||
| 0212 | 4931417725 | 28.51 | 34.50 | |
| REPAIR KIT | ||||
| 0218 | 4931384560 | 63.36 | 76.67 | |
| REDUCTION GEAR | ||||
| 0219 | 4931426240 | 15.29 | 18.50 | |
| PERCUSSION BODY | ||||
| 0222 | 4931384314 | 14.40 | 17.42 | |
| CYLINDER | ||||
| 0223 | 4931384279 | 14.40 | 17.42 | |
| CYLINDRICAL BOLT | ||||
| 0224 | 4931331623 | 5.40 | 6.53 | |
| WASHER (2 needed) | ||||
| 0225 | 4931400589 | 1.80 | 2.18 | |
| LOCKING PIECE | ||||
| 0226 | 4931384316 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0227 | 4931384293 | 5.40 | 6.53 | |
| PIN | ||||
| 0228 | 4931623081 | 5.40 | 6.53 | |
| LATCH PLATE | ||||
| 0229 | 4931331787 | 5.40 | 6.53 | |
| SPINDLE | ||||
| 0232 | 4931392170 | 112.46 | 136.08 | |
| ADAPTER | ||||
| 0234 | 4931409762 | 33.26 | 40.24 | |
| SLEEVE | ||||
| 0239 | 4931409839 | 12.60 | 15.25 | |
| CORE LIFTER RING | ||||
| 0241 | 4931409775 | 9.00 | 10.89 | |
| SNAP DIE | ||||
| 0243 | 4931384284 | 14.40 | 17.42 | |
| STOP WASHER | ||||
| 0244 | 4931384283 | 12.60 | 15.25 | |
| NEEDLE BEARING | ||||
| 0251 | 4931219424 | 3.60 | 4.36 | |
| JUNK RING | ||||
| 0252 | 4931409776 | 10.80 | 13.07 | |
| BALL | ||||
| 0254 | 4931805437 | 1.80 | 2.18 | |
| BALL | ||||
| 0254 | 681486001 | 1.80 | 2.18 | |
| SET SLEEVE | ||||
| 0255 | 4931384299 | 45.94 | 55.59 | |
| JUMPER RING | ||||
| 0257 | 4931417929 | 23.76 | 28.75 | |
| BALL | ||||
| 0258 | 4931805413 | 1.80 | 2.18 | |
| WASHER | ||||
| 0259 | 4931623199 | 1.80 | 2.18 | |
| SWITCH HANDLE | ||||
| 0261 | 4931392506 | 5.40 | 6.53 | |
| LATCH PLATE | ||||
| 0262 | 4931379108 | 5.40 | 6.53 | |
| DISC | ||||
| 0265 | 4931624280 | 5.40 | 6.53 | |
| BOLT | ||||
| 0267 | 4931392501 | 9.00 | 10.89 | |
| DISC N874237 (2 needed) | ||||
| 0268 | 4931624096 | 5.40 | 6.53 | |
| SPACER | ||||
| 0269 | 4931379420 | 5.40 | 6.53 | |
| SUPPORTING PLATE | ||||
| 0270 | 4931409756 | 5.40 | 6.53 | |
| DISC N874237 | ||||
| 0271 | 4931624098 | 5.40 | 6.53 | |
| DISC N874237 | ||||
| 0272 | 4931624097 | 5.40 | 6.53 | |
| DISC N874237 (2 needed) | ||||
| 0273 | 4931624096 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 0275 | 4931624282 | 1.80 | 2.18 | |
| MOTOR COVER | ||||
| 0401 | 4931360732 | 10.80 | 13.07 | |
| MOTOR HOUSING | ||||
| 0405 | 4931384337 | 17.42 | 21.08 | |
| FAN | ||||
| 0407 | 4931342793 | 5.40 | 6.53 | |
| GROOVED BALL BEAR. | ||||
| 0408 | 4931341740 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0409 | 4931624101 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0410 | 4931353260 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0413 | 4931442301 | 16.20 | 19.60 | |
| SPACER | ||||
| 0414 | 4931353238 | 4.49 | 5.43 | |
| BUSHING | ||||
| 0415 | 4931384557 | 17.42 | 21.08 | |
| PINION SHAFT | ||||
| 0420 | 4931432300 | 63.36 | 76.67 | |
| LOCKING RING | ||||
| 0426 | 4931616614 | 5.40 | 6.53 | |
| DISC N874237 A16,1X26X1 | ||||
| 0427 | 4931622564 | 5.40 | 6.53 | |
| CARRYING CASE | ||||
| 0700 | 4931415335 | 47.52 | 57.50 | |
| HANDLE | ||||
| 0705 | 4931417907 | 13.75 | 16.64 | |
| HANDLE COMPL. | ||||
| 1100 | 4931384324 | 15.84 | 19.17 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931392592 | 15.84 | 19.17 | |
| O-RING | ||||
| 1204 | 4931623124 | 1.80 | 2.18 | |
| RUBBER SLEEVE | ||||
| 1205 | 4931360781 | 5.40 | 6.53 | |
| SEAL | ||||
| 1207 | 4931392504 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1209 | 4931379705 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1210 | 4931624492 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1211 | 4931624226 | 5.40 | 6.53 | |
| SPRING | ||||
| 1212 | 4931321064 | 5.40 | 6.53 | |
| SEAL RING N874701 12X1,5 | ||||
| 1213 | 4931624322 | 4.49 | 5.43 | |
| SEAL RING | ||||
| 1214 | 4931624227 | 5.40 | 6.53 | |
| DAMPING ELEMENT | ||||
| 1215 | 4931392502 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE (2 needed) | ||||
| 1216 | 4931331549 | 5.40 | 6.53 | |
| RING | ||||
| 1218 | 4931623636 | 5.40 | 6.53 | |
| SPRING RING | ||||
| 1219 | 4931945764 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 1220 | 4931623521 | 1.80 | 2.18 | |
| SCREW (4 needed) | ||||
| 1221 | 4931623520 | 1.80 | 2.18 | |
| SCREW (2 needed) | ||||
| 1222 | 4931623519 | 1.80 | 2.18 | |
| SCREW (2 needed) | ||||
| 1223 | 4931379109 | 1.80 | 2.18 | |
| O-RING | ||||
| 1224 | 4931623293 | 1.80 | 2.18 | |
| SPRING RING | ||||
| 1225 | 4931622874 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1226 | 4931624493 | 5.40 | 6.53 | |
| O-RING | ||||
| 1226 | 4931454454 | 1.80 | 2.18 | |
| RUBBER CAP | ||||
| 1227 | 4931384925 | 9.00 | 10.89 | |
| SEAL RING N874701 12X1,5 | ||||
| 1228 | 4931624225 | 5.40 | 6.53 | |
| SET SLEEVE | ||||
| 1230 | 4931384295 | 9.91 | 11.99 | |
| HOLDING DISC | ||||
| 1231 | 4931392528 | 6.31 | 7.64 | |
| HOLDING-DOWN DEVICE | ||||
| 1232 | 4931307423 | 5.40 | 6.53 | |
| BALL (2 needed) | ||||
| 1233 | 4931624303 | 1.80 | 2.18 | |
