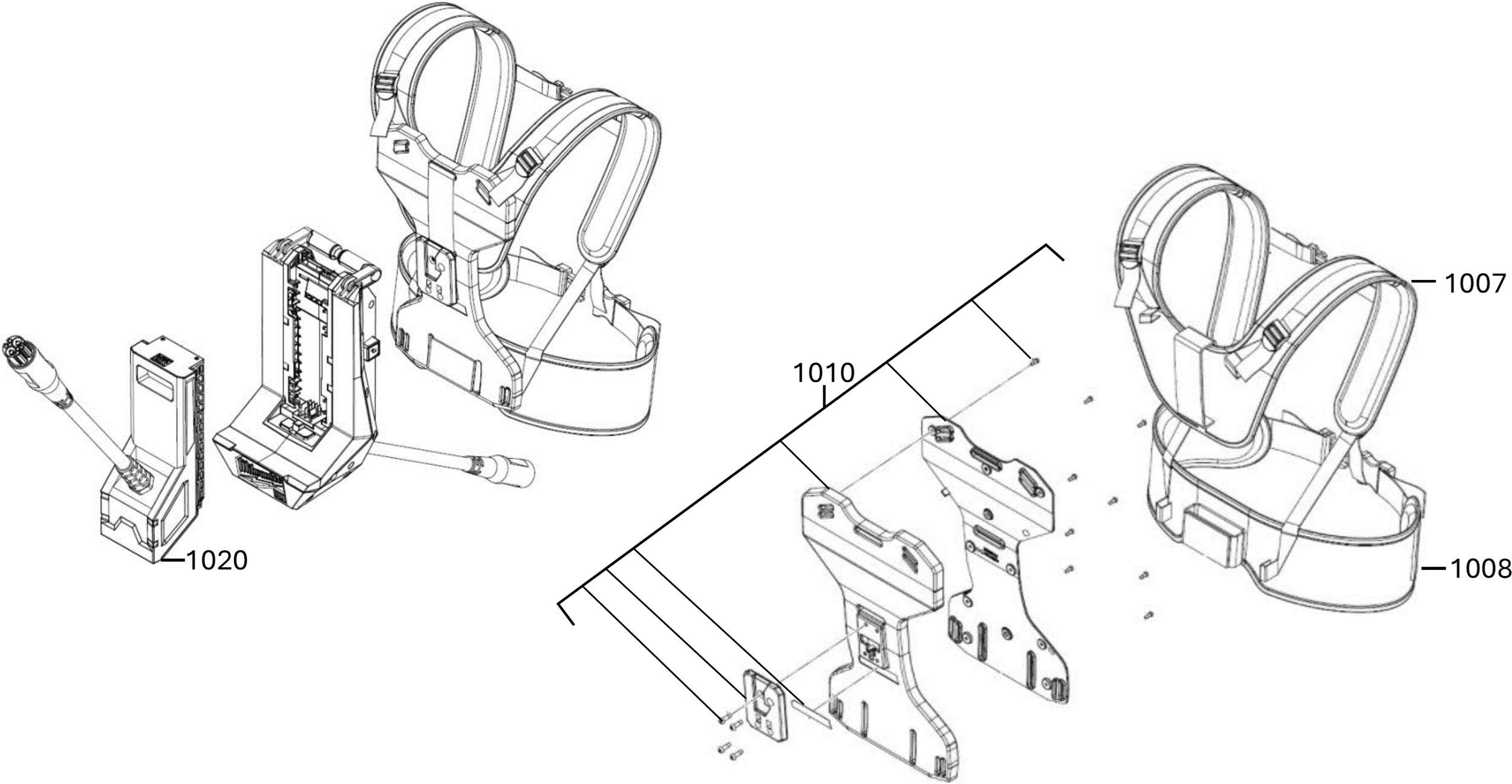

Technical drawing of model Milwaukee 4000503165 ( MXFPBE-0 )
Spare parts list of model Milwaukee 4000503165 ( MXFPBE-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SAFETY STRAP | ||||
| 1007 | 4931507699 | 64.90 | 78.53 | |
| WAISTBELT | ||||
| 1008 | 4931507700 | 41.80 | 50.58 | |
| HOLDING BRACKET | ||||
| 1010 | 4931507701 | 103.40 | 125.11 | |
| MXFPBET-24 Powerbox Tether 2.4m XXX | ||||
| 1020 | 4932498068 | 284.90 | 344.73 | |
| GUIDE RAIL | ||||
| 2001 | 4931507702 | 297.00 | 359.37 | |
| PLATE | ||||
| 2003 | 4931507703 | 7.20 | 8.71 | |
| SCREW (5 needed) | ||||
| 2024 | 4931480041 | 3.00 | 3.63 | |
| SCREW (3 needed) | ||||
| 2027 | 4931480574 | 3.00 | 3.63 | |
| SCREW (10 needed) | ||||
| 2028 | 4931480042 | 3.00 | 3.63 | |
| CLAMP | ||||
| 2030 | 4931507704 | 3.00 | 3.63 | |
| SUPPORT | ||||
| 2031 | 4931507705 | 3.00 | 3.63 | |
| PIN (2 needed) | ||||
| 2033 | 4931507706 | 4.80 | 5.81 | |
| RING (2 needed) | ||||
| 2034 | 4931507707 | 1.20 | 1.45 | |
| WASHER | ||||
| 2037 | 4931507708 | 1.20 | 1.45 | |
| SCREW (2 needed) | ||||
| 2038 | 4931507709 | 1.20 | 1.45 | |
| RATING PLATE | ||||
| 2039 | 4931507710 | 40.70 | 49.25 | |
| PIN | ||||
| 2120 | 4931507711 | 15.40 | 18.63 | |
| HANDLE SET | ||||
| 2121 | 4931507712 | 34.10 | 41.26 | |
| HOUSING | ||||
| 2150 | 4931507713 | 81.40 | 98.49 | |
| COVER | ||||
| 2151 | 4931507714 | 55.00 | 66.55 | |
