Here you will find all available parts and drawings of the 'Milwaukee 4000483888 (MXFCVBP-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

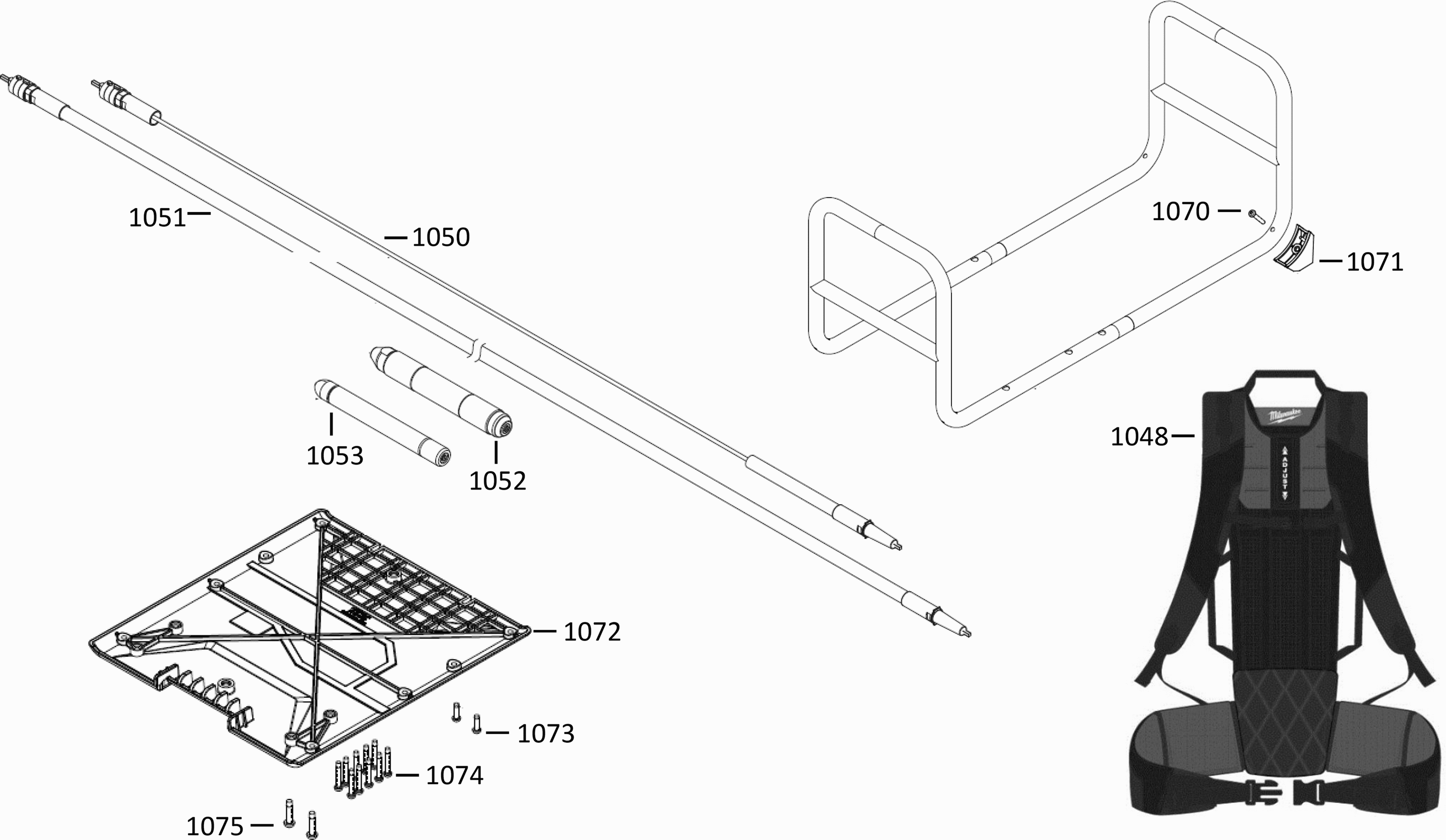

Technical drawing of model Milwaukee 4000483888 (MXFCVBP-0)
Spare parts list of model Milwaukee 4000483888 (MXFCVBP-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CONNECTOR | ||||
| 1001 | 4931599230 | 1499.85 | 1814.82 | |
| STRAP | ||||
| 1048 | 4931480619 | 287.65 | 348.06 | |
| MXFCVS-2 m Concrete Vibrator Whip | ||||
| 1050 | 4932478611 | 449.52 | 543.92 | |
| MXFCVS-4 m Concrete Vibrator Whip | ||||
| 1051 | 4932478610 | 747.95 | 905.02 | |
| MXFCVH-50 MM MXF CONCRETE VIBRATOR HEAD | ||||
| 1052 | 4932478613 | 498.19 | 602.81 | |
| MXFCVH-38 MM MXF CONCRETE VIBRATOR HEAD | ||||
| 1053 | 4932478612 | 373.34 | 451.74 | |
| SCREW (4 needed) | ||||
| 1070 | 4931480569 | 3.60 | 4.36 | |
| FOOT (4 needed) | ||||
| 1071 | 4931480570 | 5.40 | 6.53 | |
| HOLDING PLATE | ||||
| 1072 | 4931480571 | 29.22 | 35.36 | |
| SCREW (2 needed) | ||||
| 1073 | 4931480572 | 3.00 | 3.63 | |
| SCREW (10 needed) | ||||
| 1074 | 4931480573 | 3.00 | 3.63 | |
| SCREW (3 needed) | ||||
| 1075 | 4931480574 | 3.00 | 3.63 | |
| ELECTRONIC | ||||
| 2010 | 4931480575 | 560.30 | 677.96 | |
| REMOTE TSC CONTROL | ||||
| 2016 | 4931480576 | 73.69 | 89.16 | |
| LOCK COMPLETE | ||||
| 2040 | 4931480577 | 119.43 | 144.51 | |
| HEAD | ||||
| 2042 | 4931480578 | 117.15 | 141.75 | |
| ROTOR | ||||
| 2043 | 4931480579 | 336.60 | 407.29 | |
| CONNECTOR | ||||
| 2044 | 4931480580 | 138.05 | 167.04 | |
| HOUSING | ||||
| 2045 | 4931480581 | 28.60 | 34.61 | |
| CONTROL PANEL KIT | ||||
| 2046 | 4931480582 | 94.02 | 113.76 | |
| STATOR | ||||
| 2049 | 4931480583 | 105.60 | 127.78 | |
| COVER | ||||
| 2060 | 4931480584 | 3.00 | 3.63 | |
| GUIDE RAIL | ||||
| 2061 | 4931480585 | 426.80 | 516.43 | |
| SCREW (2 needed) | ||||
| 2062 | 4931480586 | 3.00 | 3.63 | |
| SEAL | ||||
| 2063 | 4931480587 | 3.00 | 3.63 | |
| O-RING | ||||
| 2076 | 4931480588 | 3.00 | 3.63 | |
| COLLAR | ||||
| 2077 | 4931480589 | 16.50 | 19.96 | |
| SCREW (2 needed) | ||||
| 2078 | 4931480590 | 3.00 | 3.63 | |
| RELEASE LEVER | ||||
| 2079 | 4931480591 | 41.93 | 50.74 | |
| FITTING | ||||
| 2080 | 4931480592 | 3.00 | 3.63 | |
| SCREW | ||||
| 2081 | 4931480593 | 3.00 | 3.63 | |
| COVER | ||||
| 2082 | 4931480594 | 3.00 | 3.63 | |
| SCREW (10 needed) | ||||
| 2083 | 4931480595 | 3.00 | 3.63 | |
| CAP | ||||
| 2087 | 4931480596 | 14.30 | 17.30 | |
| MOTOR HOUSING | ||||
| 2088 | 4931480597 | 8.40 | 10.16 | |
| SCREW (3 needed) | ||||
| 2089 | 4931480598 | 3.60 | 4.36 | |
| RATING PLATE | ||||
| 2090 | 4931480599 | 50.82 | 61.49 | |
| COVER | ||||
| 2091 | 4931480600 | 34.65 | 41.93 | |
| END PLATE | ||||
| 2092 | 4931480601 | 14.30 | 17.30 | |
| SCREW (4 needed) | ||||
| 2093 | 4931480602 | 3.00 | 3.63 | |
| CLAMP CLIP (6 needed) | ||||
| 2094 | 4931480035 | 3.79 | 4.59 | |
| ELECTRONIC | ||||
| 2095 | 4931480603 | 11.09 | 13.42 | |
| ROCKER SWITCH | ||||
| 2096 | 4931480604 | 12.47 | 15.09 | |
| FRAME | ||||
| 2097 | 4931480605 | 4.20 | 5.08 | |
| SCREW (10 needed) | ||||
| 2098 | 4931480606 | 3.00 | 3.63 | |
| BUTTON | ||||
| 2099 | 4931480607 | 3.00 | 3.63 | |
| BUTTON | ||||
| 2100 | 4931480608 | 3.60 | 4.36 | |
| ELECTRONIC | ||||
| 2101 | 4931480609 | 123.24 | 149.12 | |
| SWITCH KIT | ||||
| 2102 | 4931480610 | 11.09 | 13.42 | |
| SCREW (10 needed) | ||||
| 2103 | 4931480042 | 3.00 | 3.63 | |
| HOLDER | ||||
| 2104 | 4931480611 | 3.00 | 3.63 | |
| EJECTOR | ||||
| 2106 | 4931480612 | 3.60 | 4.36 | |
| CONNECTOR | ||||
| 2107 | 4931480613 | 79.75 | 96.50 | |
| GUIDE RAIL | ||||
| 2108 | 4931480614 | 17.79 | 21.53 | |
| SCREW (6 needed) | ||||
| 2109 | 4931480615 | 3.60 | 4.36 | |
| GUIDE RAIL | ||||
| 2110 | 4931480616 | 15.25 | 18.45 | |
| COVER | ||||
| 2111 | 4931480617 | 38.50 | 46.58 | |
| SCREW (5 needed) | ||||
| 2112 | 4931480041 | 3.00 | 3.63 | |
| BRACKET | ||||
| 2113 | 4931480618 | 3.60 | 4.36 | |
| SCREW (11 needed) | ||||
| 2114 | 4931480111 | 3.00 | 3.63 | |
