Here you will find all available parts and drawings of the 'Milwaukee 4000411551 ( MS305DB )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

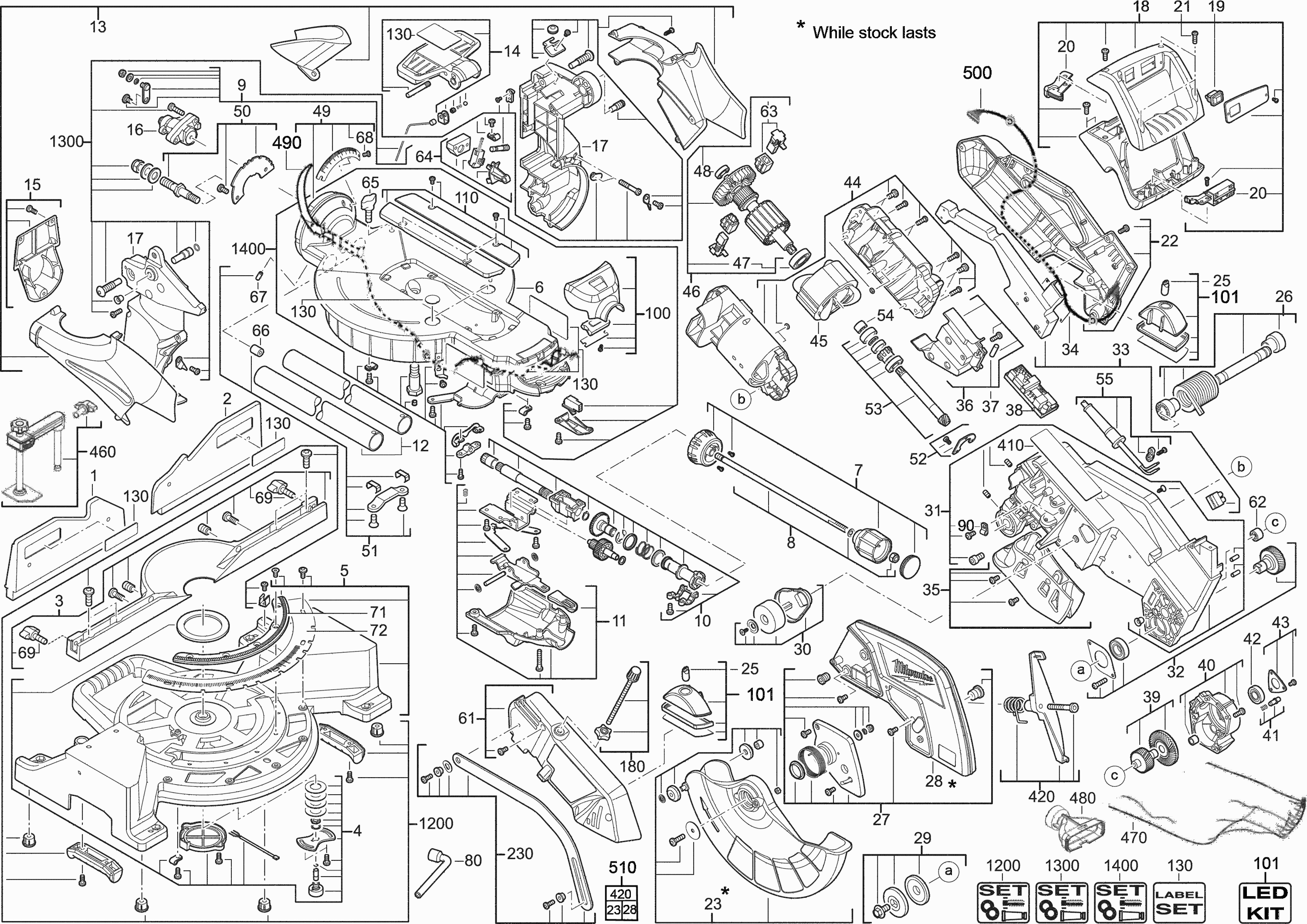

Technical drawing of model Milwaukee 4000411551 ( MS305DB )
Spare parts list of model Milwaukee 4000411551 ( MS305DB )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 0001 | 4931440937 | |||
| No longer available, no replacement | ||||
| 0002 | 4931440938 | |||
| No longer available, no replacement | ||||
| 0003 | 4931440939 | |||
| POTENTIOMETER | ||||
| 0004 | 101606706 | 117.22 | 141.84 | |
| BASE PLATE | ||||
| 0005 | 101606707 | 242.35 | 293.24 | |
| TABLE | ||||
| 0006 | 101606719 | 285.12 | 345.00 | |
| LOCKING LEVER | ||||
| 0007 | 101606724 | 8.09 | 9.79 | |
| ROD | ||||
| 0008 | 101606723 | 9.00 | 10.89 | |
| REPAIR KIT | ||||
| 0009 | 101606728 | 23.76 | 28.75 | |
| GEARWHEEL SET | ||||
| 0010 | 101606720 | 39.60 | 47.92 | |
| COVER | ||||
| 0011 | 101606725 | 53.86 | 65.17 | |
| No longer available, no replacement | ||||
| 0012 | 101606090 | |||
| No information available, not orderable | ||||
| 0013 | 101606729 | |||
| LEVER | ||||
| 0014 | 101606736 | 22.18 | 26.84 | |
| COVER | ||||
| 0015 | 101606771 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0016 | 101606107 | |||
| LEVER | ||||
| 0017 | 101606735 | 172.66 | 208.92 | |
| No information available, not orderable | ||||
| 0018 | 101606742 | |||
| No longer available, no replacement | ||||
| 0019 | 101606174 | |||
| No longer available, no replacement | ||||
| 0020 | 101606173 | |||
| No longer available, no replacement | ||||
| 0021 | 101606158 | |||
| MOTOR COVER | ||||
| 0022 | 101606774 | 30.10 | 36.42 | |
| No longer available, no replacement | ||||
| 0025 | 101606172 | |||
| AXLE | ||||
| 0026 | 101606746 | 38.02 | 46.00 | |
| CONNECTION PLATE | ||||
| 0027 | 101606747 | 17.42 | 21.08 | |
| GUARD | ||||
| 0028 | 101606178 | 72.86 | 88.16 | |
| FLANGE | ||||
| 0029 | 101606748 | 101.38 | 122.67 | |
| LEVER | ||||
| 0031 | 101606749 | 112.46 | 136.08 | |
| GEAR KIT | ||||
| 0032 | 101606761 | 55.44 | 67.08 | |
| COVER | ||||
| 0033 | 101606738 | 9.00 | 10.89 | |
| ELECTRONIC CIRCUIT BOARD | ||||
| 0034 | 101606164 | 71.28 | 86.25 | |
| DEFLECTOR | ||||
| 0035 | 101606775 | 10.80 | 13.07 | |
| COVER | ||||
| 0036 | 101606739 | 44.35 | 53.66 | |
| SPEED CONTROL | ||||
| 0037 | 101606175 | 66.53 | 80.50 | |
| No longer available, no replacement | ||||
| 0038 | 101606165 | |||
| GEARWHEEL SET | ||||
| 0039 | 101606763 | 93.46 | 113.09 | |
| No longer available, no replacement | ||||
| 0040 | 101606765 | |||
| PIN | ||||
| 0041 | 101606768 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0042 | 101606141 | 9.00 | 10.89 | |
| BEARING COVER | ||||
| 0043 | 101606766 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0044 | 4931440955 | |||
| FIELD LEAD GROMMET | ||||
| 0045 | 101606163 | 98.21 | 118.83 | |
| ARMATURE | ||||
| 0046 | 4931440957 | 166.32 | 201.25 | |
| BALL BEARING | ||||
| 0047 | 101606139 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0048 | 101606138 | 9.00 | 10.89 | |
| LINK | ||||
| 0049 | 101606726 | 60.19 | 72.83 | |
| BRAKE DISC | ||||
| 0050 | 101606727 | 19.01 | 23.00 | |
| CLAMPING SET | ||||
| 0051 | 101606722 | 9.91 | 11.99 | |
| No longer available, no replacement | ||||
| 0052 | 101606767 | |||
| No longer available, no replacement | ||||
| 0053 | 101606764 | |||
| CLUTCH WHEEL | ||||
| 0054 | 101606208 | 5.68 | 6.87 | |
| CONNECTION CABLE | ||||
| 0055 | 101606762 | 42.77 | 51.75 | |
| COVER | ||||
| 0061 | 101606773 | 15.84 | 19.17 | |
| NEEDLE BEARING | ||||
| 0062 | 101606143 | 14.40 | 17.42 | |
| BRUSH MODULE (2 needed) | ||||
| 0063 | 4931433904 | 45.63 | 55.21 | |
| REPAIR KIT | ||||
| 0064 | 101606772 | 63.36 | 76.67 | |
| WINGED SCREW | ||||
| 0065 | 101606066 | 3.78 | 4.57 | |
| No longer available, no replacement | ||||
| 0066 | 101606088 | |||
| THREADED PIN | ||||
| 0067 | 101606082 | 4.49 | 5.43 | |
| SCREW | ||||
| 0068 | 101606029 | 1.80 | 2.18 | |
| WINGED SCREW (2 needed) | ||||
| 0069 | 101606021 | 5.68 | 6.87 | |
| TOOTH RACK | ||||
| 0071 | 101606016 | 23.76 | 28.75 | |
| SCALE | ||||
| 0072 | 101606020 | 71.28 | 86.25 | |
| No information available, not orderable | ||||
| 0080 | 101606025 | |||
| CABLE CLAMP | ||||
| 0090 | 4931453735 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0100 | 101606713 | |||
| LAMP | ||||
| 0101 | 4931448710 | 145.73 | 176.33 | |
| No longer available, no replacement | ||||
| 0110 | 101606714 | |||
| STICKER | ||||
| 0130 | 101606712 | 12.60 | 15.25 | |
| SCREW DEPTH GAUGE | ||||
| 0180 | 101606776 | 7.20 | 8.71 | |
| LINK | ||||
| 0230 | 101606741 | 17.42 | 21.08 | |
| RATING PLATE | ||||
| 0410 | 101606161 | 5.18 | 6.27 | |
| LEVER | ||||
| 0420 | 4931440967 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0460 | 101606800 | |||
| DUST BAG | ||||
| 0470 | 101606803 | 15.84 | 19.17 | |
| ADAPTER | ||||
| 0480 | 101606804 | 14.40 | 17.42 | |
| No longer available, no replacement | ||||
| 0490 | 4931452162 | |||
| CABLE HARNESS | ||||
| 0500 | 4931452163 | 28.51 | 34.50 | |
| LOWER GUARD / UPPER GUARD ASSEMBLY | ||||
| 0510 | 4931456580 | 153.65 | 185.92 | |
| No longer available, no replacement | ||||
| 1200 | 101606702 | |||
| SET | ||||
| 1300 | 101606731 | 41.18 | 49.83 | |
| No longer available, no replacement | ||||
| 1400 | 101606718 | |||
