Here you will find all available parts and drawings of the 'Milwaukee 4000469415 ( MS304DB )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

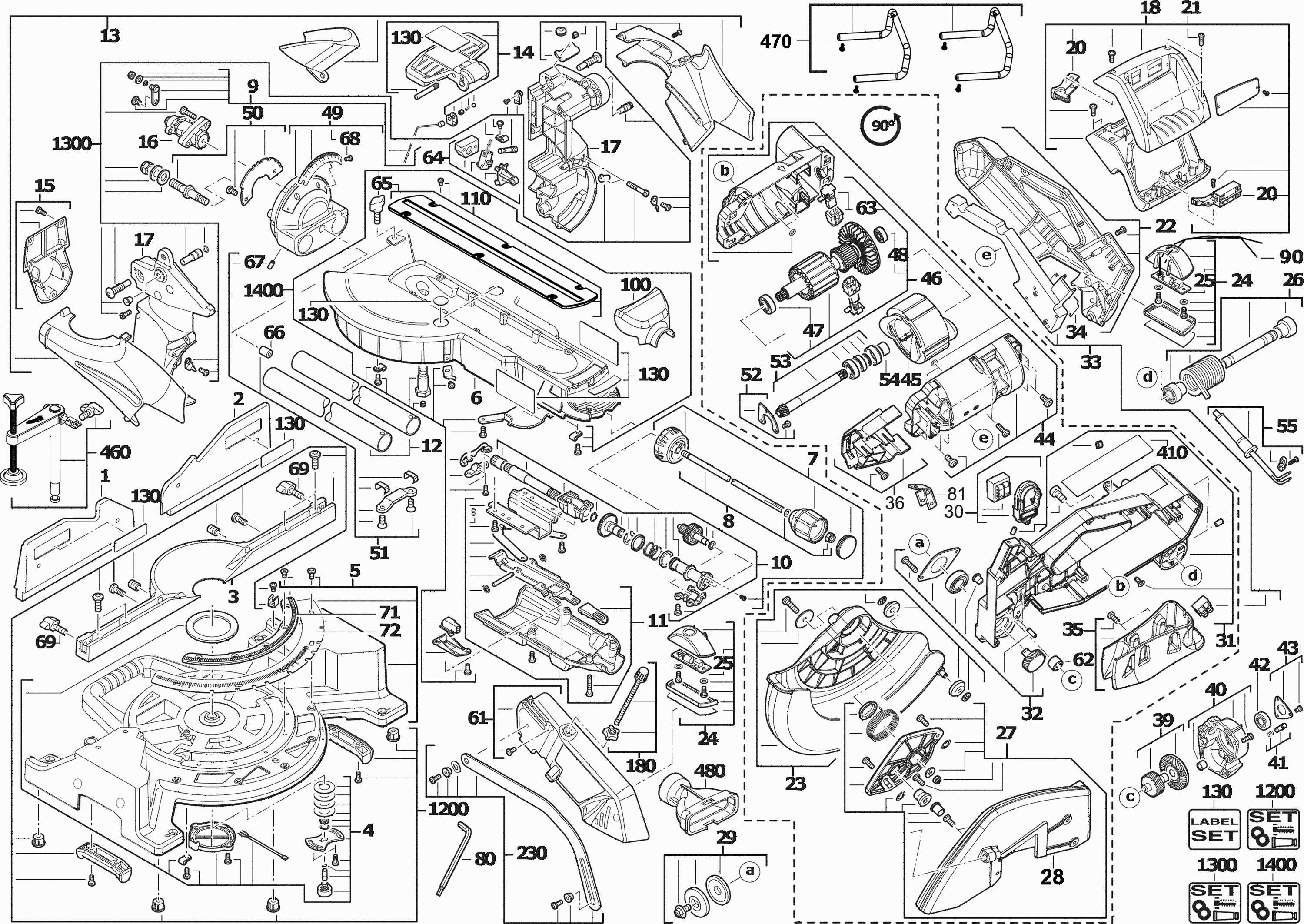

Technical drawing of model Milwaukee 4000469415 ( MS304DB )
Spare parts list of model Milwaukee 4000469415 ( MS304DB )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| GUIDE KIT | ||||
| 0001 | 4931472172 | 42.77 | 51.75 | |
| No longer available, no replacement | ||||
| 0002 | 4931472173 | |||
| STOP | ||||
| 0003 | 4931472174 | 90.29 | 109.25 | |
| POTENTIOMETER | ||||
| 0004 | 4931440940 | 31.18 | 37.73 | |
| SCALE | ||||
| 0005 | 4931472175 | 281.95 | 341.16 | |
| TURN TABLE | ||||
| 0006 | 4931472176 | 312.05 | 377.58 | |
| LOCKING LEVER | ||||
| 0007 | 101606724 | 8.09 | 9.79 | |
| ROD | ||||
| 0008 | 101606723 | 9.00 | 10.89 | |
| REPAIR KIT | ||||
| 0009 | 101606728 | 23.76 | 28.75 | |
| GEARWHEEL SET | ||||
| 0010 | 101606720 | 39.60 | 47.92 | |
| LEVER | ||||
| 0011 | 4931440943 | 53.86 | 65.17 | |
| No longer available, no replacement | ||||
| 0012 | 101606090 | |||
| HOUSING | ||||
| 0013 | 4931472177 | 20.59 | 24.91 | |
| LEVER | ||||
| 0014 | 101606736 | 22.18 | 26.84 | |
| COVER | ||||
| 0015 | 101606771 | 5.40 | 6.53 | |
| BRAKE DISC | ||||
| 0016 | 4931440944 | 95.04 | 115.00 | |
| LEVER | ||||
| 0017 | 101606735 | 172.66 | 208.92 | |
| HANDLE SET | ||||
| 0018 | 4931472178 | 80.78 | 97.74 | |
| No longer available, no replacement | ||||
| 0020 | 4931472179 | |||
| No longer available, no replacement | ||||
| 0021 | 101606158 | |||
| MOTOR COVER | ||||
| 0022 | 101606774 | 30.10 | 36.42 | |
| FASTENING PARTS | ||||
| 0023 | 4931440946 | 49.09 | 59.40 | |
| LIGHT PIPE | ||||
| 0024 | 4931440947 | 38.12 | 46.13 | |
| BULB | ||||
| 0025 | 4931440948 | 14.40 | 17.42 | |
| AXLE | ||||
| 0026 | 101606746 | 38.02 | 46.00 | |
| CONNECTION PLATE | ||||
| 0027 | 101606747 | 17.42 | 21.08 | |
| GUARD | ||||
| 0028 | 4931472180 | 72.86 | 88.16 | |
| FLANGE | ||||
| 0029 | 4931440950 | 104.54 | 126.49 | |
| TRANSFORMER | ||||
| 0030 | 4931440951 | 77.62 | 93.92 | |
| No longer available, no replacement | ||||
| 0031 | 4931440952 | |||
| GEAR KIT | ||||
| 0032 | 101606761 | 55.44 | 67.08 | |
| COVER | ||||
| 0033 | 101606738 | 9.00 | 10.89 | |
| ELECTRONIC CIRCUIT BOARD | ||||
| 0034 | 101606164 | 71.28 | 86.25 | |
| DEFLECTOR | ||||
| 0035 | 101606775 | 10.80 | 13.07 | |
| FASTENING PARTS | ||||
| 0036 | 4931440953 | 8.20 | 9.92 | |
| GEARWHEEL SET | ||||
| 0039 | 101606763 | 93.46 | 113.09 | |
| GEAR KIT | ||||
| 0040 | 4931440954 | 55.44 | 67.08 | |
| PIN | ||||
| 0041 | 101606768 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0042 | 101606141 | 9.00 | 10.89 | |
| BEARING COVER | ||||
| 0043 | 101606766 | 9.00 | 10.89 | |
| No longer available, no replacement | ||||
| 0044 | 4931440955 | |||
| ELECTRIC FIELD | ||||
| 0045 | 4931440956 | 128.30 | 155.24 | |
| ARMATURE | ||||
| 0046 | 4931440957 | 166.32 | 201.25 | |
| BALL BEARING | ||||
| 0047 | 101606139 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0048 | 101606138 | 9.00 | 10.89 | |
| LINK | ||||
| 0049 | 101606726 | 60.19 | 72.83 | |
| BRAKE DISC | ||||
| 0050 | 101606727 | 19.01 | 23.00 | |
| CLAMPING SET | ||||
| 0051 | 101606722 | 9.91 | 11.99 | |
| No longer available, no replacement | ||||
| 0052 | 101606767 | |||
| BEVEL GEAR | ||||
| 0053 | 4931440958 | 85.54 | 103.50 | |
| CLUTCH WHEEL | ||||
| 0054 | 101606208 | 5.68 | 6.87 | |
| CONNECTION CABLE | ||||
| 0055 | 101606762 | 42.77 | 51.75 | |
| COVER | ||||
| 0061 | 101606773 | 15.84 | 19.17 | |
| No longer available, no replacement | ||||
| 0062 | 4931440959 | |||
| BRUSH MODULE (2 needed) | ||||
| 0063 | 4931433904 | 45.63 | 55.21 | |
| REPAIR KIT | ||||
| 0064 | 101606772 | 63.36 | 76.67 | |
| WINGED SCREW | ||||
| 0065 | 101606066 | 3.78 | 4.57 | |
| No longer available, no replacement | ||||
| 0066 | 101606088 | |||
| THREADED PIN | ||||
| 0067 | 101606082 | 4.49 | 5.43 | |
| SCREW | ||||
| 0068 | 101606029 | 1.80 | 2.18 | |
| TURNING KNOB (2 needed) | ||||
| 0069 | 4931440960 | 7.20 | 8.71 | |
| TOOTH RACK | ||||
| 0071 | 101606016 | 23.76 | 28.75 | |
| SCALE | ||||
| 0072 | 101606020 | 71.28 | 86.25 | |
| No longer available, no replacement | ||||
| 0080 | 4931440961 | |||
| GUARD | ||||
| 0081 | 4931440962 | 4.49 | 5.43 | |
| CABLE HARNESS | ||||
| 0090 | 4931441983 | 10.72 | 12.97 | |
| No longer available, no replacement | ||||
| 0100 | 4931440963 | |||
| PLATE | ||||
| 0110 | 4931472181 | 9.00 | 10.89 | |
| LABEL | ||||
| 0130 | 4931472182 | 7.20 | 8.71 | |
| SCREW DEPTH GAUGE | ||||
| 0180 | 101606776 | 7.20 | 8.71 | |
| LINK | ||||
| 0230 | 101606741 | 17.42 | 21.08 | |
| RATING PLATE | ||||
| 0410 | 4931472183 | 1.80 | 2.18 | |
| HOLDING-DOWN DEVICE | ||||
| 0460 | 4931472184 | 58.61 | 70.92 | |
| YOKE | ||||
| 0470 | 4931472185 | 23.76 | 28.75 | |
| ADAPTER | ||||
| 0480 | 101606804 | 14.40 | 17.42 | |
| FASTENING PARTS | ||||
| 1200 | 4931472186 | 16.20 | 19.60 | |
| COVER ASSY | ||||
| 1300 | 4931440969 | 47.52 | 57.50 | |
| SWITCH KIT | ||||
| 1400 | 4931440970 | 41.18 | 49.83 | |
