Here you will find all available parts and drawings of the 'Milwaukee 4000380820 (MDE42)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

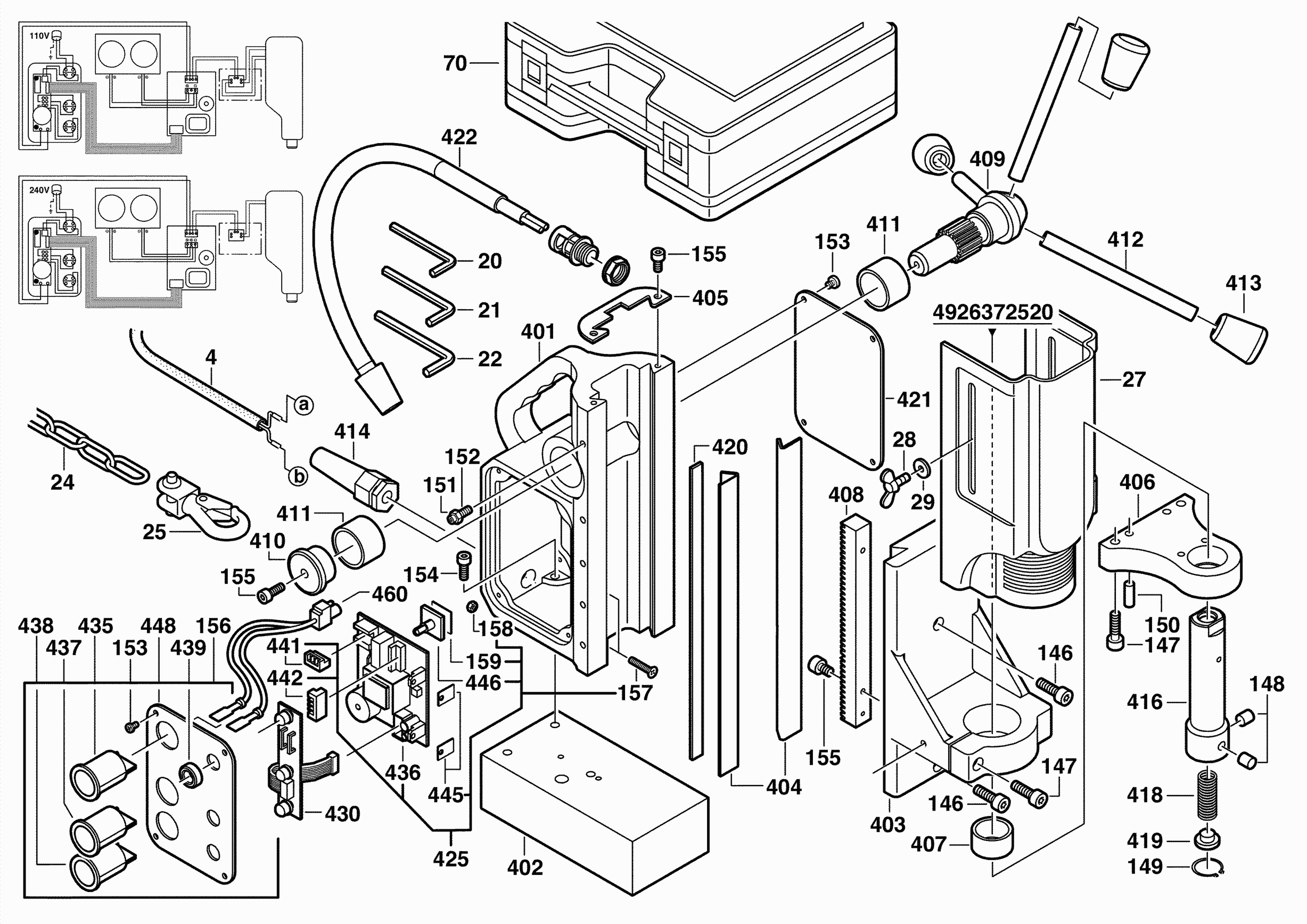

Technical drawing of model Milwaukee 4000380820 (MDE42)
Spare parts list of model Milwaukee 4000380820 (MDE42)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| KEY D911 2,5MM | ||||
| 0020 | 4931606714 | 4.49 | 5.43 | |
| KEY D911 4 | ||||
| 0021 | 4931606738 | 4.49 | 5.43 | |
| HEX WRENCH D 911 5 GAL | ||||
| 0022 | 4931616056 | 4.49 | 5.43 | |
| SAFETY STRAP | ||||
| 0024 | 4931371780 | 16.20 | 19.60 | |
| SAFTY GUARD | ||||
| 0027 | 4931371784 | 76.03 | 92.00 | |
| No longer available, no replacement | ||||
| 0070 | 4931371783 | |||
| SCREW | ||||
| 0146 | 4931622928 | 3.00 | 3.63 | |
| SCREW D 912 M 6X30 8.8 (2 needed) | ||||
| 0147 | 4931624082 | 3.79 | 4.59 | |
| SCREW D 913 M8X8 (2 needed) | ||||
| 0148 | 4931622523 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 0149 | 4931624083 | |||
| No longer available, no replacement | ||||
| 0150 | 4931624086 | |||
| NUT D 985 M 5 (7 needed) | ||||
| 0151 | 4931618176 | 4.49 | 5.43 | |
| SCREW D 913 M8X8 (7 needed) | ||||
| 0152 | 4931624084 | 3.79 | 4.59 | |
| SCREW (4 needed) | ||||
| 0153 | 4931380067 | 4.49 | 5.43 | |
| SCREW D912 M6X16 (3 needed) | ||||
| 0155 | 4931607033 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0156 | 4931380895 | |||
| SCREW D 912 M 6X30 8.8 (2 needed) | ||||
| 0157 | 4931624085 | 3.00 | 3.63 | |
| NUT D 934 M 3 BR (2 needed) | ||||
| 0158 | 4931613998 | 4.49 | 5.43 | |
| MAGNETIC FOOT | ||||
| 0402 | 4931380051 | 321.55 | 389.08 | |
| FRAME | ||||
| 0403 | 4931380052 | 399.17 | 483.00 | |
| LEDGE (2 needed) | ||||
| 0404 | 4931380053 | 14.40 | 17.42 | |
| No longer available, no replacement | ||||
| 0405 | 4931380054 | |||
| No longer available, no replacement | ||||
| 0406 | 4931380055 | |||
| BEARING BRACKET | ||||
| 0407 | 4931380056 | 15.84 | 19.17 | |
| TOOTH RACK | ||||
| 0408 | 4931380057 | 71.28 | 86.25 | |
| FEED SPINDLE | ||||
| 0409 | 4931380058 | 91.87 | 111.16 | |
| END PIECE | ||||
| 0410 | 4931380020 | 34.85 | 42.17 | |
| BEARING BRACKET (2 needed) | ||||
| 0411 | 4931380021 | 14.40 | 17.42 | |
| LEVER (3 needed) | ||||
| 0412 | 4931380059 | 15.84 | 19.17 | |
| HANDLE (3 needed) | ||||
| 0413 | 4931380060 | 39.60 | 47.92 | |
| PROTECTING COVER | ||||
| 0414 | 4931380026 | 15.84 | 19.17 | |
| PRESSURE SPRING | ||||
| 0418 | 4931380062 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 0419 | 4931380063 | |||
| LEDGE | ||||
| 0420 | 4931380064 | 12.60 | 15.25 | |
| PROTECTIVE SLEEVE | ||||
| 0422 | 4931380065 | 15.84 | 19.17 | |
| SWITCH ON-OFF | ||||
| 0435 | 4931380043 | 23.76 | 28.75 | |
| SWITCH MAGNETIC | ||||
| 0437 | 4931380037 | 41.18 | 49.83 | |
| SWITCH MOTOR | ||||
| 0438 | 4931380038 | 23.76 | 28.75 | |
| No longer available, no replacement | ||||
| 0439 | 4931380039 | |||
| No longer available, no replacement | ||||
| 0441 | 4931380041 | |||
| PLUG | ||||
| 0442 | 4931380042 | 14.40 | 17.42 | |
| No longer available, no replacement | ||||
| 0445 | 4931380045 | |||
| CONNECTION CABLE | ||||
| 0460 | 4931396235 | 20.59 | 24.91 | |
