Here you will find all available parts and drawings of the 'Milwaukee 4000415816 (MARTEAUXBURIN)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

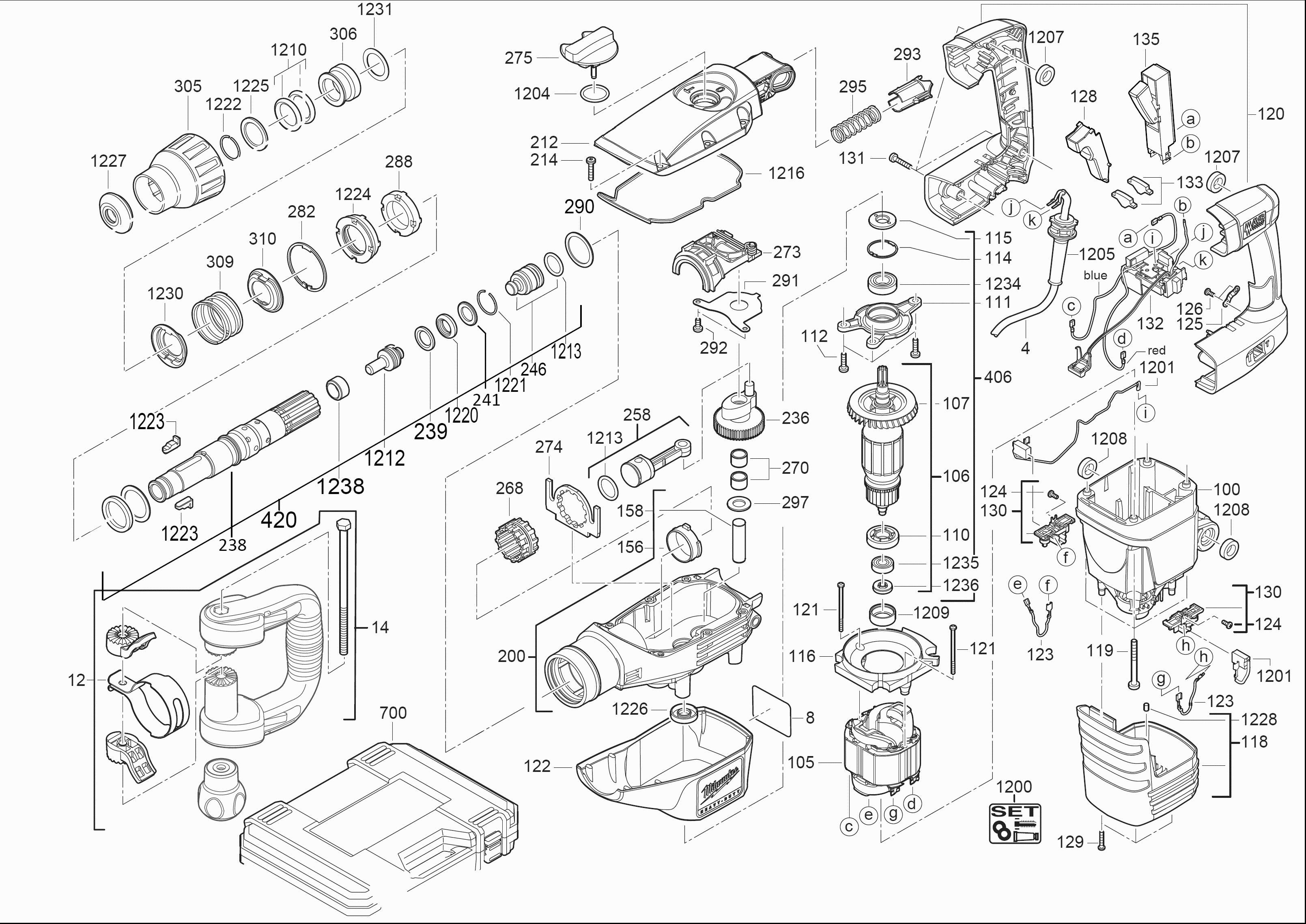

Technical drawing of model Milwaukee 4000415816 (MARTEAUXBURIN)
Spare parts list of model Milwaukee 4000415816 (MARTEAUXBURIN)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 0004 | 4931415833 | |||
| No information available, not orderable | ||||
| 0008 | 4931415822 | |||
| STRIP-BAND | ||||
| 0012 | 4931398272 | 6.48 | 7.84 | |
| HANDLE COMPL. | ||||
| 0014 | 4931398238 | 72.86 | 88.16 | |
| MOTOR HOUSING | ||||
| 0100 | 4931398203 | 17.42 | 21.08 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931442747 | 50.69 | 61.33 | |
| ARMATURE | ||||
| 0106 | 4931442685 | 95.04 | 115.00 | |
| FAN | ||||
| 0107 | 4931398185 | 4.49 | 5.43 | |
| DUST SEAL | ||||
| 0110 | 4931398508 | 5.40 | 6.53 | |
| BEARING END PLATE | ||||
| 0111 | 4931426441 | 18.76 | 22.70 | |
| SCREW (3 needed) | ||||
| 0112 | 4931624541 | 3.00 | 3.63 | |
| LOCKING RING | ||||
| 0114 | 4931890311 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0115 | 4931398198 | 9.91 | 11.99 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931405703 | 5.40 | 6.53 | |
| MOTOR CAP | ||||
| 0118 | 4931398204 | 14.40 | 17.42 | |
| SCREW D7500-1CE M6x60 T30 TAPT 2000 A2F (4 needed) | ||||
| 0119 | 4931624542 | 3.00 | 3.63 | |
| PAIR HANDLE SHELLS | ||||
| 0120 | 4931398208 | 20.59 | 24.91 | |
| SCREW (2 needed) | ||||
| 0121 | 4931339996 | 3.00 | 3.63 | |
| GEAR BOX INSULATION | ||||
| 0122 | 4931398206 | 9.00 | 10.89 | |
| WIRE (2 needed) | ||||
| 0123 | 4931624263 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0124 | 4931624538 | 3.00 | 3.63 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | 5.40 | 6.53 | |
| SCREW (4 needed) | ||||
| 0126 | 4931624538 | 3.00 | 3.63 | |
| SLIDER | ||||
| 0128 | 4931398131 | 5.40 | 6.53 | |
| SCREW N874101-1 SHR H-K4X22 T15 (4 needed) | ||||
| 0129 | 4931624517 | 3.00 | 3.63 | |
| BRUSH HOLDER (2 needed) | ||||
| 0130 | 4931381694 | 6.00 | 7.26 | |
| SCREW (3 needed) | ||||
| 0131 | 4931624504 | 3.00 | 3.63 | |
| ELECT.CIRCUIT BOARD | ||||
| 0132 | 4931409100 | 39.60 | 47.92 | |
| LIGHT PIPE (2 needed) | ||||
| 0133 | 4931398114 | 5.40 | 6.53 | |
| SWITCH | ||||
| 0135 | 4931375458 | 19.01 | 23.00 | |
| BEARING | ||||
| 0156 | 4931398095 | 9.00 | 10.89 | |
| BEARING BOLT | ||||
| 0158 | 4931398746 | 8.09 | 9.79 | |
| GEAR BOX | ||||
| 0200 | 4931409532 | 128.30 | 155.24 | |
| GEAR BOX COVER | ||||
| 0212 | 4931426453 | 45.94 | 55.59 | |
| SCREW (6 needed) | ||||
| 0214 | 4931624555 | 3.00 | 3.63 | |
| Crank Wheel | ||||
| 0236 | 4931409600 | 33.26 | 40.24 | |
| SPINDLE SLEEVE | ||||
| 0238 | 4931417457 | 115.63 | 139.91 | |
| BACK-PRESSURE RING | ||||
| 0239 | 4931398031 | 5.40 | 6.53 | |
| DISC | ||||
| 0241 | 4931398032 | 9.00 | 10.89 | |
| PERCUSSION BODY | ||||
| 0246 | 4931455433 | 34.85 | 42.17 | |
| PISTON COMPL. | ||||
| 0258 | 4931398747 | 12.60 | 15.25 | |
| SET COLLAR | ||||
| 0268 | 4931398078 | 5.40 | 6.53 | |
| NEEDLE BEARING (2 needed) | ||||
| 0270 | 4931621847 | 9.00 | 10.89 | |
| ADJUSTING PIECE | ||||
| 0273 | 4931398154 | 6.00 | 7.26 | |
| LOCKING PLATE | ||||
| 0274 | 4931398075 | 5.40 | 6.53 | |
| SWITCH | ||||
| 0275 | 4931398626 | 10.80 | 13.07 | |
| RING | ||||
| 0282 | 4931624479 | 5.40 | 6.53 | |
| THRUST COLLAR | ||||
| 0288 | 4931398091 | 6.00 | 7.26 | |
| DISC (2 needed) | ||||
| 0290 | 4931624499 | 5.40 | 6.53 | |
| LATCH PLATE | ||||
| 0291 | 4931398658 | 5.40 | 6.53 | |
| SCREW (2 needed) | ||||
| 0292 | 4931624236 | 3.00 | 3.63 | |
| THRUST PIECE | ||||
| 0293 | 4931398097 | 5.04 | 6.10 | |
| PRESSURE SPRING | ||||
| 0295 | 4931398099 | 4.49 | 5.43 | |
| DISC | ||||
| 0297 | 4931624535 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0305 | 4931398216 | 9.60 | 11.62 | |
| INTERLOCK SLEAVE | ||||
| 0306 | 4931426248 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0309 | 4931398856 | 5.40 | 6.53 | |
| PROTECTIVE CAP | ||||
| 0310 | 4931426013 | 12.60 | 15.25 | |
| ARMATURE | ||||
| 0406 | 4931449971 | 139.39 | 168.66 | |
| No longer available, no replacement | ||||
| 0420 | 4931442219 | |||
| CARRYING CASE | ||||
| 0700 | 4931455773 | 125.14 | 151.42 | |
| MAINTENANCE SET | ||||
| 1200 | 4931398232 | 198.00 | 239.58 | |
| MAINTENANCE SET | ||||
| 1200 | 4931407636 | 194.83 | 235.74 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931398132 | 16.50 | 19.96 | |
| O-RING N874701 26X3 | ||||
| 1204 | 4931622166 | 3.00 | 3.63 | |
| PROTECTING COVER | ||||
| 1205 | 4931393422 | 5.40 | 6.53 | |
| DAMPING ELEMENT (2 needed) | ||||
| 1207 | 4931398748 | 5.40 | 6.53 | |
| SEALING SLEEVE (2 needed) | ||||
| 1208 | 4931398101 | 5.40 | 6.53 | |
| RUBBER SLEEVE | ||||
| 1209 | 4931398085 | 4.32 | 5.23 | |
| SEAL RING (2 needed) | ||||
| 1210 | 4931624440 | 5.40 | 6.53 | |
| SNAP DIE | ||||
| 1212 | 4931398578 | 33.26 | 40.24 | |
| O-RING (FKM) (2 needed) | ||||
| 1213 | 4931398297 | 3.00 | 3.63 | |
| SEAL | ||||
| 1216 | 4931398539 | 5.40 | 6.53 | |
| CORE LIFTER RING | ||||
| 1220 | 4931398033 | 5.40 | 6.53 | |
| RING | ||||
| 1221 | 4931398073 | 5.40 | 6.53 | |
| SPRING RING | ||||
| 1222 | 9170319040 | 3.00 | 3.63 | |
| INTERLOCK ELEMENT (2 needed) | ||||
| 1223 | 4931487601 | 6.60 | 7.99 | |
| SEAL RETAINER | ||||
| 1224 | 4931398034 | 16.20 | 19.60 | |
| INTERLOCK DISC | ||||
| 1225 | 4931398080 | 6.00 | 7.26 | |
| SEAL RING | ||||
| 1226 | 4931624495 | 5.40 | 6.53 | |
| RUBBER CAP | ||||
| 1227 | 4931398064 | 6.31 | 7.64 | |
| HOLDING-DOWN DEVICE | ||||
| 1228 | 4931409768 | 6.48 | 7.84 | |
| PROTECTIVE CAP | ||||
| 1230 | 4931426013 | 12.60 | 15.25 | |
| WASHER | ||||
| 1231 | 4931398298 | 3.00 | 3.63 | |
| GROOVED BALL BEAR. | ||||
| 1234 | 4931398189 | 7.20 | 8.71 | |
| BALL BEARING | ||||
| 1235 | 4931341741 | 9.00 | 10.89 | |
| MAGNETIC DISC | ||||
| 1236 | 4931426570 | 6.00 | 7.26 | |
| STOP WASHER | ||||
| 1238 | 4931409781 | 17.11 | 20.70 | |
