Here you will find all available parts and drawings of the 'Milwaukee 4000448001 (M28CHPX-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

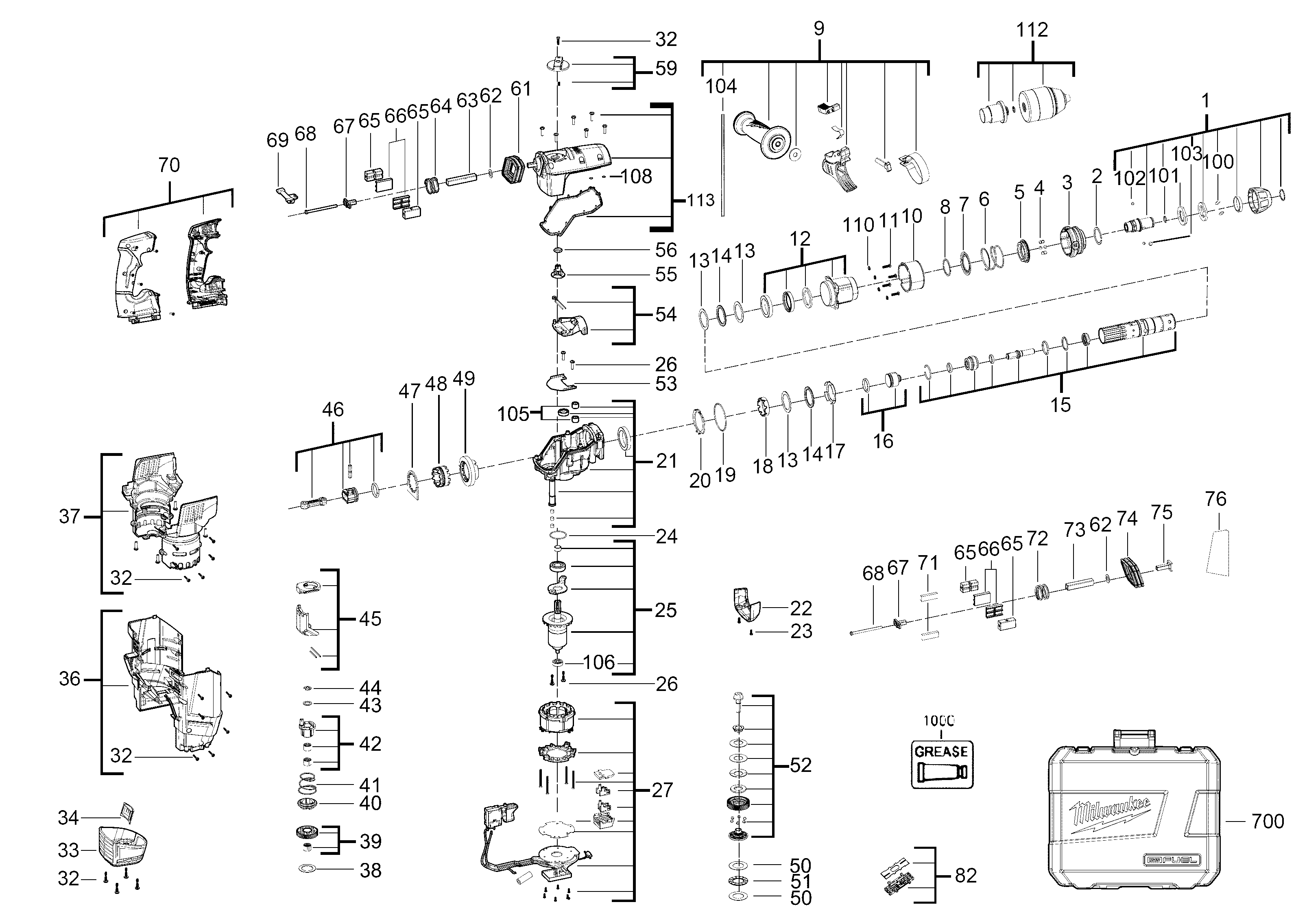

Technical drawing of model Milwaukee 4000448001 (M28CHPX-0)
Spare parts list of model Milwaukee 4000448001 (M28CHPX-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| CONE | ||||
| 0001 | 4931599147 | 273.90 | 331.42 | |
| Adapter SDS+ Fixtec-1pc | ||||
| 0001 | 4932399152 | 36.82 | 44.55 | |
| SPRING RING | ||||
| 0002 | 4931436362 | 3.60 | 4.36 | |
| SERVICE TOOL | ||||
| 0003 | 4931599149 | 150.48 | 182.08 | |
| COLLAR | ||||
| 0003 | 4931436363 | 4.49 | 5.43 | |
| SERVICE TOOL | ||||
| 0004 | 4931599150 | 153.65 | 185.92 | |
| BALL (6 needed) | ||||
| 0004 | 681486001 | 3.00 | 3.63 | |
| RING | ||||
| 0005 | 4931436364 | 15.29 | 18.50 | |
| SPRING WASHER | ||||
| 0006 | 4931436365 | 3.00 | 3.63 | |
| SPRING | ||||
| 0007 | 4931436366 | 3.00 | 3.63 | |
| SPRING RING | ||||
| 0008 | 4931436367 | 3.00 | 3.63 | |
| AUXILIARY HANDLE | ||||
| 0009 | 4931436368 | 28.51 | 34.50 | |
| SLEEVE | ||||
| 0010 | 4931436369 | 3.00 | 3.63 | |
| SCREW (27 needed) | ||||
| 0011 | 4931435150 | 3.60 | 4.36 | |
| BUSH | ||||
| 0012 | 4931436496 | 45.94 | 55.59 | |
| WASHER (3 needed) | ||||
| 0013 | 4931436371 | 3.00 | 3.63 | |
| RUBBER DISC (2 needed) | ||||
| 0014 | 4931436372 | 5.40 | 6.53 | |
| SPINDLE KIT | ||||
| 0015 | 4931448975 | 229.68 | 277.91 | |
| PERCUSSION BODY | ||||
| 0016 | 4931436374 | 33.26 | 40.24 | |
| BUFFER | ||||
| 0017 | 4931436375 | 3.00 | 3.63 | |
| SPINDLE SLEEVE | ||||
| 0018 | 4931436376 | 3.79 | 4.59 | |
| O-RING | ||||
| 0019 | 4931436377 | 3.00 | 3.63 | |
| PLATE | ||||
| 0020 | 4931436378 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0021 | 4931448492 | |||
| BODY | ||||
| 0022 | 4931436497 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0023 | 4931435313 | |||
| O-RING | ||||
| 0024 | 4931436381 | 3.00 | 3.63 | |
| ARMATURE ASSEMBLY | ||||
| 0025 | 4931436498 | 107.71 | 130.33 | |
| SCREW (2 needed) | ||||
| 0026 | 660165015 | 3.00 | 3.63 | |
| MOTOR ASSEMBLY | ||||
| 0027 | 4931448976 | 180.58 | 218.50 | |
| SCREW (18 needed) | ||||
| 0032 | 660031017 | 3.60 | 4.36 | |
| BODY | ||||
| 0033 | 4931436500 | 4.80 | 5.81 | |
| GASKET | ||||
| 0034 | 4931436501 | 5.40 | 6.53 | |
| BODY | ||||
| 0036 | 4931436502 | 26.93 | 32.59 | |
| HOUSING | ||||
| 0036 | 4931466191 | 22.18 | 26.84 | |
| No longer available, no replacement | ||||
| 0037 | 4931436503 | |||
| WASHER | ||||
| 0038 | 4931436395 | 3.00 | 3.63 | |
| CRANK | ||||
| 0039 | 4931436504 | 10.80 | 13.07 | |
| RING | ||||
| 0040 | 4931436397 | 4.20 | 5.08 | |
| SPRING | ||||
| 0041 | 4931436398 | 3.00 | 3.63 | |
| CRANK WHEEL | ||||
| 0042 | 4931436451 | 53.86 | 65.17 | |
| WASHER | ||||
| 0043 | 4931436400 | 3.00 | 3.63 | |
| SLEEVE | ||||
| 0044 | 4931436401 | 3.00 | 3.63 | |
| SWITCH | ||||
| 0045 | 4931436402 | 15.84 | 19.17 | |
| PISTON | ||||
| 0046 | 4931436403 | 31.68 | 38.33 | |
| HOLDING PLATE | ||||
| 0047 | 4931436404 | 5.30 | 6.41 | |
| INDEXING SLEEVE | ||||
| 0048 | 4931436405 | 8.40 | 10.16 | |
| BEVEL GEAR | ||||
| 0049 | 4931436406 | 25.41 | 30.75 | |
| WASHER | ||||
| 0050 | 4931436407 | 3.00 | 3.63 | |
| NEEDLE BEARING | ||||
| 0051 | 4931436408 | 4.54 | 5.49 | |
| CLUTCH | ||||
| 0052 | 4931436505 | 68.11 | 82.41 | |
| STAMP | ||||
| 0053 | 4931436410 | 3.00 | 3.63 | |
| FORK | ||||
| 0054 | 4931436411 | 7.20 | 8.71 | |
| JOINT PIECE | ||||
| 0055 | 4931436412 | 3.00 | 3.63 | |
| O-RING | ||||
| 0056 | 4931436413 | 3.00 | 3.63 | |
| KNOB | ||||
| 0059 | 4931436416 | 8.09 | 9.79 | |
| RUBBER CAP | ||||
| 0061 | 4931436417 | 5.40 | 6.53 | |
| DISC (2 needed) | ||||
| 0062 | 4931436507 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 0063 | 4931436419 | |||
| SPRING | ||||
| 0064 | 4931436420 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0065 | 4931436421 | |||
| No longer available, no replacement | ||||
| 0066 | 4931436422 | |||
| HOLDING PLATE (2 needed) | ||||
| 0067 | 4931436508 | 5.30 | 6.41 | |
| SCREW (4 needed) | ||||
| 0068 | 4931436424 | 3.00 | 3.63 | |
| SLIDE | ||||
| 0069 | 4931436509 | 5.40 | 6.53 | |
| HANDLE | ||||
| 0070 | 4931448978 | 20.59 | 24.91 | |
| FOAM RUBBER (2 needed) | ||||
| 0071 | 4931436434 | 4.54 | 5.49 | |
| SPRING | ||||
| 0072 | 4931436435 | 3.00 | 3.63 | |
| TUBE | ||||
| 0073 | 4931436436 | 4.80 | 5.81 | |
| RUBBER SLEEVE | ||||
| 0074 | 4931436511 | 7.20 | 8.71 | |
| CLAMP | ||||
| 0075 | 4931436512 | 14.40 | 17.42 | |
| No information available, not orderable | ||||
| 0076 | 4931448979 | |||
| CONNECTION SET | ||||
| 0082 | 4931445573 | 12.60 | 15.25 | |
| No longer available, no replacement | ||||
| 0100 | 562578001 | |||
| O-RING | ||||
| 0101 | 4931454454 | 3.00 | 3.63 | |
| ADAPTER | ||||
| 0102 | 4931409763 | 12.60 | 15.25 | |
| BALL | ||||
| 0103 | 681154001 | 3.00 | 3.63 | |
| DEPTH GAUGE | ||||
| 0104 | 4931384434 | 5.40 | 6.53 | |
| BEARING | ||||
| 0105 | 680727001 | 9.00 | 10.89 | |
| BALL BEARING | ||||
| 0106 | 4931436119 | 9.84 | 11.91 | |
| O-RING (2 needed) | ||||
| 0108 | 4931436443 | 3.00 | 3.63 | |
| PROTECTION WASHER (4 needed) | ||||
| 0110 | 680866003 | 3.60 | 4.36 | |
| CLUTCH CHUCK ASS. | ||||
| 0112 | 201895001 | 61.78 | 74.75 | |
| No longer available, no replacement | ||||
| 0113 | 4931452182 | |||
| No longer available, no replacement | ||||
| 0700 | 4931448981 | |||
| GEAR GREASE | ||||
| 1000 | 4931443288 | 39.38 | 47.65 | |
