Here you will find all available parts and drawings of the 'Milwaukee 4000474585 ( M18SMS216-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

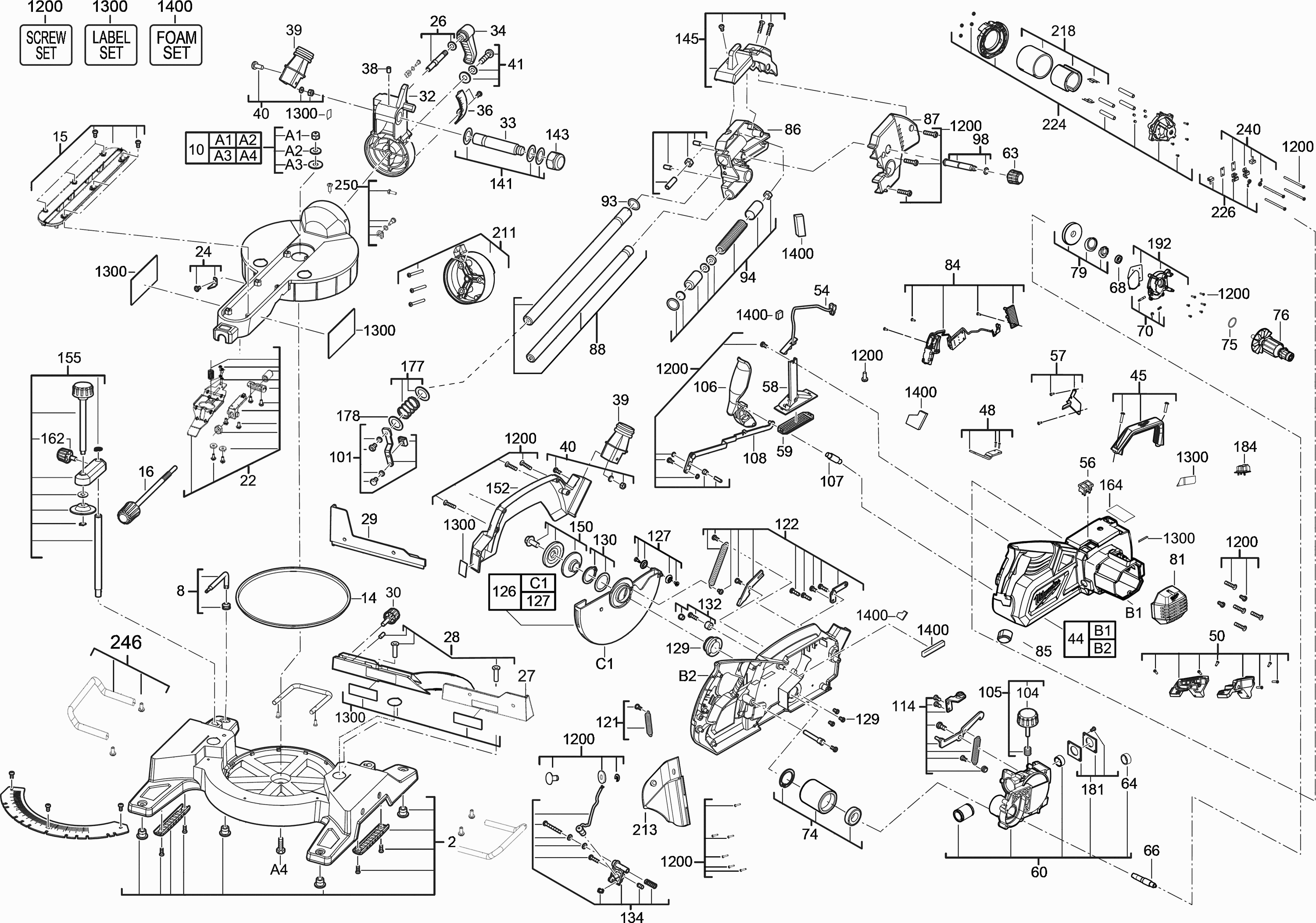

Technical drawing of model Milwaukee 4000474585 ( M18SMS216-0 )
Spare parts list of model Milwaukee 4000474585 ( M18SMS216-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| HANDLE SET | ||||
| 0022 | 4931472229 | 129.89 | 157.17 | |
| INDICATOR SET | ||||
| 0024 | 4931448267 | 5.40 | 6.53 | |
| SLIDING STONE | ||||
| 0032 | 4931472230 | 125.14 | 151.42 | |
| DUST EXTR.CONNECTOR | ||||
| 0039 | 4931433408 | 5.40 | 6.53 | |
| WIRE STRAP | ||||
| 0054 | 4931448282 | 57.02 | 68.99 | |
| MOTOR SUPPORT | ||||
| 0060 | 4931448284 | 205.92 | 249.16 | |
| GEAR SHAFT | ||||
| 0066 | 4931448285 | 41.18 | 49.83 | |
| MOTOR COVER | ||||
| 0070 | 4931448287 | 12.13 | 14.68 | |
| GEARWHEEL SET | ||||
| 0079 | 4931448291 | 96.62 | 116.91 | |
| MOTOR COVER | ||||
| 0081 | 4931448292 | 8.09 | 9.79 | |
| SPINDLE LOCK | ||||
| 0085 | 4931433444 | 5.40 | 6.53 | |
| LOCKING PIECE | ||||
| 0105 | 4931433454 | 4.49 | 5.43 | |
| CONNECTION | ||||
| 0121 | 4931448304 | 13.51 | 16.35 | |
| CONNECTION | ||||
| 0122 | 4931448305 | 33.26 | 40.24 | |
| GUARD ASSY 4PCS | ||||
| 0127 | 4931448307 | 22.18 | 26.84 | |
| CUT POINTER | ||||
| 0134 | 4931448311 | 64.94 | 78.58 | |
| HOLDING RING | ||||
| 0145 | 4931448313 | 9.00 | 10.89 | |
| SAW PROTECTION | ||||
| 0152 | 4931448315 | 66.53 | 80.50 | |
| CLAMPING SET | ||||
| 0155 | 4931448316 | 77.62 | 93.92 | |
| RATING PLATE | ||||
| 0164 | 4931473340 | 3.16 | 3.82 | |
| MOTOR PLATE | ||||
| 0192 | 4931448323 | 68.11 | 82.41 | |
| DISTANCE HOLDER | ||||
| 0211 | 4931472233 | 88.70 | 107.33 | |
| ELECTRIC FIELD | ||||
| 0218 | 4931448327 | 52.27 | 63.25 | |
| BEARING END PLATE | ||||
| 0224 | 4931448328 | 63.36 | 76.67 | |
| No information available, not orderable | ||||
| 0226 | 4931473312 | |||
| CARBON BRUSH | ||||
| 0240 | 4931473313 | 45.63 | 55.21 | |
