Here you will find all available parts and drawings of the 'Milwaukee 4000481920 ( M18SIC60SCHDR-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

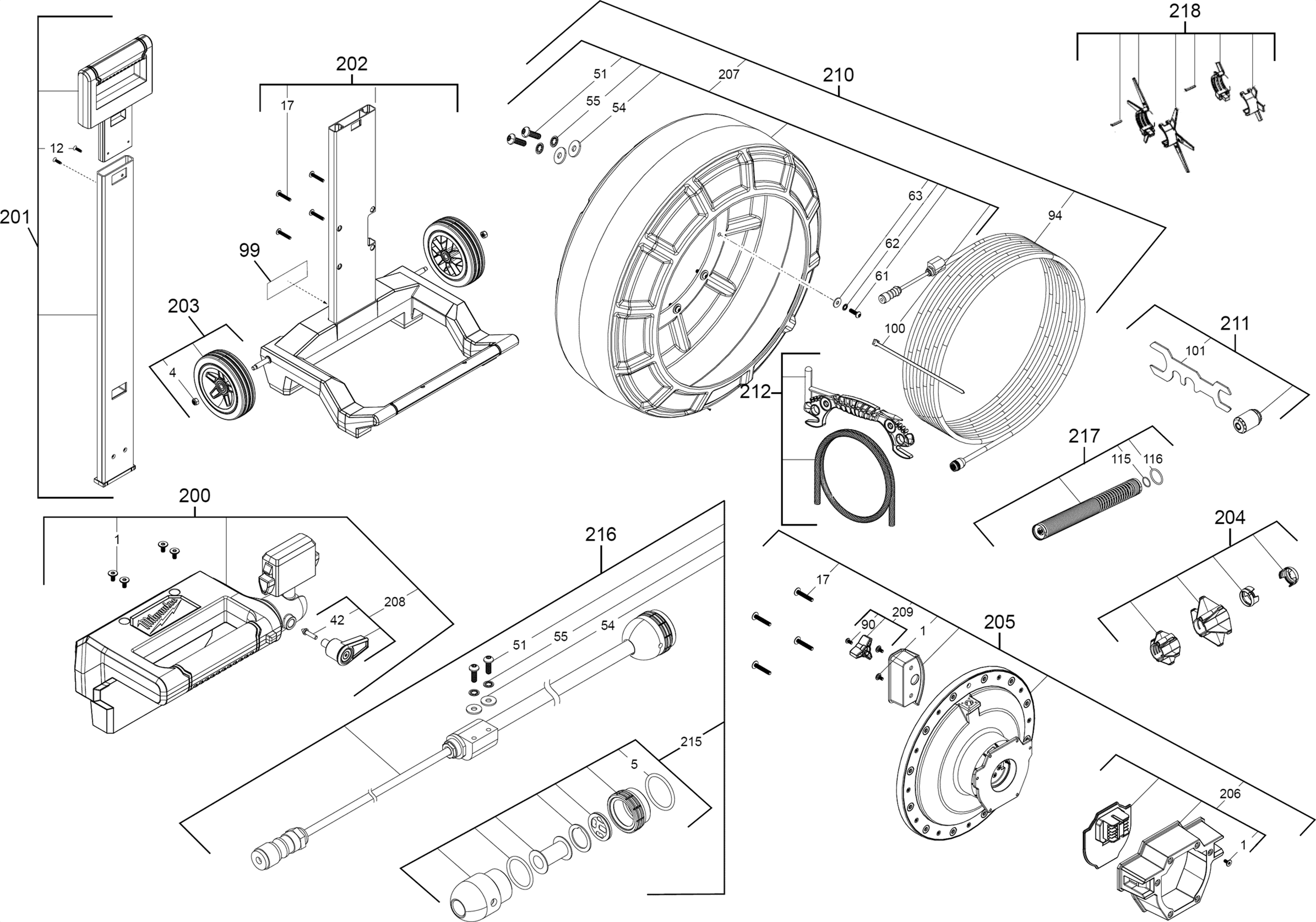

Technical drawing of model Milwaukee 4000481920 ( M18SIC60SCHDR-0 )
Spare parts list of model Milwaukee 4000481920 ( M18SIC60SCHDR-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (12 needed) | ||||
| 0001 | 4931473597 | 3.00 | 3.63 | |
| LOCKING NUT (2 needed) | ||||
| 0004 | 4931473628 | 3.00 | 3.63 | |
| O-RING | ||||
| 0005 | 4931473629 | 3.60 | 4.36 | |
| SCREW (3 needed) | ||||
| 0012 | 4931473630 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0017 | 4931473600 | 3.00 | 3.63 | |
| SCREW | ||||
| 0042 | 4931473601 | 14.85 | 17.97 | |
| SCREW (4 needed) | ||||
| 0051 | 4931473602 | 1.80 | 2.18 | |
| SEALING WASHER (4 needed) | ||||
| 0054 | 4931473603 | 3.00 | 3.63 | |
| LOOKED WASHER (4 needed) | ||||
| 0055 | 4931473604 | 3.00 | 3.63 | |
| SCREW (12 needed) | ||||
| 0061 | 4931473605 | 3.00 | 3.63 | |
| LOOKED WASHER (12 needed) | ||||
| 0062 | 4931473606 | 3.00 | 3.63 | |
| SEALING WASHER (12 needed) | ||||
| 0063 | 4931473607 | 3.00 | 3.63 | |
| SCREW | ||||
| 0090 | 4931473608 | 3.00 | 3.63 | |
| CABLE | ||||
| 0094 | 4931494956 | 1413.50 | 1710.34 | |
| RATING PLATE | ||||
| 0099 | 4931496327 | 3.60 | 4.36 | |
| CABLE JOINT (3 needed) | ||||
| 0100 | 4931473610 | 3.79 | 4.59 | |
| WRENCH | ||||
| 0101 | 4931473611 | 15.95 | 19.30 | |
| O-RING | ||||
| 0115 | 4931473613 | 1.20 | 1.45 | |
| O-RING | ||||
| 0116 | 4931473633 | 3.60 | 4.36 | |
| HANDLE SET | ||||
| 0200 | 4931473634 | 609.84 | 737.91 | |
| HANDLE SET | ||||
| 0201 | 4931494958 | 237.58 | 287.47 | |
| HOLDING DEVICE | ||||
| 0202 | 4931494959 | 715.29 | 865.50 | |
| WHEEL (2 needed) | ||||
| 0203 | 4931473637 | 74.80 | 90.51 | |
| GUIDE SLEEVE | ||||
| 0204 | 4931473616 | 72.42 | 87.63 | |
| CLAMPING SET | ||||
| 0205 | 4931494960 | 1397.55 | 1691.04 | |
| HOUSING | ||||
| 0206 | 4931494961 | 85.25 | 103.15 | |
| MOULDED PART | ||||
| 0207 | 4931494962 | 276.97 | 335.13 | |
| TURNING KNOB | ||||
| 0208 | 4931473620 | 72.42 | 87.63 | |
| TURNING KNOB | ||||
| 0209 | 4931473621 | 20.33 | 24.60 | |
| HUB | ||||
| 0210 | 4931494963 | 1483.90 | 1795.52 | |
| INSPECTION CAMERA | ||||
| 0211 | 4931481926 | 1318.90 | 1595.87 | |
| CABLE SET | ||||
| 0212 | 4931473526 | 152.35 | 184.34 | |
| SERVICE-KIT | ||||
| 0215 | 4931473625 | 125.77 | 152.18 | |
| INSPECTION CAMERA | ||||
| 0216 | 4931473626 | 286.00 | 346.06 | |
| SPRING | ||||
| 0217 | 4931473627 | 415.80 | 503.12 | |
| GUIDE SLEEVE | ||||
| 0218 | 4931494964 | 38.12 | 46.13 | |
