Here you will find all available parts and drawings of the 'Milwaukee 4000452900 (M18SAL-0)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

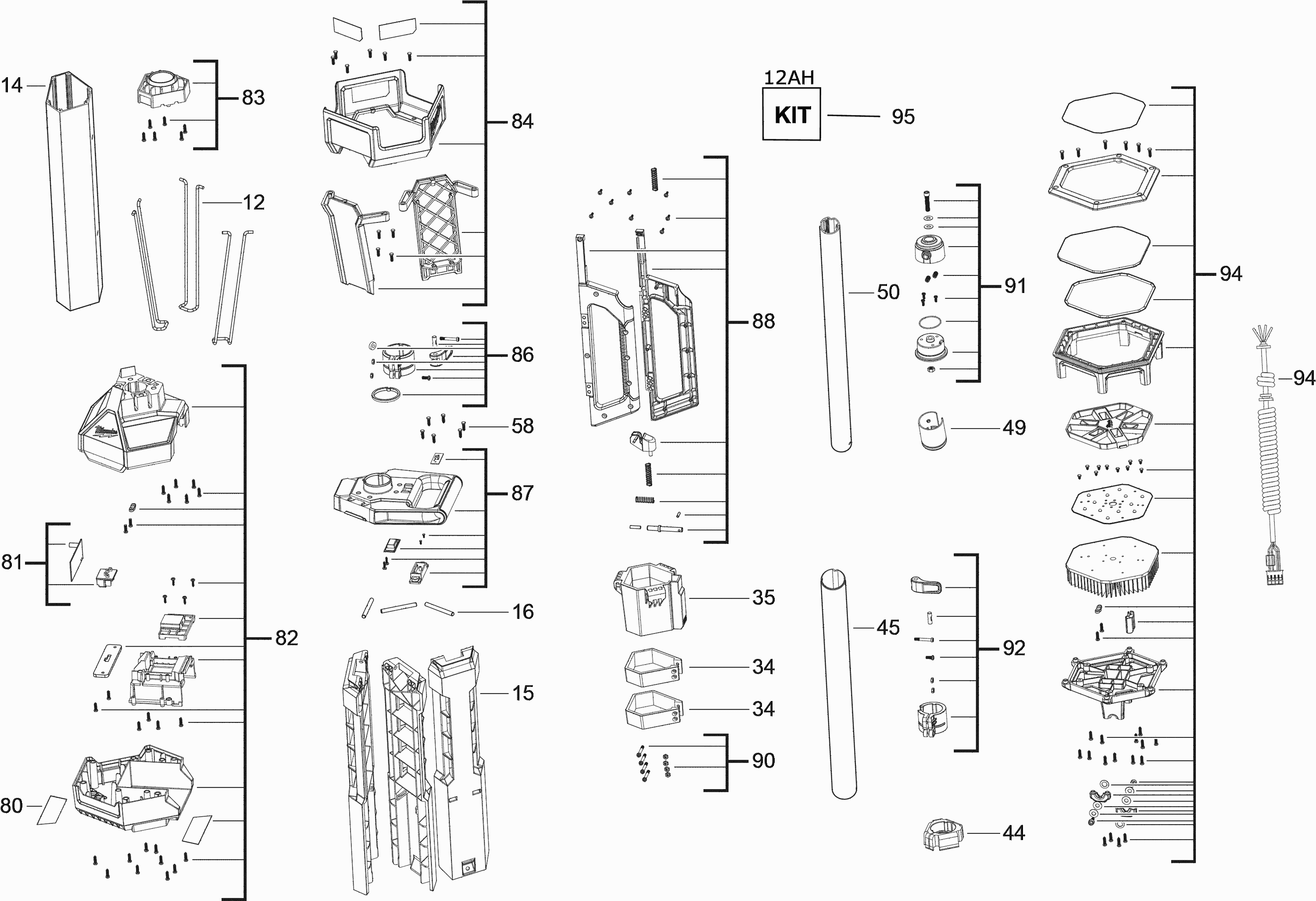

Technical drawing of model Milwaukee 4000452900 (M18SAL-0)
Spare parts list of model Milwaukee 4000452900 (M18SAL-0)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 0012 | 4931453478 | |||
| TUBE | ||||
| 0014 | 4931453479 | 85.54 | 103.50 | |
| FOOT (3 needed) | ||||
| 0015 | 4931453480 | 87.12 | 105.42 | |
| PIN (3 needed) | ||||
| 0016 | 4931453481 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0034 | 4931453482 | |||
| CLAMPING PIECE | ||||
| 0035 | 4931453483 | 12.60 | 15.25 | |
| GUIDE PIECE | ||||
| 0044 | 4931453484 | 7.20 | 8.71 | |
| No longer available, no replacement | ||||
| 0045 | 4931453485 | |||
| BUSH | ||||
| 0049 | 4931453486 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0050 | 4931453487 | |||
| SCREW (6 needed) | ||||
| 0058 | 4931453488 | 3.00 | 3.63 | |
| RATING PLATE | ||||
| 0080 | 4931453489 | 3.79 | 4.59 | |
| No longer available, no replacement | ||||
| 0081 | 4931453490 | |||
| No longer available, no replacement | ||||
| 0082 | 4931453491 | |||
| COVER | ||||
| 0083 | 4931453492 | 7.20 | 8.71 | |
| LAMP HOUSING | ||||
| 0084 | 4931453493 | 36.43 | 44.08 | |
| CLAMPING RING | ||||
| 0086 | 4931461470 | 22.18 | 26.84 | |
| HANDLE | ||||
| 0087 | 4931453495 | 41.18 | 49.83 | |
| No longer available, no replacement | ||||
| 0088 | 4931453496 | |||
| SCREW | ||||
| 0090 | 4931453497 | 4.20 | 5.08 | |
| COVER | ||||
| 0091 | 4931453498 | 15.29 | 18.50 | |
| CLAMPING PIECE (2 needed) | ||||
| 0092 | 4931461471 | 23.76 | 28.75 | |
| LAMP | ||||
| 0094 | 4931453500 | 229.68 | 277.91 | |
| SERVICE KIT | ||||
| 0095 | 4931466672 | 55.44 | 67.08 | |
| BUTTON | ||||
| 0101 | 4931496557 | 3.00 | 3.63 | |
| CONNECTING ROD | ||||
| 0102 | 4931496558 | 3.60 | 4.36 | |
| PIN | ||||
| 0103 | 4931496559 | 3.00 | 3.63 | |
| SPRING | ||||
| 0104 | 4931496560 | 1.20 | 1.45 | |
