Here you will find all available parts and drawings of the 'Milwaukee 4000481267 ( M18ONEID2-0X )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

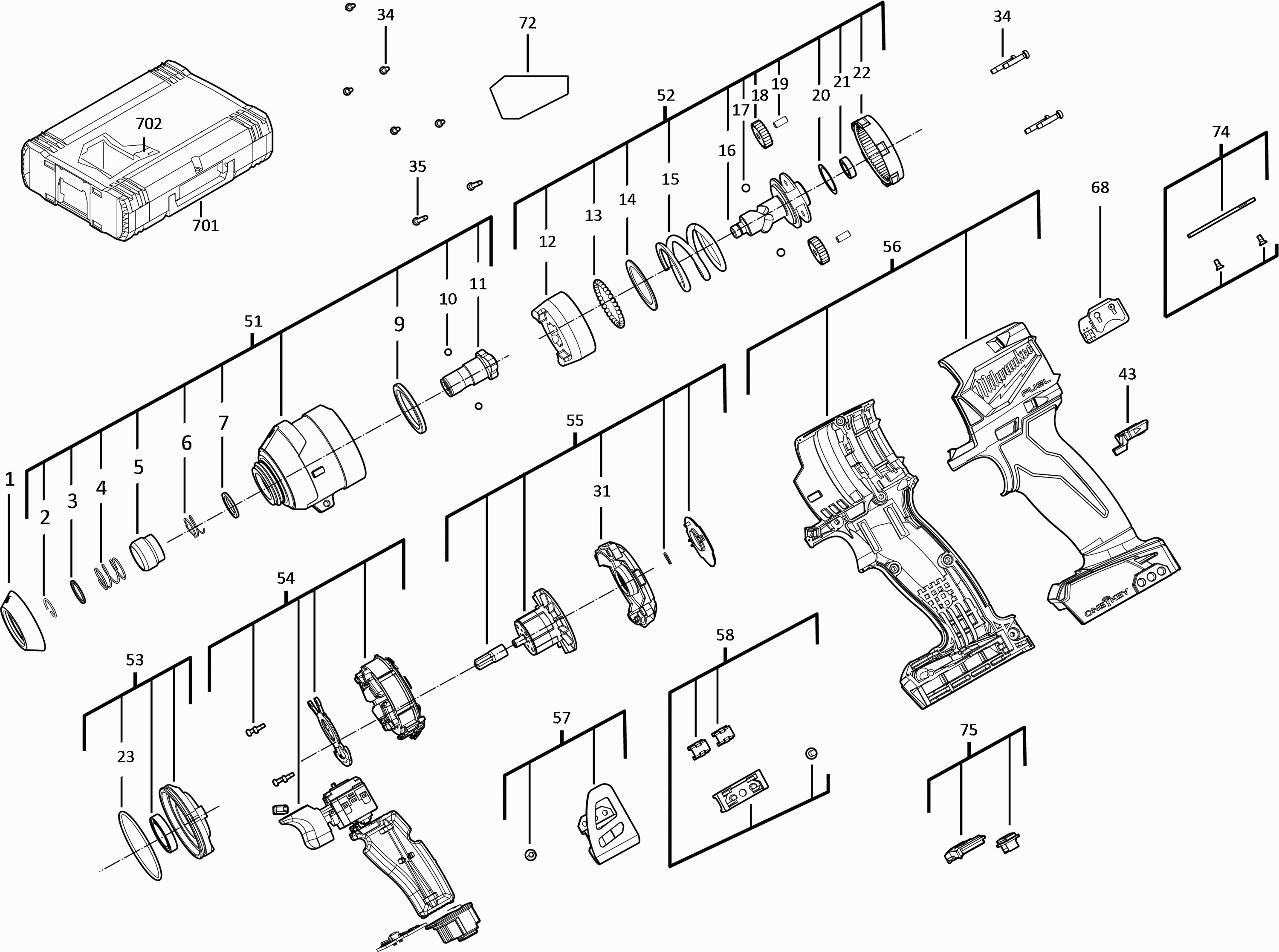

Technical drawing of model Milwaukee 4000481267 ( M18ONEID2-0X )
Spare parts list of model Milwaukee 4000481267 ( M18ONEID2-0X )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| RUBBER CAP | ||||
| 0001 | 4931465809 | 4.49 | 5.43 | |
| HOLDING RING | ||||
| 0002 | 4931436098 | 5.40 | 6.53 | |
| PERCUSSION BODY | ||||
| 0012 | 4931465812 | 31.68 | 38.33 | |
| PLANET GEAR (2 needed) | ||||
| 0018 | 4931465817 | 1.90 | 2.30 | |
| BALL BEARING | ||||
| 0021 | 4931465819 | 5.40 | 6.53 | |
| INTERN.GEARED WHEEL | ||||
| 0022 | 4931465820 | 5.40 | 6.53 | |
| HOUSING CAP | ||||
| 0031 | 4931465822 | 12.60 | 15.25 | |
| GEAR BOX ASSY | ||||
| 0051 | 4931480468 | 51.98 | 62.90 | |
| ELECTRONIC | ||||
| 0054 | 4931465835 | 186.91 | 226.16 | |
| BIT HOLDER | ||||
| 0058 | 4931465832 | 7.20 | 8.71 | |
| ELECTRONIC ELEMENT | ||||
| 0068 | 4931465837 | 15.84 | 19.17 | |
| RATING PLATE | ||||
| 0072 | 4931480470 | 1.26 | 1.52 | |
| NO DESCRIPTION | ||||
| 0701 | 4932453385 | 52.69 | 63.75 | |
