Here you will find all available parts and drawings of the 'Milwaukee 4000477945 ( M18ONEFHPX-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

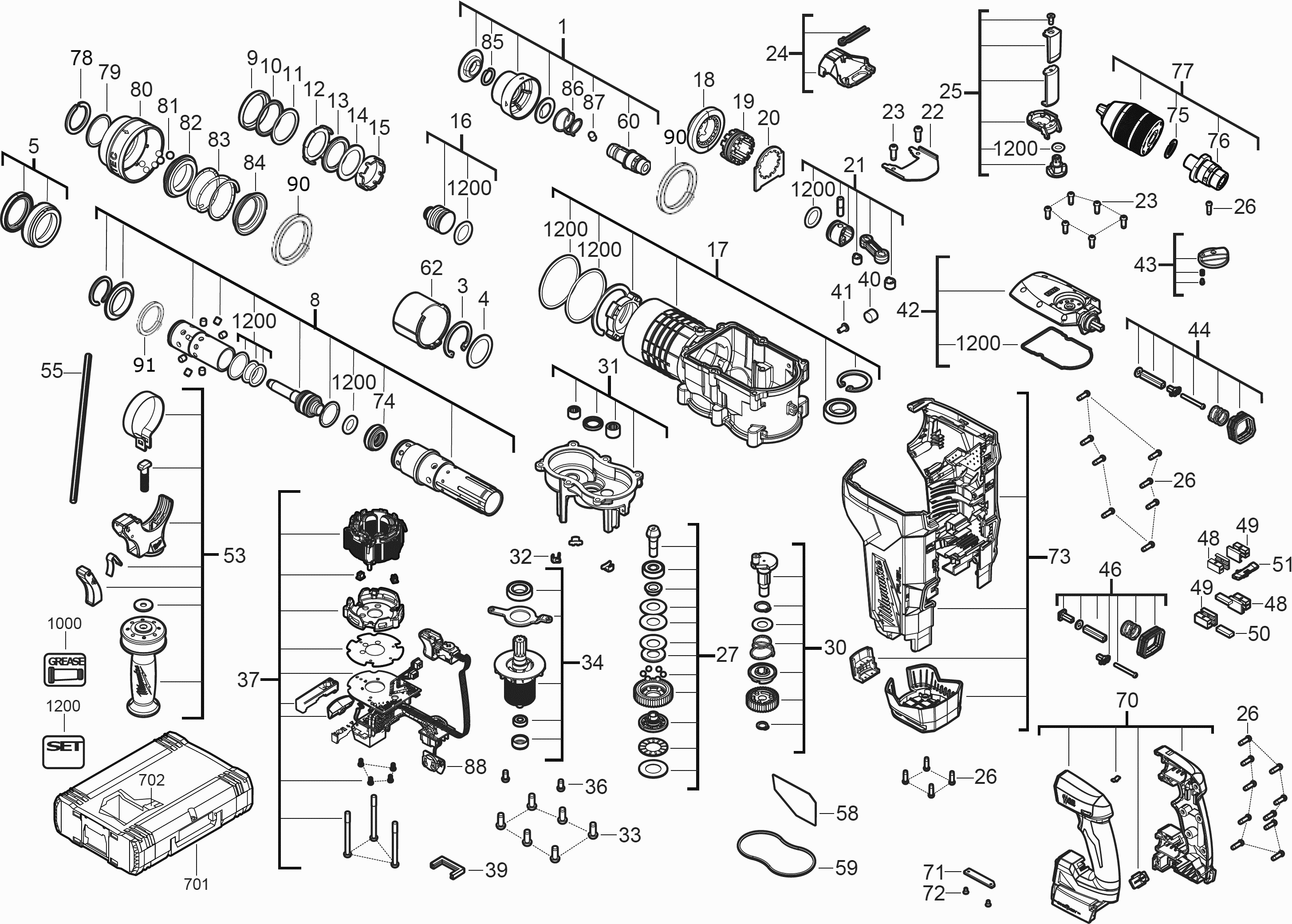

Technical drawing of model Milwaukee 4000477945 ( M18ONEFHPX-0 )
Spare parts list of model Milwaukee 4000477945 ( M18ONEFHPX-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SPINDLE KIT | ||||
| 0008 | 4931479843 | 154.77 | 187.27 | |
| GEAR BOX COVER | ||||
| 0017 | 4931479811 | 76.23 | 92.24 | |
| BEVEL GEAR | ||||
| 0018 | 4931479812 | 10.08 | 12.20 | |
| LOCKING PLATE | ||||
| 0020 | 4931479814 | 3.16 | 3.82 | |
| CLAMPING PIECE | ||||
| 0022 | 4931479816 | 1.26 | 1.52 | |
| SCREW (23 needed) | ||||
| 0026 | 660031017 | 1.90 | 2.30 | |
| CRANK ASSEMBLY | ||||
| 0030 | 4931479820 | 48.51 | 58.70 | |
| GEAR BOX ASSY | ||||
| 0031 | 4931479821 | 46.20 | 55.90 | |
| WASHER (3 needed) | ||||
| 0032 | 4931479822 | 1.26 | 1.52 | |
| MOTOR ASSEMBLY | ||||
| 0037 | 4931479824 | 266.80 | 322.83 | |
| ELECTRONIC | ||||
| 0039 | 4931479825 | 1.26 | 1.52 | |
| GEAR BOX COVER | ||||
| 0042 | 4931479828 | 32.34 | 39.13 | |
| PUSH BUTTON | ||||
| 0043 | 4931479829 | 11.34 | 13.72 | |
| GEAR SLEEVE | ||||
| 0044 | 4931479830 | 12.70 | 15.37 | |
| GEAR SLEEVE | ||||
| 0046 | 4931479831 | 21.94 | 26.55 | |
| RUBBER BUMPER (4 needed) | ||||
| 0048 | 4931479832 | 1.26 | 1.52 | |
| FOAM RUBBER (2 needed) | ||||
| 0050 | 4931436434 | 4.49 | 5.43 | |
| SWITCH LEVER | ||||
| 0051 | 4931479833 | 1.26 | 1.52 | |
| SWITCH HANDLE | ||||
| 0053 | 4931479834 | 28.88 | 34.94 | |
| DEPTH GAUGE | ||||
| 0055 | 4931479598 | 3.78 | 4.57 | |
| RATING PLATE | ||||
| 0058 | 4931479844 | 1.26 | 1.52 | |
| HANDLE SET | ||||
| 0070 | 4931479837 | 28.88 | 34.94 | |
| SPRING RING | ||||
| 0078 | 4931436362 | 1.90 | 2.30 | |
| SPRING WASHER | ||||
| 0083 | 4931436365 | 1.90 | 2.30 | |
| RETAINING RING | ||||
| 0084 | 4931479852 | 3.16 | 3.82 | |
| SPRING RING | ||||
| 0085 | 672631001 | 4.49 | 5.43 | |
| SPRING (2 needed) | ||||
| 0086 | 4931445571 | 1.90 | 2.30 | |
| ELECTRONIC | ||||
| 0088 | 4931473905 | 5.04 | 6.10 | |
| No information available, not orderable | ||||
| 0090 | 4931495546 | |||
| No information available, not orderable | ||||
| 0091 | 4931495545 | |||
| NO DESCRIPTION | ||||
| 0701 | 4932453386 | 60.72 | 73.47 | |
| GEAR GREASE | ||||
| 1000 | 4931443288 | 35.80 | 43.32 | |
