Here you will find all available parts and drawings of the 'Milwaukee 4000481655 ( M18ONEFHIWF12E-0X )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

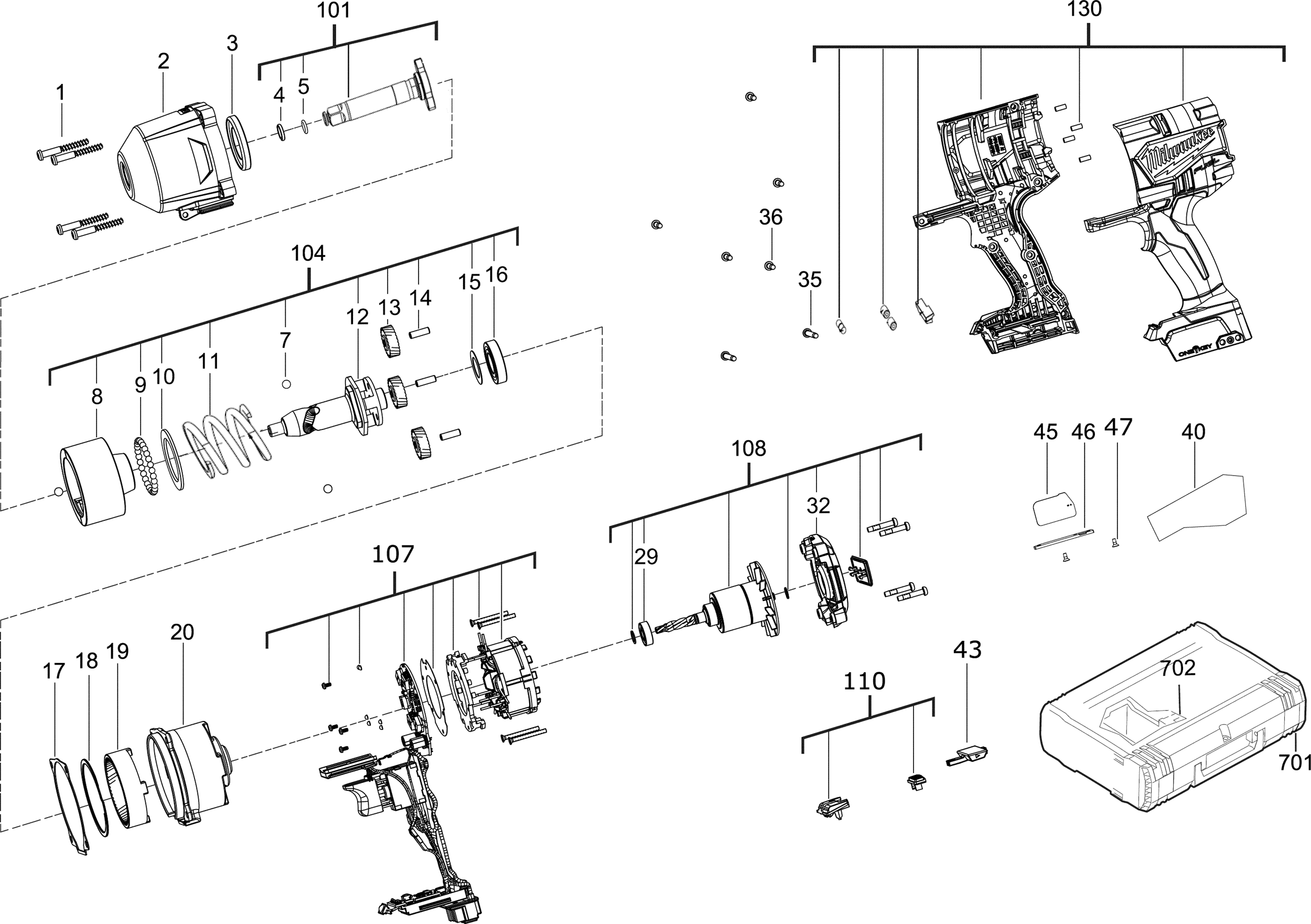

Technical drawing of model Milwaukee 4000481655 ( M18ONEFHIWF12E-0X )
Spare parts list of model Milwaukee 4000481655 ( M18ONEFHIWF12E-0X )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| FEED SCREW (4 needed) | ||||
| 0001 | 4931465519 | 3.00 | 3.63 | |
| GEAR HEAD | ||||
| 0002 | 4931473327 | 26.95 | 32.61 | |
| AXIAL BEAR.WASHER | ||||
| 0003 | 4931465311 | 3.00 | 3.63 | |
| CIRCLIP | ||||
| 0004 | 4931416493 | 5.40 | 6.53 | |
| O-RING | ||||
| 0005 | 4931416492 | 3.00 | 3.63 | |
| BALL (3 needed) | ||||
| 0007 | 4931436148 | 3.00 | 3.63 | |
| HAMMER | ||||
| 0008 | 4931473328 | 74.25 | 89.84 | |
| BALL (31 needed) | ||||
| 0009 | 4931440453 | 3.00 | 3.63 | |
| BEARING WASHER | ||||
| 0010 | 4931465313 | 4.54 | 5.49 | |
| PRESSURE SPRING | ||||
| 0011 | 4931465344 | 12.60 | 15.25 | |
| CAM SHAFT | ||||
| 0012 | 4931473329 | 66.00 | 79.86 | |
| PLANET GEAR (3 needed) | ||||
| 0013 | 4931454518 | 5.30 | 6.41 | |
| PIN (3 needed) | ||||
| 0014 | 671565004 | 4.49 | 5.43 | |
| BEARING WASHER | ||||
| 0015 | 4931465317 | 3.00 | 3.63 | |
| BALL BEARING | ||||
| 0016 | 681340001 | 9.00 | 10.89 | |
| GASKET | ||||
| 0017 | 4931465381 | 3.00 | 3.63 | |
| PROTECTION WASHER | ||||
| 0018 | 4931436145 | 3.00 | 3.63 | |
| INTERN.GEARED WHEEL | ||||
| 0019 | 4931436144 | 14.40 | 17.42 | |
| GEAR BOX COVER | ||||
| 0020 | 4931473330 | 16.52 | 19.99 | |
| BALL BEARING | ||||
| 0029 | 4931465322 | 3.79 | 4.59 | |
| BEARING COVER | ||||
| 0032 | 4931465323 | 14.40 | 17.42 | |
| SCREW (2 needed) | ||||
| 0035 | 4931465325 | 3.60 | 4.36 | |
| SCREW (15 needed) | ||||
| 0036 | 4931465326 | 3.60 | 4.36 | |
| RATING PLATE | ||||
| 0040 | 4931496011 | 1.20 | 1.45 | |
| SWITCH LEVER | ||||
| 0043 | 4931465328 | 5.40 | 6.53 | |
| ELECTRONIC | ||||
| 0045 | 4931479742 | 12.47 | 15.09 | |
| COVER | ||||
| 0046 | 4931465384 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0047 | 4931465385 | 3.00 | 3.63 | |
| ANVIL | ||||
| 0101 | 4931473332 | 96.80 | 117.13 | |
| GEAR BOX KIT | ||||
| 0104 | 4931473333 | 163.90 | 198.32 | |
| Motor control | ||||
| 0107 | 4931496012 | 250.00 | 302.50 | |
| ROTOR | ||||
| 0108 | 4931473335 | 70.95 | 85.85 | |
| SLIDER | ||||
| 0110 | 4931473336 | 14.30 | 17.30 | |
| HOUSING | ||||
| 0130 | 4931506389 | 33.00 | 39.93 | |
| HD Box 1 - 1pc | ||||
| 0701 | 4932453385 | 57.96 | 70.13 | |
| INSERT | ||||
| 0702 | 4931473337 | 19.80 | 23.96 | |
