Here you will find all available parts and drawings of the 'Milwaukee 4000467195 (M18ONEFHIWF12-0X)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

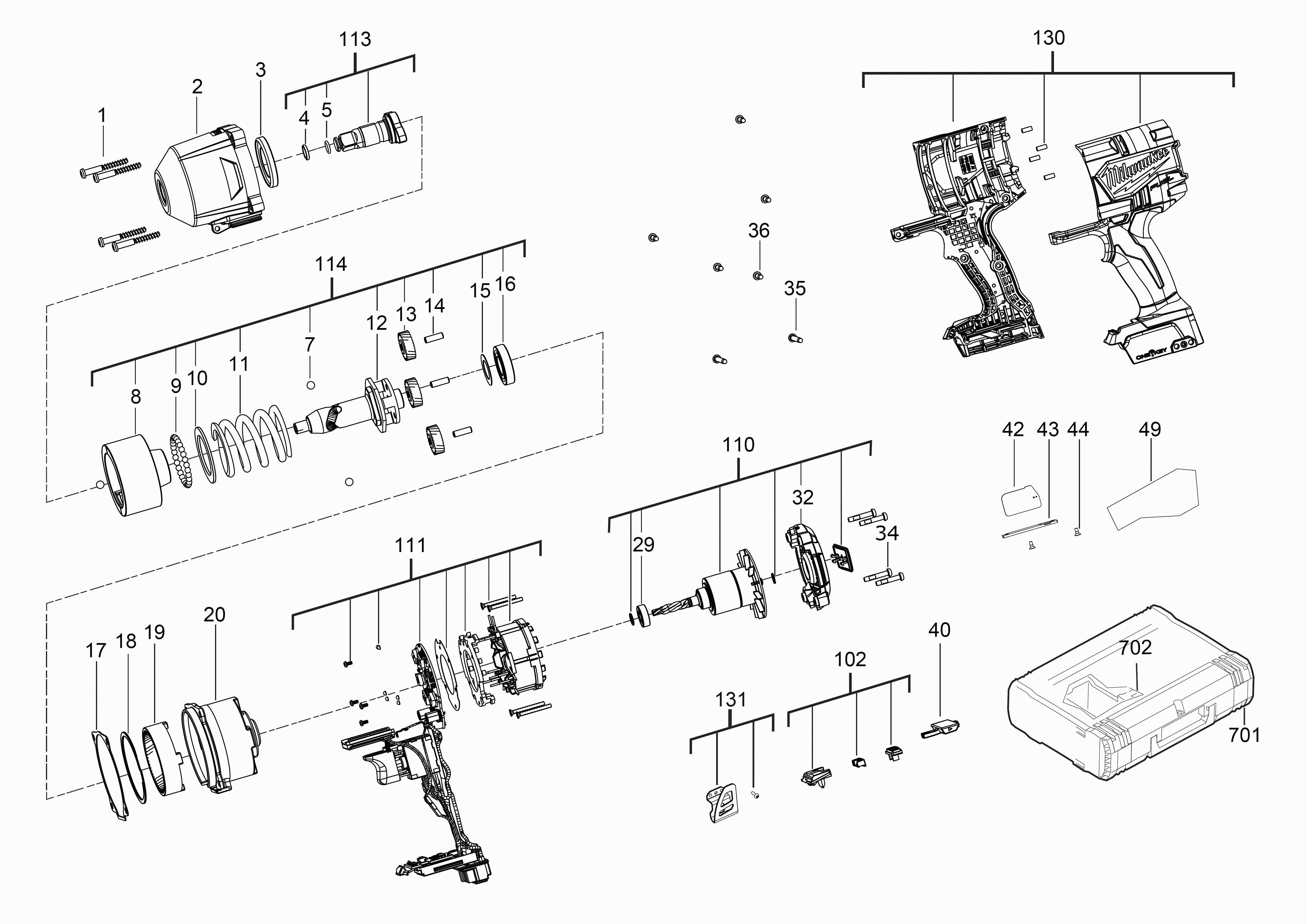

Technical drawing of model Milwaukee 4000467195 (M18ONEFHIWF12-0X)
Spare parts list of model Milwaukee 4000467195 (M18ONEFHIWF12-0X)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (4 needed) | ||||
| 0001 | 4931465309 | 3.00 | 3.63 | |
| GEAR BOX | ||||
| 0002 | 4931465374 | 38.02 | 46.00 | |
| AXIAL BEAR.WASHER | ||||
| 0003 | 4931465311 | 3.00 | 3.63 | |
| CIRCLIP | ||||
| 0004 | 4931416493 | 5.40 | 6.53 | |
| O-RING | ||||
| 0005 | 4931416492 | 3.00 | 3.63 | |
| BALL (3 needed) | ||||
| 0007 | 4931436148 | 3.00 | 3.63 | |
| HAMMER | ||||
| 0008 | 4931465312 | 102.96 | 124.58 | |
| BALL (31 needed) | ||||
| 0009 | 4931440453 | 3.00 | 3.63 | |
| BEARING WASHER | ||||
| 0010 | 4931465313 | 4.54 | 5.49 | |
| SPRING | ||||
| 0011 | 4931465314 | 10.80 | 13.07 | |
| DRIVING SHAFT | ||||
| 0012 | 4931465315 | 91.87 | 111.16 | |
| PLANETARY DRIVE (3 needed) | ||||
| 0013 | 4931465316 | 5.30 | 6.41 | |
| PIN (3 needed) | ||||
| 0014 | 671565004 | 4.49 | 5.43 | |
| BEARING WASHER | ||||
| 0015 | 4931465317 | 3.00 | 3.63 | |
| BALL BEARING | ||||
| 0016 | 681340001 | 9.00 | 10.89 | |
| GASKET | ||||
| 0017 | 4931465381 | 3.00 | 3.63 | |
| HOLDING RING | ||||
| 0018 | 4931465319 | 3.00 | 3.63 | |
| WORM GEAR WHEEL | ||||
| 0019 | 4931465320 | 14.40 | 17.42 | |
| GEAR BOX HOUSING | ||||
| 0020 | 4931465383 | 20.97 | 25.37 | |
| BALL BEARING | ||||
| 0029 | 4931465322 | 3.79 | 4.59 | |
| BEARING COVER | ||||
| 0032 | 4931465323 | 14.40 | 17.42 | |
| SCREW | ||||
| 0034 | 4931465324 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0035 | 4931465325 | 3.60 | 4.36 | |
| SCREW (15 needed) | ||||
| 0036 | 4931465326 | 3.60 | 4.36 | |
| SWITCH LEVER | ||||
| 0040 | 4931465328 | 5.40 | 6.53 | |
| ELECTRONIC | ||||
| 0042 | 4931479742 | 12.47 | 15.09 | |
| CONTACT CASE | ||||
| 0042 | 4931453372 | 9.91 | 11.99 | |
| COVER | ||||
| 0043 | 4931465384 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0044 | 4931465385 | 3.00 | 3.63 | |
| RATING PLATE | ||||
| 0049 | 4931465386 | 3.00 | 3.63 | |
| SWITCH | ||||
| 0102 | 4931465387 | 22.18 | 26.84 | |
| ROTOR | ||||
| 0110 | 4931465330 | 83.95 | 101.58 | |
| SWITCH ASSEMBLY | ||||
| 0111 | 4931465388 | 220.18 | 266.42 | |
| ELECTRONIC | ||||
| 0111 | 4931496010 | 168.30 | 203.64 | |
| DRIVING SHAFT | ||||
| 0113 | 4931465332 | 102.96 | 124.58 | |
| GEAR UNIT | ||||
| 0114 | 4931465331 | 196.42 | 237.67 | |
| HOUSING | ||||
| 0130 | 4931465389 | 41.18 | 49.83 | |
| HOUSING | ||||
| 0130 | 4931506389 | 33.00 | 39.93 | |
| CLAMP | ||||
| 0131 | 4931436160 | 9.91 | 11.99 | |
| HD Box 1 - 1pc | ||||
| 0701 | 4932453385 | 57.96 | 70.13 | |
| INSERT | ||||
| 0702 | 4931465336 | 42.77 | 51.75 | |
