Here you will find all available parts and drawings of the 'Milwaukee 4000497984 ( M18ONEF2VC34M-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

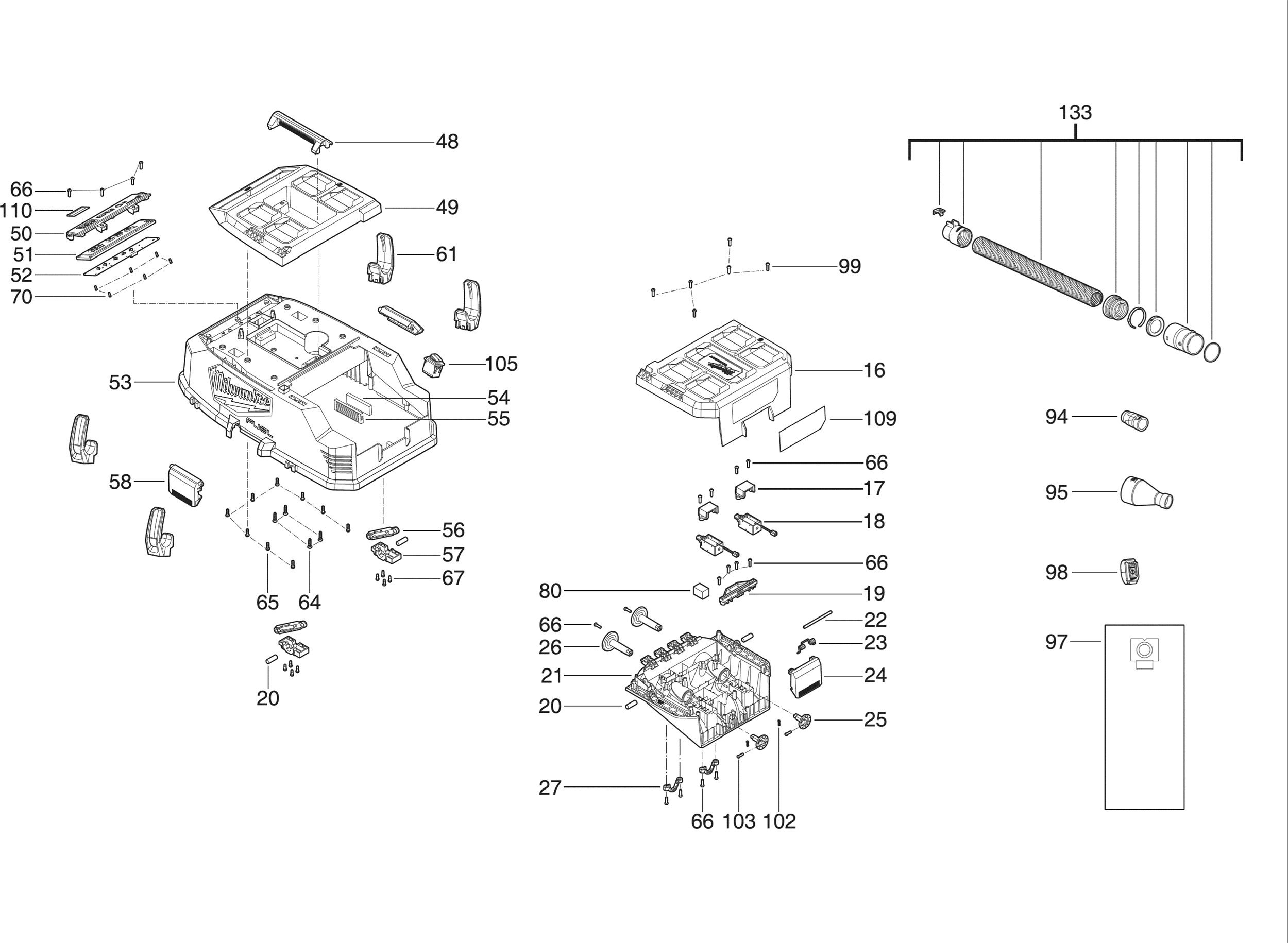

Technical drawing of model Milwaukee 4000497984 ( M18ONEF2VC34M-0 )
Spare parts list of model Milwaukee 4000497984 ( M18ONEF2VC34M-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| COVER (2 needed) | ||||
| 0001 | 4931508548 | 3.60 | 4.36 | |
| COVER | ||||
| 0002 | 4931508698 | 19.80 | 23.96 | |
| HOUSING | ||||
| 0003 | 4931508699 | 23.10 | 27.95 | |
| COVER | ||||
| 0004 | 4931508700 | 3.00 | 3.63 | |
| TANK | ||||
| 0009 | 4931508701 | 83.60 | 101.16 | |
| WHEEL PAIR | ||||
| 0010 | 4931508702 | 14.30 | 17.30 | |
| COVER | ||||
| 0016 | 4931508703 | 16.50 | 19.96 | |
| BRACKET (2 needed) | ||||
| 0017 | 4931508704 | 3.60 | 4.36 | |
| SOLENOID ASSEMBLY (2 needed) | ||||
| 0018 | 4931508705 | 42.90 | 51.91 | |
| HOUSING | ||||
| 0019 | 4931508706 | 3.60 | 4.36 | |
| PIN (4 needed) | ||||
| 0020 | 4931508573 | 3.60 | 4.36 | |
| HOUSING | ||||
| 0021 | 4931508707 | 22.00 | 26.62 | |
| LATCH | ||||
| 0022 | 4931508708 | 3.60 | 4.36 | |
| SPRING | ||||
| 0023 | 4931508709 | 3.60 | 4.36 | |
| LATCH | ||||
| 0024 | 4931508710 | 4.80 | 5.81 | |
| PLUNGER (2 needed) | ||||
| 0025 | 4931508711 | 4.80 | 5.81 | |
| PLUNGER (2 needed) | ||||
| 0026 | 4931508712 | 6.00 | 7.26 | |
| BRACKET (2 needed) | ||||
| 0027 | 4931508713 | 3.00 | 3.63 | |
| ELECTRONIC | ||||
| 0028 | 4931508714 | 228.80 | 276.85 | |
| ELECTRIC FIELD | ||||
| 0029 | 4931508715 | 139.70 | 169.04 | |
| HOUSING | ||||
| 0030 | 4931508716 | 15.40 | 18.63 | |
| COVER | ||||
| 0031 | 4931508717 | 4.80 | 5.81 | |
| BRACKET | ||||
| 0032 | 4931508718 | 3.60 | 4.36 | |
| SEAL | ||||
| 0033 | 4931508719 | 6.00 | 7.26 | |
| SEAL | ||||
| 0034 | 4931508567 | 7.20 | 8.71 | |
| MOTOR | ||||
| 0035 | 4931508720 | 92.95 | 112.47 | |
| MOTOR | ||||
| 0037 | 4931508568 | 88.00 | 106.48 | |
| SEAL | ||||
| 0038 | 4931508569 | 6.00 | 7.26 | |
| ISOLATION | ||||
| 0039 | 4931508721 | 6.00 | 7.26 | |
| GAUGE (2 needed) | ||||
| 0040 | 4931508722 | 3.60 | 4.36 | |
| HOUSING | ||||
| 0041 | 4931508723 | 73.70 | 89.18 | |
| STRIP-BAND | ||||
| 0042 | 4931508724 | 3.60 | 4.36 | |
| SEAL | ||||
| 0043 | 4931508725 | 10.80 | 13.07 | |
| SEAL | ||||
| 0044 | 4931508726 | 13.20 | 15.97 | |
| RIVET (2 needed) | ||||
| 0045 | 4931508727 | 3.60 | 4.36 | |
| COVER (2 needed) | ||||
| 0046 | 4931508728 | 4.80 | 5.81 | |
| FRAME | ||||
| 0047 | 4931508729 | 15.40 | 18.63 | |
| HANDLE | ||||
| 0048 | 4931508544 | 6.00 | 7.26 | |
| COVER | ||||
| 0049 | 4931508730 | 18.70 | 22.63 | |
| COVER | ||||
| 0050 | 4931508731 | 7.20 | 8.71 | |
| BUTTON | ||||
| 0051 | 4931508732 | 15.40 | 18.63 | |
| ELECT.CIRCUIT BOARD | ||||
| 0052 | 4931508733 | 60.50 | 73.20 | |
| HOUSING | ||||
| 0053 | 4931508734 | 90.20 | 109.14 | |
| BRACKET | ||||
| 0054 | 4931508735 | 3.60 | 4.36 | |
| HOLDER | ||||
| 0055 | 4931508736 | 3.60 | 4.36 | |
| ROD (2 needed) | ||||
| 0056 | 4931508737 | 3.60 | 4.36 | |
| PIN (2 needed) | ||||
| 0057 | 4931508738 | 3.60 | 4.36 | |
| LATCH (2 needed) | ||||
| 0058 | 4931508739 | 4.80 | 5.81 | |
| PIN | ||||
| 0059 | 4931508740 | 11.00 | 13.31 | |
| HOUSING | ||||
| 0060 | 4931508741 | 3.60 | 4.36 | |
| LATCH (4 needed) | ||||
| 0061 | 4931508742 | 4.80 | 5.81 | |
| SCREW (8 needed) | ||||
| 0063 | 4931496478 | 1.80 | 2.18 | |
| SCREW (4 needed) | ||||
| 0064 | 4931508743 | 1.80 | 2.18 | |
| SCREW (15 needed) | ||||
| 0065 | 4931466659 | 1.80 | 2.18 | |
| SCREW (43 needed) | ||||
| 0066 | 4931508744 | 3.00 | 3.63 | |
| SCREW (13 needed) | ||||
| 0067 | 4931508745 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0068 | 4931436757 | 3.60 | 4.36 | |
| SCREW (9 needed) | ||||
| 0069 | 4931506826 | 1.80 | 2.18 | |
| SCREW (4 needed) | ||||
| 0070 | 4931466151 | 3.60 | 4.36 | |
| SCREW (2 needed) | ||||
| 0071 | 4931496273 | 1.80 | 2.18 | |
| SCREW (16 needed) | ||||
| 0072 | 4931508746 | 3.00 | 3.63 | |
| SEAL | ||||
| 0073 | 4931508747 | 7.20 | 8.71 | |
| Filter cleaning kit - ONEF2VC34M (2 needed) | ||||
| 0074 | 4932498662 | 62.60 | 75.75 | |
| COIN CELL PCBA | ||||
| 0077 | 4931508748 | 15.40 | 18.63 | |
| FERRITE CORE | ||||
| 0080 | 4931508749 | 4.80 | 5.81 | |
| TUBE | ||||
| 0082 | 4931508750 | 3.60 | 4.36 | |
| ADAPTOR | ||||
| 0094 | 4931508751 | 9.60 | 11.62 | |
| ADAPTOR | ||||
| 0095 | 4931508752 | 10.80 | 13.07 | |
| Fleece dust bag- ONEF2VC34M | ||||
| 0097 | 4932498663 | 33.65 | 40.72 | |
| REMOTE TSC CONTROL | ||||
| 0098 | 4931503508 | 64.90 | 78.53 | |
| SCREW (4 needed) | ||||
| 0099 | 4931436054 | 3.60 | 4.36 | |
| PIN (2 needed) | ||||
| 0102 | 4931508754 | 3.00 | 3.63 | |
| PIN (2 needed) | ||||
| 0103 | 4931508755 | 4.80 | 5.81 | |
| SWITCH ON-OFF | ||||
| 0105 | 4931508756 | 53.90 | 65.22 | |
| ELECTRONIC | ||||
| 0106 | 4931508757 | 40.70 | 49.25 | |
| SCREW (17 needed) | ||||
| 0107 | 4931508758 | 3.00 | 3.63 | |
| RATING PLATE | ||||
| 0109 | 4931510724 | 3.60 | 4.36 | |
| LABEL | ||||
| 0110 | 4931508759 | 3.00 | 3.63 | |
| LABEL | ||||
| 0111 | 4931508760 | 3.00 | 3.63 | |
| COVER | ||||
| 0112 | 4931508761 | 3.60 | 4.36 | |
| SUPPORT BRACKET | ||||
| 0130 | 4931508762 | 17.60 | 21.30 | |
| WHEEL SET | ||||
| 0131 | 4931508763 | 95.70 | 115.80 | |
| POWER CORD | ||||
| 0132 | 4931508764 | 86.90 | 105.15 | |
| HOSE | ||||
| 0133 | 4931508765 | 52.80 | 63.89 | |
| HOUSING | ||||
| 0134 | 4931508766 | 25.30 | 30.61 | |
