Here you will find all available parts and drawings of the 'Milwaukee 4000440426 ( M18GG-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

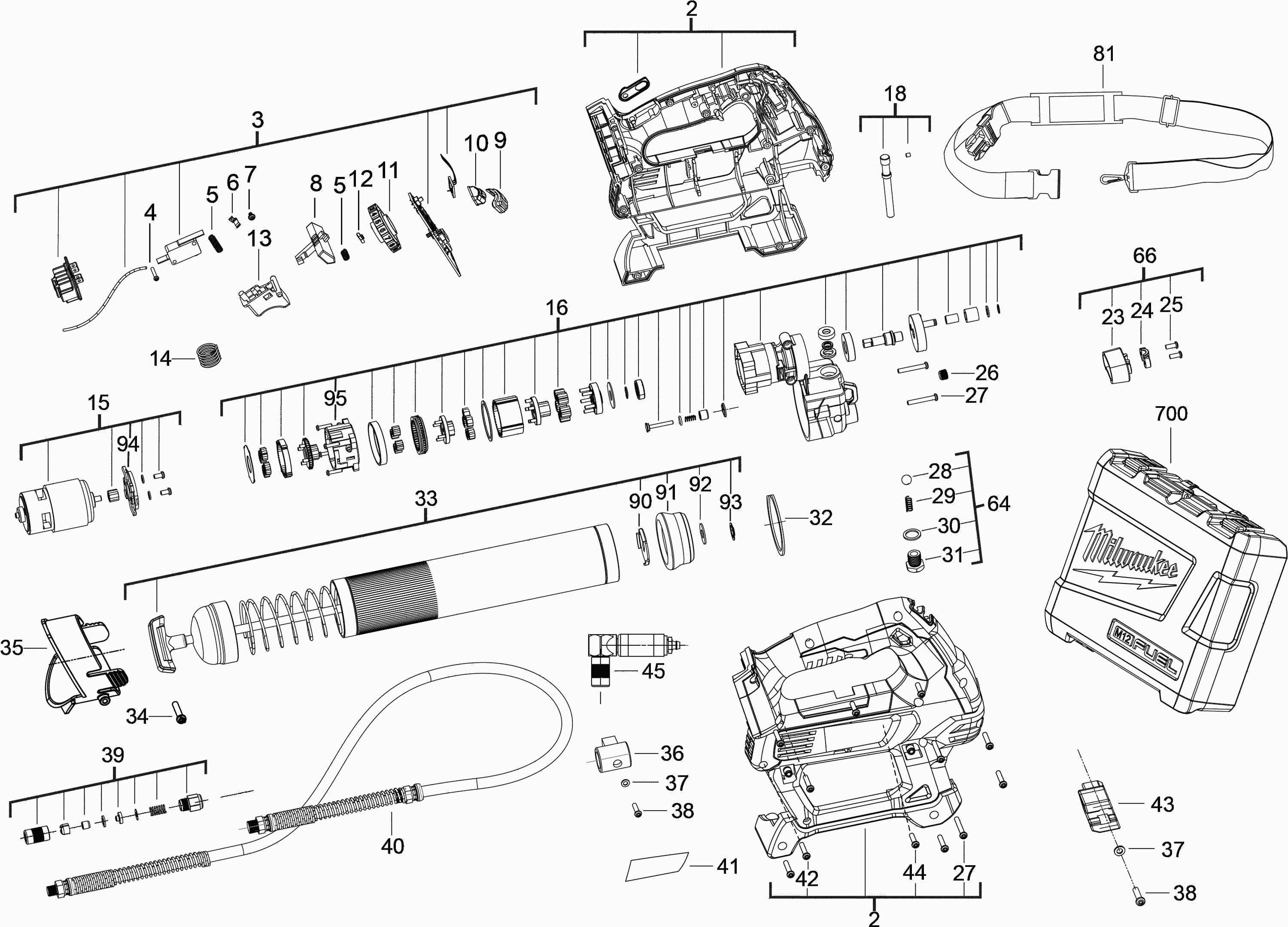

Technical drawing of model Milwaukee 4000440426 ( M18GG-0 )
Spare parts list of model Milwaukee 4000440426 ( M18GG-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| GEAR BOX HOUSING | ||||
| 0002 | 4931435868 | 49.10 | 59.41 | |
| SWITCH | ||||
| 0003 | 4931435867 | 76.03 | 92.00 | |
| SCREW | ||||
| 0004 | 661047001 | 1.80 | 2.18 | |
| SPRING (2 needed) | ||||
| 0005 | 4931435866 | 1.90 | 2.30 | |
| PUNCH | ||||
| 0006 | 4931447109 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 0007 | 4931447933 | |||
| HEAD | ||||
| 0008 | 4931447934 | 1.80 | 2.18 | |
| COVER | ||||
| 0009 | 4931435840 | 4.49 | 5.43 | |
| COVER | ||||
| 0010 | 4931435841 | 4.49 | 5.43 | |
| SET WHEEL | ||||
| 0011 | 4931435842 | 3.60 | 4.36 | |
| SPRING | ||||
| 0012 | 4931435843 | 1.80 | 2.18 | |
| SWITCH BUTTON | ||||
| 0013 | 4931435844 | 1.90 | 2.30 | |
| PRESSURE SPRING | ||||
| 0014 | 4931408243 | 5.40 | 6.53 | |
| MOTOR ASSEMBLY | ||||
| 0015 | 4931435845 | 47.52 | 57.50 | |
| GEAR BOX HOUSING | ||||
| 0016 | 4931435846 | 110.88 | 134.16 | |
| PISTON | ||||
| 0018 | 4931435847 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 0023 | 4931435848 | |||
| No information available, not orderable | ||||
| 0024 | 4931435849 | |||
| SCREW (2 needed) | ||||
| 0025 | 4931435850 | 1.80 | 2.18 | |
| BOLT SET | ||||
| 0026 | 4931435650 | 5.40 | 6.53 | |
| SCREW | ||||
| 0027 | 4931435023 | 1.90 | 2.30 | |
| BALL | ||||
| 0028 | 4931435654 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 0029 | 4931435655 | |||
| No longer available, no replacement | ||||
| 0030 | 4931435656 | |||
| SCREW | ||||
| 0031 | 4931435657 | 5.40 | 6.53 | |
| GASKET | ||||
| 0032 | 4931435852 | 1.80 | 2.18 | |
| SPINDLE SLEEVE | ||||
| 0033 | 4931435853 | 55.44 | 67.08 | |
| SCREW | ||||
| 0034 | 4931441513 | 1.80 | 2.18 | |
| DISTANCE PIECE | ||||
| 0035 | 4931435854 | 4.49 | 5.43 | |
| HOLSTER | ||||
| 0036 | 4931435855 | 5.40 | 6.53 | |
| PROTECTION WASHER (4 needed) | ||||
| 0037 | 680866003 | 1.90 | 2.30 | |
| SCREW (2 needed) | ||||
| 0038 | 4931435856 | 1.80 | 2.18 | |
| COUPLING | ||||
| 0039 | 4931435857 | 19.01 | 23.00 | |
| HOSE 120cm | ||||
| 0040 | 4931435858 | 53.86 | 65.17 | |
| NAME PLATE | ||||
| 0041 | 4931435859 | 1.90 | 2.30 | |
| No information available, not orderable | ||||
| 0042 | 4931435860 | |||
| No longer available, no replacement | ||||
| 0043 | 4931435861 | |||
| SCREW (14 needed) | ||||
| 0044 | 660024030 | 1.90 | 2.30 | |
| ADAPTER | ||||
| 0045 | 4931435862 | 33.26 | 40.24 | |
| SWITCH SCREW | ||||
| 0064 | 4931435863 | 12.60 | 15.25 | |
| YOKE | ||||
| 0066 | 4931435864 | 28.51 | 34.50 | |
| STRAP | ||||
| 0081 | 4931435865 | 12.60 | 15.25 | |
| STAMP | ||||
| 0090 | 4931435636 | 1.80 | 2.18 | |
| RUBBER CAP | ||||
| 0091 | 4931435637 | 4.49 | 5.43 | |
| No longer available, no replacement | ||||
| 0092 | 4931435638 | |||
| No longer available, no replacement | ||||
| 0093 | 4931435672 | |||
| BEARING END PLATE | ||||
| 0094 | 4931465807 | 4.49 | 5.43 | |
| HOUSING | ||||
| 0095 | 4931465808 | 4.49 | 5.43 | |
| CARRYING CASE | ||||
| 0700 | 4931435851 | 72.86 | 88.16 | |
