Here you will find all available parts and drawings of the 'Milwaukee 4000474460 (M18FTR-0X)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

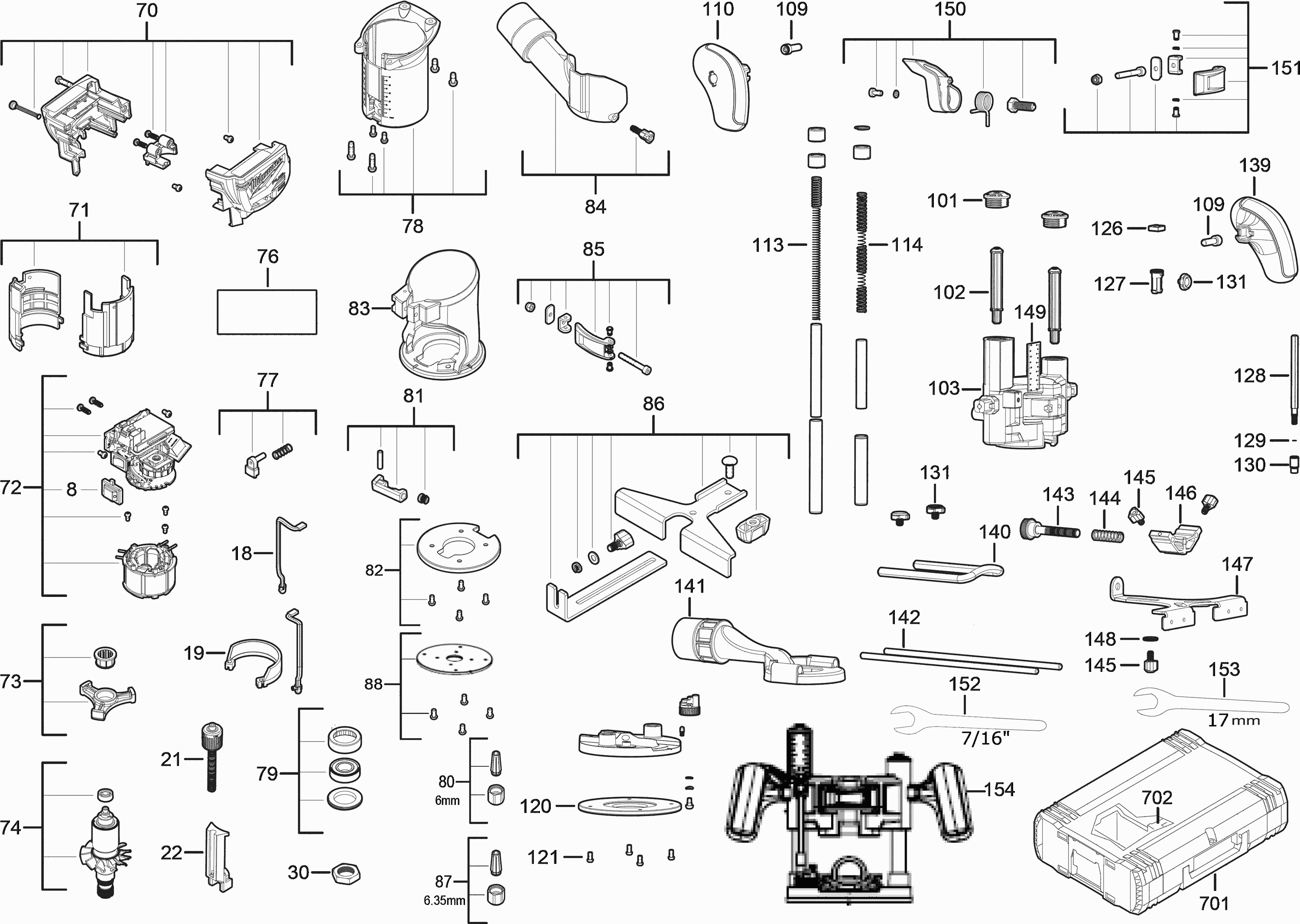

Technical drawing of model Milwaukee 4000474460 (M18FTR-0X)
Spare parts list of model Milwaukee 4000474460 (M18FTR-0X)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| COVER | ||||
| 0008 | 4931472628 | 3.00 | 3.63 | |
| LAMP (2 needed) | ||||
| 0018 | 4931472629 | 9.00 | 10.89 | |
| CLAMP | ||||
| 0019 | 4931472630 | 1.80 | 2.18 | |
| ALTITUDE ADJUSTMENT | ||||
| 0021 | 4931472631 | 17.42 | 21.08 | |
| HOLDER | ||||
| 0022 | 4931472632 | 17.42 | 21.08 | |
| NUT | ||||
| 0030 | 4931472633 | 12.60 | 15.25 | |
| GRIP | ||||
| 0070 | 4931472634 | 28.51 | 34.50 | |
| MOTOR HOUSING | ||||
| 0071 | 4931472635 | 12.60 | 15.25 | |
| ELECTRONIC | ||||
| 0072 | 4931472636 | 190.08 | 230.00 | |
| BEARING END PLATE | ||||
| 0073 | 4931472637 | 22.18 | 26.84 | |
| ROTOR | ||||
| 0074 | 4931472638 | 121.97 | 147.58 | |
| RATING PLATE | ||||
| 0076 | 4931472639 | 2.28 | 2.76 | |
| LOCK COMPLETE | ||||
| 0077 | 4931472640 | 9.00 | 10.89 | |
| SLEEVE | ||||
| 0078 | 4931472641 | 57.02 | 68.99 | |
| BALL BEARING | ||||
| 0079 | 4931472642 | 22.18 | 26.84 | |
| COLLET | ||||
| 0080 | 4931472643 | 72.86 | 88.16 | |
| LOCK COMPLETE | ||||
| 0081 | 4931472644 | 23.76 | 28.75 | |
| BASE PLATE | ||||
| 0082 | 4931472645 | 15.84 | 19.17 | |
| HOUSING | ||||
| 0083 | 4931472646 | 58.61 | 70.92 | |
| DUST EXTR.CONNECTOR | ||||
| 0084 | 4931472647 | 15.84 | 19.17 | |
| CLAMPING LEVER | ||||
| 0085 | 4931472648 | 30.10 | 36.42 | |
| STOP | ||||
| 0086 | 4931472649 | 44.35 | 53.66 | |
| COLLET | ||||
| 0087 | 4931472650 | 52.27 | 63.25 | |
| BASE PLATE | ||||
| 0088 | 4931479524 | 15.88 | 19.21 | |
| CAP (2 needed) | ||||
| 0101 | 4931472651 | 3.00 | 3.63 | |
| PIN (2 needed) | ||||
| 0102 | 4931472652 | 3.00 | 3.63 | |
| HOUSING | ||||
| 0103 | 4931473729 | 58.30 | 70.54 | |
| SCREW | ||||
| 0109 | 4931465533 | 3.00 | 3.63 | |
| GRIP | ||||
| 0110 | 4931472653 | 17.42 | 21.08 | |
| SPRING | ||||
| 0113 | 4931472654 | 3.00 | 3.63 | |
| SPRING | ||||
| 0114 | 4931472655 | 1.80 | 2.18 | |
| BASE PLATE | ||||
| 0120 | 4931472656 | 10.80 | 13.07 | |
| SCREW (4 needed) | ||||
| 0121 | 4931461787 | 3.00 | 3.63 | |
| INDICATOR SET | ||||
| 0126 | 4931472657 | 1.80 | 2.18 | |
| CAP | ||||
| 0127 | 4931472658 | 1.80 | 2.18 | |
| DEPTH GAUGE | ||||
| 0128 | 4931472659 | 5.40 | 6.53 | |
| O-RING | ||||
| 0129 | 4931472660 | 3.00 | 3.63 | |
| SCREW SOCKET | ||||
| 0130 | 4931472661 | 5.40 | 6.53 | |
| KNOB (3 needed) | ||||
| 0131 | 4931472662 | 3.00 | 3.63 | |
| GRIP | ||||
| 0139 | 4931472663 | 17.42 | 21.08 | |
| YOKE | ||||
| 0140 | 4931472664 | 7.20 | 8.71 | |
| DUST EXTR.CONNECTOR | ||||
| 0141 | 4931472665 | 7.20 | 8.71 | |
| ROD (2 needed) | ||||
| 0142 | 4931472666 | 5.40 | 6.53 | |
| ADJUSTING BUTTON | ||||
| 0143 | 4931472667 | 9.00 | 10.89 | |
| SPRING | ||||
| 0144 | 4931472668 | 1.80 | 2.18 | |
| KNOB (3 needed) | ||||
| 0145 | 4931472669 | 5.40 | 6.53 | |
| FRAME | ||||
| 0146 | 4931472670 | 10.80 | 13.07 | |
| PARALLEL GUIDE (2 needed) | ||||
| 0147 | 4931472671 | 25.34 | 30.66 | |
| WASHER | ||||
| 0148 | 45888461 | 1.80 | 2.18 | |
| WASHER | ||||
| 0148 | 4931506000 | 1.20 | 1.45 | |
| SCALE | ||||
| 0149 | 4931472672 | 5.40 | 6.53 | |
| LOCK COMPLETE | ||||
| 0150 | 4931472673 | 15.84 | 19.17 | |
| LATCH | ||||
| 0151 | 4931472626 | 30.10 | 36.42 | |
| WRENCH | ||||
| 0152 | 4931479941 | 5.40 | 6.53 | |
| WRENCH | ||||
| 0153 | 4931461258 | 7.20 | 8.71 | |
| TRA-2 Router Plunge Base XXX | ||||
| 0154 | 4932480544 | 124.80 | 151.01 | |
| BUSHING | ||||
| 0155 | 4931506972 | 3.60 | 4.36 | |
| RETAINING RING | ||||
| 0156 | 4931506973 | 1.20 | 1.45 | |
| HD Box 3 - 1pc | ||||
| 0701 | 4932453386 | 66.79 | 80.82 | |
| INSERT | ||||
| 0702 | 4931472674 | 30.10 | 36.42 | |
