Here you will find all available parts and drawings of the 'Milwaukee 4000497841 ( M18FTPS30-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

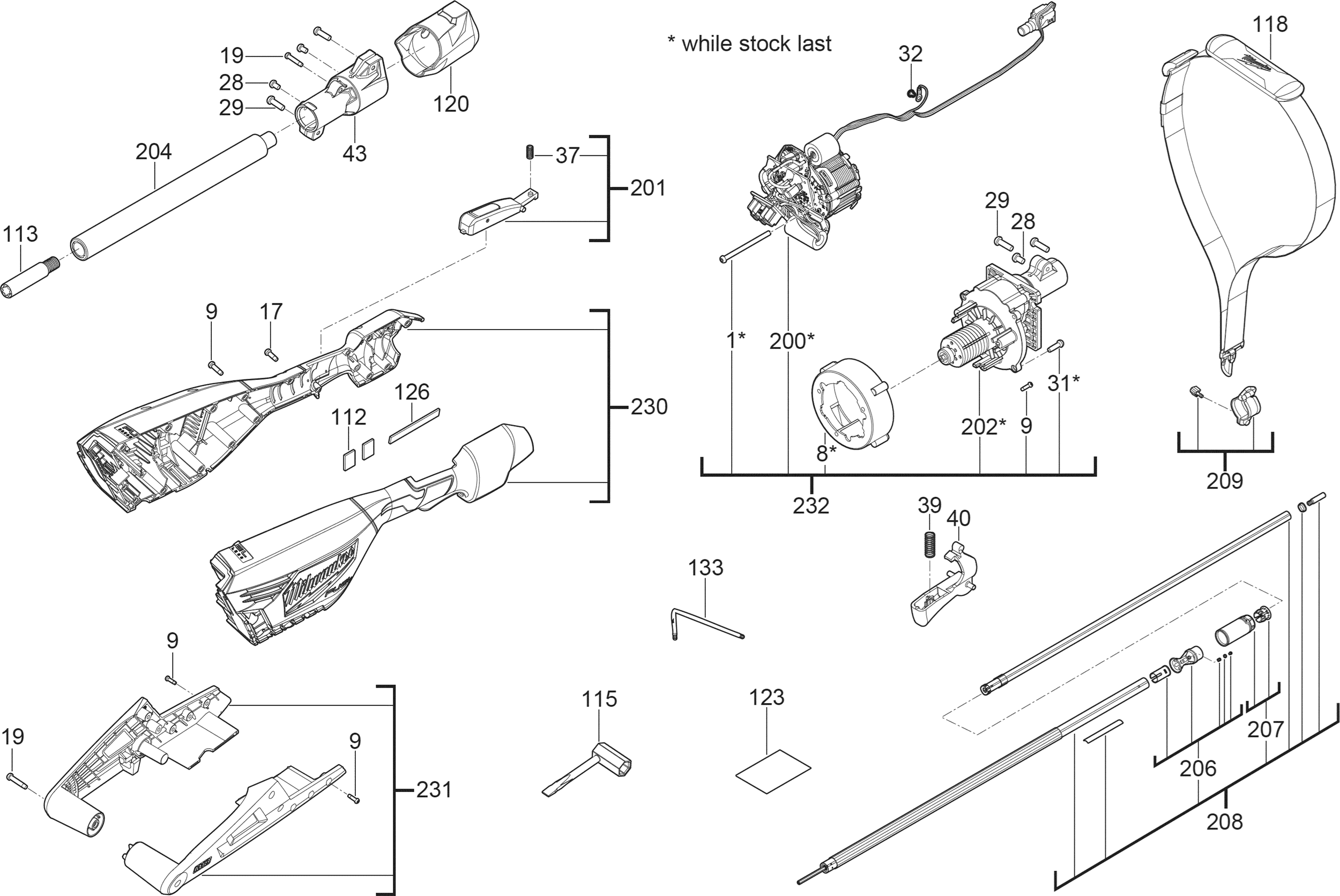

Technical drawing of model Milwaukee 4000497841 ( M18FTPS30-0 )
Spare parts list of model Milwaukee 4000497841 ( M18FTPS30-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (3 needed) | ||||
| 0001 | 4931494451 | 3.00 | 3.63 | |
| MOTOR COVER | ||||
| 0008 | 4931496228 | 3.60 | 4.36 | |
| SCREW (15 needed) | ||||
| 0009 | 4931465326 | 3.60 | 4.36 | |
| SCREW (15 needed) | ||||
| 0017 | 4931454800 | 3.60 | 4.36 | |
| SCREW (4 needed) | ||||
| 0019 | 4931473725 | 3.00 | 3.63 | |
| SCREW (2 needed) | ||||
| 0028 | 4931466677 | 1.80 | 2.18 | |
| SCREW (4 needed) | ||||
| 0029 | 4931496229 | 1.20 | 1.45 | |
| SCREW (4 needed) | ||||
| 0031 | 4931480770 | 3.00 | 3.63 | |
| SCREW | ||||
| 0032 | 4931453068 | 3.00 | 3.63 | |
| SPRING | ||||
| 0037 | 4931454803 | 3.00 | 3.63 | |
| SPRING | ||||
| 0039 | 4931454808 | 3.00 | 3.63 | |
| TRIGGER | ||||
| 0040 | 4931454801 | 5.40 | 6.53 | |
| CONNECTION SET | ||||
| 0043 | 4931496230 | 29.70 | 35.94 | |
| Saw Chain 30cm/12X0.325 X .1mm X 51L-1pc | ||||
| 0081 | 4932480177 | 31.79 | 38.47 | |
| Guide Bar 30cm/12 X0.325 X1.1mm - 1pc | ||||
| 0082 | 4932480171 | 53.79 | 65.09 | |
| SCABBARDS | ||||
| 0083 | 4931496231 | 7.20 | 8.71 | |
| FOAM RUBBER (2 needed) | ||||
| 0112 | 4931496232 | 1.20 | 1.45 | |
| ADAPTER | ||||
| 0113 | 4931496233 | 13.75 | 16.64 | |
| WRENCH | ||||
| 0115 | 4931465931 | 9.00 | 10.89 | |
| STRAP | ||||
| 0118 | 4931496234 | 22.55 | 27.29 | |
| COVER | ||||
| 0120 | 4931496235 | 6.60 | 7.99 | |
| RATING PLATE | ||||
| 0123 | 4931496236 | 1.20 | 1.45 | |
| FOAM | ||||
| 0126 | 4931496237 | 1.20 | 1.45 | |
| ALLEN KEY | ||||
| 0133 | 4931496238 | 4.20 | 5.08 | |
| ELECTRONIC | ||||
| 0200 | 4931496239 | 324.50 | 392.64 | |
| TRIGGER | ||||
| 0201 | 4931496240 | 17.05 | 20.63 | |
| GEAR CASE | ||||
| 0202 | 4931496241 | 154.00 | 186.34 | |
| CONNECTING SHAFT | ||||
| 0204 | 4931496242 | 68.75 | 83.19 | |
| BUSHING | ||||
| 0206 | 4931496243 | 20.35 | 24.62 | |
| COLLAR | ||||
| 0207 | 4931496244 | 22.00 | 26.62 | |
| TUBE | ||||
| 0208 | 4931496245 | 327.80 | 396.64 | |
| HOLDING BRACKET | ||||
| 0209 | 4931496246 | 24.20 | 29.28 | |
| CAP | ||||
| 0210 | 4931496247 | 19.25 | 23.29 | |
| COVER | ||||
| 0211 | 4931496248 | 25.30 | 30.61 | |
| SPRING | ||||
| 0212 | 4931496249 | 14.30 | 17.30 | |
| PUMP | ||||
| 0213 | 4931496250 | 18.70 | 22.63 | |
| TANK | ||||
| 0214 | 4931496251 | 31.90 | 38.60 | |
| TENSIONING DEVICE | ||||
| 0215 | 4931496252 | 36.30 | 43.92 | |
| GEAR CASE | ||||
| 0219 | 4931496253 | 145.20 | 175.69 | |
| HOUSING | ||||
| 0230 | 4931496254 | 29.15 | 35.27 | |
| GUARD | ||||
| 0231 | 4931496255 | 51.15 | 61.89 | |
| MOTOR ASSEMBLY | ||||
| 232 | 4931512162 | 337.70 | 408.62 | |
