Here you will find all available parts and drawings of the 'Milwaukee 4000503814 ( M18FTHCHS35-0 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

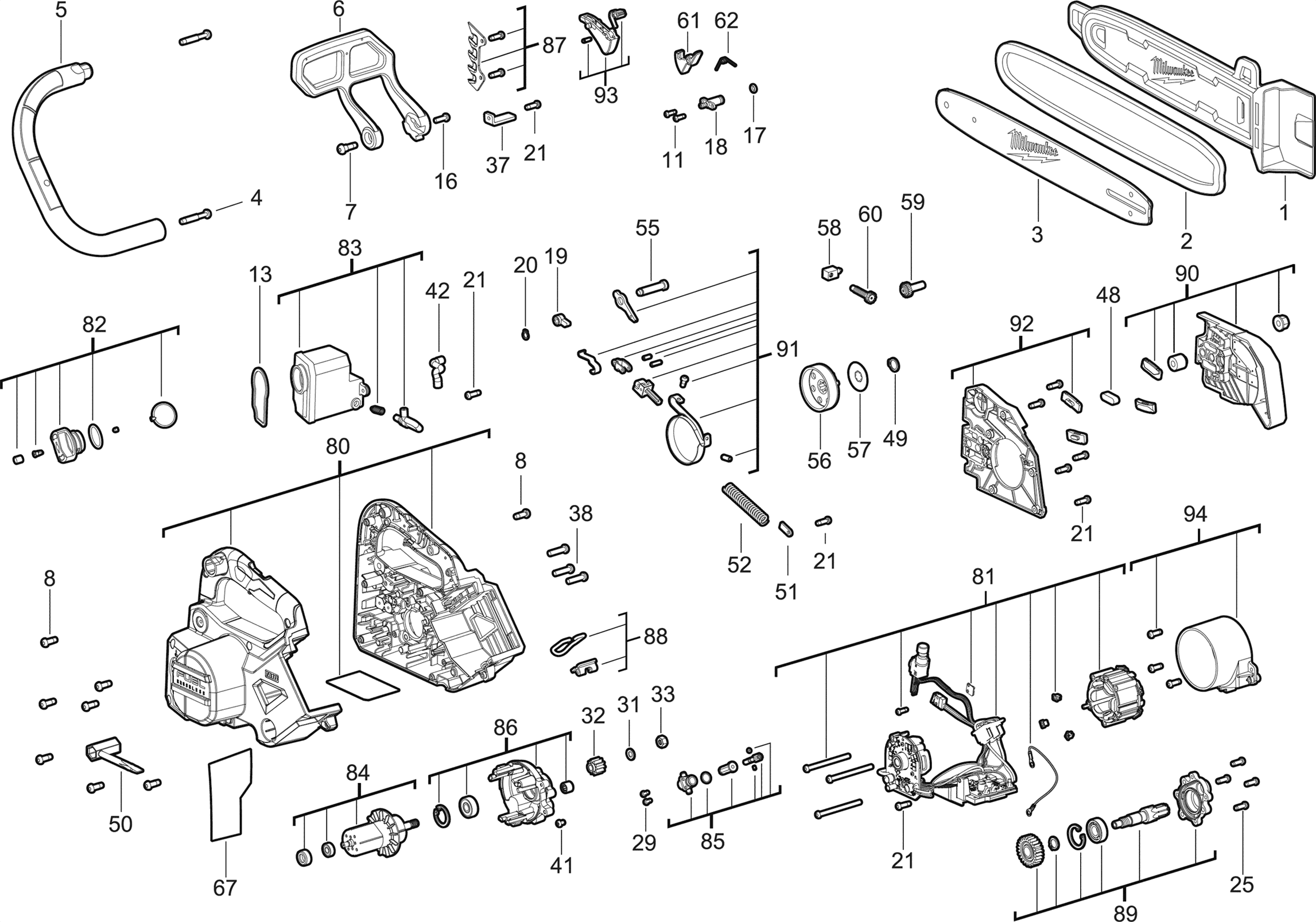

Technical drawing of model Milwaukee 4000503814 ( M18FTHCHS35-0 )
Spare parts list of model Milwaukee 4000503814 ( M18FTHCHS35-0 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SAFTY GUARD | ||||
| 0001 | 4931494769 | 13.20 | 15.97 | |
| Saw Chain 35cm/14X0.325 X1.1mm X 59L-1pc | ||||
| 0002 | 4932480178 | 38.39 | 46.45 | |
| Guide Bar 35cm/14 X 0.325 X 1.1mm-1pc | ||||
| 0003 | 4932480173 | 53.79 | 65.09 | |
| SCREW (4 needed) | ||||
| 0004 | 4931453127 | 3.60 | 4.36 | |
| HANDLE | ||||
| 0005 | 4931494739 | 10.80 | 13.07 | |
| OPERATING HANDLE | ||||
| 0006 | 4931507237 | 12.65 | 15.31 | |
| SCREW | ||||
| 0007 | 4931465908 | 3.00 | 3.63 | |
| SCREW (11 needed) | ||||
| 0008 | 4931465909 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0011 | 4931436686 | 3.60 | 4.36 | |
| GASKET | ||||
| 0013 | 4931494741 | 3.00 | 3.63 | |
| SCREW | ||||
| 0016 | 4931465913 | 3.00 | 3.63 | |
| O-RING | ||||
| 0017 | 4931465914 | 3.00 | 3.63 | |
| CONNECTOR | ||||
| 0018 | 4931465915 | 4.49 | 5.43 | |
| SWITCH | ||||
| 0019 | 4931465916 | 4.49 | 5.43 | |
| HOLDING RING | ||||
| 0020 | 4931465917 | 3.00 | 3.63 | |
| SCREW (14 needed) | ||||
| 0021 | 660024030 | 3.00 | 3.63 | |
| SCREW (27 needed) | ||||
| 0025 | 4931435150 | 3.60 | 4.36 | |
| SCREW (4 needed) | ||||
| 0029 | 4931435474 | 3.00 | 3.63 | |
| WASHER | ||||
| 0031 | 4931494742 | 3.00 | 3.63 | |
| PINION | ||||
| 0032 | 4931494743 | 13.20 | 15.97 | |
| NUT | ||||
| 0033 | 4931494744 | 3.60 | 4.36 | |
| CORE LIFTER RING | ||||
| 0037 | 4931465928 | 4.49 | 5.43 | |
| SCREW (3 needed) | ||||
| 0038 | 4931465929 | 3.00 | 3.63 | |
| SCREW | ||||
| 0041 | 4931494745 | 3.00 | 3.63 | |
| TUBE | ||||
| 0042 | 4931494746 | 3.60 | 4.36 | |
| PAD | ||||
| 0048 | 4931494747 | 3.00 | 3.63 | |
| SNAP RING (2 needed) | ||||
| 0049 | 4931472833 | 1.90 | 2.30 | |
| WRENCH | ||||
| 0050 | 4931465931 | 9.00 | 10.89 | |
| RETAINING PLATE | ||||
| 0051 | 4931465940 | 3.00 | 3.63 | |
| SPRING | ||||
| 0052 | 4931465941 | 3.60 | 4.36 | |
| BOLT | ||||
| 0055 | 4931465944 | 7.20 | 8.71 | |
| CLUTCH DISC | ||||
| 0056 | 4931494748 | 14.30 | 17.30 | |
| WASHER | ||||
| 0057 | 4931494749 | 3.00 | 3.63 | |
| CROSS BRACKET | ||||
| 0058 | 4931494750 | 9.60 | 11.62 | |
| SCREW | ||||
| 0059 | 4931465949 | 12.60 | 15.25 | |
| CROSS BRACKET | ||||
| 0060 | 4931494751 | 11.00 | 13.31 | |
| LEVER | ||||
| 0061 | 4931494752 | 3.00 | 3.63 | |
| SPRING | ||||
| 0062 | 4931494753 | 3.00 | 3.63 | |
| RATING PLATE | ||||
| 0067 | 4931507244 | 1.20 | 1.45 | |
| HOUSING | ||||
| 0080 | 4931507239 | 60.50 | 73.20 | |
| STATOR | ||||
| 0081 | 4931507240 | 227.70 | 275.52 | |
| COVER CAP | ||||
| 0082 | 4931473747 | 10.80 | 13.07 | |
| TANK | ||||
| 0083 | 4931494757 | 20.90 | 25.29 | |
| ROTOR | ||||
| 0084 | 4931494758 | 79.75 | 96.50 | |
| OIL PUMP | ||||
| 0085 | 4931494759 | 30.25 | 36.60 | |
| GEAR CASE | ||||
| 0086 | 4931494760 | 39.60 | 47.92 | |
| SPIKE | ||||
| 0087 | 4931507241 | 10.80 | 13.07 | |
| HOOK | ||||
| 0088 | 4931494762 | 8.40 | 10.16 | |
| COVER ASSY | ||||
| 0089 | 4931494763 | 53.90 | 65.22 | |
| GUIDE KIT | ||||
| 0090 | 4931507242 | 26.40 | 31.94 | |
| BRAKE DISC | ||||
| 0091 | 4931507243 | 23.10 | 27.95 | |
| COVER | ||||
| 0092 | 4931494766 | 14.30 | 17.30 | |
| GUARD CAP SET | ||||
| 0093 | 4931494767 | 11.00 | 13.31 | |
| MOTOR COVER | ||||
| 0094 | 4931494768 | 9.60 | 11.62 | |
