Here you will find all available parts and drawings of the 'Milwaukee 4000497381 ( M18FR12-0P )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

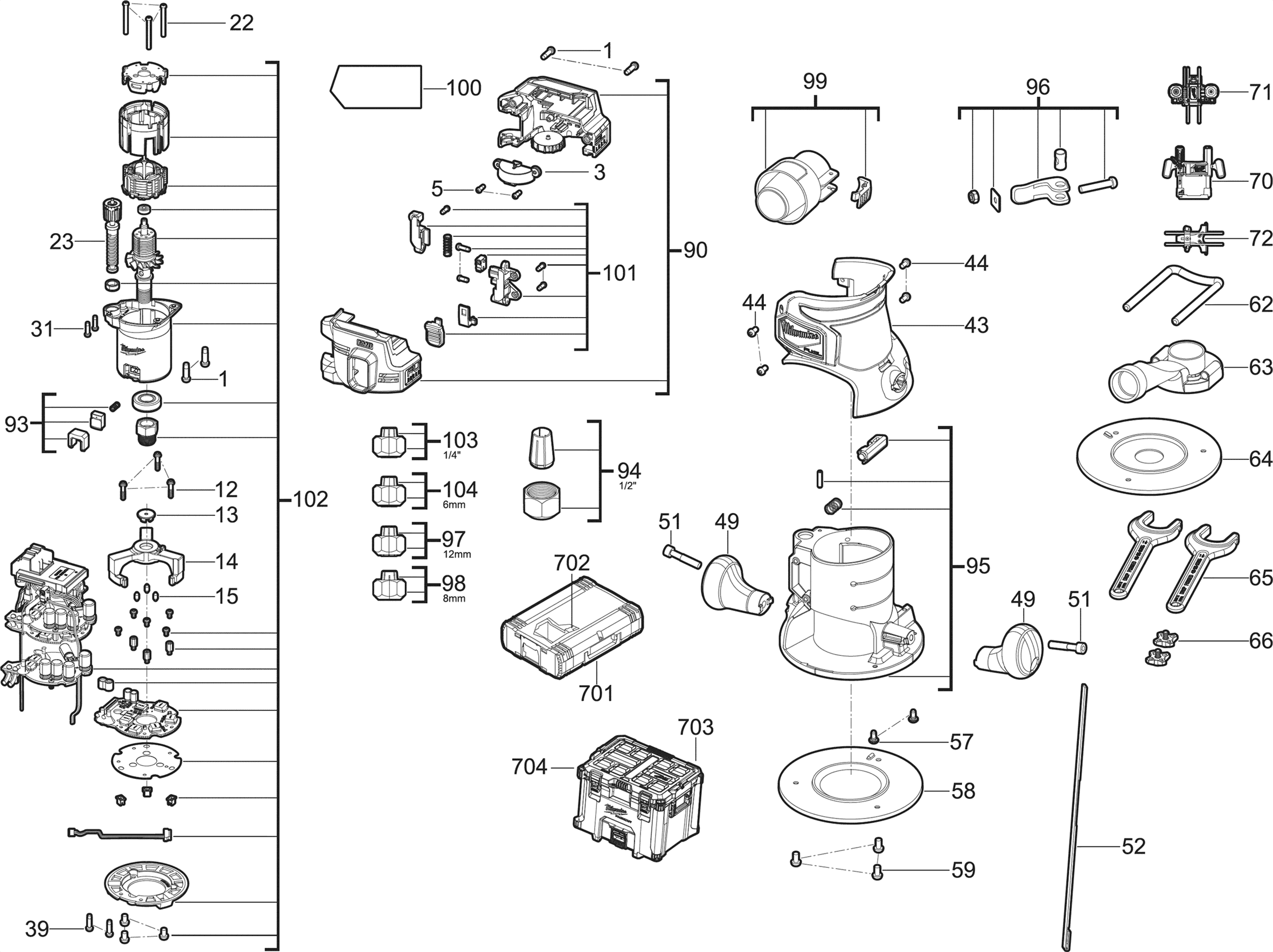

Technical drawing of model Milwaukee 4000497381 ( M18FR12-0P )
Spare parts list of model Milwaukee 4000497381 ( M18FR12-0P )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW (4 needed) | ||||
| 0001 | 4931495662 | 1.80 | 2.18 | |
| COVER | ||||
| 0003 | 4931495663 | 3.00 | 3.63 | |
| SCREW (3 needed) | ||||
| 0012 | 4931495664 | 1.20 | 1.45 | |
| COVER | ||||
| 0013 | 4931495665 | 1.20 | 1.45 | |
| HOLDER | ||||
| 0014 | 4931495666 | 47.30 | 57.23 | |
| RUBBER SLEEVE (3 needed) | ||||
| 0015 | 4931495667 | 1.20 | 1.45 | |
| SCREW (4 needed) | ||||
| 0022 | 4931436424 | 3.00 | 3.63 | |
| ADJUSTABLE SEGMENT | ||||
| 0023 | 4931495668 | 31.90 | 38.60 | |
| SCREW (4 needed) | ||||
| 0031 | 4931453124 | 3.60 | 4.36 | |
| SCREW (35 needed) | ||||
| 0039 | 660570005 | 3.60 | 4.36 | |
| HOUSING CAP | ||||
| 0043 | 4931495669 | 12.10 | 14.64 | |
| SCREW (4 needed) | ||||
| 0044 | 4931472686 | 1.80 | 2.18 | |
| KNOB HANDLE (2 needed) | ||||
| 0049 | 4931495670 | 7.80 | 9.44 | |
| SCREW (4 needed) | ||||
| 0051 | 4931480449 | 3.00 | 3.63 | |
| STRAP | ||||
| 0052 | 4931495671 | 5.40 | 6.53 | |
| THREADED PIN (2 needed) | ||||
| 0057 | 4931495672 | 1.20 | 1.45 | |
| BASE PLATE | ||||
| 0058 | 4931495673 | 12.65 | 15.31 | |
| SCREW | ||||
| 0059 | 4931466691 | 1.80 | 2.18 | |
| YOKE | ||||
| 0062 | 4931472664 | 7.20 | 8.71 | |
| DUST EXTRACTION | ||||
| 0063 | 4931495674 | 9.60 | 11.62 | |
| BASE PLATE | ||||
| 0064 | 4931495675 | 12.10 | 14.64 | |
| WRENCH (2 needed) | ||||
| 0065 | 4931495676 | 9.60 | 11.62 | |
| TURNING KNOB (2 needed) | ||||
| 0066 | 4931495677 | 3.00 | 3.63 | |
| 12mm Router Plunge Base | ||||
| 0070 | 4932493307 | 157.19 | 190.20 | |
| Router Guide rail Adaptor | ||||
| 0071 | 4932493306 | 112.09 | 135.63 | |
| GUIDE | ||||
| 0072 | 4931495678 | 42.90 | 51.91 | |
| HOUSING | ||||
| 0090 | 4931495679 | 15.40 | 18.63 | |
| SPINDLE LOCK | ||||
| 0093 | 4931495680 | 11.00 | 13.31 | |
| 12.5MM COLLET for M18 FR12 | ||||
| 0094 | 4932493916 | 39.88 | 48.25 | |
| HOUSING BOTTOM | ||||
| 0095 | 4931495681 | 69.30 | 83.85 | |
| LOCK RELEASE KIT | ||||
| 0096 | 4931495682 | 13.20 | 15.97 | |
| 12MM COLLET for M18 FR12 | ||||
| 0097 | 4932493915 | 39.88 | 48.25 | |
| 8MM COLLET for M18 FR12 | ||||
| 0098 | 4932493914 | 39.88 | 48.25 | |
| DUST EXTR.CONNECTOR | ||||
| 0099 | 4931494106 | 13.20 | 15.97 | |
| LABEL | ||||
| 0100 | 4931495683 | 1.20 | 1.45 | |
| SWITCH | ||||
| 0101 | 4931495684 | 25.85 | 31.28 | |
| ELECTRONIC | ||||
| 0102 | 4931495685 | 298.10 | 360.70 | |
| 6.35MM COLLET for M18 FR12 | ||||
| 0103 | 4932493913 | 39.88 | 48.25 | |
| 6MM COLLET for M18 FR12 | ||||
| 0104 | 4932493912 | 39.88 | 48.25 | |
| HD Box 3 - 1pc | ||||
| 0701 | 4932453386 | 66.79 | 80.82 | |
| INSERT | ||||
| 0702 | 4931495686 | 19.80 | 23.96 | |
| PACKOUT XL TOOL BOX XXX | ||||
| 0703 | 4932501784 | 175.89 | 212.83 | |
| INSERT | ||||
| 0704 | 4931495687 | 26.40 | 31.94 | |
