Here you will find all available parts and drawings of the 'Milwaukee 4000483592 ( M18FPS55-0P )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

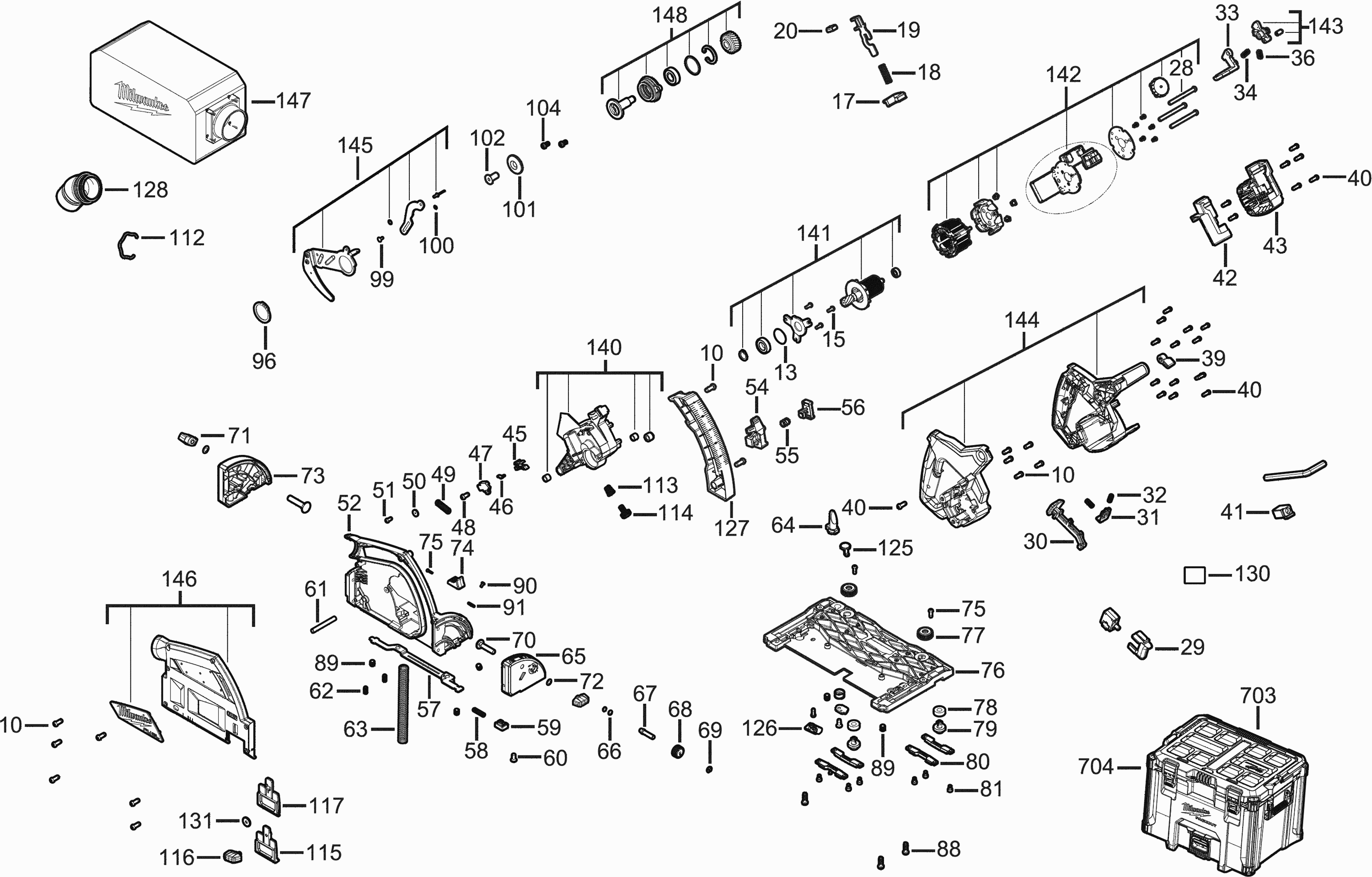

Technical drawing of model Milwaukee 4000483592 ( M18FPS55-0P )
Spare parts list of model Milwaukee 4000483592 ( M18FPS55-0P )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| LOCKING SCREW (2 needed) | ||||
| 0015 | 4931465672 | 1.90 | 2.30 | |
| SPINDLE LOCK | ||||
| 0019 | 4931494121 | 3.78 | 4.57 | |
| ADJUSTING LOCK | ||||
| 0031 | 4931494125 | 1.26 | 1.52 | |
| SPRING (2 needed) | ||||
| 0032 | 4931494126 | 1.26 | 1.52 | |
| SCREW (23 needed) | ||||
| 0040 | 660031017 | 1.90 | 2.30 | |
| MOTOR COVER | ||||
| 0043 | 4931494133 | 5.04 | 6.10 | |
| SPRING PLATE | ||||
| 0046 | 4931452341 | 1.90 | 2.30 | |
| REBATE DEPTH GAUGE | ||||
| 0054 | 4931494139 | 3.16 | 3.82 | |
| PUSH BUTTON | ||||
| 0056 | 4931494141 | 1.26 | 1.52 | |
| ROCKER ARM | ||||
| 0057 | 4931494142 | 6.30 | 7.62 | |
| HINGE PIECE | ||||
| 0065 | 4931494150 | 7.56 | 9.15 | |
| TRIGGER (2 needed) | ||||
| 0071 | 4931436114 | 5.40 | 6.53 | |
| WASHER (2 needed) | ||||
| 0072 | 4931494155 | 1.26 | 1.52 | |
| HINGE PIECE | ||||
| 0073 | 4931494156 | 3.78 | 4.57 | |
| BASE PLATE | ||||
| 0076 | 4931494158 | 65.84 | 79.67 | |
| WASHER (2 needed) | ||||
| 0078 | 4931494160 | 3.16 | 3.82 | |
| RETAINING RING | ||||
| 0096 | 4931494166 | 1.26 | 1.52 | |
| RATING PLATE | ||||
| 0130 | 4931494181 | 1.26 | 1.52 | |
| ELECTRONIC | ||||
| 0142 | 4931494184 | 272.58 | 329.82 | |
| COVER ASSY | ||||
| 0146 | 4931494188 | 82.00 | 99.22 | |
| NO DESCRIPTION | ||||
| 0703 | 4932478162 | 175.23 | 212.03 | |
