Here you will find all available parts and drawings of the 'Milwaukee 4000477865 (M18FMT-0X)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

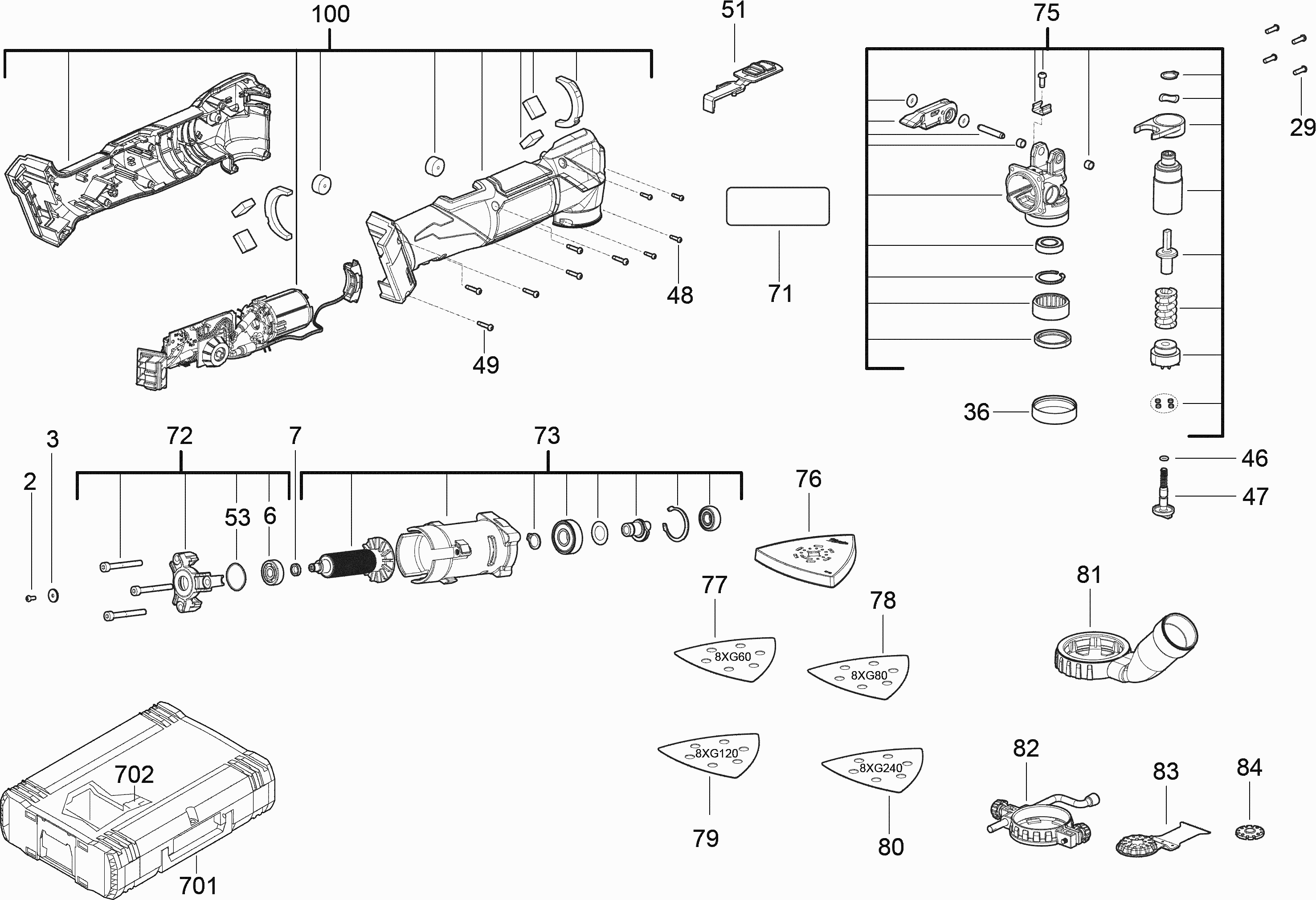

Technical drawing of model Milwaukee 4000477865 (M18FMT-0X)
Spare parts list of model Milwaukee 4000477865 (M18FMT-0X)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW | ||||
| 0002 | 4931465506 | 3.00 | 3.63 | |
| WASHER | ||||
| 0003 | 4931473916 | 3.00 | 3.63 | |
| BALL BEARING | ||||
| 0006 | 4931473917 | 4.54 | 5.49 | |
| BUSH | ||||
| 0007 | 4931473918 | 3.00 | 3.63 | |
| SCREW (4 needed) | ||||
| 0029 | 4931465883 | 3.00 | 3.63 | |
| RUBBER SLEEVE | ||||
| 0036 | 4931473919 | 4.54 | 5.49 | |
| O-RING | ||||
| 0046 | 4931473392 | 3.00 | 3.63 | |
| FASTENING BOLT | ||||
| 0047 | 4931473393 | 13.18 | 15.95 | |
| SCREW | ||||
| 0048 | 4931447534 | 3.00 | 3.63 | |
| SCREW (35 needed) | ||||
| 0049 | 660570005 | 3.60 | 4.36 | |
| SLIDE | ||||
| 0051 | 4931473920 | 4.20 | 5.08 | |
| O-RING | ||||
| 0053 | 4931473921 | 3.00 | 3.63 | |
| RATING PLATE | ||||
| 0071 | 4931473923 | 3.00 | 3.63 | |
| MOTOR PLATE | ||||
| 0072 | 4931473924 | 19.70 | 23.84 | |
| MOTOR ASSEMBLY | ||||
| 0073 | 4931473925 | 103.55 | 125.30 | |
| GEAR CASE | ||||
| 0075 | 4931473927 | 97.90 | 118.46 | |
| GRINDING DISK | ||||
| 0076 | 4931447574 | 16.20 | 19.60 | |
| Sand Paper D HL 93x93/6 G60-8pc | ||||
| 0077 | 48902060 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 0078 | 48902080 | |||
| Sand Paper D HL 93x93/6 G120-8pc | ||||
| 0079 | 48902120 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 0080 | 48902240 | |||
| DUST EXTR.CONNECTOR | ||||
| 0081 | 4931473396 | 9.60 | 11.62 | |
| DEPTH GAUGE | ||||
| 0082 | 4931473397 | 14.30 | 17.30 | |
| BLADE | ||||
| 0083 | 4931473395 | 17.05 | 20.63 | |
| ADAPTER DISC | ||||
| 0084 | 4931473394 | 6.82 | 8.25 | |
| SET POWERPACK | ||||
| 0100 | 4931483512 | 95.70 | 115.80 | |
| HD Box 1 - 1pc | ||||
| 0701 | 4932453385 | 57.96 | 70.13 | |
| INSERT | ||||
| 0702 | 4931473928 | 12.10 | 14.64 | |
